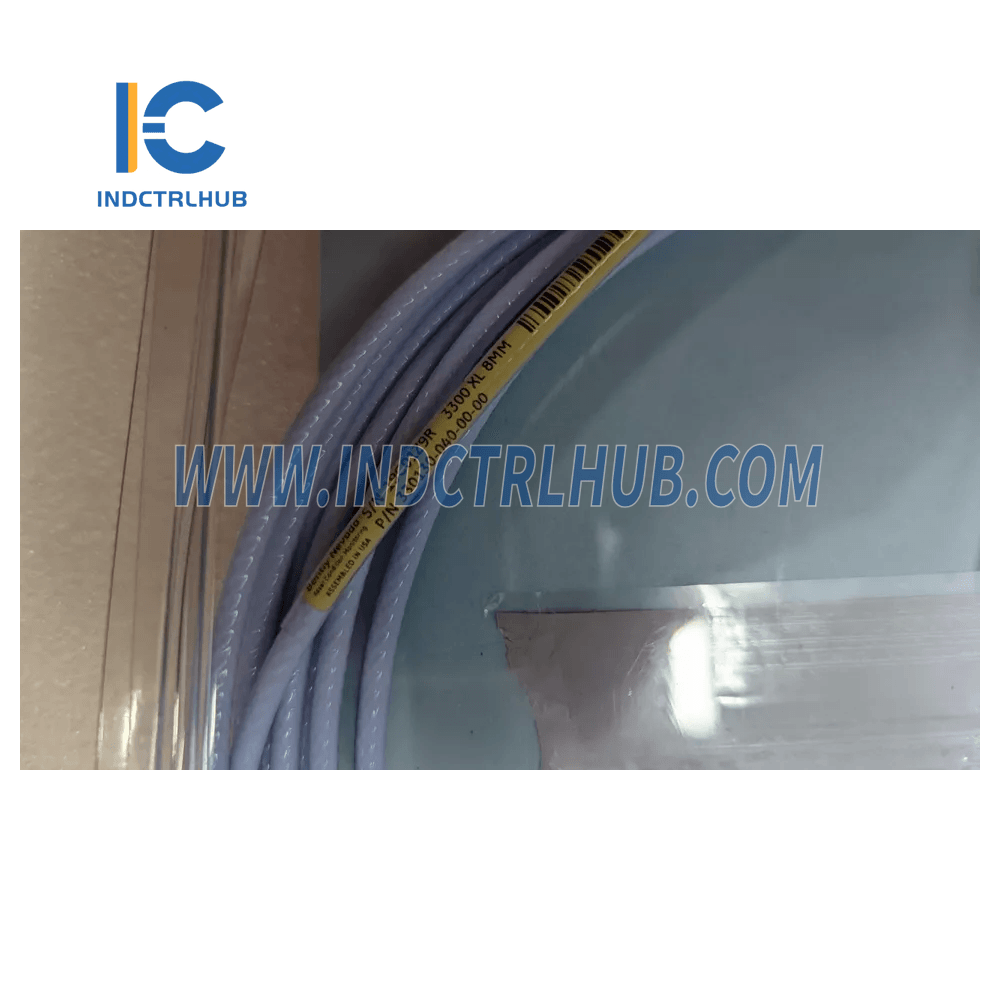

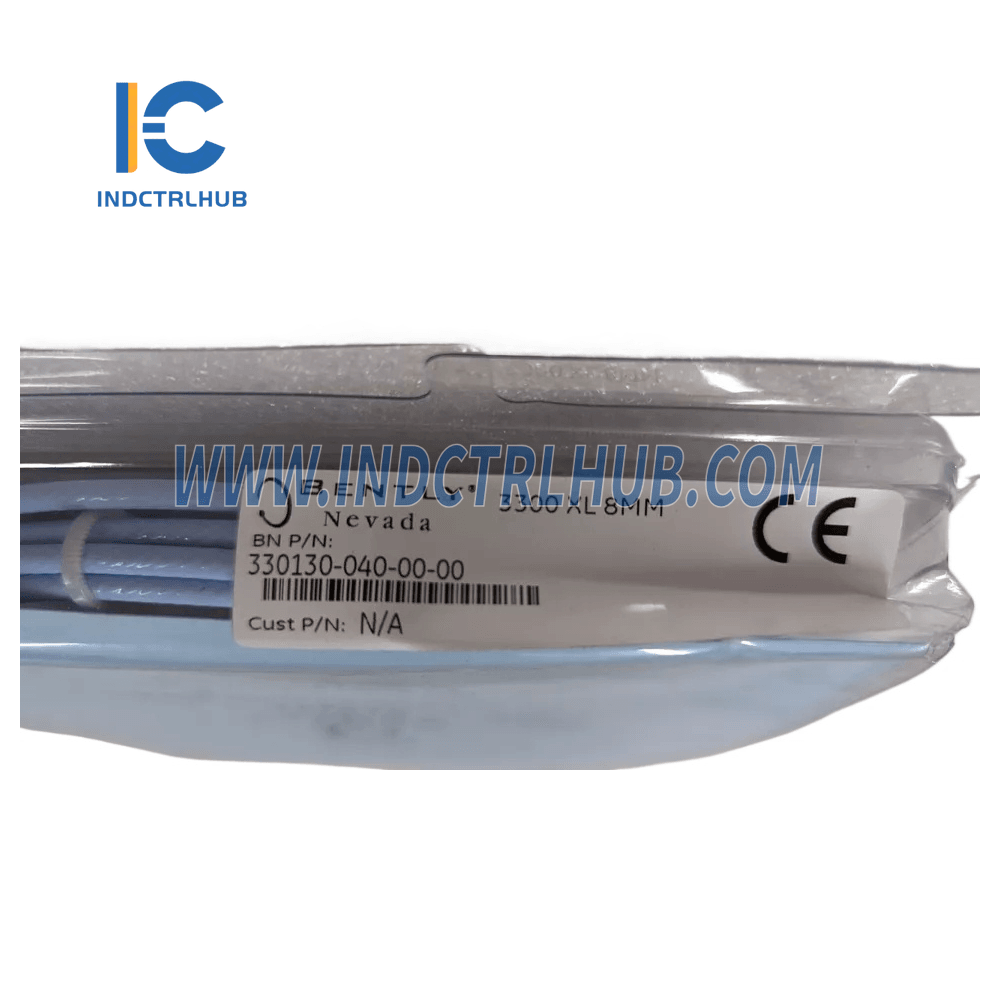

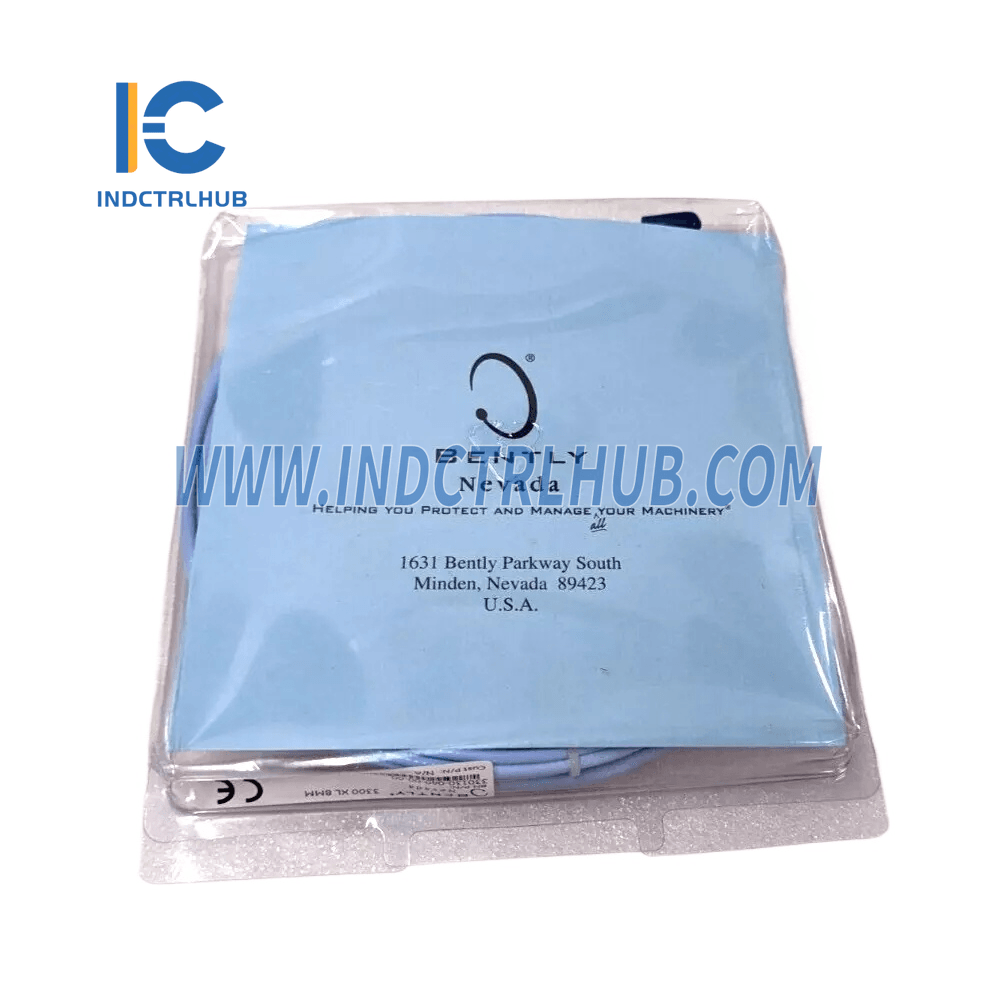

Bently Nevada 330130-045-00-00 3300 XL Standard Extension Cable

Bently Nevada 330130-045-00-00 3300 XL Standard Extension Cable

  • Manufacturer: Bently Nevada

  • Product No.: 330130-045-00-00

  • Condition:1000 in stock

  • Product Type: 3300 XL Standard Extension Cable

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details: Bently Nevada 330130-045-00-00 3300 XL Standard Extension Cable


General Information

  • Manufacturer: Bently Nevada
  • Model/Part Number: 330130-045-00-00
  • Description:
    • 3300 XL Standard Extension Cable for proximity probes.
    • Incorporates patented TipLoc and CableLoc technologies for enhanced durability.
    • Optional FluidLoc cable option prevents oil and liquid leakage.

Specifications

Parameter Details
Extension Cable Material Standard Cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
Extended Temperature Range Cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
Cable Length Options (A) 030: 3.0 m (9.8 ft)
035: 3.5 m (11.5 ft)
045: 4.5 m (14.8 ft)
060: 6.0 m (19.7 ft)
070: 7.0 m (22.9 ft)
075: 7.5 m (24.6 ft)
080: 8.0 m (26.2 ft)
085: 8.5 m (27.9 ft)
Connector and Cable Option (B) 00: Standard cable
01: Armored cable
02: Standard cable with connector protector
03: Armored cable with connector protector
10: FluidLoc cable
11: Armored FluidLoc cable
12: FluidLoc cable with connector protector
13: Armored FluidLoc cable with connector protector
Agency Approval (C) 00: No approvals
05: CSA, ATEX, IECEx approvals

Performance and System Weight

Component Weight
Probe 323 g/m (11.4 oz)
Extension Cable 34 g/m (0.4 oz/ft)
Armored Extension Cable 103 g/m (1.5 oz/ft)
Proximitor Sensor 246 g (8.67 oz)
Total System Weight 0.7 kg (1.5 lb)

Environmental Limits

Component Operating Temperature Storage Temperature
Standard Probe -52°C to +177°C (-62°F to +350°F) -52°C to +177°C (-62°F to +350°F)
Extended Temp Probe (Tip) -52°C to +218°C (-62°F to +425°F) -52°C to +218°C (-62°F to +425°F)
Extended Temp Probe (Cable) -52°C to +260°C (-62°F to +500°F) -52°C to +260°C (-62°F to +500°F)
  • Minimum Cable Bend Radius: 25.4 mm (1.0 inch)

Notes

  • Ensure that the probe length and extension cable length combined equal the total length required for the Proximitor Sensor system.
  • Designed to operate with systems that consist solely of 3300 XL 8 mm components.
  • System accuracy may vary if used with a target other than AISI 4140 steel.
View full details

Product Description

Product Details: Bently Nevada 330130-045-00-00 3300 XL Standard Extension Cable


General Information

  • Manufacturer: Bently Nevada
  • Model/Part Number: 330130-045-00-00
  • Description:
    • 3300 XL Standard Extension Cable for proximity probes.
    • Incorporates patented TipLoc and CableLoc technologies for enhanced durability.
    • Optional FluidLoc cable option prevents oil and liquid leakage.

Specifications

Parameter Details
Extension Cable Material Standard Cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
Extended Temperature Range Cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
Cable Length Options (A) 030: 3.0 m (9.8 ft)
035: 3.5 m (11.5 ft)
045: 4.5 m (14.8 ft)
060: 6.0 m (19.7 ft)
070: 7.0 m (22.9 ft)
075: 7.5 m (24.6 ft)
080: 8.0 m (26.2 ft)
085: 8.5 m (27.9 ft)
Connector and Cable Option (B) 00: Standard cable
01: Armored cable
02: Standard cable with connector protector
03: Armored cable with connector protector
10: FluidLoc cable
11: Armored FluidLoc cable
12: FluidLoc cable with connector protector
13: Armored FluidLoc cable with connector protector
Agency Approval (C) 00: No approvals
05: CSA, ATEX, IECEx approvals

Performance and System Weight

Component Weight
Probe 323 g/m (11.4 oz)
Extension Cable 34 g/m (0.4 oz/ft)
Armored Extension Cable 103 g/m (1.5 oz/ft)
Proximitor Sensor 246 g (8.67 oz)
Total System Weight 0.7 kg (1.5 lb)

Environmental Limits

Component Operating Temperature Storage Temperature
Standard Probe -52°C to +177°C (-62°F to +350°F) -52°C to +177°C (-62°F to +350°F)
Extended Temp Probe (Tip) -52°C to +218°C (-62°F to +425°F) -52°C to +218°C (-62°F to +425°F)
Extended Temp Probe (Cable) -52°C to +260°C (-62°F to +500°F) -52°C to +260°C (-62°F to +500°F)
  • Minimum Cable Bend Radius: 25.4 mm (1.0 inch)

Notes

  • Ensure that the probe length and extension cable length combined equal the total length required for the Proximitor Sensor system.
  • Designed to operate with systems that consist solely of 3300 XL 8 mm components.
  • System accuracy may vary if used with a target other than AISI 4140 steel.
