Product Description
Product Details
-
Manufacturer: Bently Nevada
-
Model/Part Number: 330130-040-03-CN
-

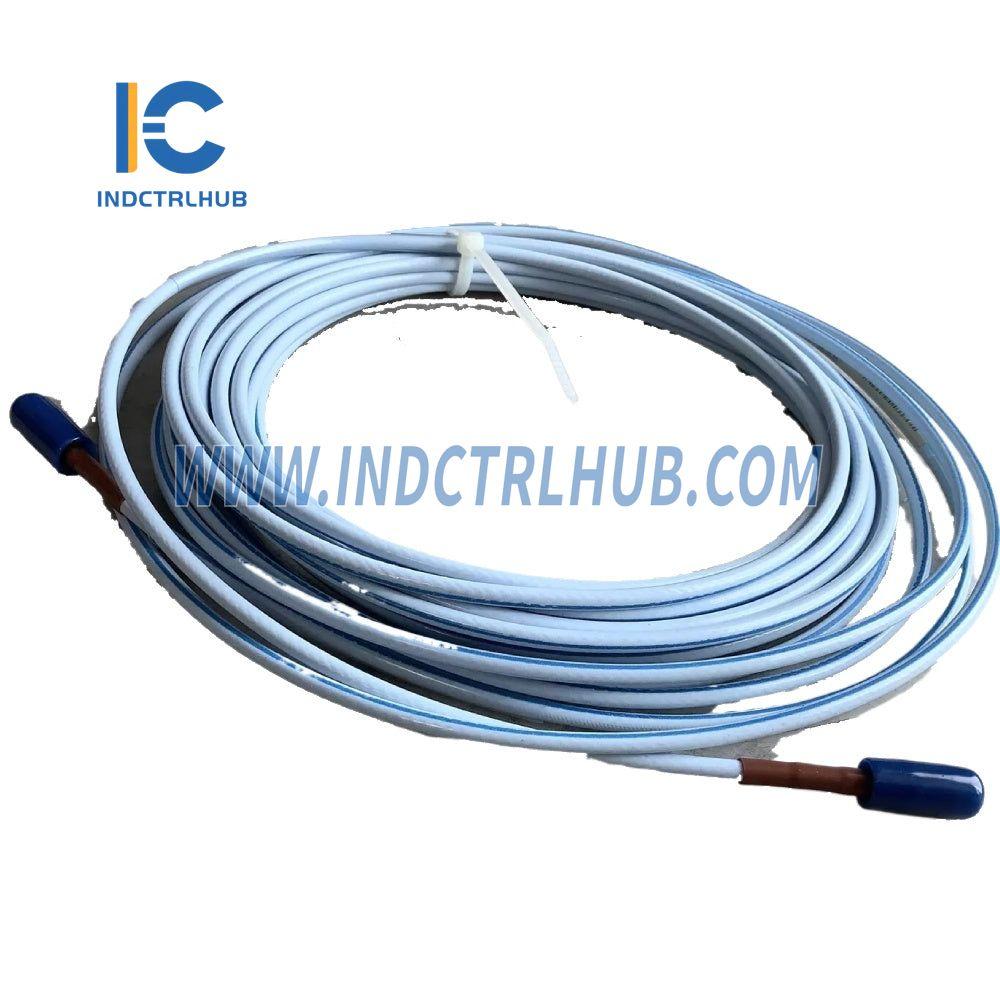

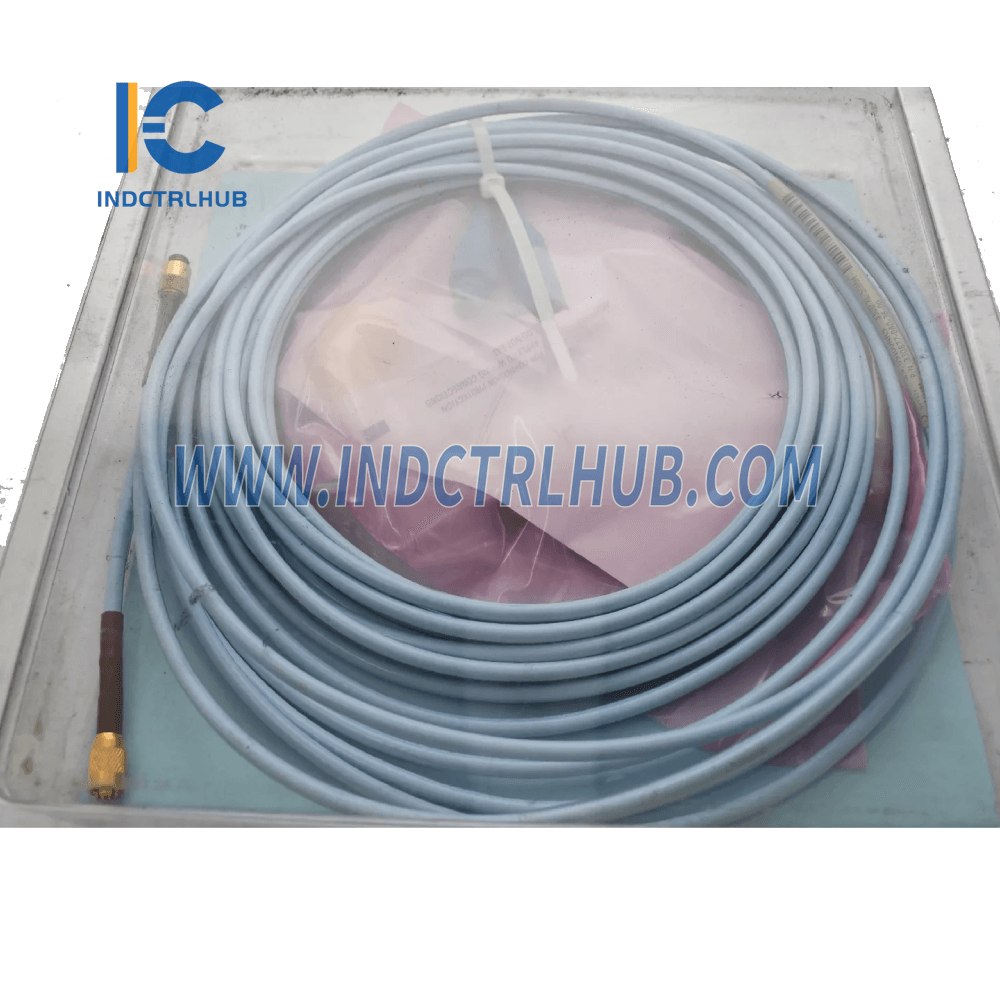

Description: 3300 XL Standard Extension Cable
Overview
The 3300 XL Standard Extension Cable is part of the 3300 XL series designed for proximity measurement systems. It features enhanced durability, improved tip-to-body bonding using TipLoc, and CableLoc technology for secure attachment. Optional FluidLoc technology prevents liquid leakage through the cable.
Key Features
-
TipLoc Technology: Ensures robust bonding between probe tip and body.
-
CableLoc Technology: Provides a secure cable connection with 330 N (75 lbf) pull strength.
-
FluidLoc Option: Prevents oil or liquid leakage through the cable interior.
-
Material:
- Standard: Fluoroethylene propylene (FEP) insulated cable.
- Extended Temperature Range: Perfluoroalkoxy (PFA) insulated cable.
-
Bend Radius: Minimum bend radius of 25.4 mm (1 inch).
Specifications
Cable Length Options (A)
| Code |
Length |
| 030 |
3.0 meters (9.8 feet) |
| 035 |
3.5 meters (13.1 feet) |
| 040 |
4.0 meters (11.5 feet) |
| 045 |
4.5 meters (14.8 feet) |
| 060 |
6.0 meters (19.7 feet) |
| 070 |
7.0 meters (22.9 feet) |
| 075 |
7.5 meters (24.6 feet) |
| 080 |
8.0 meters (26.2 feet) |
| 085 |
8.5 meters (27.9 feet) |
Connector and Cable Options (B)
| Code |
Description |
| 00 |
Standard cable |
| 01 |
Armored cable |
| 02 |
Standard cable with connector protector |
| 03 |
Armored cable with connector protector |
| 10 |
FluidLoc cable |
| 11 |
Armored FluidLoc cable |
| 12 |
FluidLoc cable with connector protector |
| 13 |
Armored FluidLoc cable with connector protector |
Agency Approval Options (C)
| Code |
Description |
| 00 |
Not required |
| 05 |
CSA, ATEX, IECEx Approvals |
System Specifications
| Component |
Weight |
| Probe |
323 g/m (11.4 oz) |
| Extension Cable |
34 g/m (0.4 oz/ft) |
| Armored Cable |
103 g/m (1.5 oz/ft) |
| Proximitor Sensor |
246 g (8.67 oz) |
| Total System Weight |
0.7 kg (1.5 lb) |
Environmental Limits
| Component |
Operating Temperature |
Storage Temperature |
| Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
-52°C to +177°C (-62°F to +350°F) |
| Extended Range Probe |
-52°C to +218°C (-62°F to +425°F) (tip) |
-52°C to +218°C (-62°F to +425°F) (tip) |
