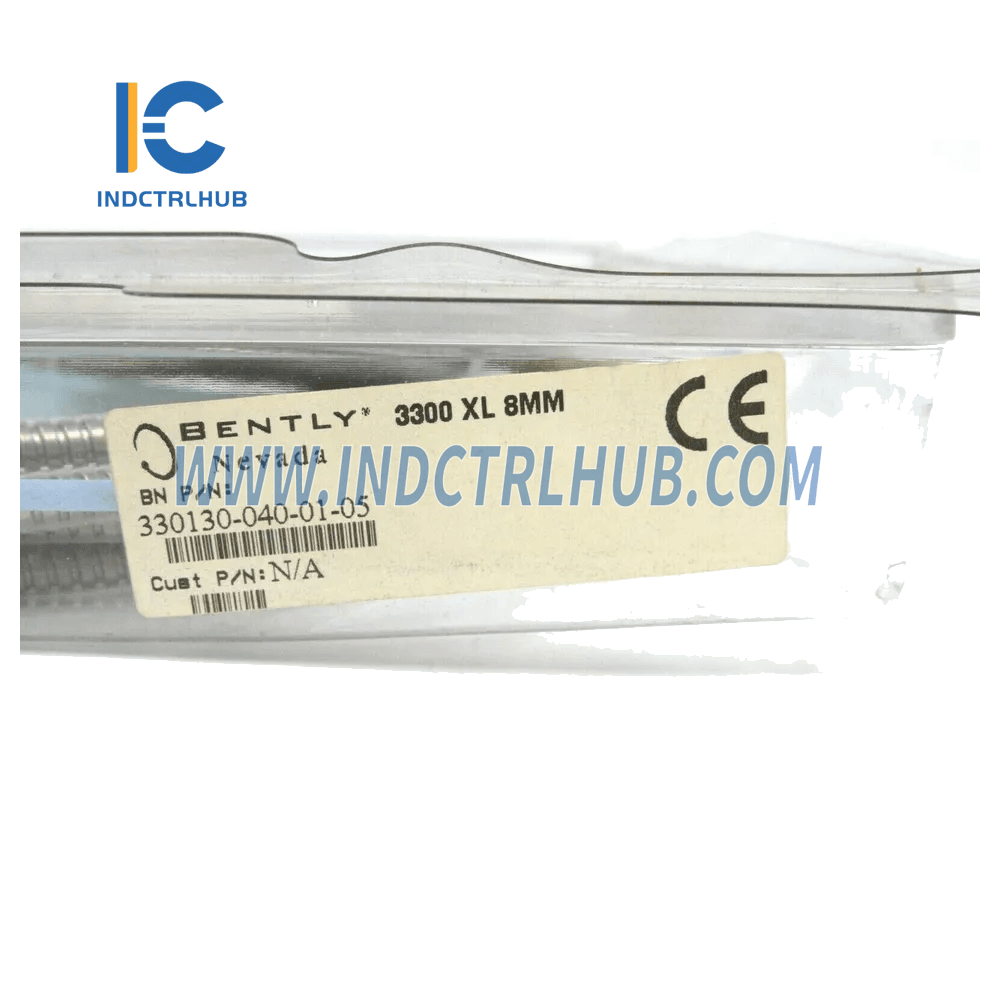

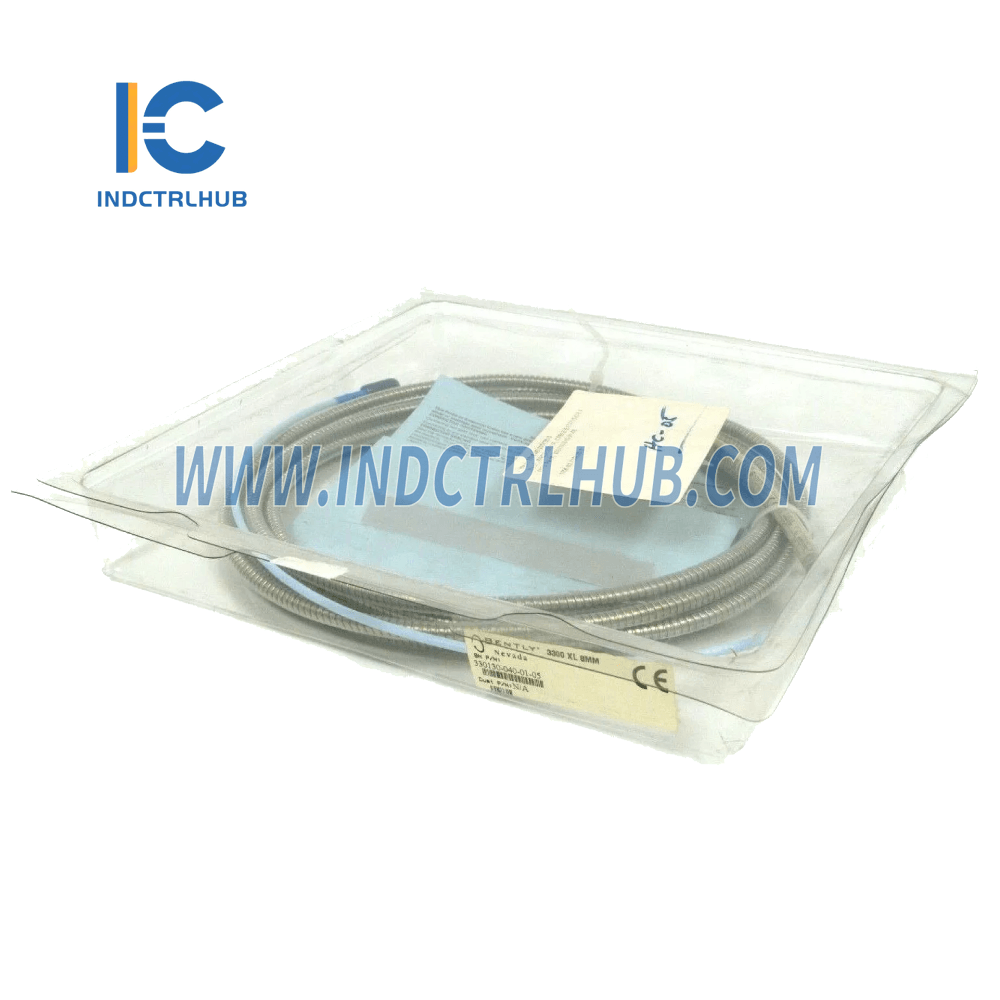

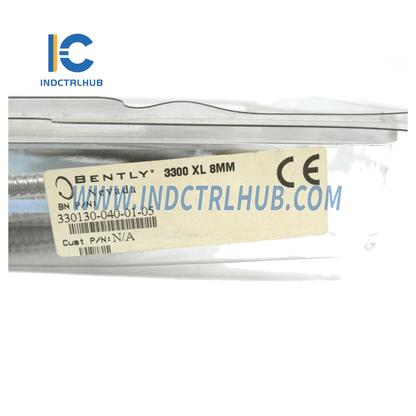

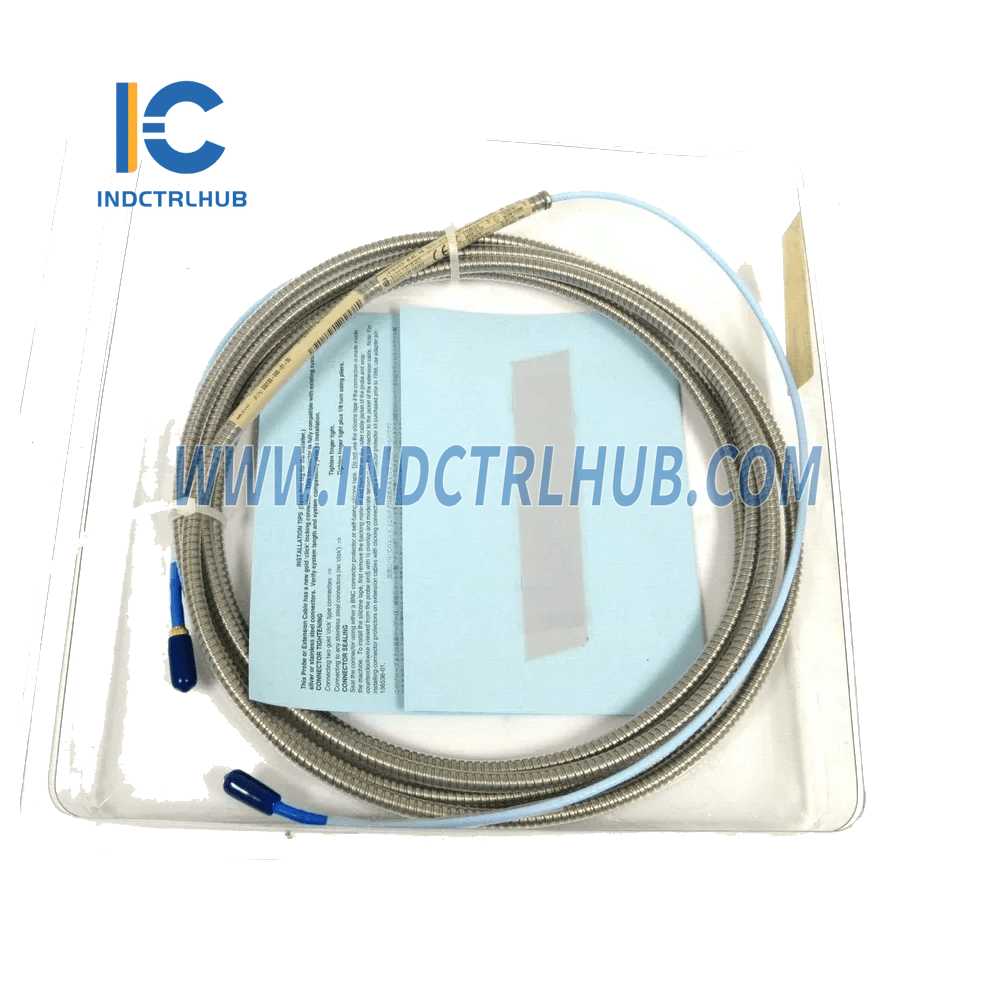

Bently Nevada 330130-040-01-05 3300 XL Standard Extension Cable

Bently Nevada 330130-040-01-05 3300 XL Standard Extension Cable

  • Manufacturer: Bently Nevada

  • Product No.: 330130-040-01-05

  • Condition:1000 in stock

  • Product Type: 3300 XL Standard Extension Cable

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 246g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3300
  • Model/Part Number: 330130-040-01-05
  • Model Type: 3300 XL Standard Extension Cable

Description

The 3300 XL 8 mm Proximity Transducer System is designed for accurate vibration and position measurements in fluid-film bearing machines. It consists of:

  • One 3300 XL 8 mm probe
  • One 3300 XL extension cable
  • One 3300 XL Proximitor Sensor

This system measures both static (position) and dynamic (vibration) values, providing an output voltage proportional to the distance between the probe tip and the conductive surface being monitored. The primary applications include:
Vibration and position monitoring for fluid-film bearing machines
Keyphasor reference and speed measurements


Environmental Limits

Component Operating & Storage Temperature
Standard Probe -52°C to +177°C (-62°F to +350°F)
Extended Temperature Probe -52°C to +218°C (-62°F to +425°F) (probe tip)
-51°C to +260°C (-60°F to +500°F) (probe cable & connector)

Ordering Information for Extension Cables

3300 XL Standard Extension Cable (Model: 330130-AAA-BB-CC)

A: Cable Length Options

Code Length
030 3.0 meters (9.8 feet)
035 3.5 meters (13.1 feet)
040 4.0 meters (11.5 feet)
045 4.5 meters (14.8 feet)
060 6.0 meters (19.7 feet)
070 7.0 meters (22.9 feet)
075 7.5 meters (24.6 feet)
080 8.0 meters (26.2 feet)
085 8.5 meters (27.9 feet)

B: Connector Protector & Cable Options

Code Cable Type
00 Standard cable
01 Armored cable
02 Standard cable with connector protector
03 Armored cable with connector protector
10 FluidLoc cable
11 Armored FluidLoc cable
12 FluidLoc cable with connector protector
13 Armored FluidLoc cable with connector protector

C: Agency Approval Options

Code Approval
00 Not required
05 CSA, ATEX, IECEx Approvals

Weight Information

Component Weight
Total System Weight (Typical) 0.7 kg (1.5 lb)
Probe 323 g/m (11.4 oz)
Extension Cable 34 g/m (0.4 oz/ft)
Armored Extension Cable 103 g/m (1.5 oz/ft)
Proximitor Sensor 246 g (8.67 oz)
