Product Description
Product Details
-
Manufacturer: Bently Nevada
-

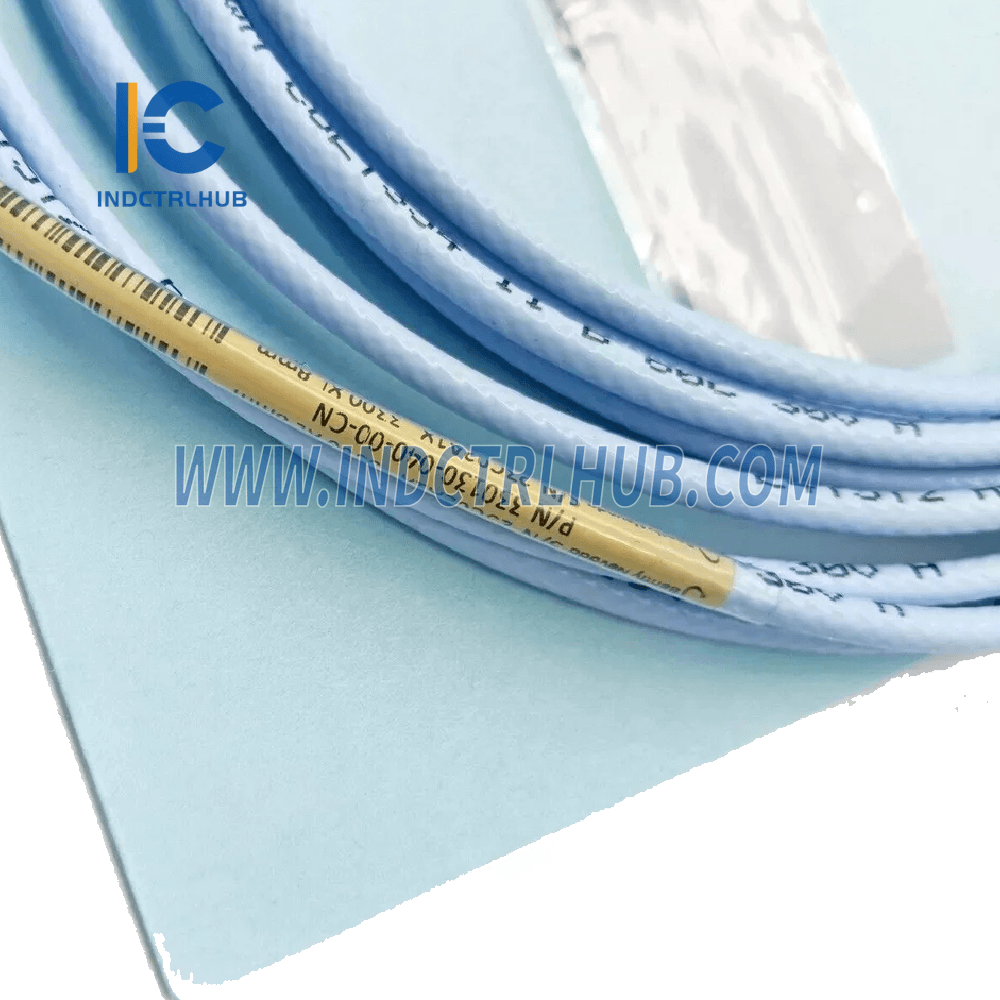

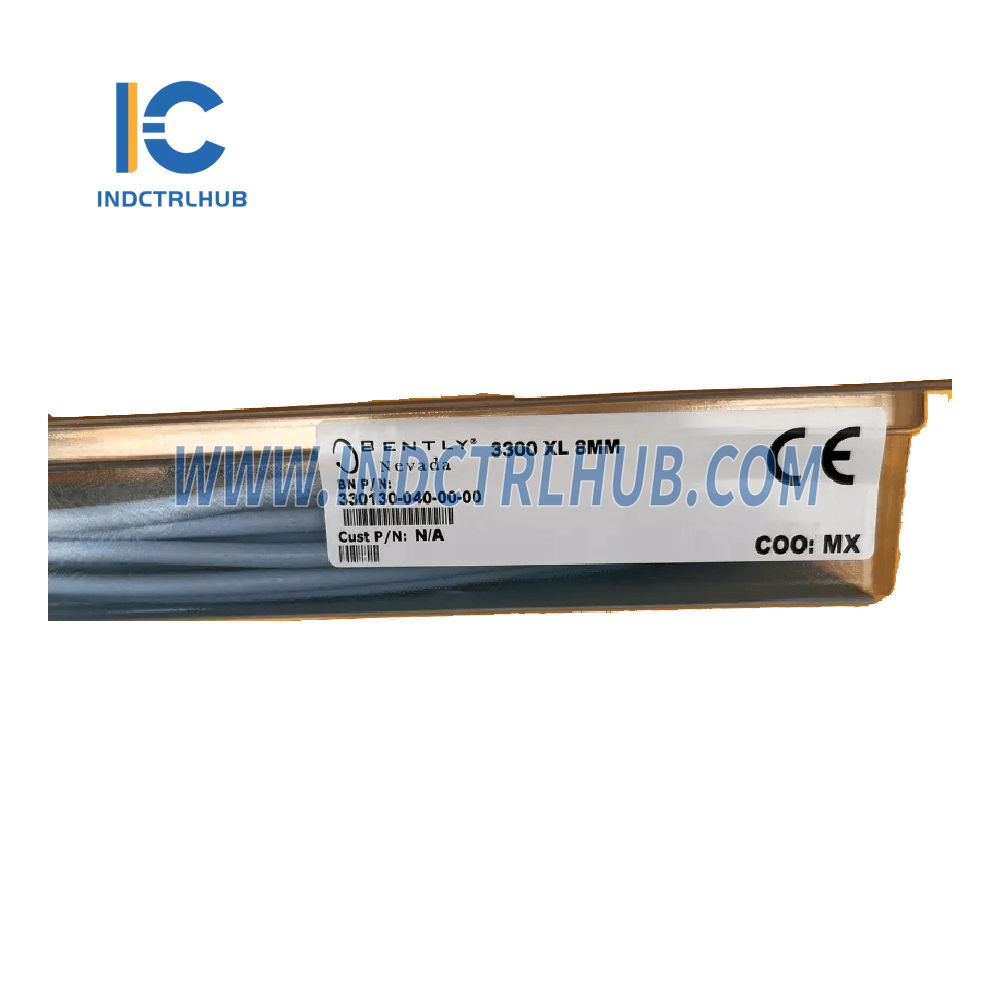

Model/Part Number: 330130-040-00-00
-

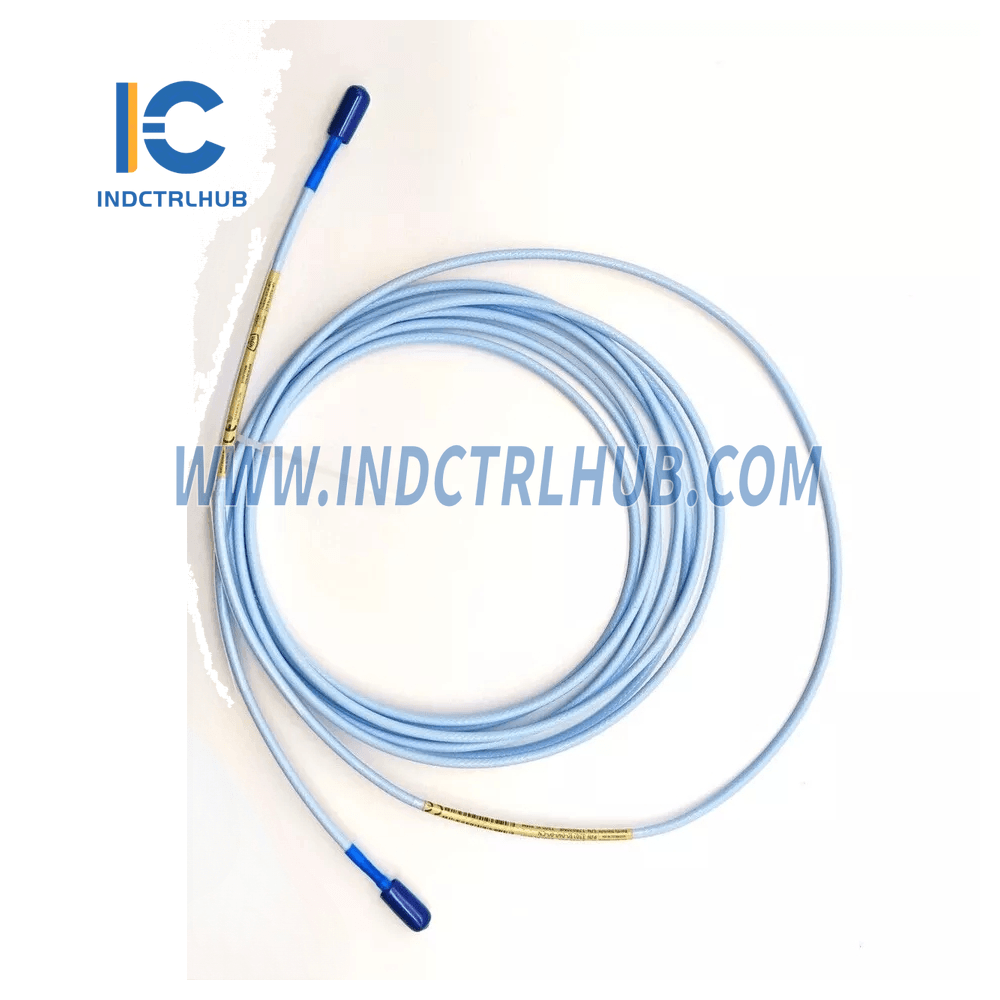

Description: 3300 XL Standard Extension Cable
Key Features
-
Material:
- Standard: 75Ω triaxial, fluoroethylene propylene (FEP) insulated.
- Extended Temperature Range: 75Ω triaxial, perfluoroalkoxy (PFA) insulated.
-
Minimum Bend Radius: 25.4 mm (1.0 inch).
-
System Length Options:
- Probe only: 1 meter.
- Complete system (probe + extension cable): 5 or 9 meters.
-
Weight:
-
Total System: 0.7 kg (1.5 lb).
-
Probe: 323 g/m (11.4 oz).
-
Extension Cable: 34 g/m (0.4 oz/ft).
-
Armored Extension Cable: 103 g/m (1.5 oz/ft).
-
Proximitor Sensor: 246 g (8.67 oz).
Specifications
Environmental Limits
| Component |
Operating Temperature |
Storage Temperature |
| Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
-52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Probe |
-52°C to +218°C (-62°F to +425°F) (tip) |
-52°C to +218°C (-62°F to +425°F) (tip) |
| Probe Cable & Connector |
-51°C to +260°C (-60°F to +500°F) |
-51°C to +260°C (-60°F to +500°F) |
Performance Specifications
-
Temperature Range: +18˚C to +27˚C (+64˚F to +80˚F).
-
Altitude: Maximum 2000 meters.
-
Power Supply: -24 Vdc.
-
Load: 10 kΩ.
-
Target Material: AISI 4140 steel.
-
Gap Setting: 1.27 mm (50 mils).
Configuration Options
Cable Length Options (A)
| Code |
Length |
| 030 |
3.0 meters (9.8 feet) |
| 035 |
3.5 meters (13.1 feet) |
| 040 |
4.0 meters (11.5 feet) |
| 045 |
4.5 meters (14.8 feet) |
| 060 |
6.0 meters (19.7 feet) |
| 070 |
7.0 meters (22.9 feet) |
| 075 |
7.5 meters (24.6 feet) |
| 080 |
8.0 meters (26.2 feet) |
| 085 |
8.5 meters (27.9 feet) |
Connector Protector and Cable Options (B)
| Code |
Description |
| 00 |
Standard cable |
| 01 |
Armored cable |
| 02 |
Standard cable with connector protector |
| 03 |
Armored cable with connector protector |
| 10 |
FluidLoc cable |
| 11 |
Armored FluidLoc cable |
| 12 |
FluidLoc cable with connector protector |
| 13 |
Armored FluidLoc cable with connector protector |
Agency Approval Options (C)
| Code |
Description |
| 00 |
Not required |
| 05 |
CSA, ATEX, IECEx Approvals |
Application Notes
Ensure that the extension cable length and the probe length together match the Proximitor Sensor total length for optimal performance.
