Product Description
Product Details:
- Manufacturer: Bently Nevada

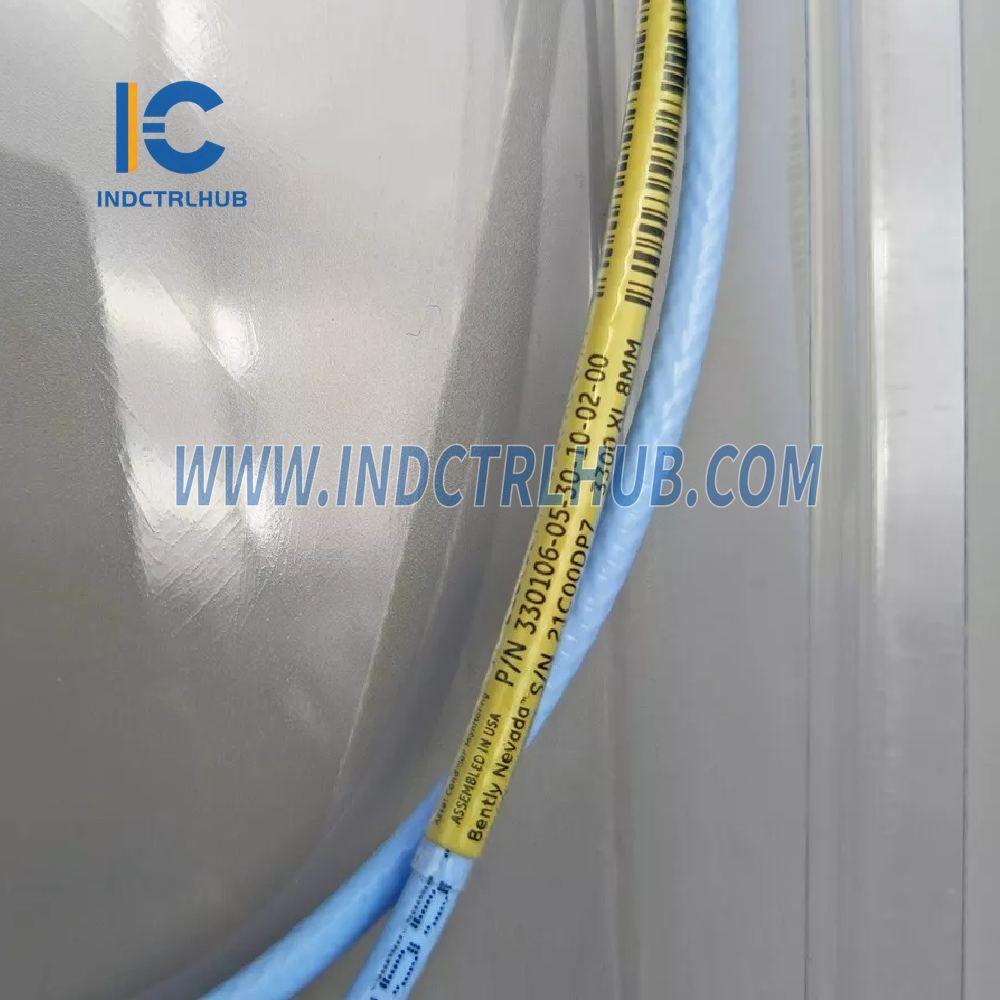

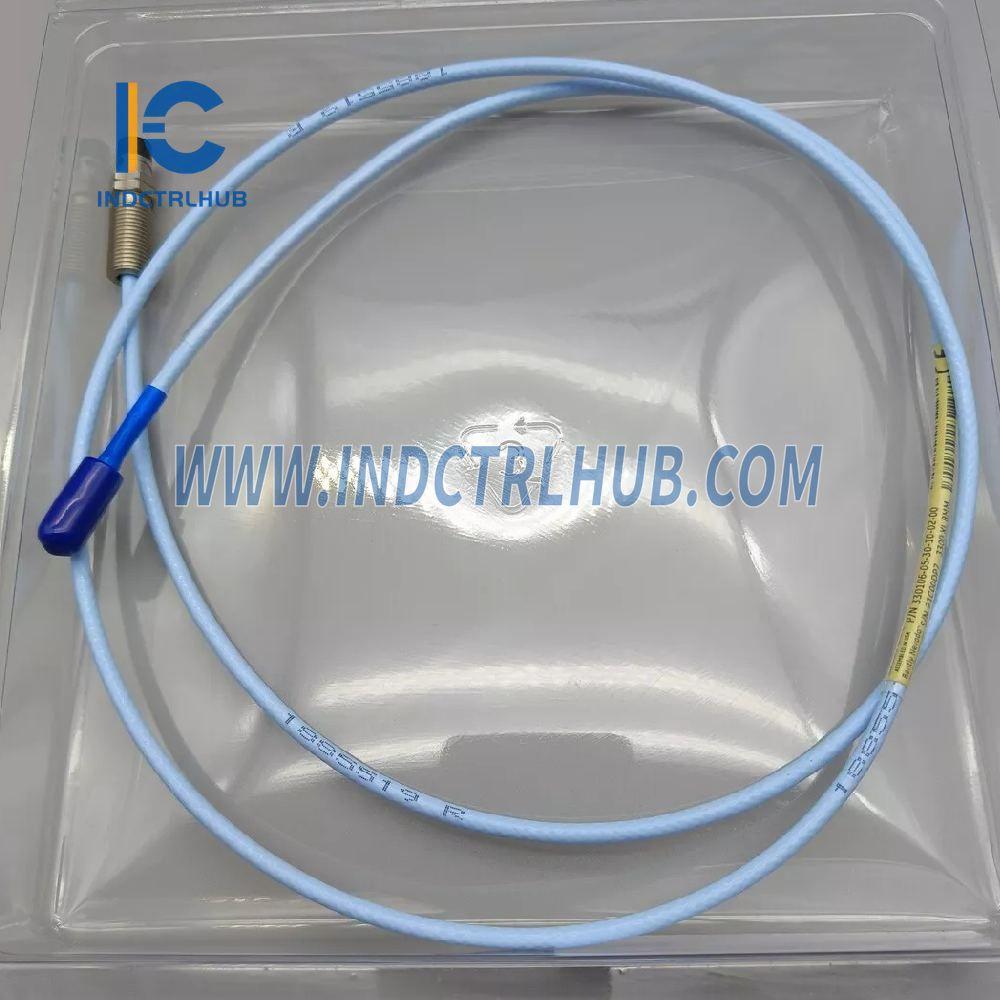

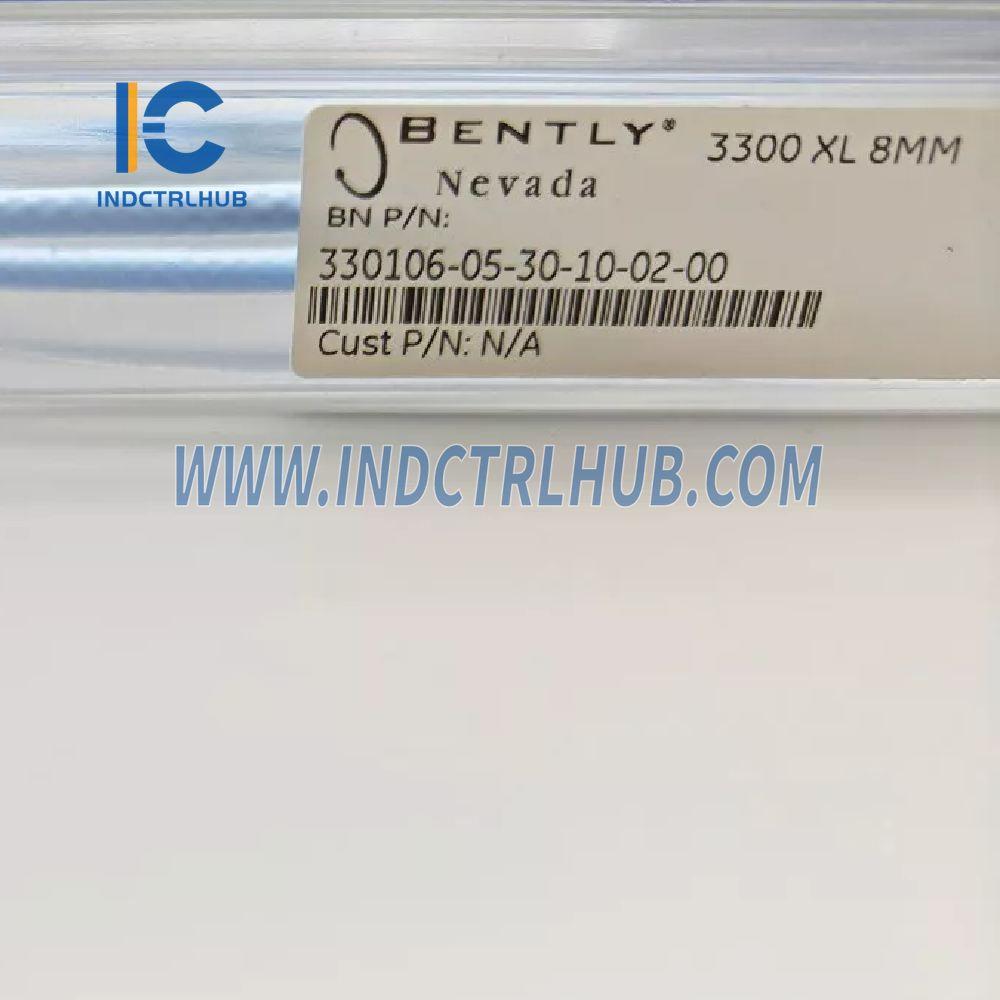

- Model/Part Number: 330106-05-30-10-02-00
- Description: 3300 XL 8 mm Reverse Mount Probes
Options:
| Option | Description |
|---|---|
| Thread Type | 330106-05-30-CC-DD-EE: M10 x 1 threads (2) |
| Length Options (C) | 05: 0.5 meter (1.6 feet) 10: 1.0 meter (3.3 feet) 15: 1.5 meters (4.9 feet) 20: 2.0 meters (6.6 feet) 50: 5.0 meters (16.4 feet) 90: 9.0 meters (29.5 feet) Note: 5-meter probes are specifically for use with the 5-meter Proximitor sensor. |
| Connector and Cable-Type Option (D) | 02: Miniature ClickLoc coaxial connector 12: Miniature ClickLoc coaxial connector, FluidLoc cable Note: The FluidLoc cable option (12) is only needed in specific installations. Most installations do not require this cable due to the probe sleeve. |
| Agency Approval Option (E) | 00: No approval required 05: CSA, ATEX, IECEx approvals |
Materials:
- Proximitor Sensor Material: A308 aluminum
- Connector Material: Gold-plated brass or gold-plated beryllium copper
System Length:
- 5 or 9 meters (including extension cable) or 1 meter (probe only)
Weight:
- Probe weight: 323 g/m (11.4 oz)
