Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3300 XL |
|
Model/Part Number |
330104-00-10-05-01-BR |
|
Description |

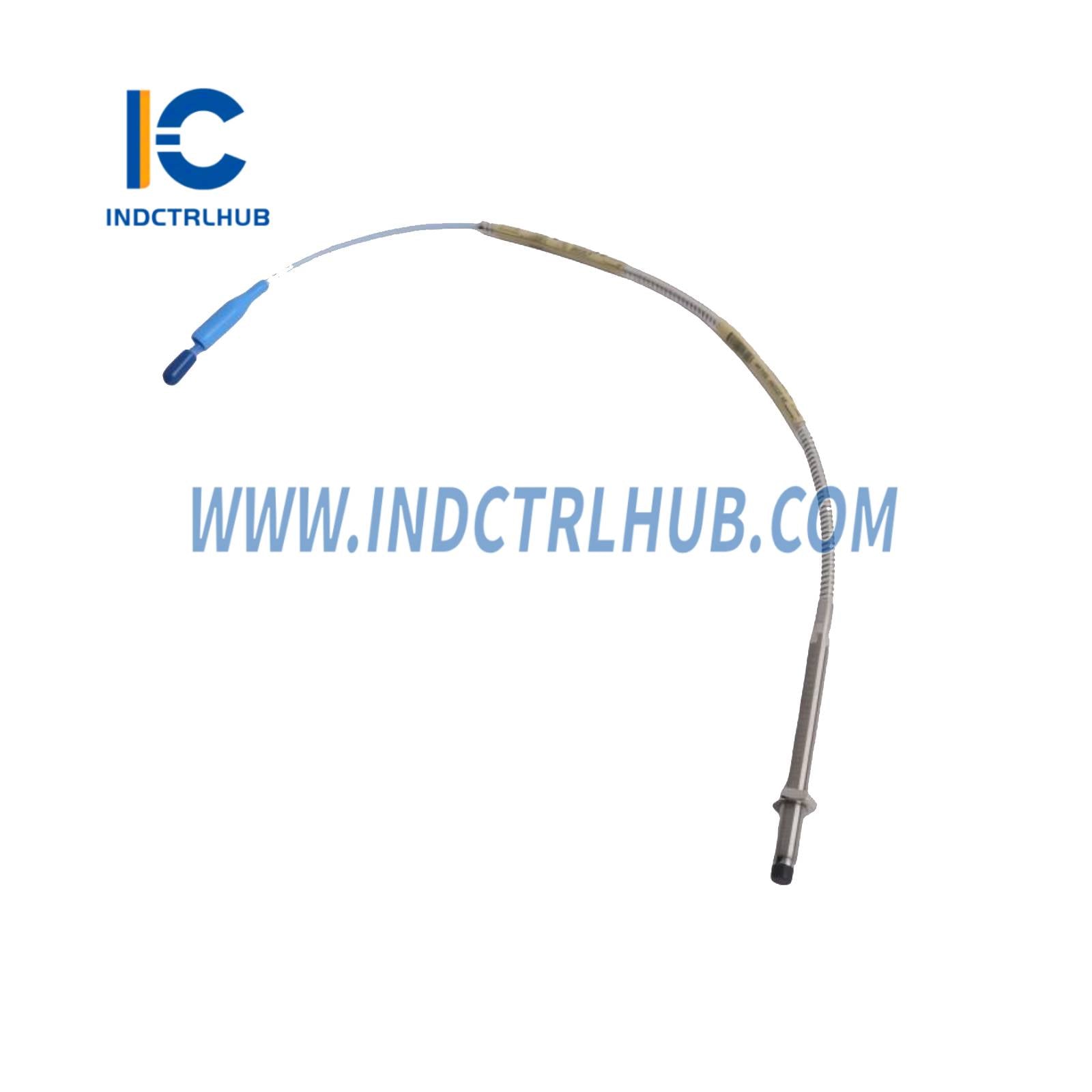

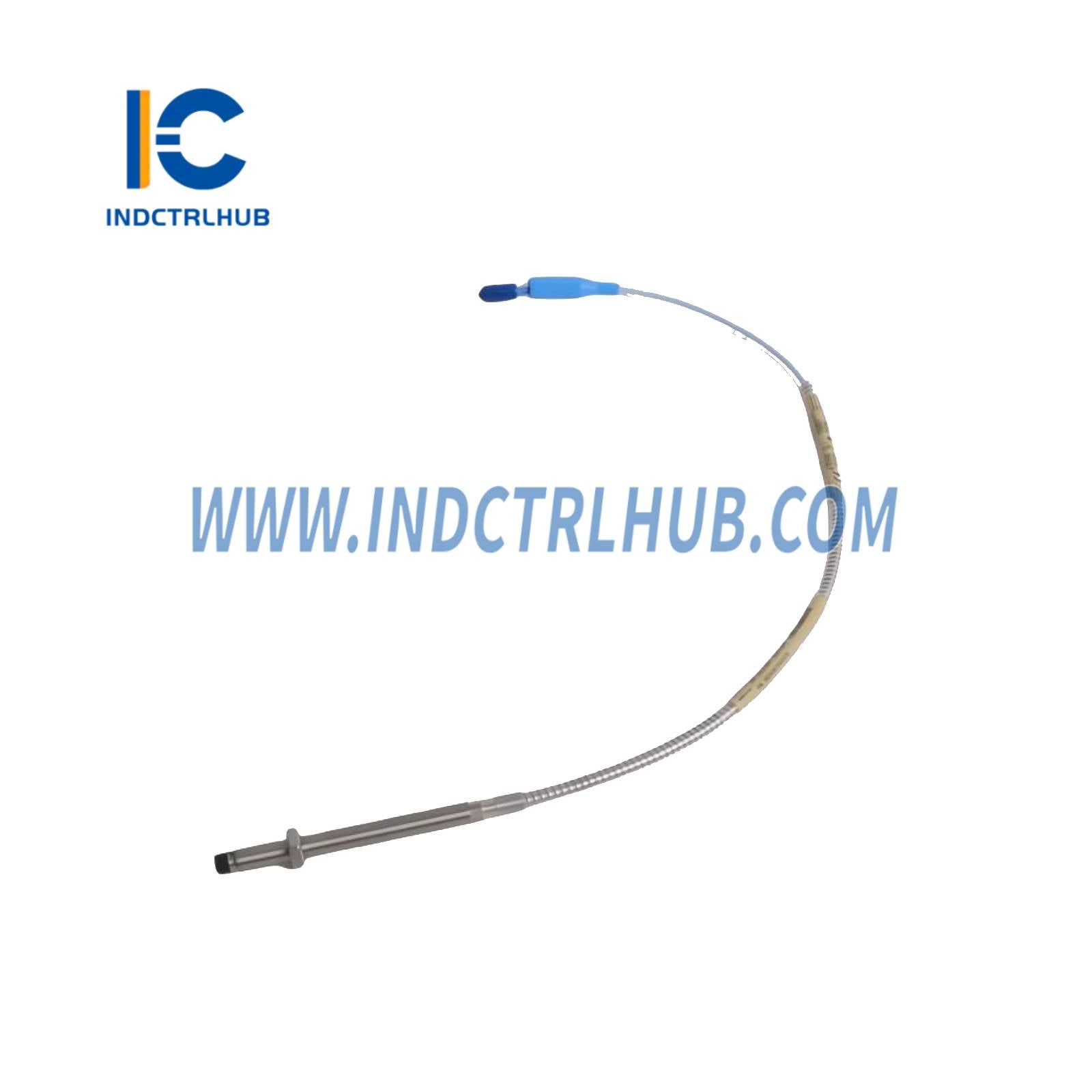

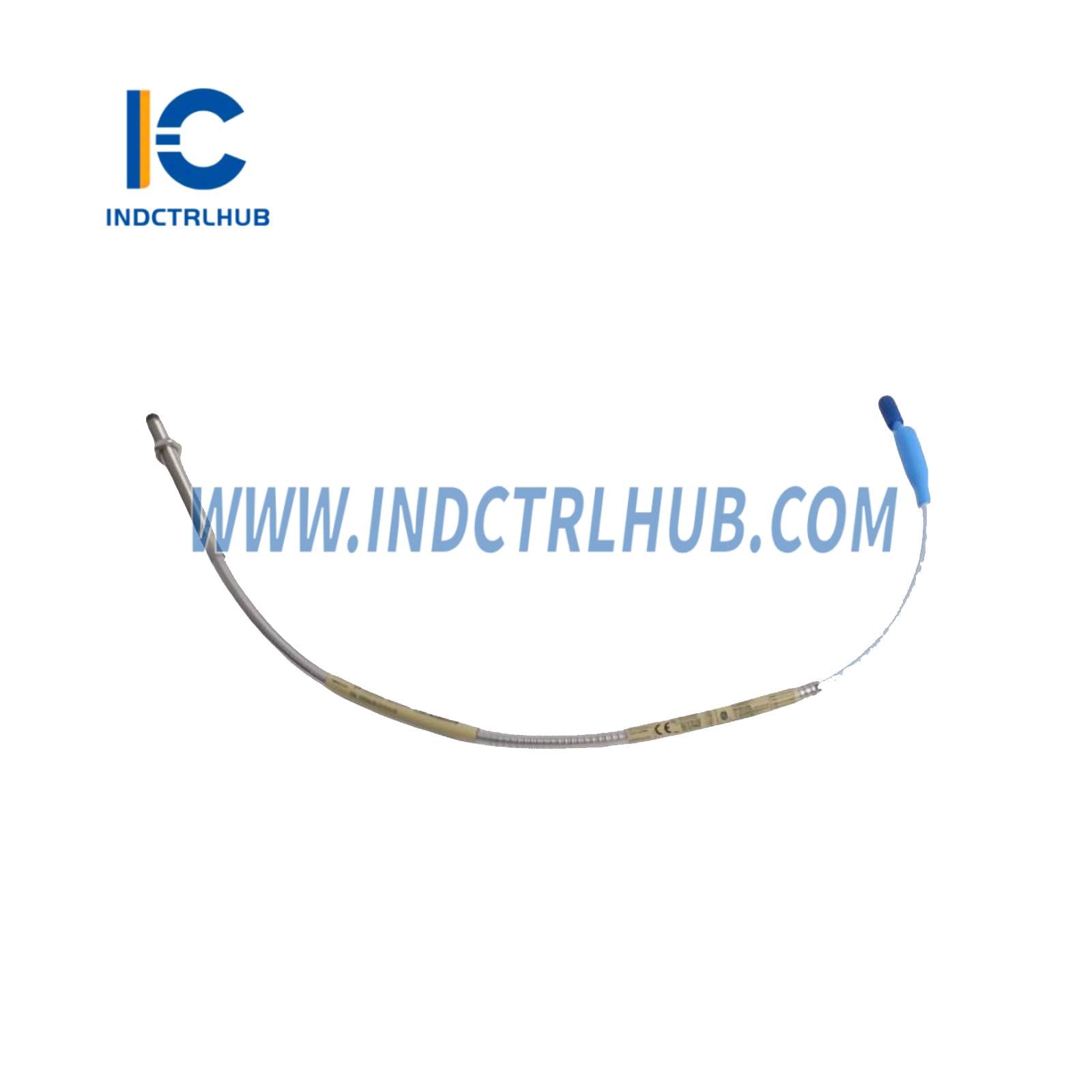

3300 XL 8 mm Proximity Probe, M10 × 1 thread, with armor |
🔹 Description
The 3300 XL 8 mm Proximity Transducer System includes:
-
One 3300 XL 8 mm probe
-
One 3300 XL extension cable
-
One 3300 XL Proximitor Sensor
This part refers specifically to the probe component of the system.
🔹 Ordering Code Breakdown –
330104-00-10-05-01-BR
|
Field |
Code |
Details |
|---|---|---|
|
A: Unthreaded Length |
00 |
0 mm (Minimum unthreaded section) |
|
B: Case Length |
10 |
100 mm overall case length |
|
C: Total Cable Length |
05 |
0.5 meter (1.6 feet) |
|
D: Connector & Cable Type |
01 |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
E: Agency Approval |
BR (05) |
CSA, ATEX, IECEx Approvals |
🔹 Specifications
|
Feature |
Details |
|---|---|
|
Thread Type |
M10 x 1 (Metric) |
|
Armor |
Included (Model 330104 includes armored cable) |
|
Probe Weight |
Approx. 323 g/m (11.4 oz per meter) |
|
Cable Type |
75 Ω coaxial, fluoroethylene propylene (FEP) insulated |
|
Lengths Available |
0.5 to 9.0 meters |
|
Max Unthreaded |
230 mm |
|
Max Case Length |
250 mm |
🔹 Ordering Options Summary
Cable Lengths (C):
-
05 = 0.5 m
-
10 = 1.0 m
-
15 = 1.5 m
-
20 = 2.0 m
-
50 = 5.0 m
-
90 = 9.0 m
Cable/Connector Options (D):
|
Code |
Description |
|---|---|
|
01 |
Mini ClickLoc with protector, standard cable |
|
02 |
Mini ClickLoc, standard cable |
|
11 |
Mini ClickLoc with protector, FluidLoc cable |
|
12 |
Mini ClickLoc, FluidLoc cable |
Agency Approval Options (E):
-
00 = Not required
-
05 = CSA, ATEX, IECEx Approvals
