Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

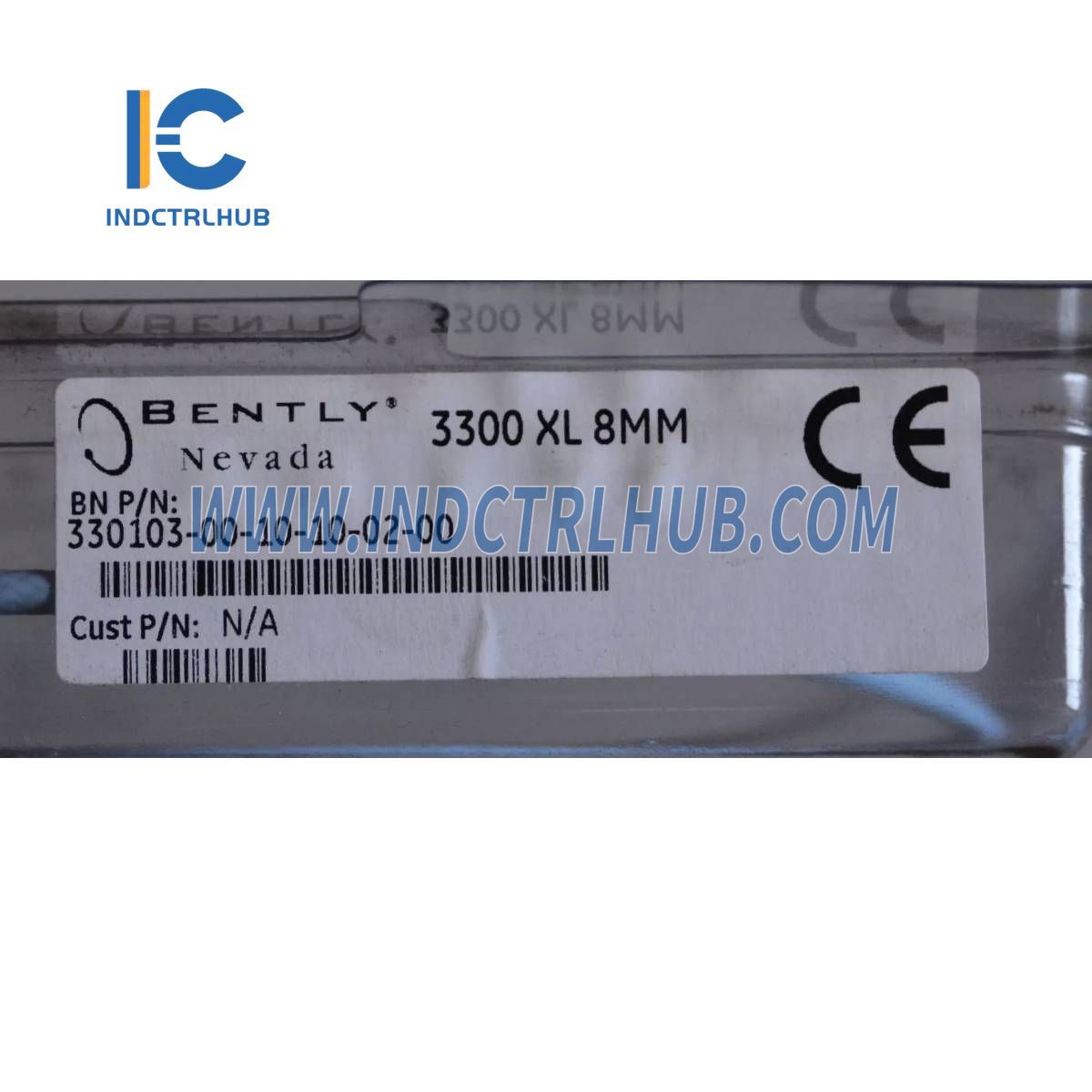

330103-00-10-10-02-00 |
|
Model Type |

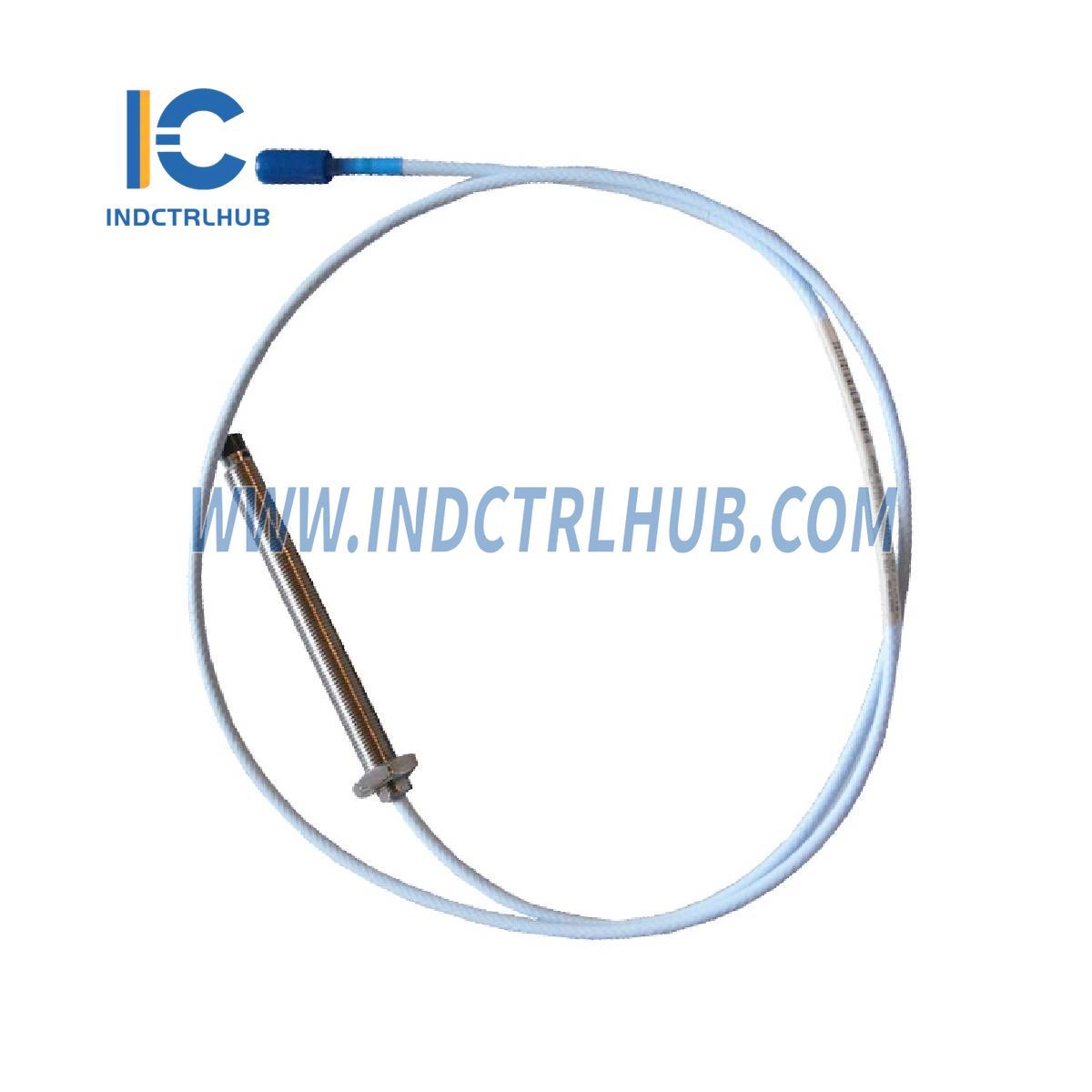

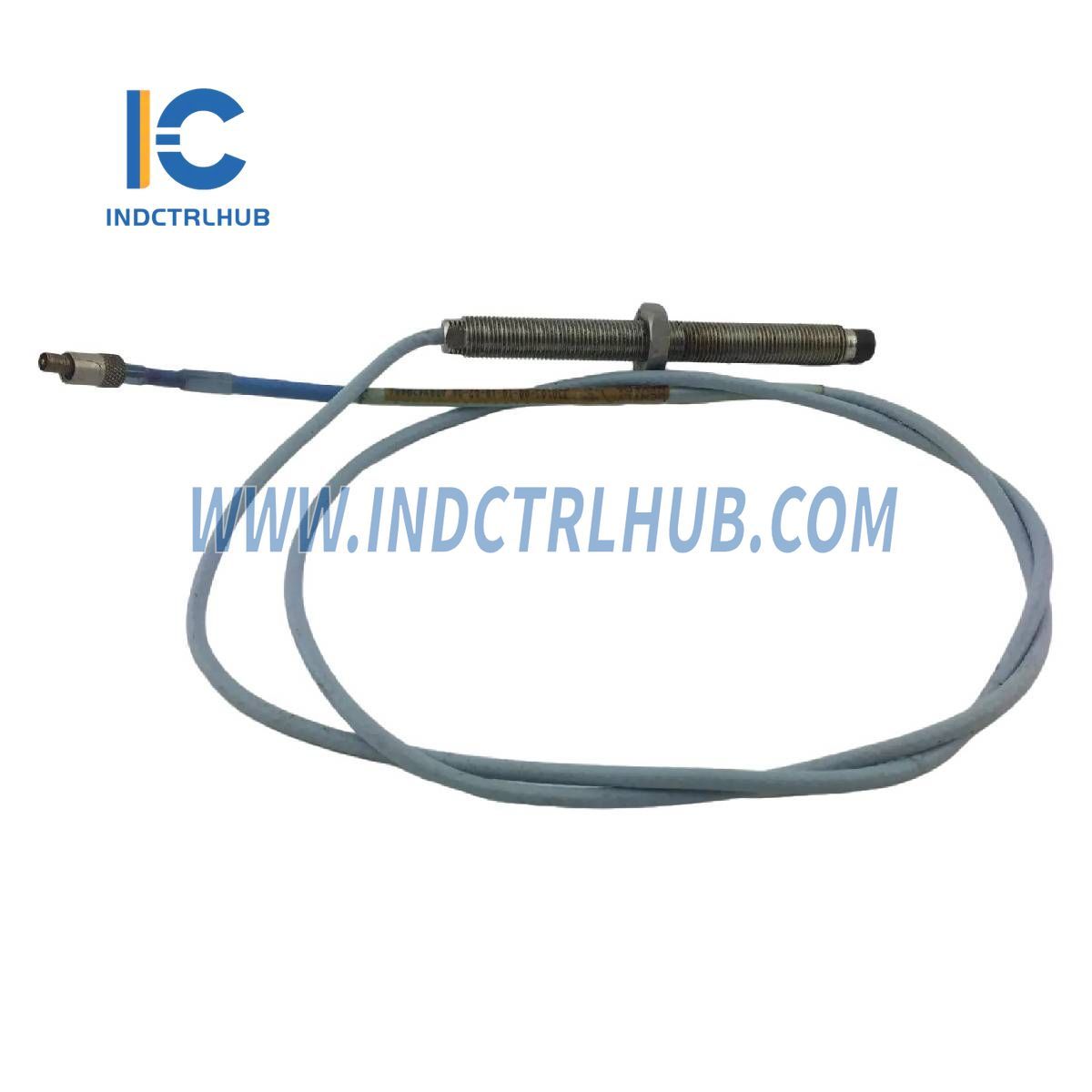

3300 XL 8 mm Proximity Probe |
Mechanical Specifications
|
Component |
Material |
|---|---|
|
Probe Tip |
Polyphenylene sulfide (PPS) |
|
Probe Case |
AISI 303 or 304 stainless steel (SST) |
|
Probe Cable (Standard) |
75Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Probe Cable (Extended Temperature Range) |
75Ω triaxial, perfluoroalkoxy (PFA) insulated |
|
Armor |
Flexible AISI 302 or 304 SST with FEP outer jacket |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
Tensile Strength
|
Component |
Maximum Rated Strength |
|---|---|
|
Probe Case to Probe Lead |
330 N (75 lbf) |
|
Probe Lead to Extension Cable Connectors |
270 N (60 lbf) |
Length and Weight
|
Attribute |
Details |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight (Typical) |
0.7 kg (1.5 lb) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Ordering Information for Proximity Probes
|
Part Number |
Description |
|---|---|
|
330103 |
3300 XL 8 mm Probe, M10 x 1 thread, without armor (2) |
|
330104 |
3300 XL 8 mm Probe, M10 x 1 thread, with armor (2) |
|
Option |
Description |
|---|---|
|
A: Unthreaded Length Option |
Unthreaded length must be at least 20 mm less than the case length. Order in increments of 10 mm. |
|
B: Overall Case Length Option |
Order in increments of 10 mm, Maximum case length: 250 mm, Minimum case length: 20 mm. |
|
C: Total Length Option |
05 - 0.5 meter (1.6 feet), 10 - 1.0 meter (3.3 feet), 15 - 1.5 meters (4.9 feet), 20 - 2.0 meters (6.6 feet), 50 - 5.0 meters (16.4 feet), 90 - 9.0 meters (29.5 feet) |
|
D: Connector and Cable-Type Option |
01 - Miniature coaxial ClickLoc connector with connector protector, standard cable, 02 - Miniature coaxial ClickLoc connector, standard cable, 11 - Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable, 12 - Miniature coaxial ClickLoc connector, FluidLoc cable |
|
E: Agency Approval Option |
00 - Not required, 05 - CSA, ATEX, IECEx Approvals |
