Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |

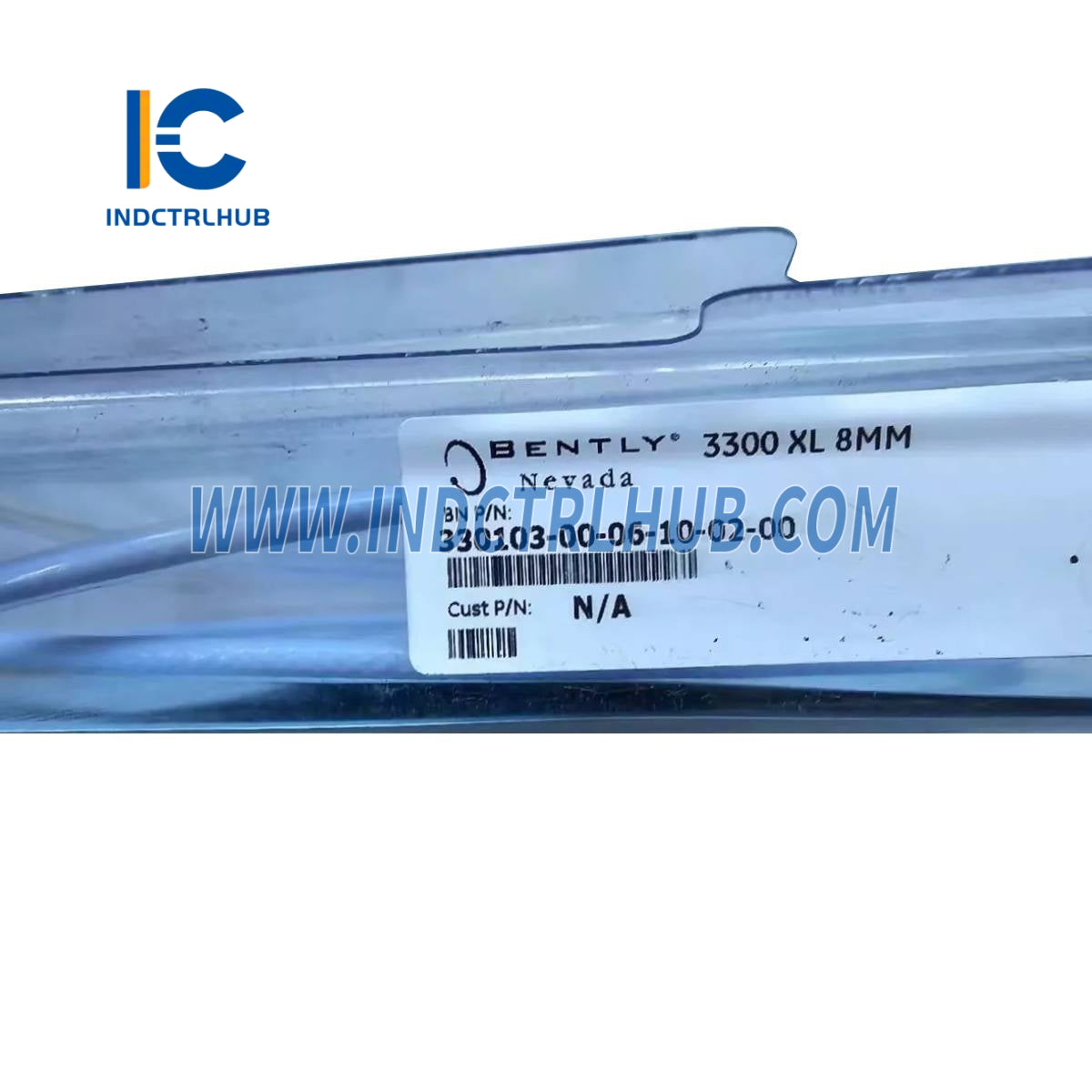

330103-00-06-10-02-00 |
|
Series |
3300 XL |
|
Description |
3300 XL 8 mm Proximity Probe, Metric |
🔹 Description
The Bently Nevada 3300 XL 8 mm Proximity Transducer System includes:
-
One 3300 XL 8 mm proximity probe
-
One 3300 XL extension cable
-
One 3300 XL Proximitor Sensor

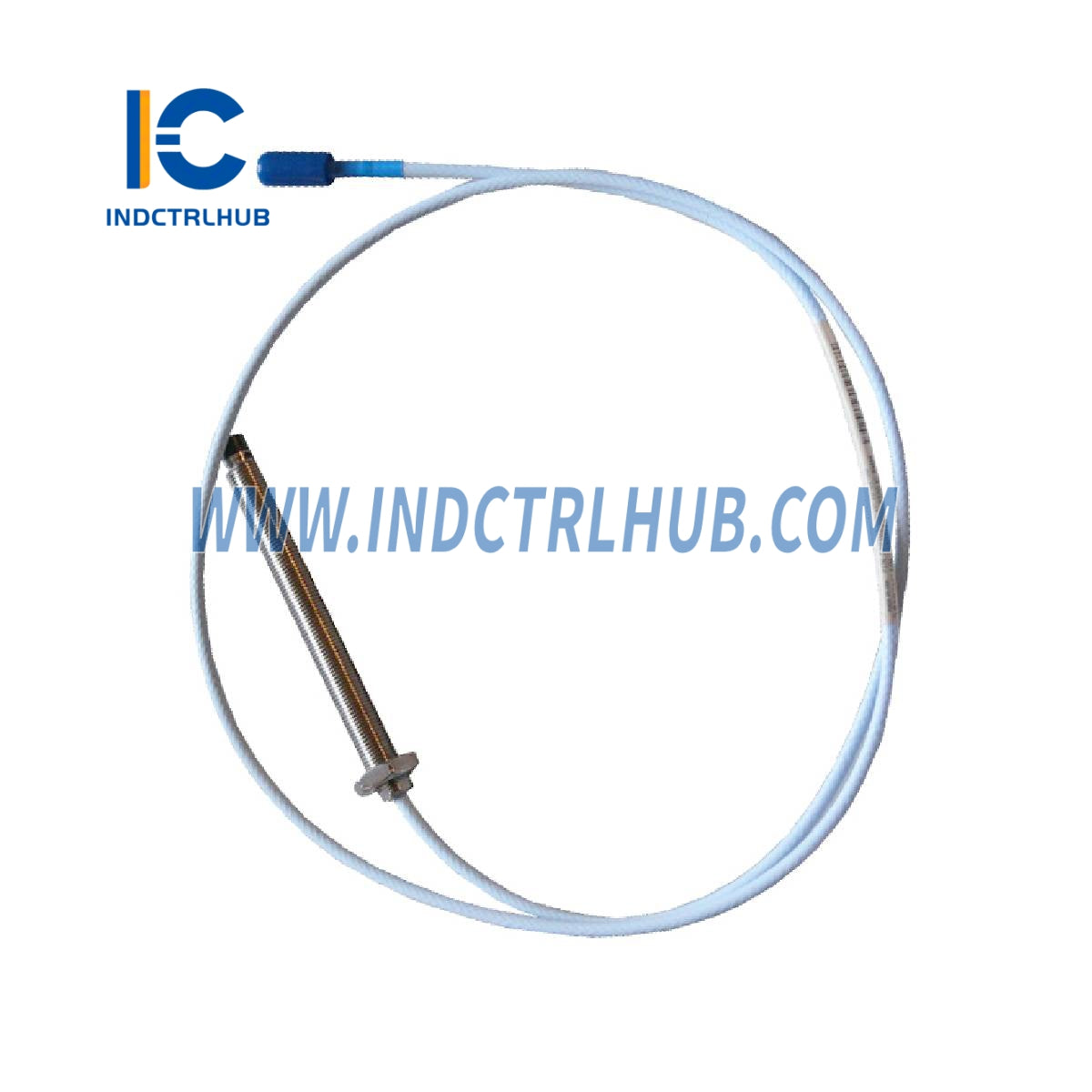

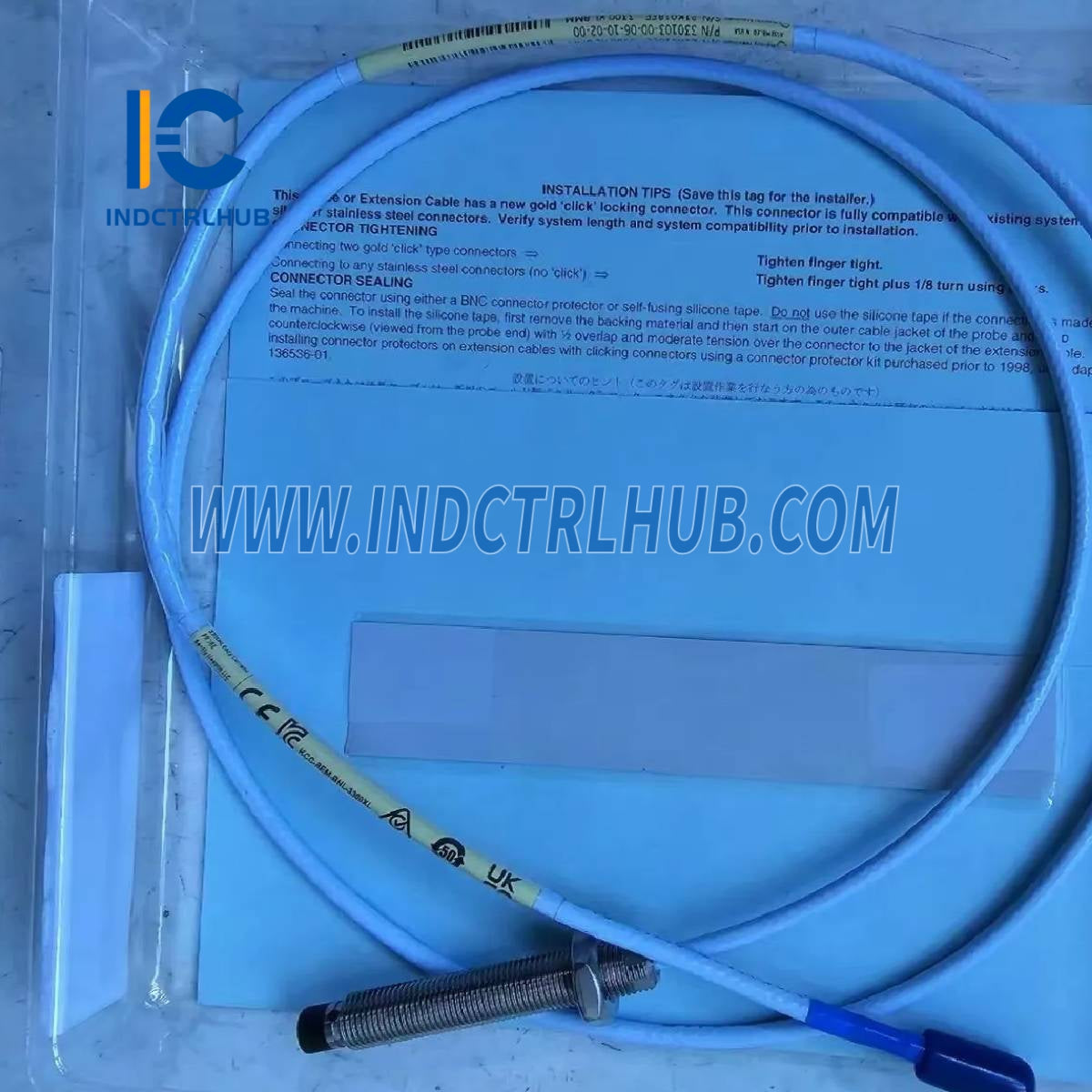

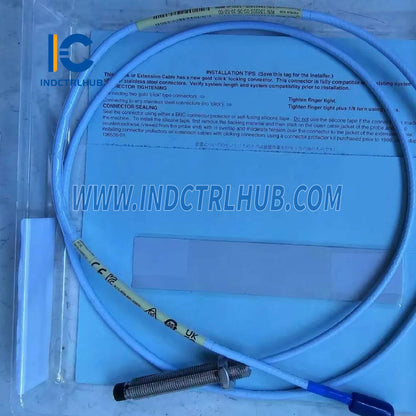

This specific part number (330103-00-06-10-02-00) refers to a metric-threaded probe (M10 x 1) without armor, with the following configuration:
-
Unthreaded Length (A): 00 → 0 mm
-
Overall Case Length (B): 06 → 60 mm
-
Total Cable Length (C): 10 → 1.0 meter (3.3 feet)
-
Connector & Cable Type (D): 02 → Miniature coaxial ClickLoc connector, standard cable
-
Agency Approval (E): 00 → Not required
🔹 Specifications
|
Parameter |
Value |
|---|---|
|
Probe Type |
3300 XL 8 mm, M10 x 1, without armor |
|
Unthreaded Length |
0 mm |
|
Case Length |
60 mm |
|
Cable Length |
1.0 meter (3.3 ft) |
|
Connector Type |
Miniature coaxial ClickLoc |
|
Cable Type |
Standard |
|
Weight |
323 g/m (11.4 oz per meter) |
|
Agency Approval |
None |
🔹 Ordering Information
Part Number Breakdown: 330103-AA-BB-CC-DD-EE
|
Field |
Description |
|---|---|
|
AA |
Unthreaded Length (in 10 mm increments; e.g., 00 = 0 mm) |
|
BB |
Overall Case Length (e.g., 06 = 60 mm) |
|
CC |
Cable Length (e.g., 10 = 1.0 meter) |
|
DD |
Connector & Cable Option (02 = ClickLoc, standard cable) |
|
EE |
Agency Approval (00 = Not required) |
