Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

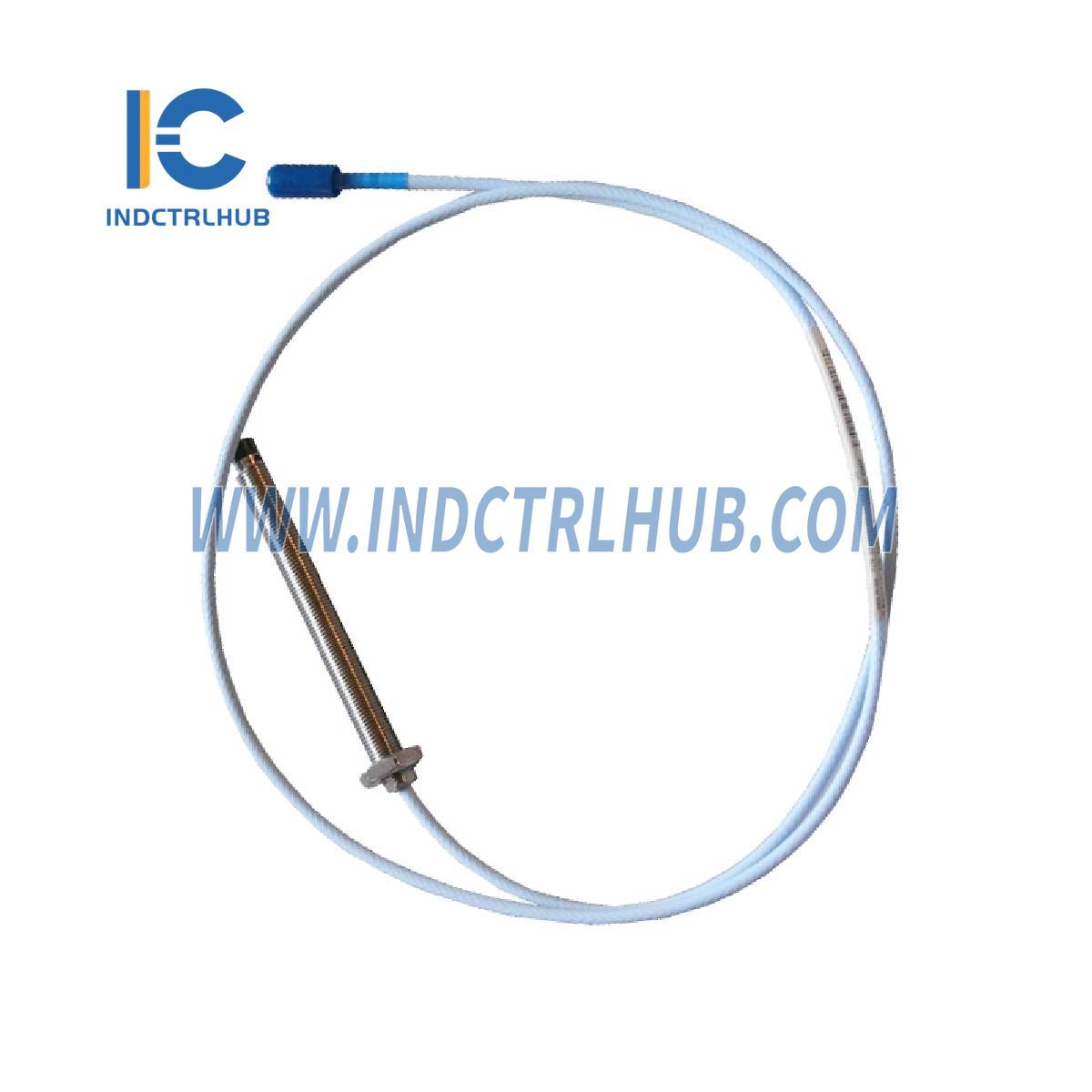

330103-00-05-10-02-IN |
|
Model Type |
3300 XL 8 mm Proximity Probes |
Materials
|
Component |
Material |
|---|---|
|
Proximitor Sensor |
A308 aluminum |
|
Connector |
Gold-plated brass or gold-plated beryllium copper |
Physical Specifications
|
Attribute |
Details |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight |
0.7 kg (1.5 lbm) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Probe Pressure Sealing
• 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case.
• The sealing material consists of a Viton® O-ring.
• Probes are not pressure tested before shipment. Customers needing pressure seal testing should contact Bently Nevada’s custom design department.
• User Responsibility:
• Ensure that all liquids and gases are safely contained.
• High or low pH solutions may erode the probe tip, causing leakage.
• Probes are not covered under service plans due to leakage.
Temperature Limits
|
Cable Type |
Operating & Storage Temperature |
|---|---|
|
Standard Cable |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Range Cable |
-52°C to +260°C (-62°F to +500°F) |
Ordering Information
|
Part Number |
Description |
|---|---|
|
330103 |
3300 XL 8 mm Probe, M10 x 1 thread, without armor |
|
330104 |
3300 XL 8 mm Probe, M10 x 1 thread, with armor |
Part Number Format:
330103-AA-BB-CC-DD-EE
|
Option Code |
Description |
|---|---|
|
A: Unthreaded Length Option |
Order in increments of 10 mm Max: 230 mm Min: 0 mm Example: 06 = 60 mm |
|
B: Overall Case Length Option |
Order in increments of 10 mm Max: 250 mm Min: 20 mm Example: 06 = 60 mm |
|
C: Total Length Option |
05 = 0.5 meter (1.6 feet) 10 = 1.0 meter (3.3 feet) 15 = 1.5 meter (4.9 feet) 20 = 2.0 meters (6.6 feet) 50 = 5.0 meters (16.4 feet) 90 = 9.0 meters (29.5 feet) (5-meter probes must be used with 5-meter Proximitor sensors only) |
|
D: Connector and Cable Type Option |
01 = Miniature coaxial ClickLoc connector with connector protector, standard cable 02 = Miniature coaxial ClickLoc connector, standard cable 11 = Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable 12 = Miniature coaxial ClickLoc connector, FluidLoc cable |
|
E: Agency Approval Option |
00 = Not required 05 = CSA, ATEX, IECEx Approvals |
