Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330102-00-28-10-02-05 |
|
Model Type |

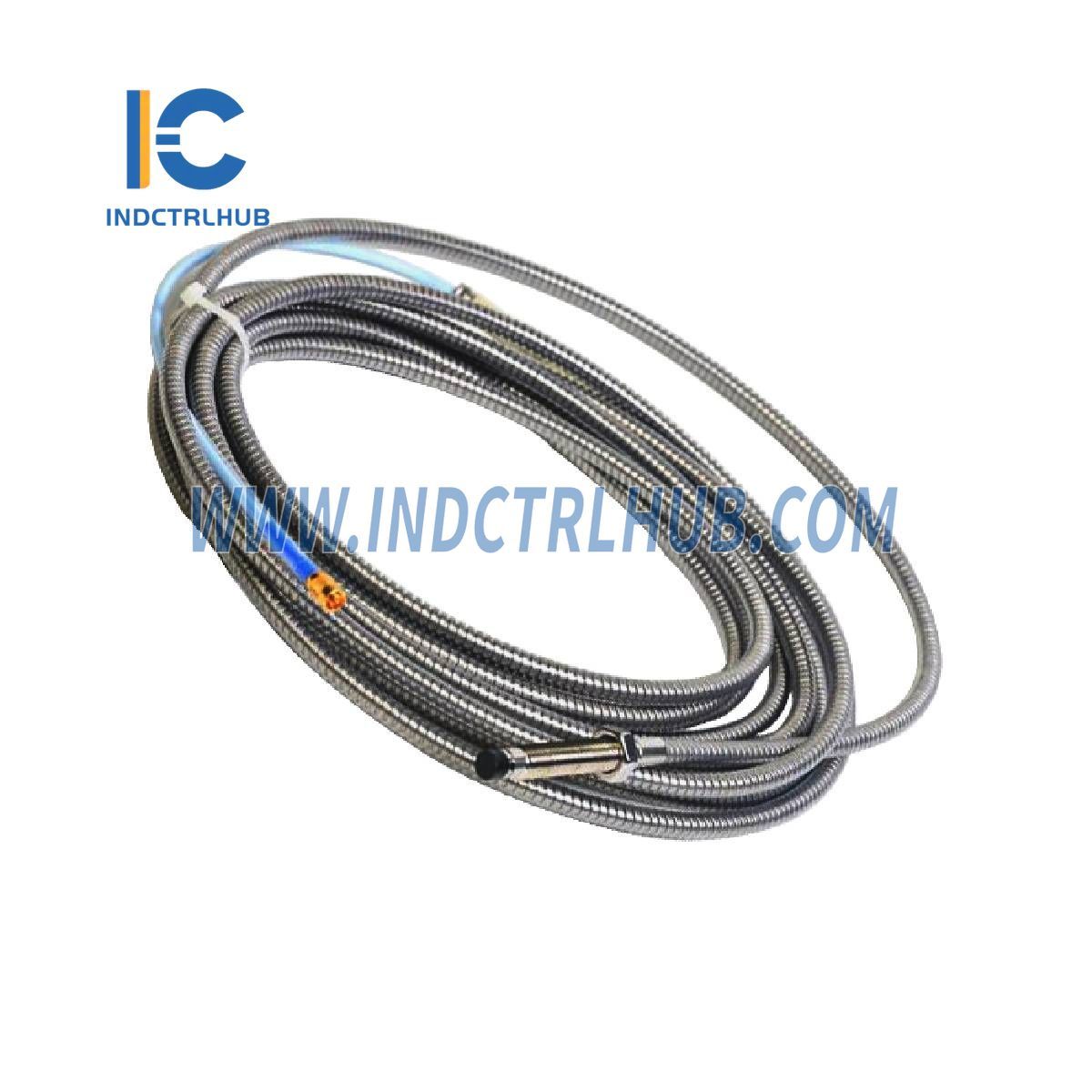

3300 XL 8 mm Proximity Probe |
Description
The 3300 XL 8 mm Proximity Probe from Bently Nevada is designed for high-accuracy proximity measurement, particularly in rotating machinery applications. This model is equipped with a robust sensor and cable options for various installation and operational needs, ensuring reliable performance in harsh environments. The probe can be ordered with or without armor, offering flexibility in installation.
Materials
|
Component |
Material |
|---|---|
|
Proximitor Sensor |
A308 Aluminum |
|
Connector |
Gold-plated brass or gold-plated beryllium copper |
Specifications
Physical Specifications
|
Parameter |
Details |
|---|---|
|
Weight (Total System) |
0.7 kg (1.5 lb) |
|
Weight (Probe) |
323 g/m (11.4 oz) |
|
Weight (Extension Cable) |
34 g/m (0.4 oz/ft) |
|
Weight (Armored Extension Cable) |
103 g/m (1.5 oz/ft) |
|
Weight (Proximitor Sensor) |
246 g (8.67 oz) |
Length Options
|
Option |
Details |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
Ordering Information
3300 XL 8 mm Proximity Probes
|
Part Number |
Description |
|---|---|
|
330101 |
3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
|
330102 |
3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor |
Configuration Options
|
Option |
Description |
|---|---|
|
A: Unthreaded Length Option |
Minimum 0.0 in, Maximum 8.8 in (in increments of 0.1 in) |
|
B: Overall Case Length Option |
Minimum 0.8 in, Maximum 9.6 in (in increments of 0.1 in) |
|
C: Total Length Option |
0.5 meter (1.6 feet), 1.0 meter (3.3 feet), 1.5 meter (4.9 feet), 2.0 meters (6.6 feet), 3.0 meters (9.8 feet), 5.0 meters (16.4 feet), 9.0 meters (29.5 feet) |
