Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
330101-00-30-10-02-00 |
|
Series |
3300 XL 8 mm Proximity Probe |
|
Description |

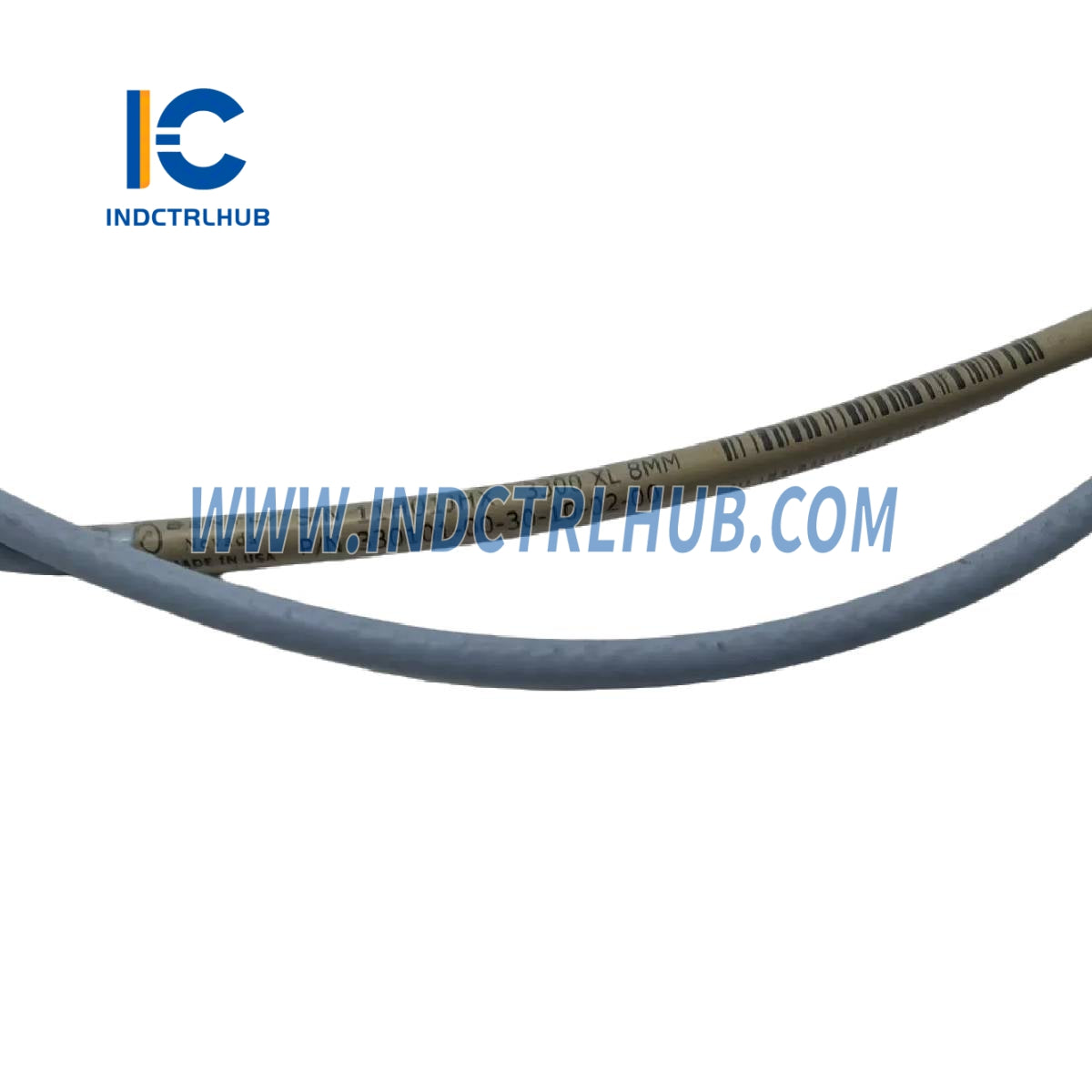

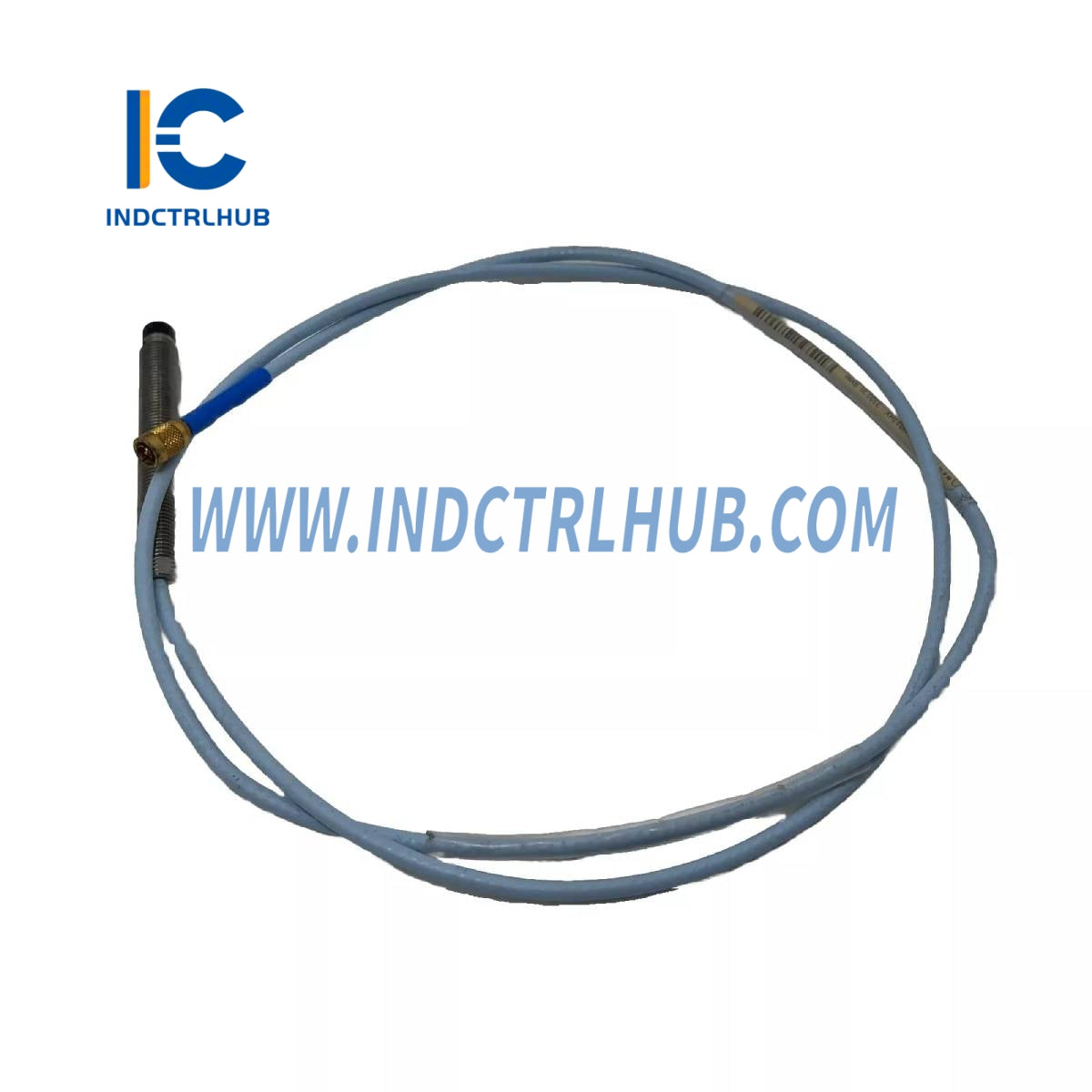

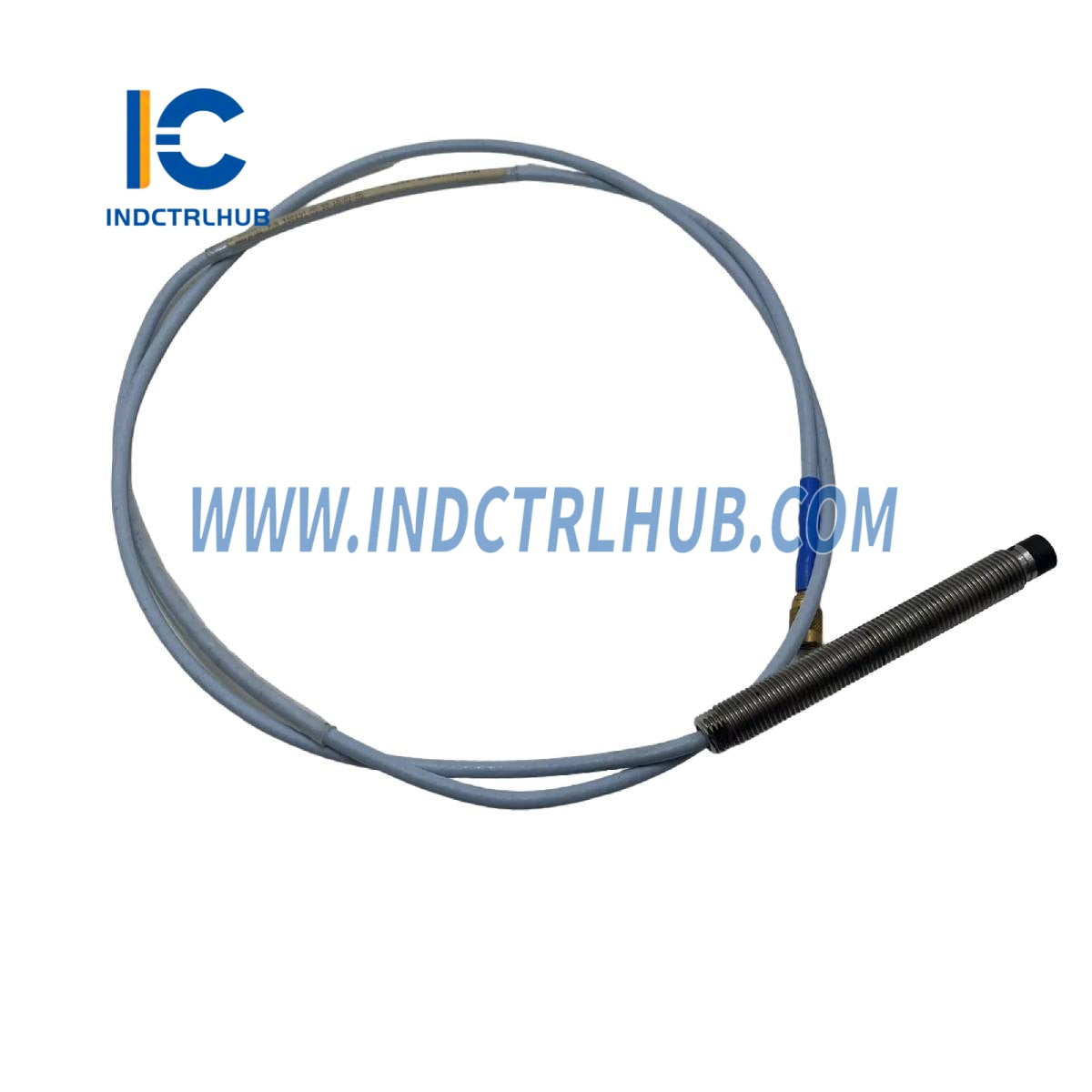

3300 XL 8 mm Probe, 3/8-24 UNF thread, non-armored |
🔹 Description
The 3300 XL 8 mm Proximity Transducer System includes:
-
One 3300 XL 8 mm probe
-
One 3300 XL extension cable
-
One 3300 XL Proximitor Sensor
🔹 330101-00-30-10-02-00
|
Code Position |
Option Selected |
Description |
|---|---|---|
|
A: Unthreaded Length |
00 |
0.0 in unthreaded length |
|
B: Case Length |
30 |
3.0 in overall case length |
|
C: Total Length |
10 |
1.0 meter (3.3 feet) probe length |
|
D: Connector/Cable |
02 |
Miniature coaxial ClickLoc connector, standard cable |
|
E: Agency Approvals |
00 |
No approvals |
🔹 Environmental Limits
|
Component |
Operating & Storage Temperature |
|---|---|
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temp Probe Tip |
-52°C to +218°C (-62°F to +425°F) |
|
Extended Temp Cable/Connector |
-51°C to +260°C (-60°F to +500°F) |
🔹 Physical Characteristics
|
Component |
Weight |
|---|---|
|
Probe |
323 g/m (11.4 oz) |
|
Extension Cable |
34 g/m (0.4 oz/ft) |
|
Armored Cable |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor |
246 g (8.67 oz) |
|
Total System |
~0.7 kg (1.5 lb) |
