Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
Not specified |
|
Model/Part Number |

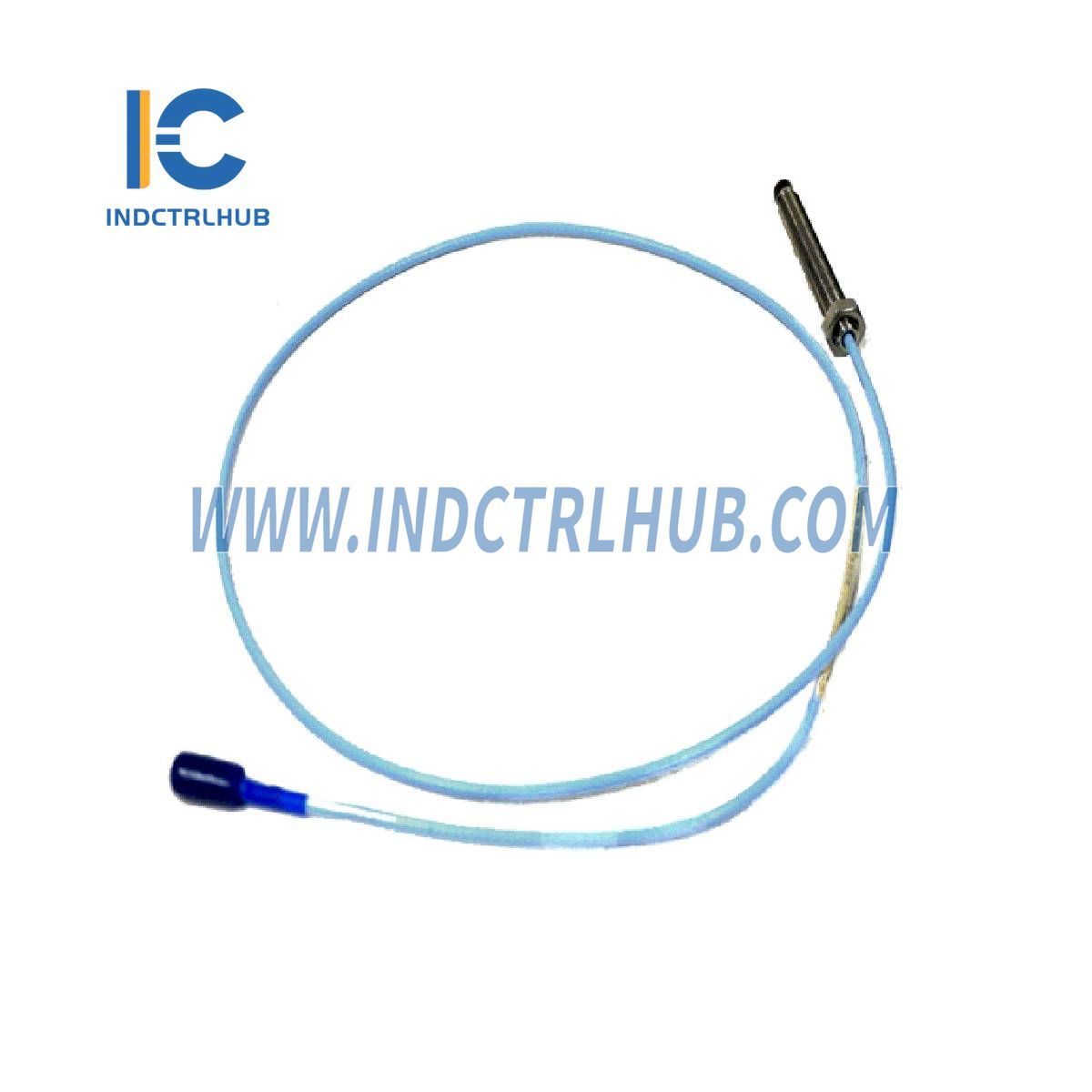

330101-00-13-10-02-00 |
|
Model Type |
3300 XL 8 mm Proximity Probes |
Mechanical Specifications
|
Attribute |
Details |
|---|---|
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Cable |
75Ω triaxial, fluoroethylene propylene (FEP) insulated, available in total probe lengths of 0.5, 1, 1.5, 2, 3, 5, or 9 meters |
|
Extended Temperature Range Cable |
75Ω triaxial, perfluoroalkoxy (PFA) insulated, available in total probe lengths of 0.5, 1, 1.5, 2, 5, or 9 meters |
|
Armor (Optional) |
Flexible AISI 302 or 304 SST with FEP outer jacket |
|
Tensile Strength (Max Rated) |
330 N (75 lbf) probe case to probe lead, 270 N (60 lbf) at probe lead to extension cable connectors |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight (Typical) |
0.7 kg (1.5 lb m) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Ordering Information
3300 XL 8 mm Proximity Probes
|
Part Number |
Description |
|---|---|
|
330101 |
3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
|
330102 |
3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor |
Part Number Configuration: AA-BB-CC-DD-EE
• A: Unthreaded Length Option
• Order in increments of 0.1 in.
• Minimum: 0.0 in., Maximum: 8.8 in.
• Example: 04 = 0.4 in.
• B: Overall Case Length Option
• Order in increments of 0.1 in.
• Minimum: 0.8 in., Maximum: 9.6 in.
• Example: 24 = 2.4 in.
• C: Total Length Option
|
Option |
Length |
|---|---|
|
05 |
0.5 meter (1.6 feet) |
|
10 |
1.0 meter (3.3 feet) |
|
15 |
1.5 meters (4.9 feet) |
|
20 |
2.0 meters (6.6 feet) |
|
30 |
3.0 meters (9.8 feet) (Available only for 330101 probes) |
|
50 |
5.0 meters (16.4 feet) (For use with 5-meter Proximitor sensor only) |
|
90 |
9.0 meters (29.5 feet) |
• D: Connector and Cable-Type Option
|
Option |
Description |
|---|---|
|
01 |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
02 |
Miniature coaxial ClickLoc connector, standard cable |
|
11 |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
12 |
Miniature coaxial ClickLoc connector, FluidLoc cable |
• E: Agency Approval Option
|
Option |
Approval |
|---|---|
|
00 |
Not Required |
|
05 |
CSA, ATEX, IECEx Approvals |
