Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3300 XL |
|
Model/Part Number |
330101-00-08-10-11 |
|
Description |

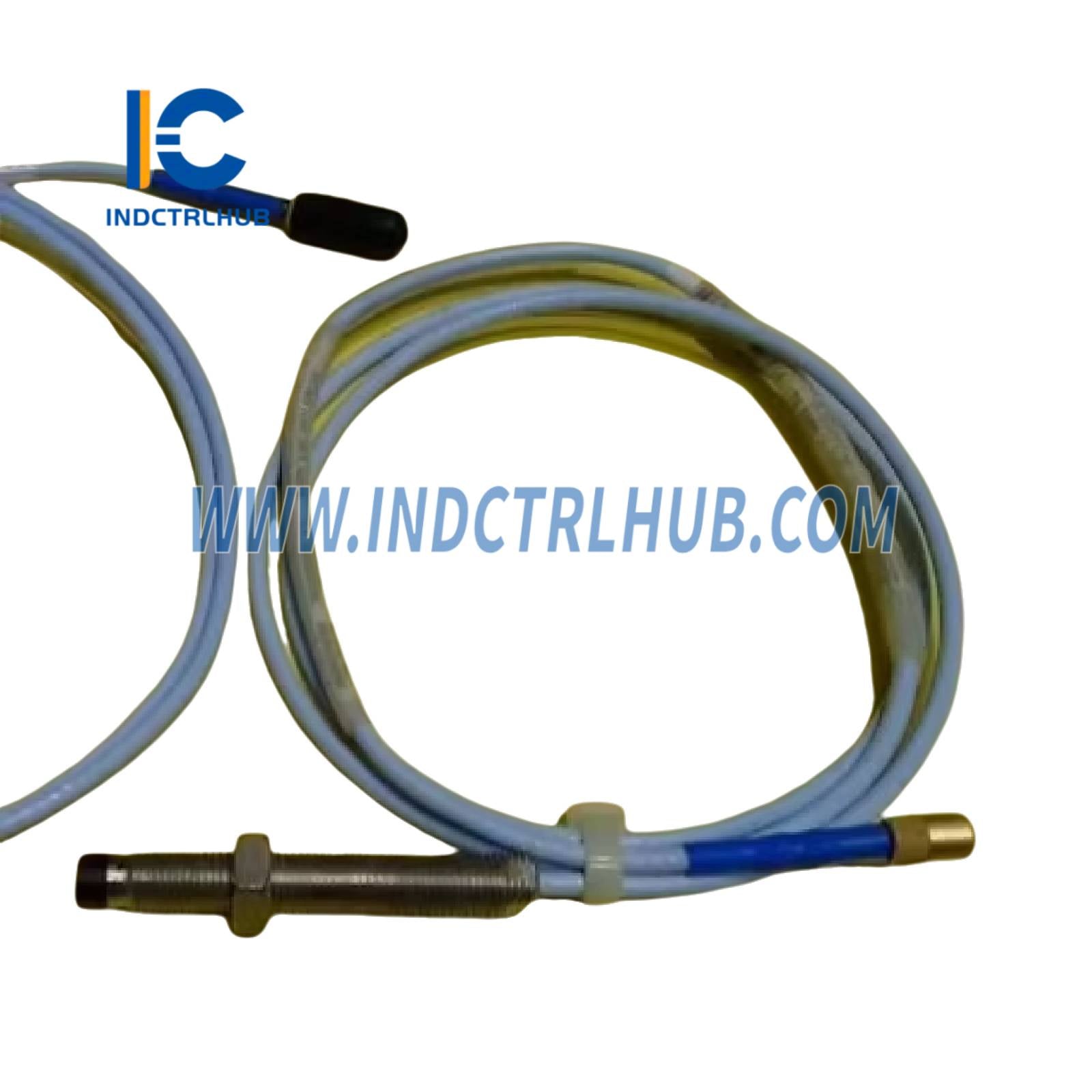

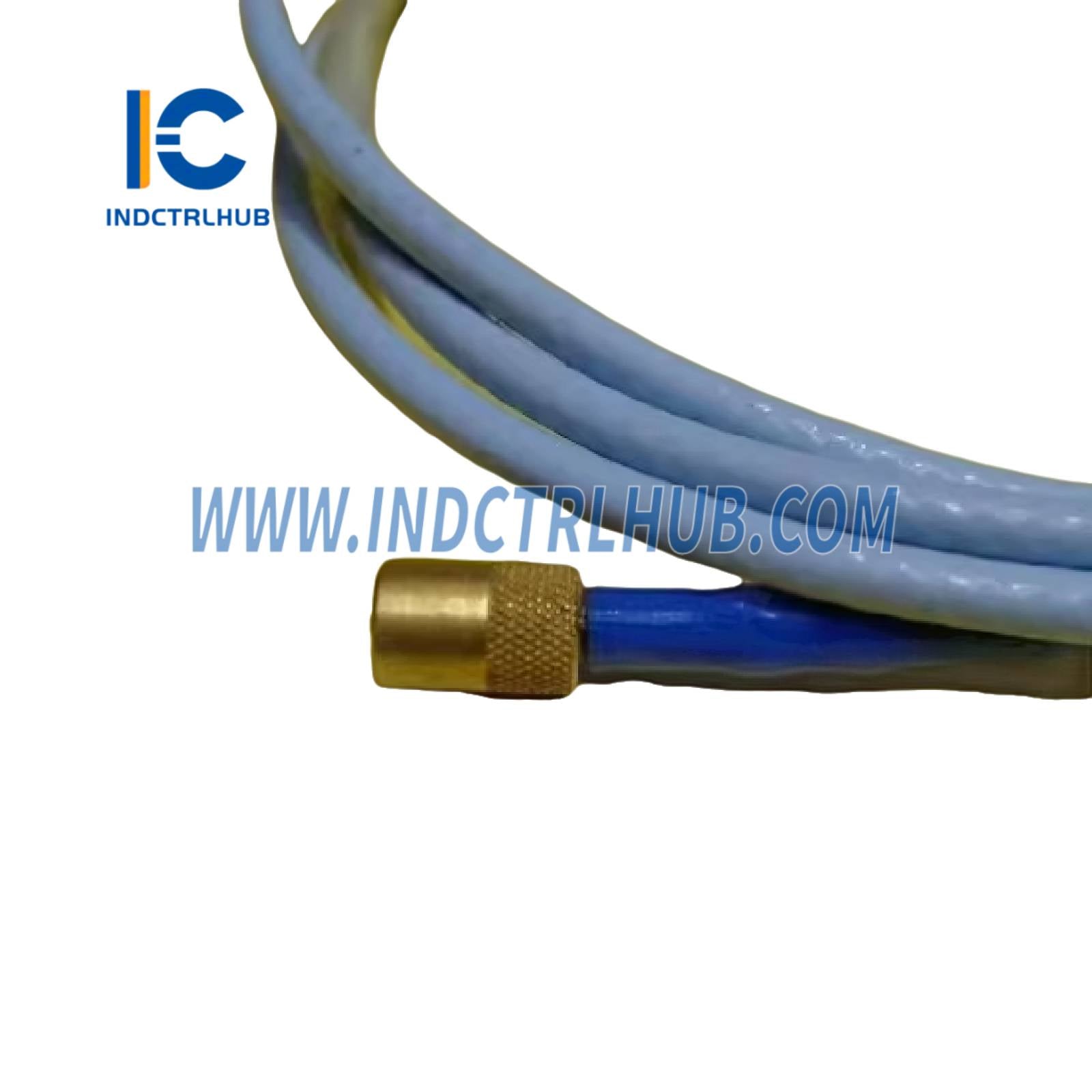

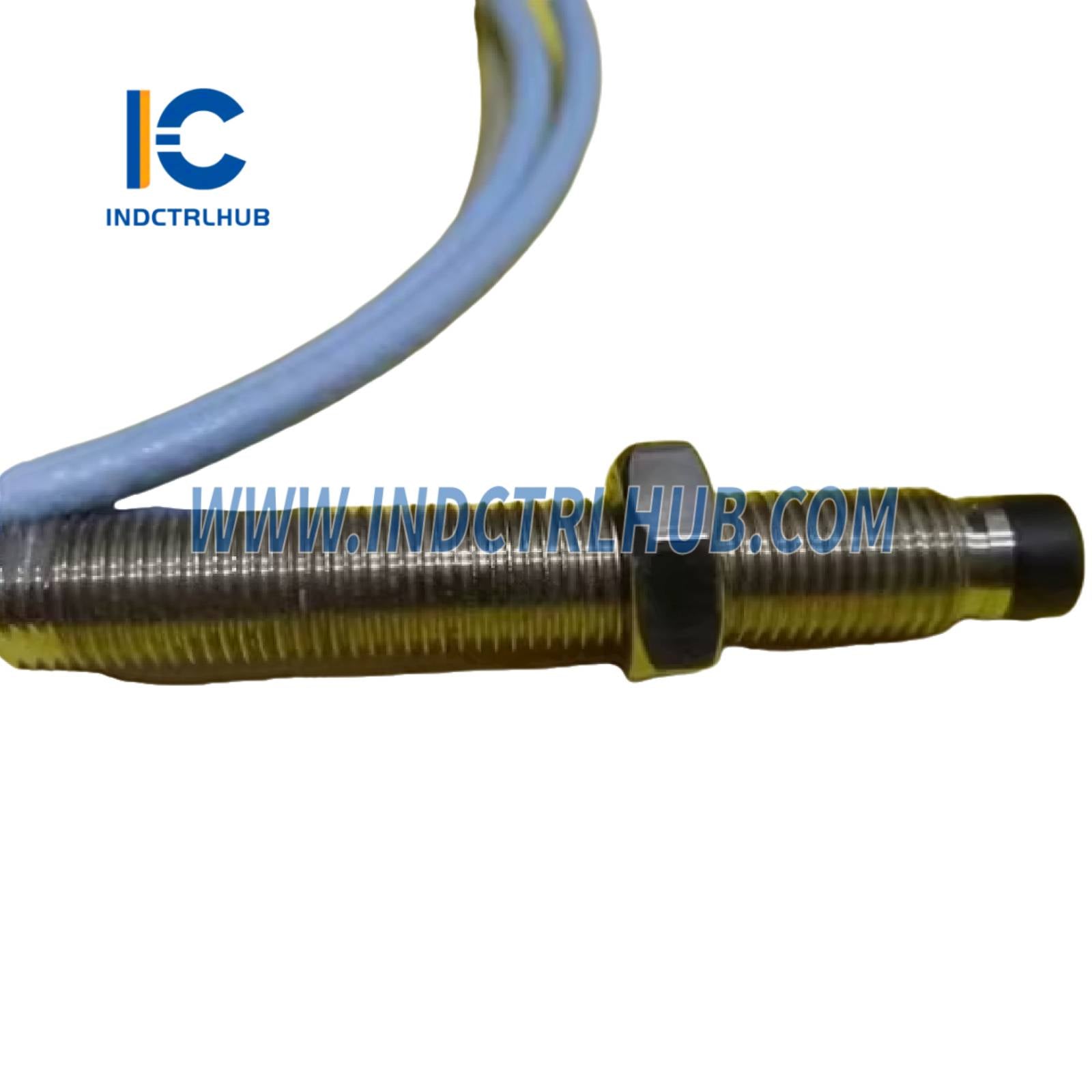

3300 XL 8 mm Proximity Probe |
🔹 Description
The 3300 XL 8 mm Proximity Transducer System includes:
-
One 3300 XL 8 mm proximity probe
-
One 3300 XL extension cable
-
One 3300 XL Proximitor sensor
This probe system is designed for machinery condition monitoring and vibration measurement using eddy current technology.
🔹 Environmental Limits
|
Component |
Temperature Range |
|---|---|
|
Probe |
-52°C to +177°C (-62°F to +350°F) |
|
(Applies to both operating and storage) |
🔹 Physical
|
Component |
Weight |
|---|---|
|
Probe |
323 g/m (11.4 oz) |
🔹 Ordering Information
|
Full Model Format |
330101-AA-BB-CC-DD-EE |
|---|
A: Unthreaded Length Option
-
Range: 0.0 in. to 8.8 in. (in increments of 0.1 in.)
-
Must be 0.8 in. shorter than the total case length
-
Example: 04 = 0.4 in.
B: Overall Case Length Option
-
Range: 0.8 in. to 9.6 in. (in increments of 0.1 in.)
-
Example: 08 = 0.8 in.
C: Total Length Option (Probe Length)
-
Available Lengths:
|
Code |
Length |
|---|---|
|
05 |
0.5 m (1.6 ft) |
|
10 |
1.0 m (3.3 ft) |
|
15 |
1.5 m (4.9 ft) |
|
20 |
2.0 m (6.6 ft) |
|
30 |
3.0 m (9.8 ft) |
|
50 |
5.0 m (16.4 ft) |
|
90 |
9.0 m (29.5 ft) |
Note:
-
3 m length is available only on 330101 probes for use with 9 m Proximitor sensors
-
5 m probes must be used only with 5 m Proximitor sensors
D: Connector and Cable-Type Option
|
Code |
Description |
|---|---|
|
01 |
ClickLoc connector + protector, standard cable |
|
02 |
ClickLoc connector, standard cable |
|
11 |
ClickLoc connector + protector, FluidLoc cable (for contamination resistance) |
|
12 |
ClickLoc connector, FluidLoc cable |
E: Agency Approval Option
|
Code |
Approvals |
|---|---|
|
00 |
Not required |
|
05 |
CSA, ATEX, IECEx Approvals |
