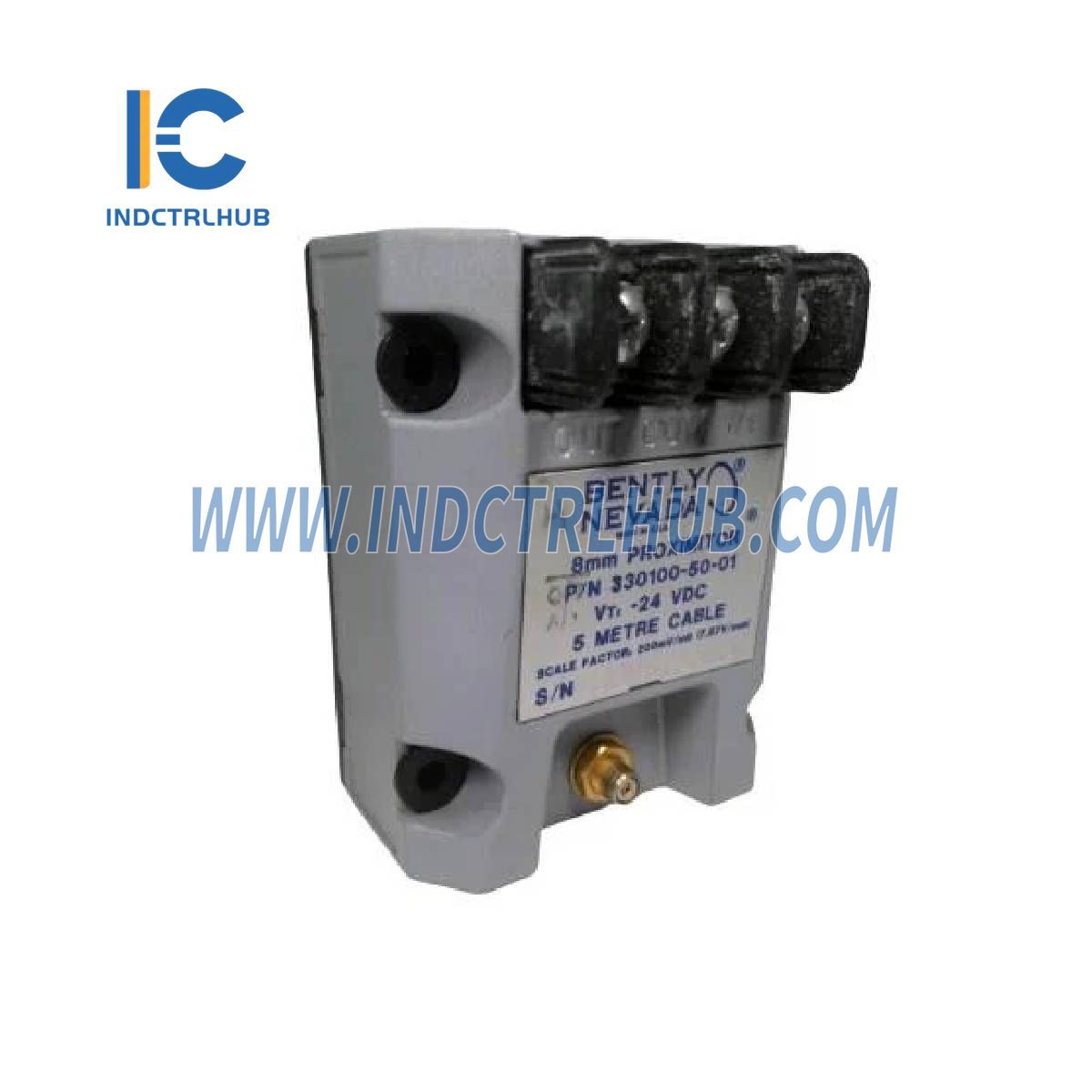

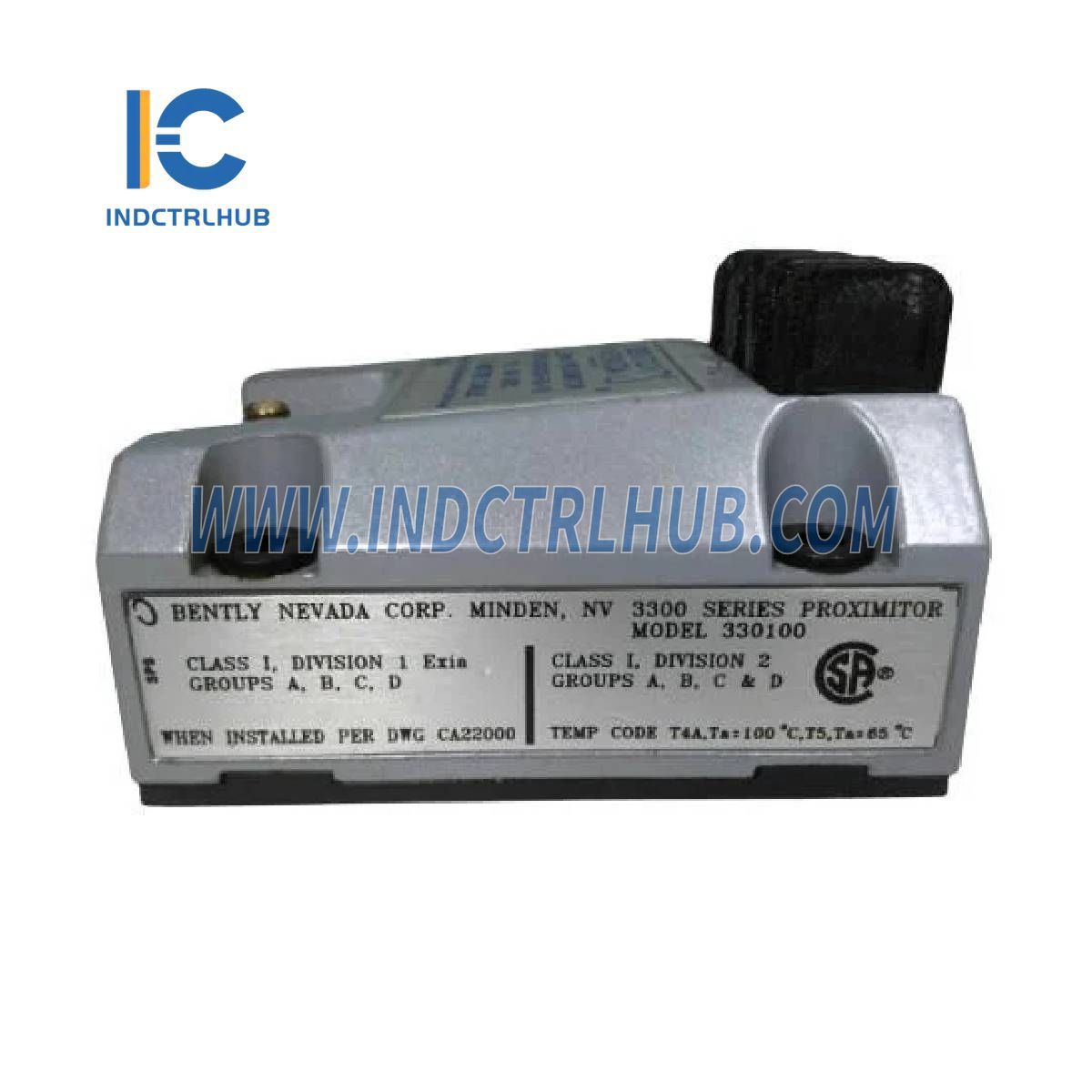

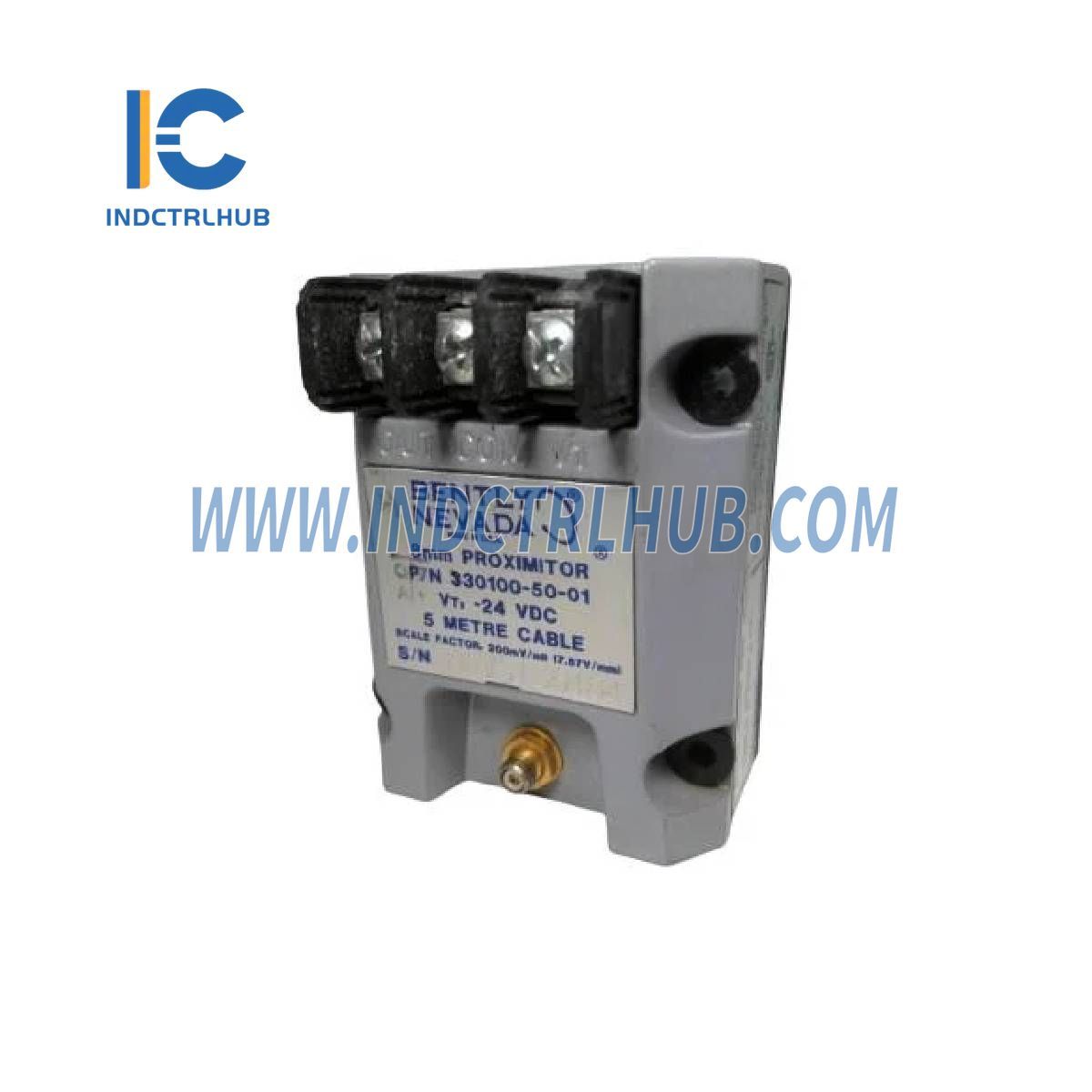

Product Description
General Information
- Manufacturer: Bently Nevada
- Series: 3300 XL
- Model/Part Number: 330100-50-01
- Model Type: Proximitor Sensor
Description
The 3300 XL 8 mm Proximity Transducer System consists of the following components:
- One 3300 XL 8 mm Probe
- One 3300 XL Extension Cable
- One 3300 XL Proximitor Sensor
Specifications
-
Power Supply:
- Requires -24 Vdc power supply
- Load: 10 kΩ
-
Operating Temperature Range:
- Proximitor Sensor: -52°C to +100°C (-62°F to +212°F)
- Storage Temperature Range: -52°C to +105°C (-62°F to +221°F)
-
Field Wiring:
- Recommended wire size: 0.2 to 1.5 mm² (16 to 24 AWG)
- Recommended cable: 3-conductor shielded triad cable
- Maximum wiring length: 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor
-
Proximitor Sensor Material: A308 aluminum
-
Weight of Proximitor Sensor: 246 g (8.67 oz)
-
Target Type:
- AISI 4140 steel target
-
Probe Gap:
- Gapped at 1.27 mm (50 mils)
-
Performance:
- These specifications are for systems using the 3300 XL 8 mm Probe, extension cable, and Proximitor Sensor at an ambient temperature of +18°C to +27°C (+64°F to +80°F) at a maximum altitude of 2000 meters.
- Performance is based on systems calibrated to AISI 4140 steel targets.
- Accuracy and interchangeability specifications do not apply if using a target other than AISI 4140 steel.
