Product Description
Product Details
| Manufacturer |
(Not Specified) |
| Model/Part Number |
330180-X1-05 |
| Description |

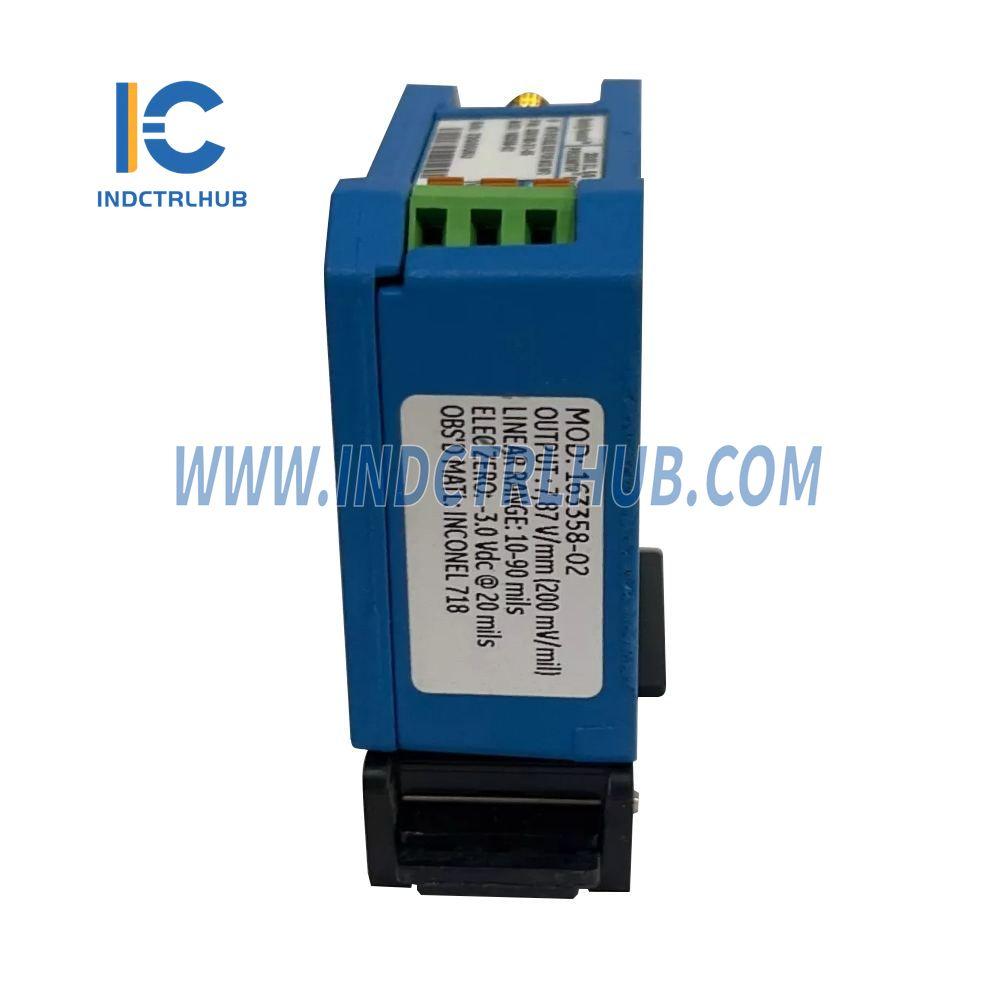

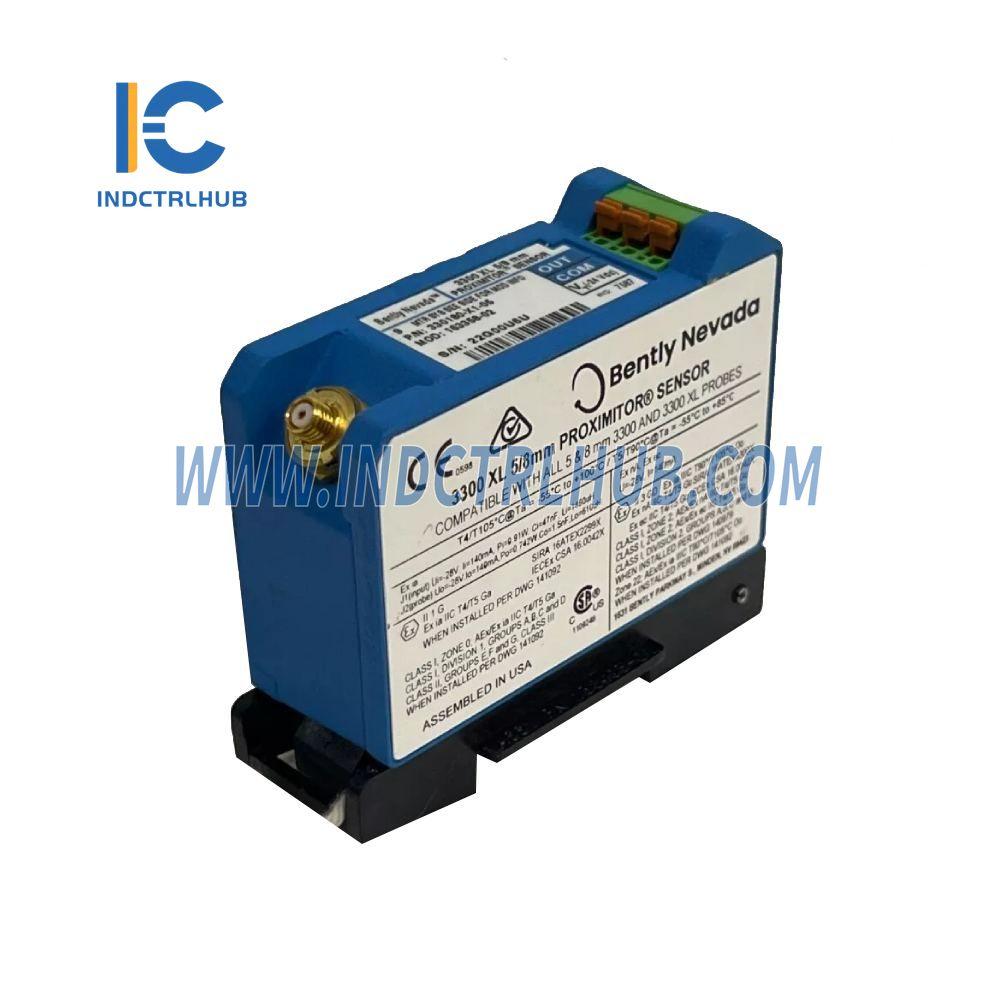

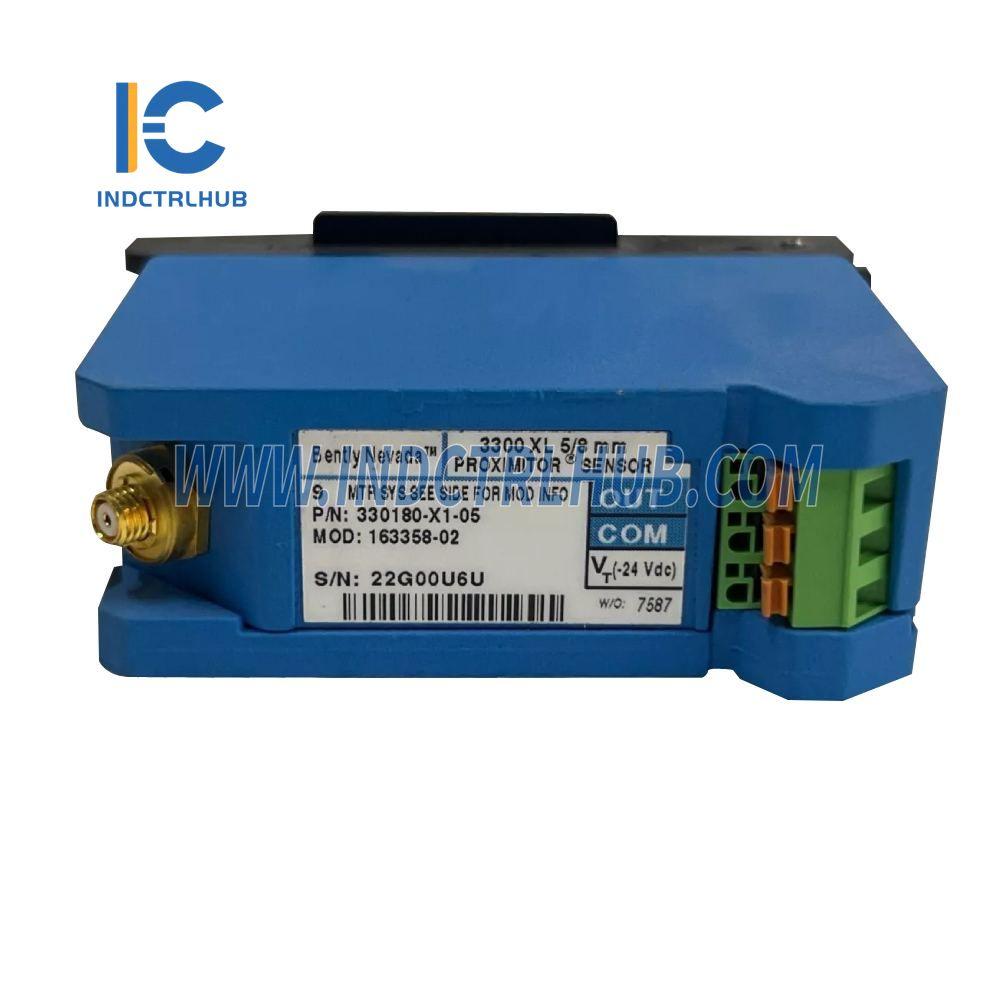

3300 XL 8 mm Proximitor Sensor |
Specifications
General Specifications
| Attribute |
Details |
| System Compatibility |
Compatible with 3300 XL 8 mm Proximity Probes and Extension Cables. Performance characteristics are valid only with matching components. |
| Calibration Target |
AISI 4140 Steel Target. Specifications not guaranteed with other targets. |
| Power Supply |
-24 Vdc with a 10 kΩ load. |
| Altitude |
Performance valid up to 2000 meters. |
Electrical Specifications
| Proximitor Sensor Input | Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable. |
Materials
| Proximitor Sensor Material | A308 Aluminum |
| Weight | 246 g (8.67 oz) |
Temperature Range
| Condition |
Temperature |
| Operating |
-52°C to +100°C (-62°F to +212°F) |
| Storage |
-52°C to +105°C (-62°F to +221°F) |
Ordering Information
3300 XL Proximitor Sensor
| Part Number |
Total Length and Mounting Option |
| 330180-10 |
1.0 meter (3.3 feet) system length, panel mount. |
| 330180-11 |
1.0 meter (3.3 feet) system length, DIN mount. |
| 330180-12 |
1.0 meter (3.3 feet) system length, no mounting hardware. |
| 330180-50 |
5.0 meters (16.4 feet) system length, panel mount. |
| 330180-51 |
5.0 meters (16.4 feet) system length, DIN mount. |
| 330180-52 |
5.0 meters (16.4 feet) system length, no mounting hardware. |
| 330180-90 |
9.0 meters (29.5 feet) system length, panel mount. |
| 330180-91 |
9.0 meters (29.5 feet) system length, DIN mount. |
| 330180-92 |
9.0 meters (29.5 feet) system length, no mounting hardware. |
Agency Approval Option
| Option Code |
Description |
| 00 |
Not required. |
| 05 |
CSA, ATEX, IECEx Approvals. |
