Product Description
Product Overview

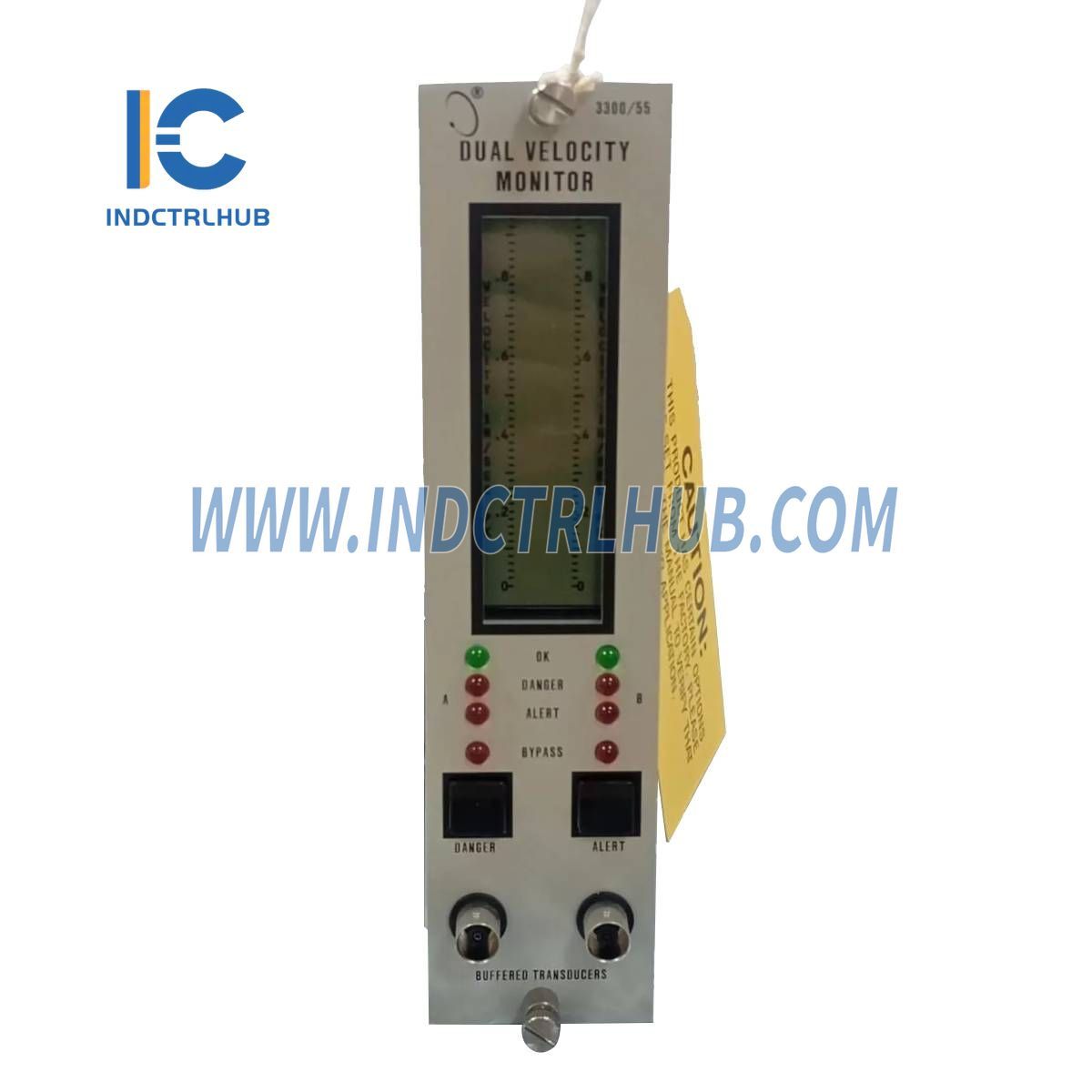

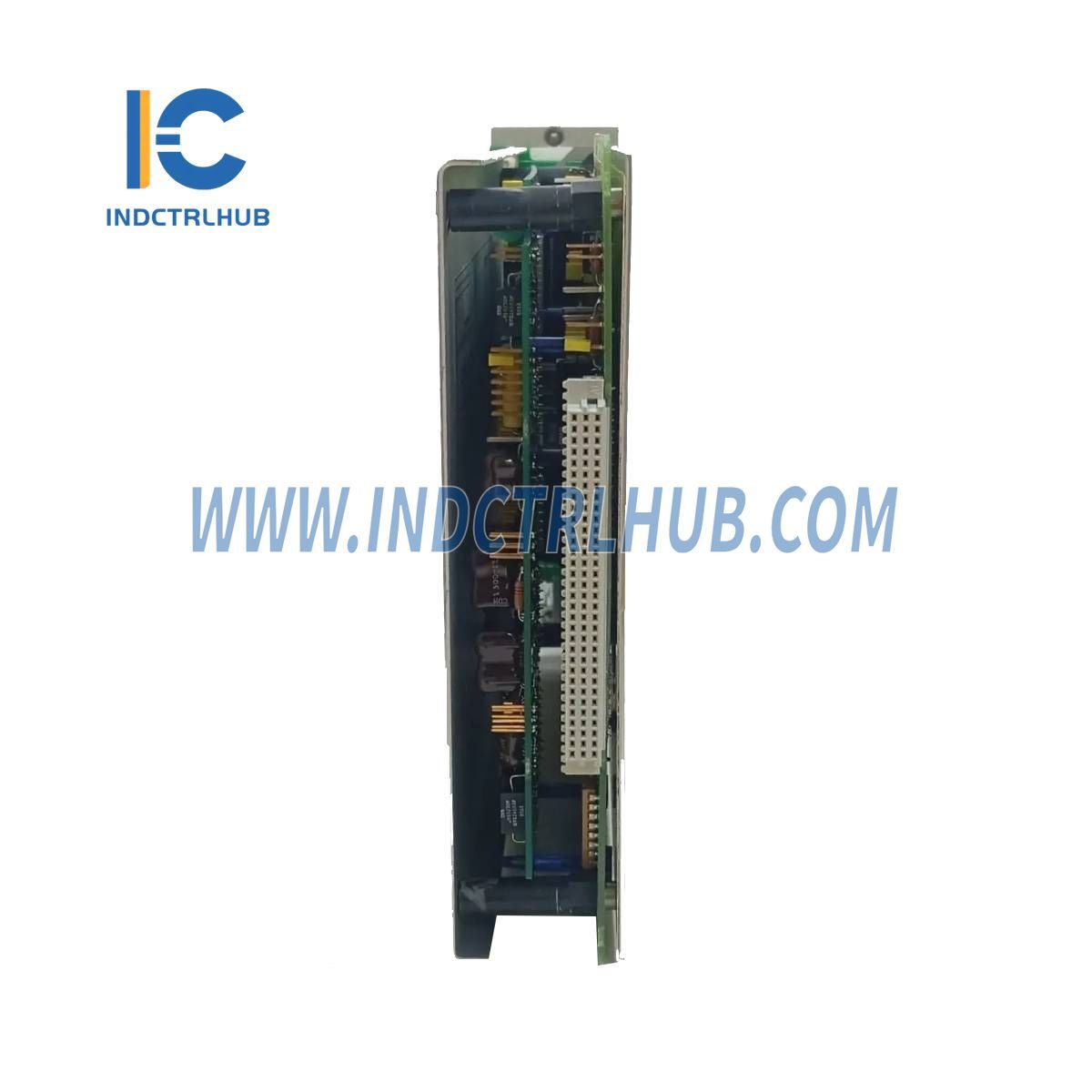

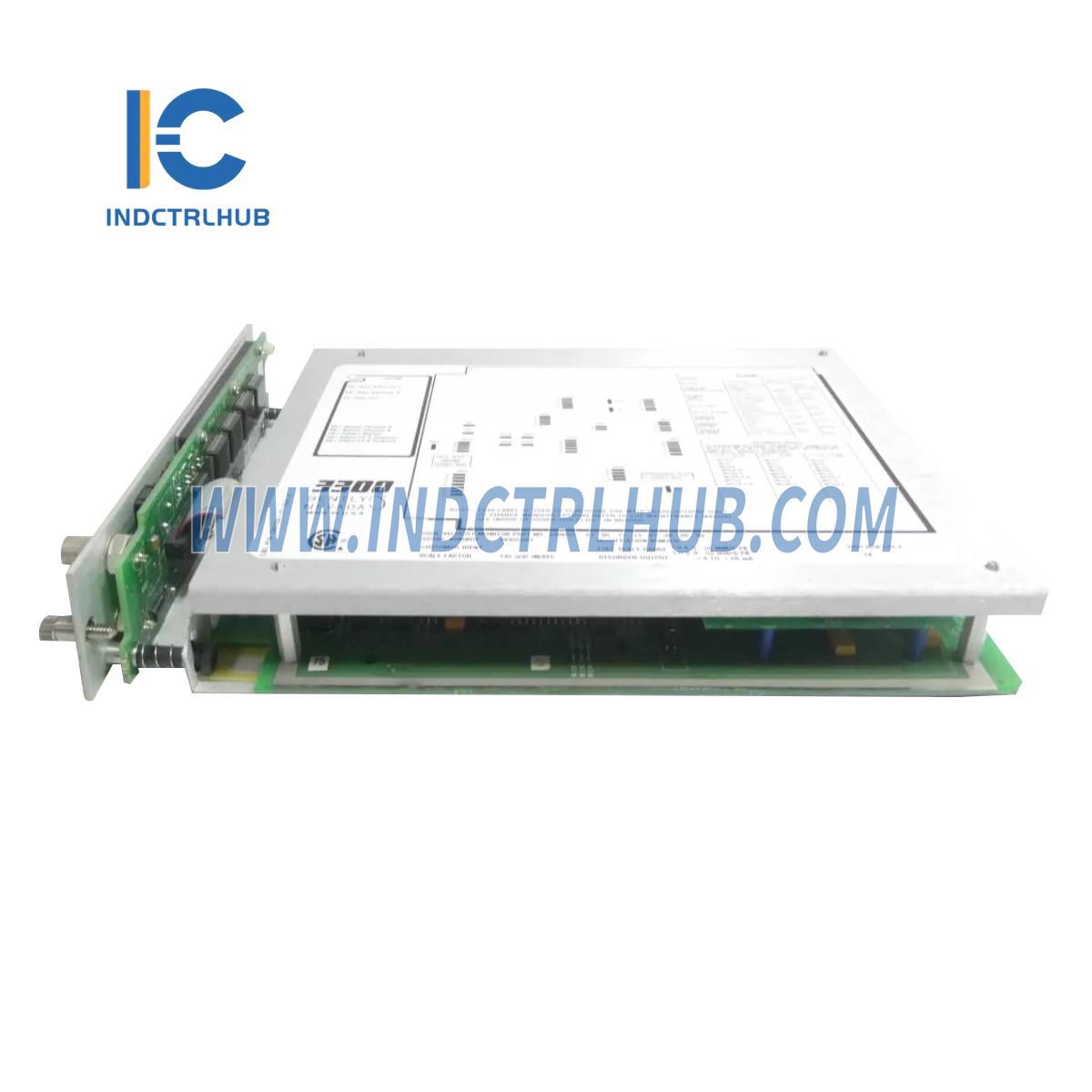

- The Bently Nevada 3300/55-01-13-13-00-01 is a Dual Velocity Monitor from the 3300/55 series, designed for continuous online machinery vibration monitoring across two channels. This module accepts inputs from one or two Bently Nevada Velomitor® transducers, High Temperature Velomitor Systems (HTVS), or Velocity Seismoprobe® transducers without requiring interface modules, offering versatile and reliable vibration monitoring for industrial applications.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300/55 |
| Model/Part Number | 3300/55-01-13-13-00-01 |
| Model Type | Dual Velocity Monitor |
| Inputs - Signals | Accepts signals from one or two Bently Nevada Velomitor transducers or 2-wire Velocity Seismoprobe transducers (See Ordering Information for specifics) |
| Inputs - Sensitivity | 500 mV/in/s, 145 mV/in/s, or 100 mV/in/s, jumper-programmable |
| Inputs - Power | Nominal consumption of 1.5 Watts |
| Operating Temperature | 0°C to +65°C (+32°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | To 95%, non-condensing |
| Rack Space Requirements | One rack position (any position except 1 and 2, reserved for Power Supply and System Monitor, respectively) |
| Weight | 1 kg (2.2 lbs) |
Ordering Information
- Model: 3300/55 Dual Velocity Monitor
- Ordering Format: 3300/55-AXX-BXX-CXX-DXX-EXX-FXX-GXX-HXX (Note: Only A-E options provided in input)
- Factory-set Option Descriptions:
- A: Channel Input Option
- 01: Dual Velocity Inputs - Channels A & B indicate in peak velocity
- 02: Dual Velocity Inputs - Channel A in peak velocity, Channel B in peak-to-peak displacement
- 03: Dual Velocity Inputs - Channels A & B in peak-to-peak displacement
- 04: Dual Velocity Inputs - Channels A & B in rms velocity
- 05: Single Velocity Input - Channels A & B in peak velocity
- 06: Single Velocity Input - Channel A in peak velocity, Channel B in peak-to-peak displacement
- 07: Single Velocity Input - Channels A & B in peak-to-peak displacement
- 08: Single Velocity Input - Channels A & B in rms velocity
- B: Transducer Type Option
- 01: 9200 or 74712, 500 mV/in/s (2-wire, 10 kΩ input impedance)
- 02: 47633 or 86205, 500 mV/in/s (2-wire, 24.9 kΩ input impedance)
- 03: 145 mV/in/s (CEC 4-126)
- 04: Velomitor 100 mV/in/s
- 05: HTVS 145 mV/in/s
- Note: Transducer voltage must be selected for 24 Vdc in the power supply when Velomitor or HTVS is used
- C: Channel A Full-scale Range Option
- 01: 0 - 0.5 in/s pk
- 02: 0 - 1 in/s pk
- 03: 0 - 2 in/s pk
- 04: 0 - 5 mils pp
- 05: 0 - 10 mils pp
- 06: 0 - 20 mils pp
- 07: 0 - 0.5 in/s rms
- 08: 0 - 1 in/s rms
- 09: 0 - 2 in/s rms
- 11: 0 - 10 mm/s pk
- 12: 0 - 20 mm/s pk
- 13: 0 - 50 mm/s pk
- 14: 0 - 100 µm pp
- 15: 0 - 200 µm pp
- 16: 0 - 500 µm pp
- 17: 0 - 10 mm/s rms
- 18: 0 - 20 mm/s rms
- 19: 0 - 50 mm/s rms
- D: Channel B Full-scale Range Option (Same as Channel A options above)
- E: Agency Approval Option
- 00: Not Required
- 01: CSA/NRTL/C
- 02: ATEX self-certification (requires monitor rack in a weatherproof housing)
- A: Channel Input Option
Specific Configuration
- Model/Part Number: 3300/55-01-13-13-00-01
- Configuration Details:
- A: 01 - Dual Velocity Inputs, Channels A & B indicate in peak velocity
- B: 13 - Likely a typo or mismatch; intended as "01" (9200 or 74712, 500 mV/in/s) based on context
- C: 13 - Channel A Full-scale Range: 0 - 50 mm/s pk
- D: 13 - Channel B Full-scale Range: 0 - 50 mm/s pk
- E: 00 - No Agency Approval
- F-H: 01 - Assumed as placeholder or default (not detailed in input)
