Product Description
Product Overview

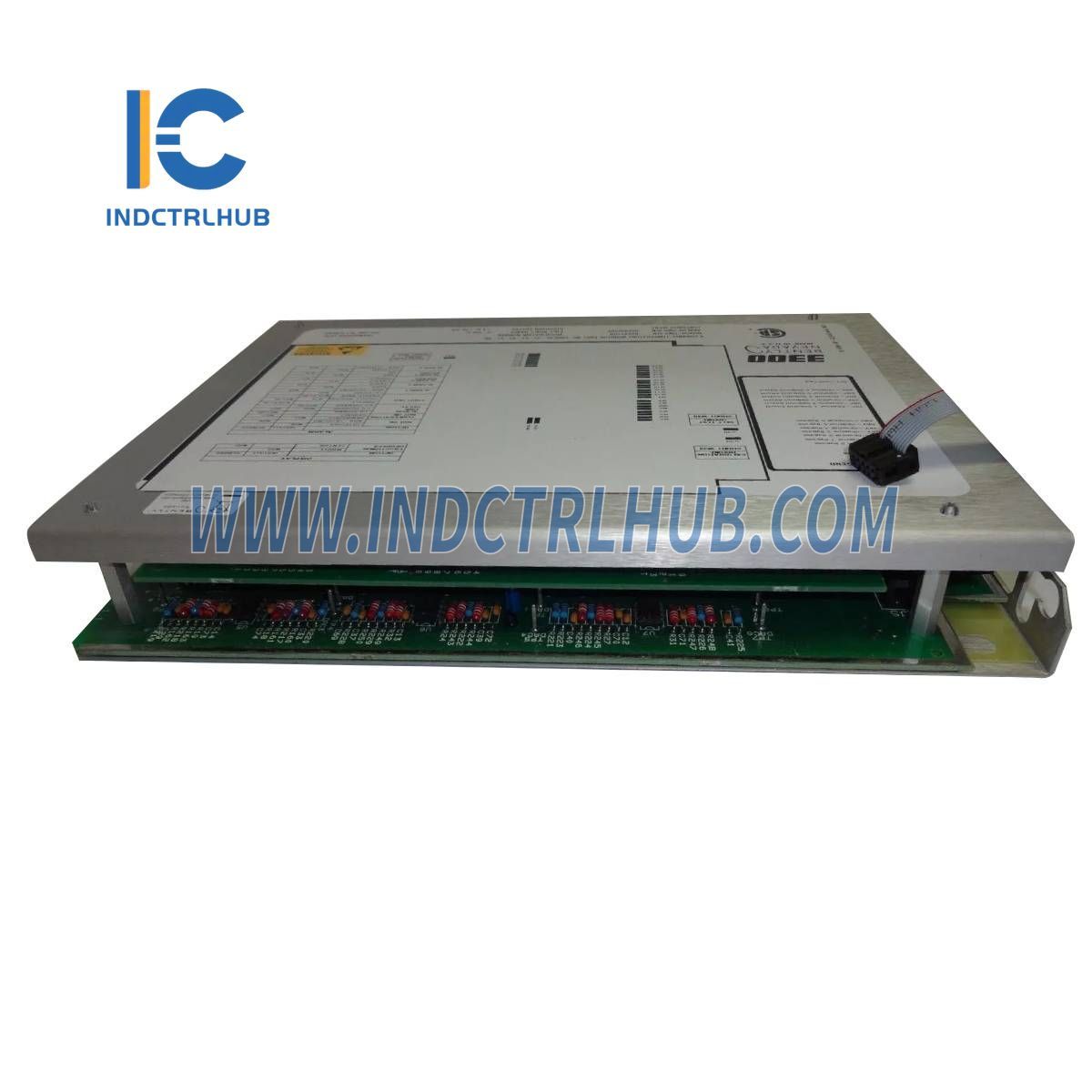

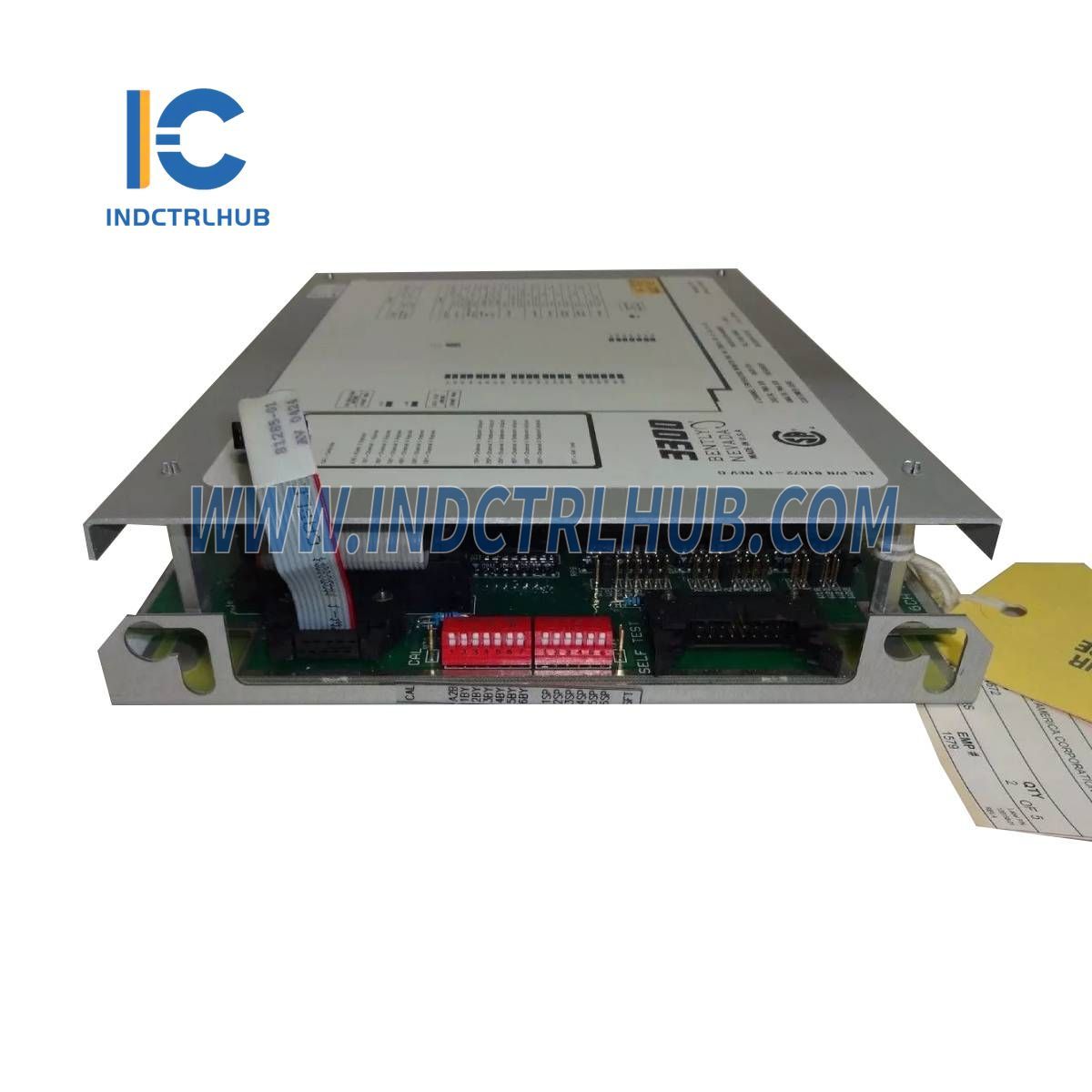

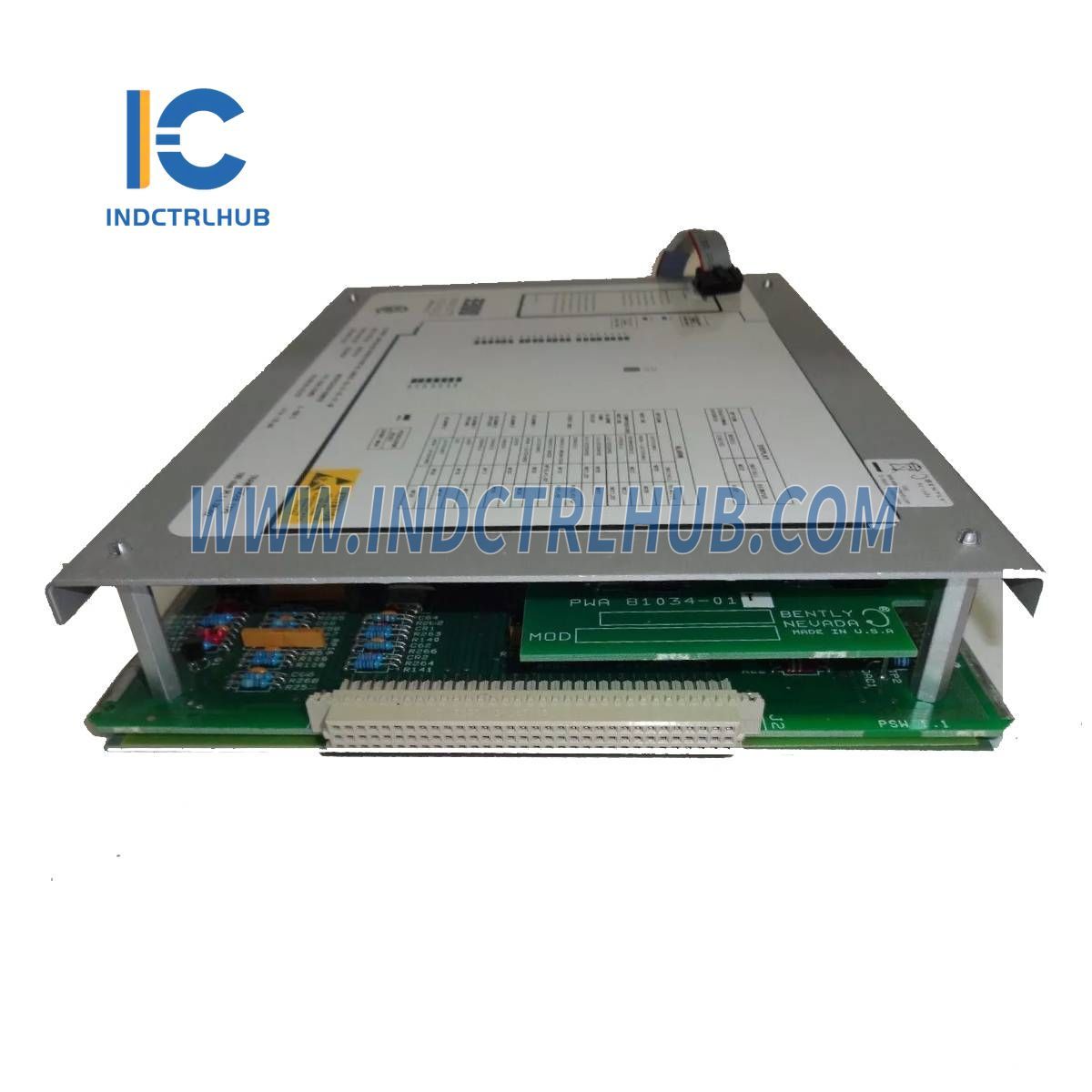

The Bently Nevada 3300/35-03-01-00-00 is a Six-Channel Temperature Monitor from the 3300/35 series, designed to provide six independent channels of continuous online temperature monitoring. Suitable for a wide range of temperature measurement applications, this monitor accepts inputs from up to six resistance temperature detectors (RTDs), which are supplied separately. It complements the 3300/30 TC Monitor (for thermocouples) within the same product family, offering versatile and reliable temperature monitoring for industrial systems.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300/35 |
| Model/Part Number | 3300/35-03-01-00-00 |
| Model Type | Six-Channel Temperature Monitor |
| Inputs - Transducer (3300/35 RTD Monitor) | Accepts up to six RTD signals, user-programmable per monitor: - 3-wire 100 Ω platinum (α = 0.00385) (500°C / 1000°F) - 3-wire 100 Ω platinum (α = 0.00392) (500°C / 1000°F) - 3-wire 120 Ω nickel (150°C / 300°F) - 3-wire 10 Ω copper (100°C / 200°F) - 4-wire 100 Ω platinum (α = 0.00385) (500°C / 1000°F) - 4-wire 100 Ω platinum (α = 0.00392) (500°C / 1000°F) - 4-wire 120 Ω nickel (150°C / 300°F) - 4-wire 10 Ω copper (100°C / 200°F) Notes: - Changing from platinum/nickel to copper RTD requires recalibration - Switching between 3- or 4-wire input is field-configurable via plug-in jumpers - 2-wire detectors can connect to 3- or 4-wire inputs with proper wiring |
| Inputs - Power | Nominal consumption: 4 watts |
| Operating Temperature | 0°C to +65°C (+32°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | To 95%, non-condensing |
| Space Requirements | Two rack positions (any positions except 1 and 2, reserved for Power Supply and System Monitor, respectively) |
| Weight | 2.8 kg (6.2 lbs) |
Ordering Information
- Model: 3300/35 Six-Channel Temperature Monitor
- Ordering Format: 3300/35-AXX-BXX-CXX-DXX-EXX
- Option Descriptions (Note: Full-scale Range and Transducer Input Options must be compatible; see Inputs section for ranges):
- A: Full-scale Range Option
- 01: 0-200°F
- 02: 0-300°F
- 03: 0-400°F
- 04: 0-500°F
- 05: 0-1000°F
- 11: 0-100°C
- 12: 0-150°C
- 13: 0-200°C
- 14: 0-250°C
- 15: 0-500°C
- B: Transducer Input Option (Note: For 3300/35, RTD-specific; TC options listed for 3300/30)
- 01: Type J (Not applicable to 3300/35)
- 02: Type K (Not applicable to 3300/35)
- 03: Type T (Not applicable to 3300/35)
- 04: Type E (Not applicable to 3300/35)
- C: Alarm Relay Option
- 00: No Relays
- 01: Epoxy-sealed
- 02: Hermetically-sealed
- 04: Spare Monitor - No SIM/SIRM
- Notes:
- At least one relay module is required per 3300 System; if a common relay is used, a Special Configuration Kit (SCK) is needed (contact Bently Nevada).
- Agency approval may limit relay options (see Relay Module data sheet).
- D: Agency Approval Option
- 00: Not required
- 01: CSA/NRTL/C
- 02: ATEX self-certification (Note: Requires monitor rack in a weatherproof housing)
- E: Safety Barrier Option
- 00: None
- 01: External
- 02: Internal
- A: Full-scale Range Option
Specific Configuration
- Model/Part Number: 3300/35-03-01-00-00
- Configuration Details:
- A: 03 - Full-scale Range: 0-400°F
- B: 01 - Transducer Input: Not applicable to RTD (assumed as placeholder; RTD type specified in Inputs)
- C: 00 - No Relays
- D: 00 - No Agency Approval
- E: 00 - No Safety Barrier
