Product Description
Product Overview

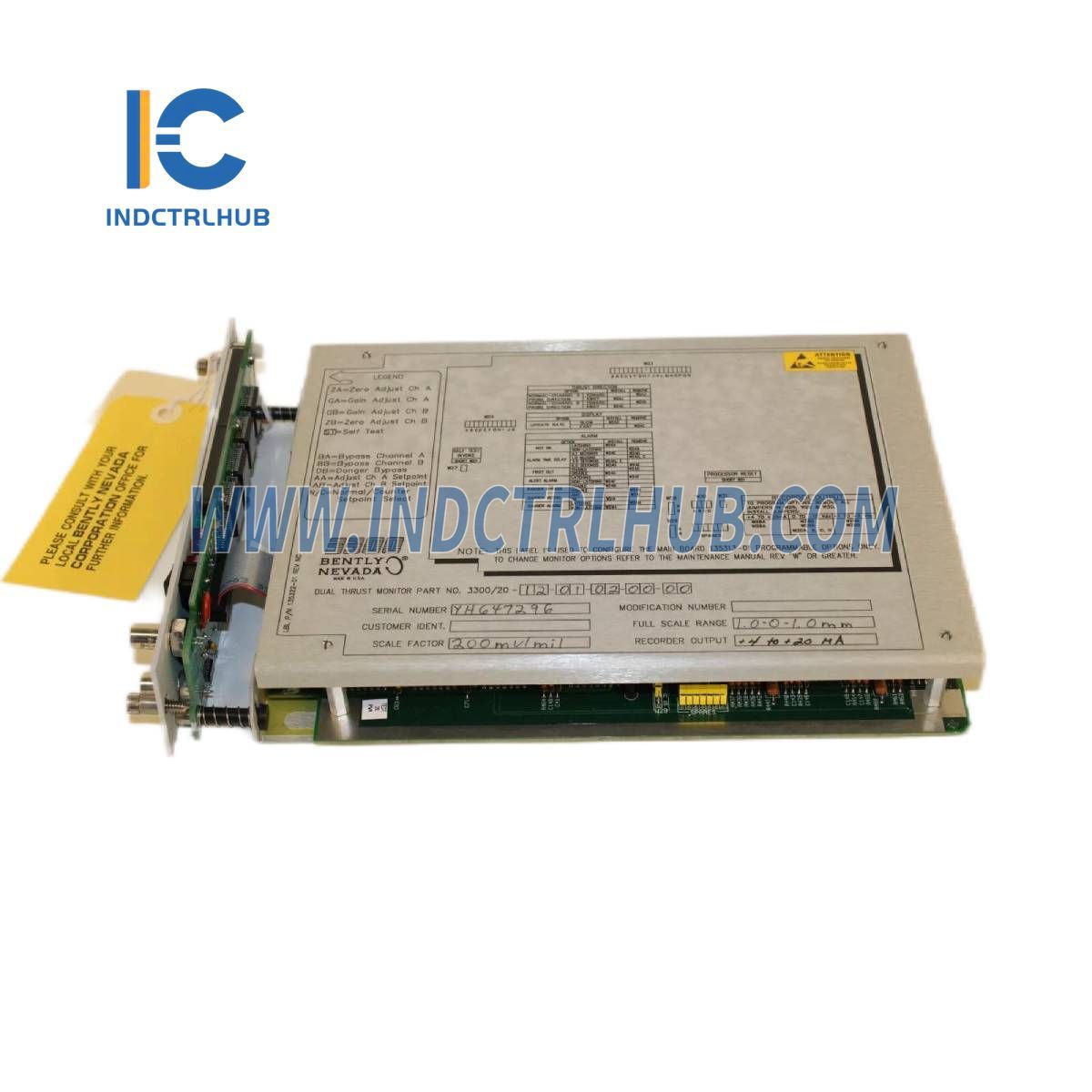

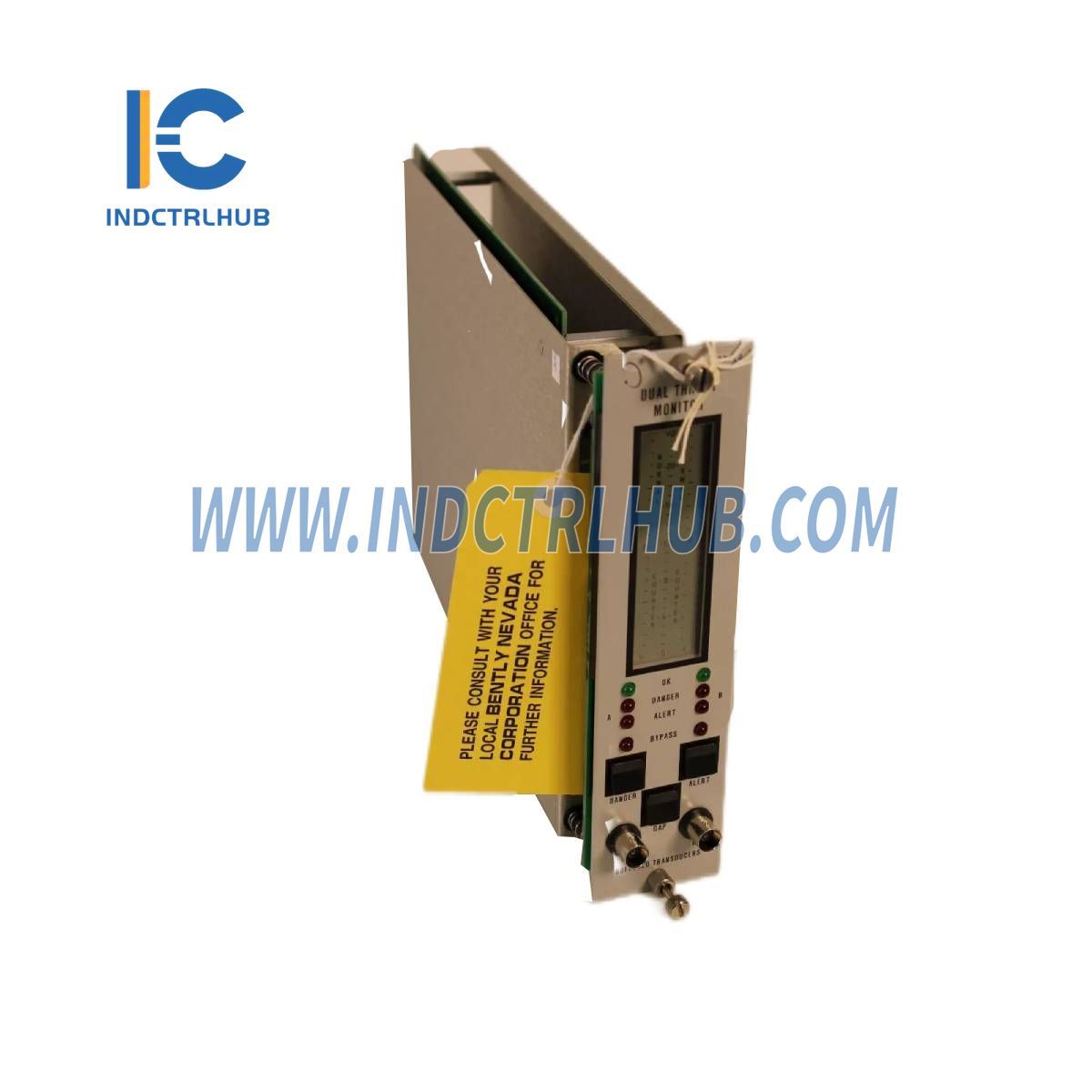

The Bently Nevada 3300/20-12-01-02-00-00 is a Dual Thrust Position Monitor from the 3300/20 series, designed for precise thrust position measurement within machinery protection systems. Although listed as a "PLC Module/Rack," it is more accurately a monitor module that integrates into a 3300 rack, providing two channels of continuous thrust position monitoring. This module supports inputs from various Bently Nevada Proximitor systems, delivering reliable performance for industrial applications requiring accurate position and vibration monitoring.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300/20 |
| Model/Part Number | 3300/20-12-01-02-00-00 |
| Model Type | Dual Thrust Position Monitor (PLC Module/Rack component) |
| Thrust Measurement Range | Up to 100,000 lbs (44,500 kg) |
| Measurement Accuracy | ±1% of full scale |
| Power Supply | 24 VDC or 120/240 VAC |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions (HxWxD) | 175 mm x 104 mm x 41 mm (6.9 in x 4.1 in x 1.6 in) |
| Weight | 1.1 lbs (0.5 kg) |
Ordering Information
- Model: 3300/20 Dual Thrust Position Monitor
- Ordering Format: 3300/20-AXX-BXX-CXX-DXX-EXX
- Option Descriptions:
- A: Full-scale Range Option
- 01: 25-0-25 mils
- 02: 30-0-30 mils
- 03: 40-0-40 mils
- 05: 50-0-50 mils
- 06: 75-0-75 mils
- 11: 0.5-0-0.5 mm
- 12: 1.0-0-1.0 mm
- 13: 2.0-0-2.0 mm
- B: Transducer Input Option
- 01: 3300 or 7200 Proximitor® systems, 200 mV/mil (Ranges 01, 02, 03, 11, and 12 only)
- 02: 7200 11 mm (not 3300XL) Proximitor system, 100 mV/mil
- 03: 7200 14 mm or 3300 HTPS Proximitor systems, 100 mV/mil
- 04: 3000 Proximitor® 200 mV/mil (Requires -18 Vdc power supply setting or power converter; Ranges 01 and 11 only)
- 05: 3300XL NSv and 3300 RAM Proximitor Sensor, 200 mV/mil (Ranges 01 and 11 only)
- C: Alarm Relay Option
- 00: No Relays
- 01: Epoxy-sealed
- 02: Hermetically-sealed
- 03: Quad Relay (Epoxy-sealed only)
- 04: Spare Monitor - No SIM/SIRM
- D: Agency Approval Option
- 00: Not required
- 01: CSA/NRTL/C
- 02: ATEX self-certification
- E: Safety Barrier Option
- 00: None
- 01: External
- 02: Internal
- A: Full-scale Range Option
Specific Configuration
- Model/Part Number: 3300/20-12-01-02-00-00
- Configuration Details:
- A: 12 - Full-scale Range: 1.0-0-1.0 mm
- B: 01 - Transducer Input: 3300 or 7200 Proximitor® systems, 200 mV/mil
- C: 02 - Alarm Relay: Hermetically-sealed
- D: 00 - Agency Approval: Not required
- E: 00 - Safety Barrier: None
