Product Description
General Information
- Manufacturer: Bently Nevada (a Baker Hughes business, under Emerson ownership)
- Series: 3300
- Model/Part Number: 3300/16-12-01

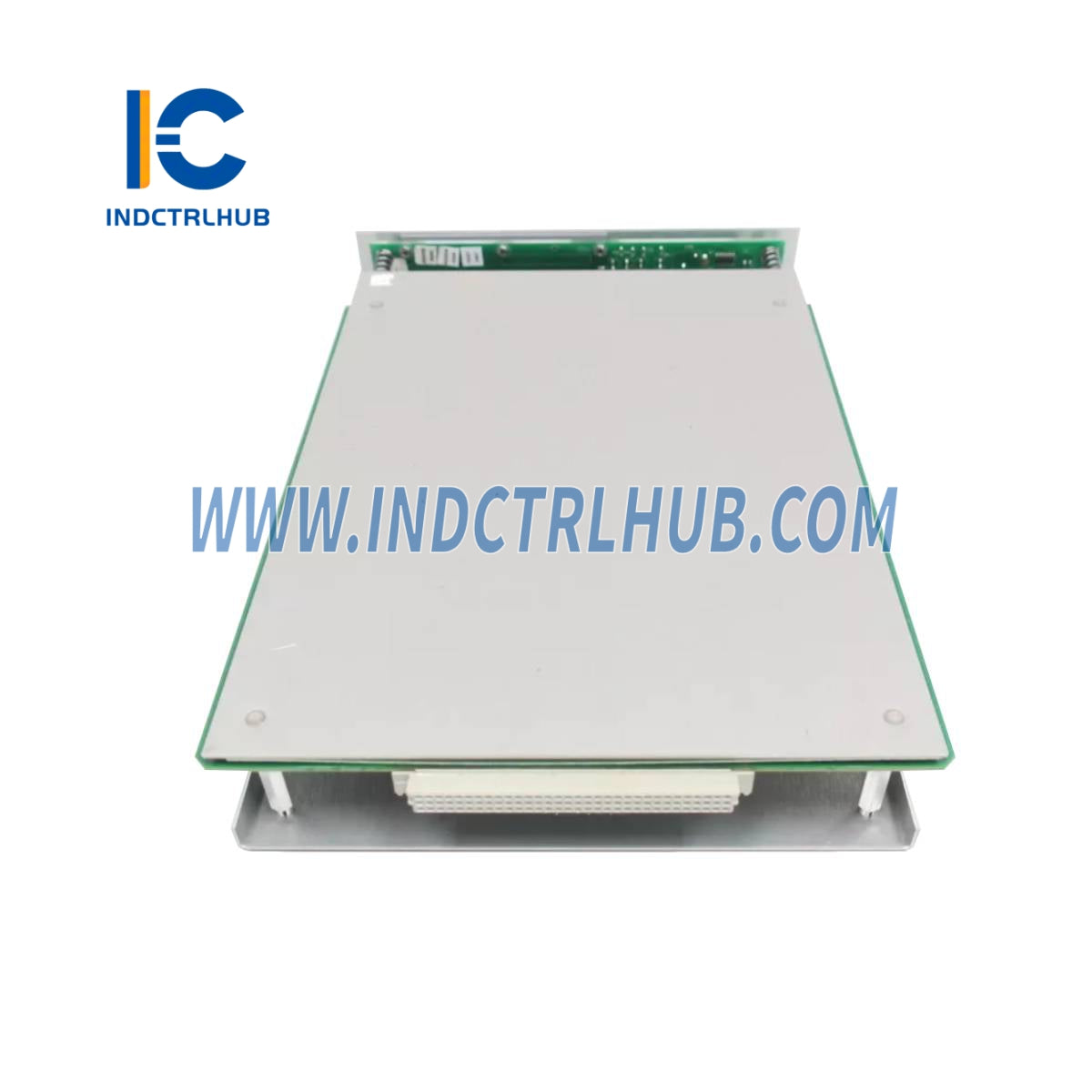

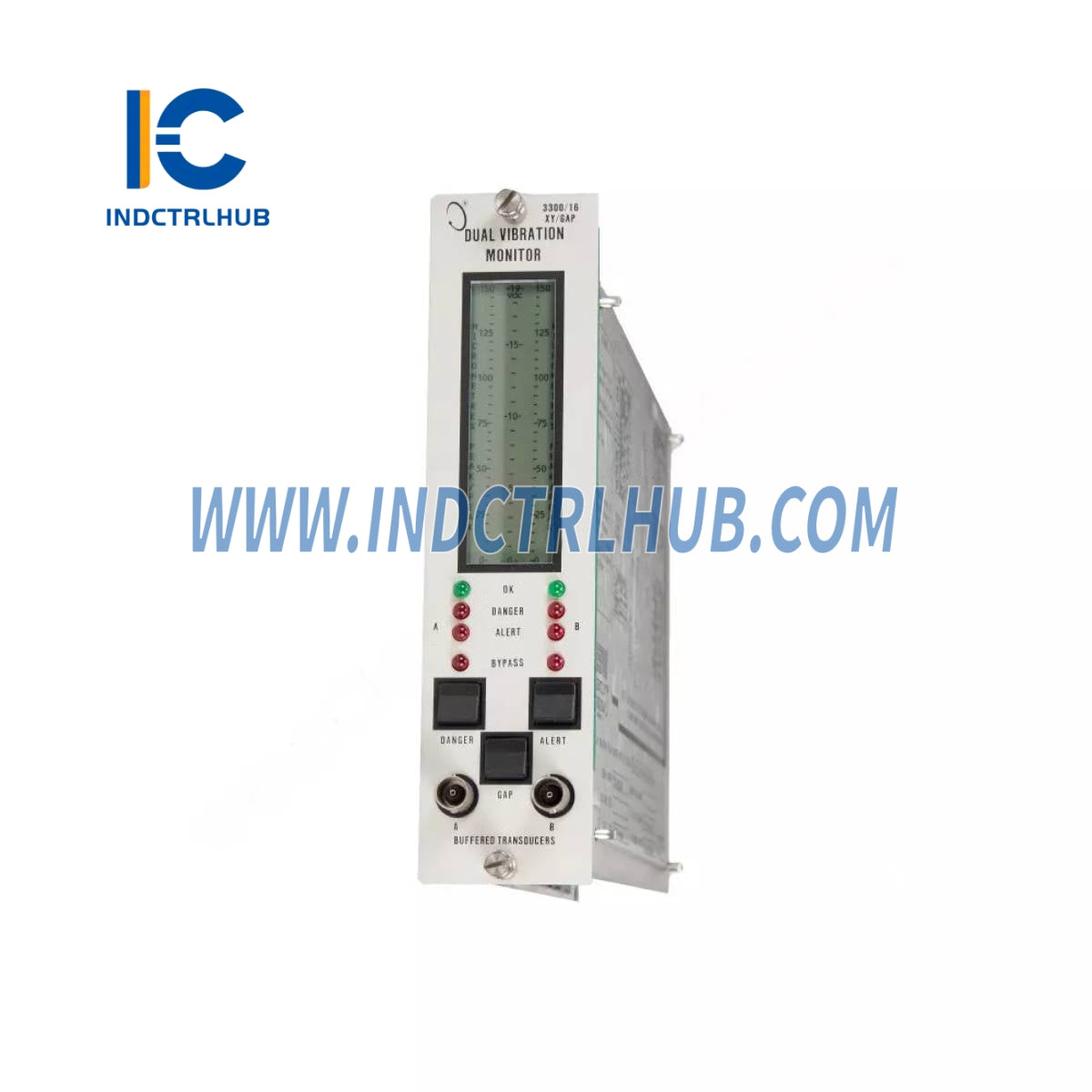

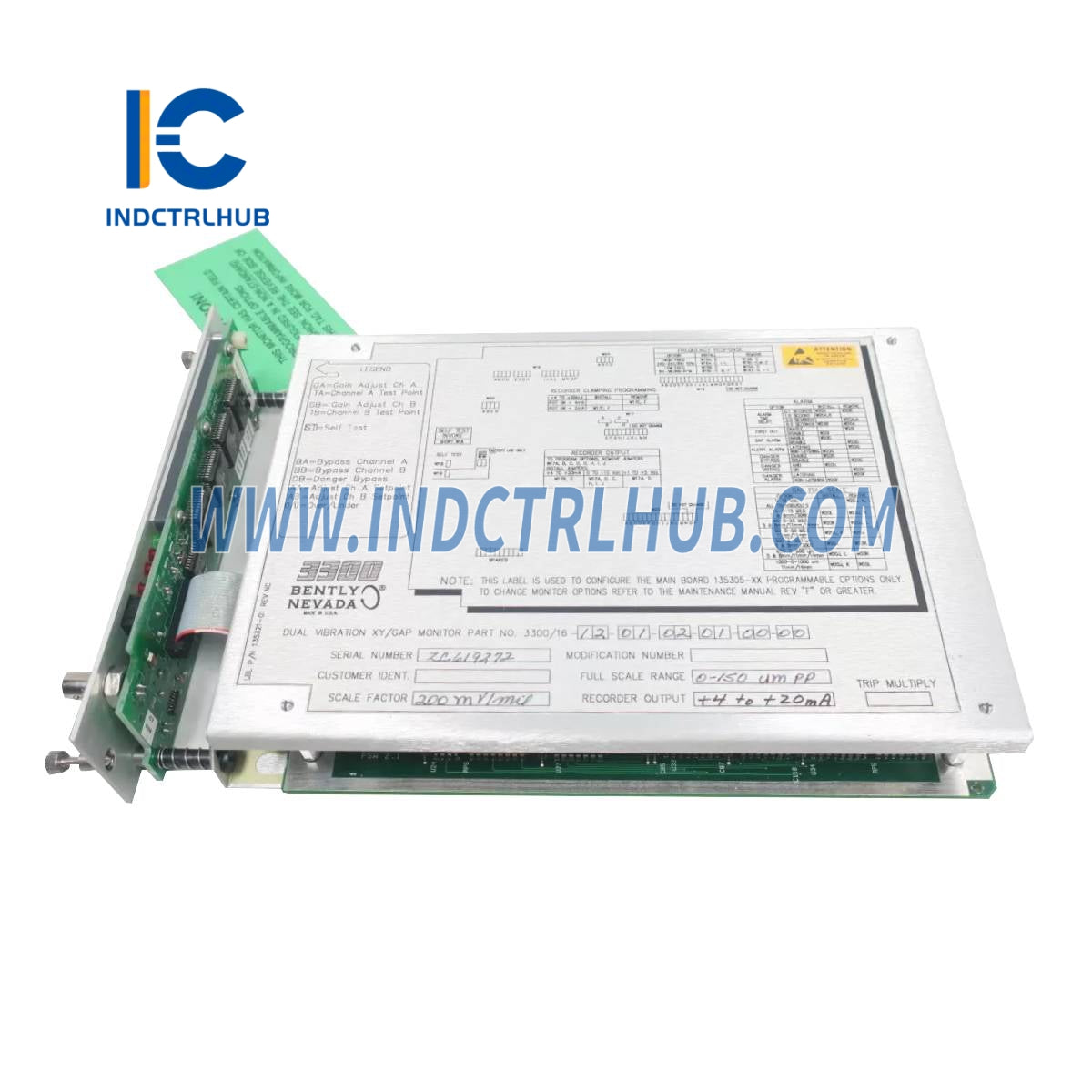

- Description: The Bently Nevada 3300/16-12-01 is a Dual Vibration XY/Gap Monitor from the 3300 Series Monitoring System. This module is designed for continuous, online monitoring of radial vibration and average shaft position (gap) across two independent channels, accepting inputs from proximity probe/Proximitor systems. It is intended for machinery protection in industrial applications, offering enhanced functionality over its predecessor, the 3300/15, with radial position gap alarms. The 3300 Series is widely used for condition monitoring of rotating equipment in power generation, oil and gas, and other industrial sectors.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Dual Vibration XY/Gap Monitor |
| Series | 3300 |
| Channels | 2 independent channels |
| Measurement Types | Radial vibration, shaft position (gap) |
| Input Compatibility | 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensors (200 mV/mil) |
| Full-Scale Range | 0–3 mils peak-to-peak (pp) (based on option "12") |
| Frequency Range | 1 to 600 Hz (60 to 36,000 CPM) |
| Power Supply | User-programmable for -24 V DC or -18 V DC |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Weight | Approximately 1.1 kg (2.4 lbs) |
| Application | Machinery protection and condition monitoring |
