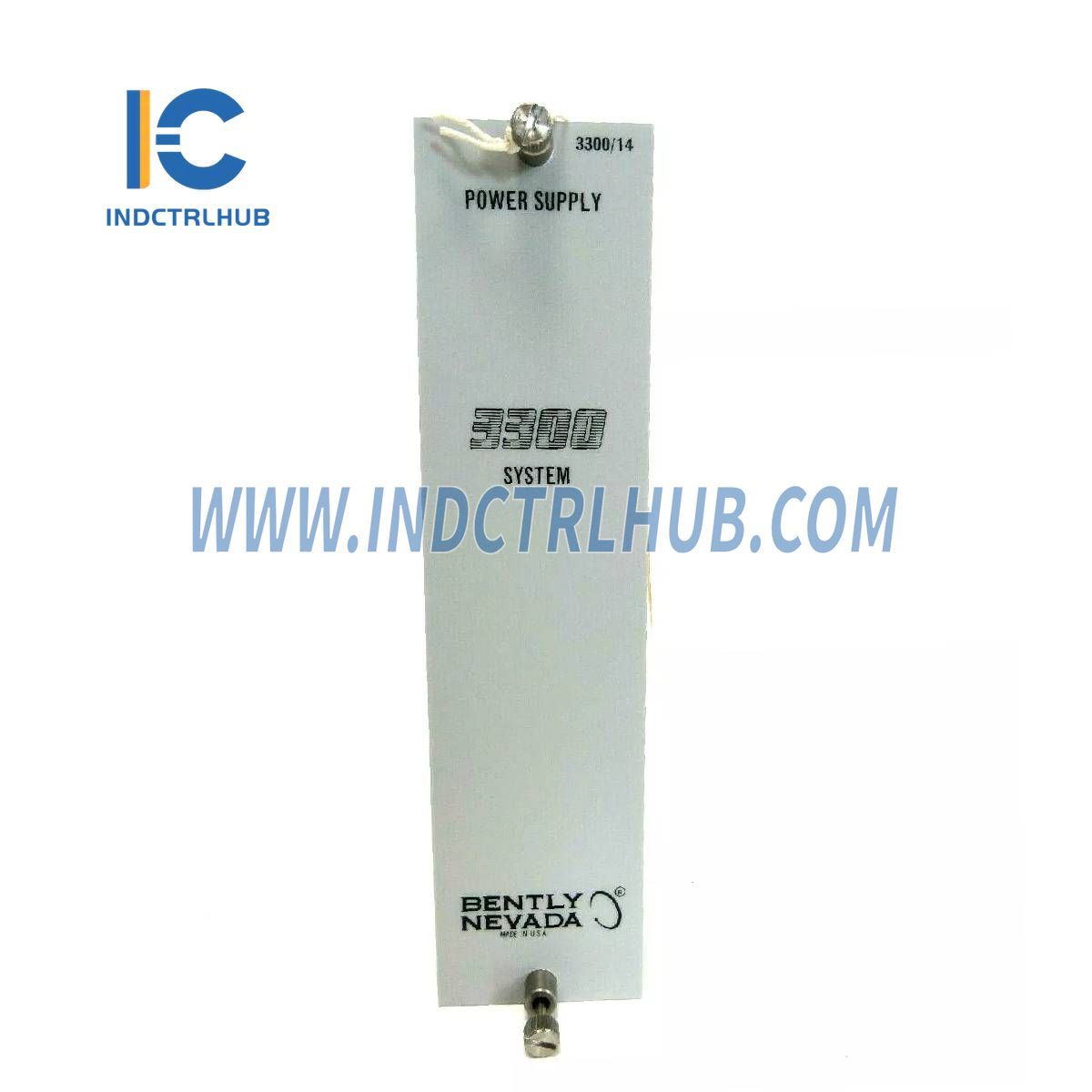

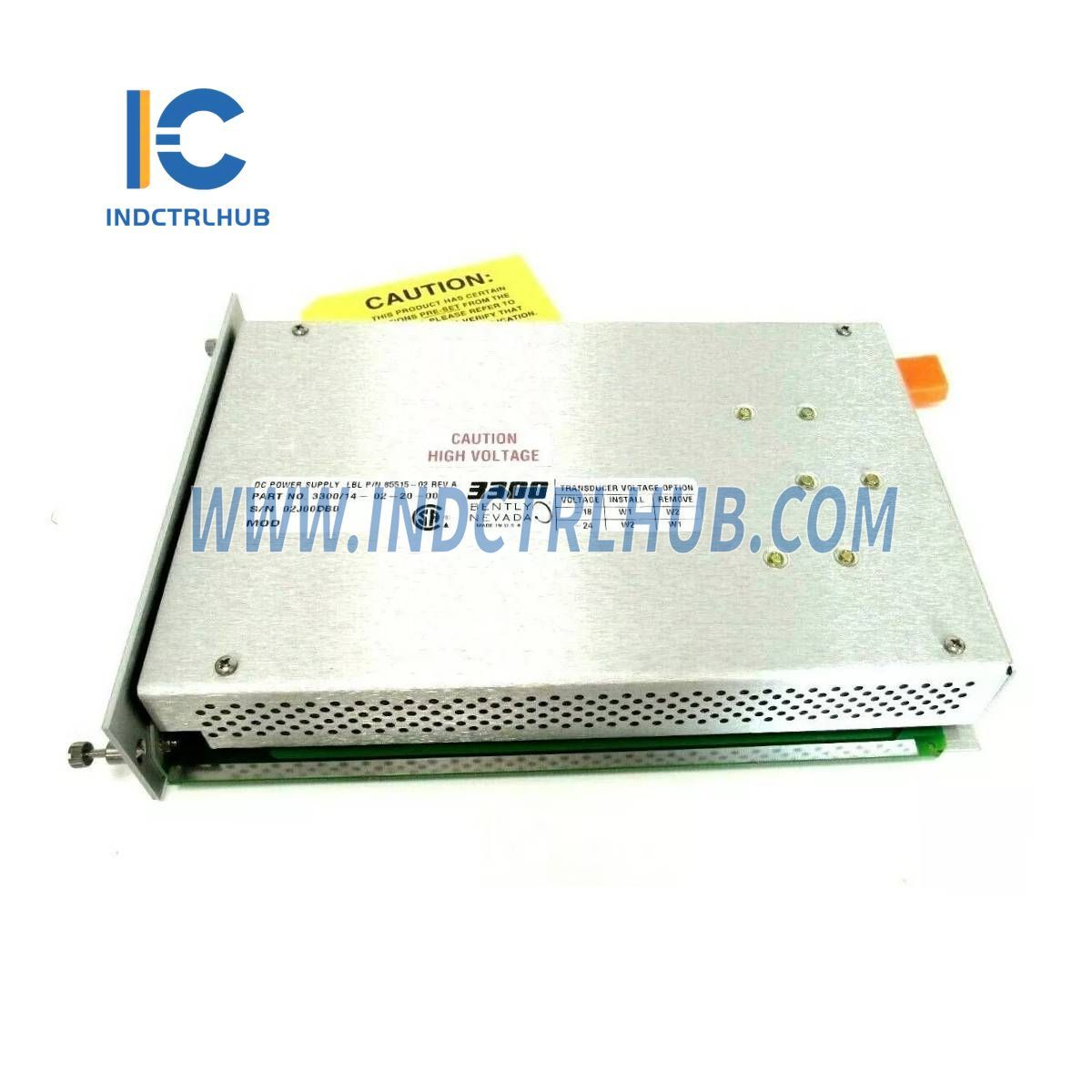

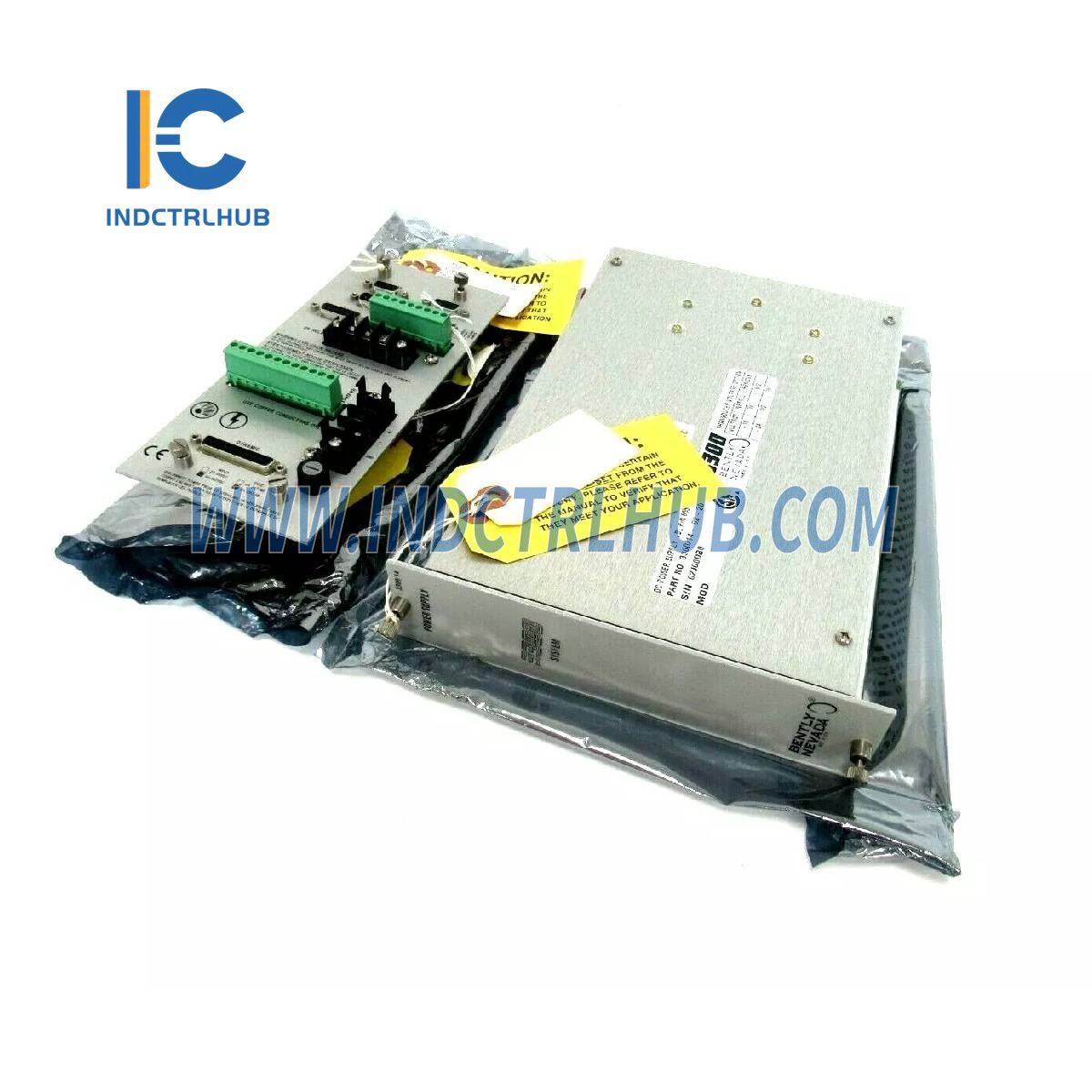

Bently Nevada 3300/14-02-20-00 dc Power Supply

Bently Nevada 3300/14-02-20-00 dc Power Supply

  • Manufacturer: Bently Nevada

  • Product No.: 3300/14-02-20-00

  • Condition:1000 in stock

  • Product Type: dc Power Supply

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Bently Nevada 3300/14-02-20-00 is a dc Power Supply from the 3300/14 series, designed to deliver reliable, regulated power for up to 12 monitors and their associated transducers within a 3300 rack system. This module, intended for installation in the left-most rack position next to the System Monitor, eliminates the need for a second power supply in the same rack, ensuring efficient and dependable operation for industrial monitoring applications.

Technical Information

Item Specifications
Manufacturer Bently Nevada
Series 3300/14
Model/Part Number 3300/14-02-20-00
Model Type dc Power Supply
Inputs - Power 20 to 34 Vdc, 5.5 A max
90 to 140 Vdc, 1.5 A max
Fuse Rating:
20 to 34 Vdc, 8 A max
90 to 140 Vdc, 2 A max
Outputs - Transducer Power (internal to rack) User-programmable for:
-24 Vdc (+1.3%, -1.7%) or -18 Vdc (+1.6%, -2.2%)
Overload protected per channel on individual monitor circuit boards
Operating Temperature 0°C to +65°C (+32°F to +150°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity To 95%, non-condensing
Space Requirements One rack position, installs only in position one (left-most, next to System Monitor)
Weight 2 kg (4.4 lbs)

Ordering Information

  • Model: 3300/14 dc Power Supply
  • Ordering Format: 3300/14-AXX-BXX-CXX
  • Option Descriptions:
    • A: Input Voltage Option
      • 01: +26 Vdc (+20 Vdc to +34 Vdc)
      • 02: +120 Vdc (+90 Vdc to +140 Vdc)
    • B: Power Input Module Option
      • 20: Standard
      • 22: Internal Safety Barriers
      • 23: Spare supply only - No PIM
    • C: Agency Approval Option
      • 00: Not required
      • 01: CSA/NRTL/C (Note: Only available when ordered in a system)

Spare Parts

  • 161957-AXX-BXX-00: Input Module Assembly (dash options same as above)
  • Fuses:
    • 01720029: 250V, 1.50 A Fuse (A=01, C=00, 01)
    • 01720000: 250V, 0.75 A Fuse (A=02, C=00, 01)
    • 17105100: 250V, 2.50 A Fuse (A=01, C=02)
    • 17105111: 250V, 1.25 A Fuse (A=02, C=02)

Specific Configuration

  • Model/Part Number: 3300/14-02-20-00
  • Configuration Details:
    • A: 02 - +120 Vdc (+90 Vdc to +140 Vdc)
    • B: 20 - Standard Power Input Module
    • C: 00 - No agency approval required
View full details
