Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
Not specified |
|
Model/Part Number |

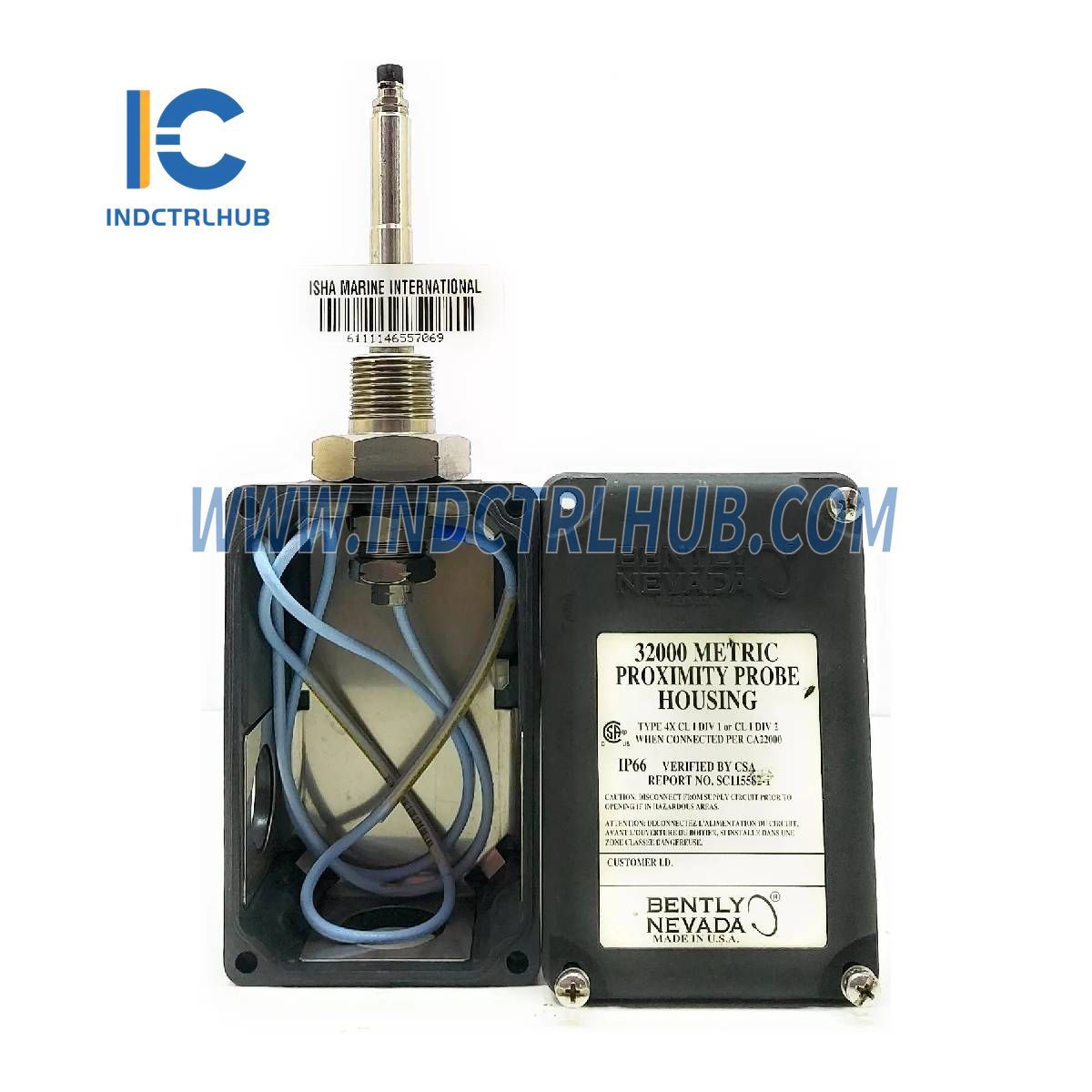

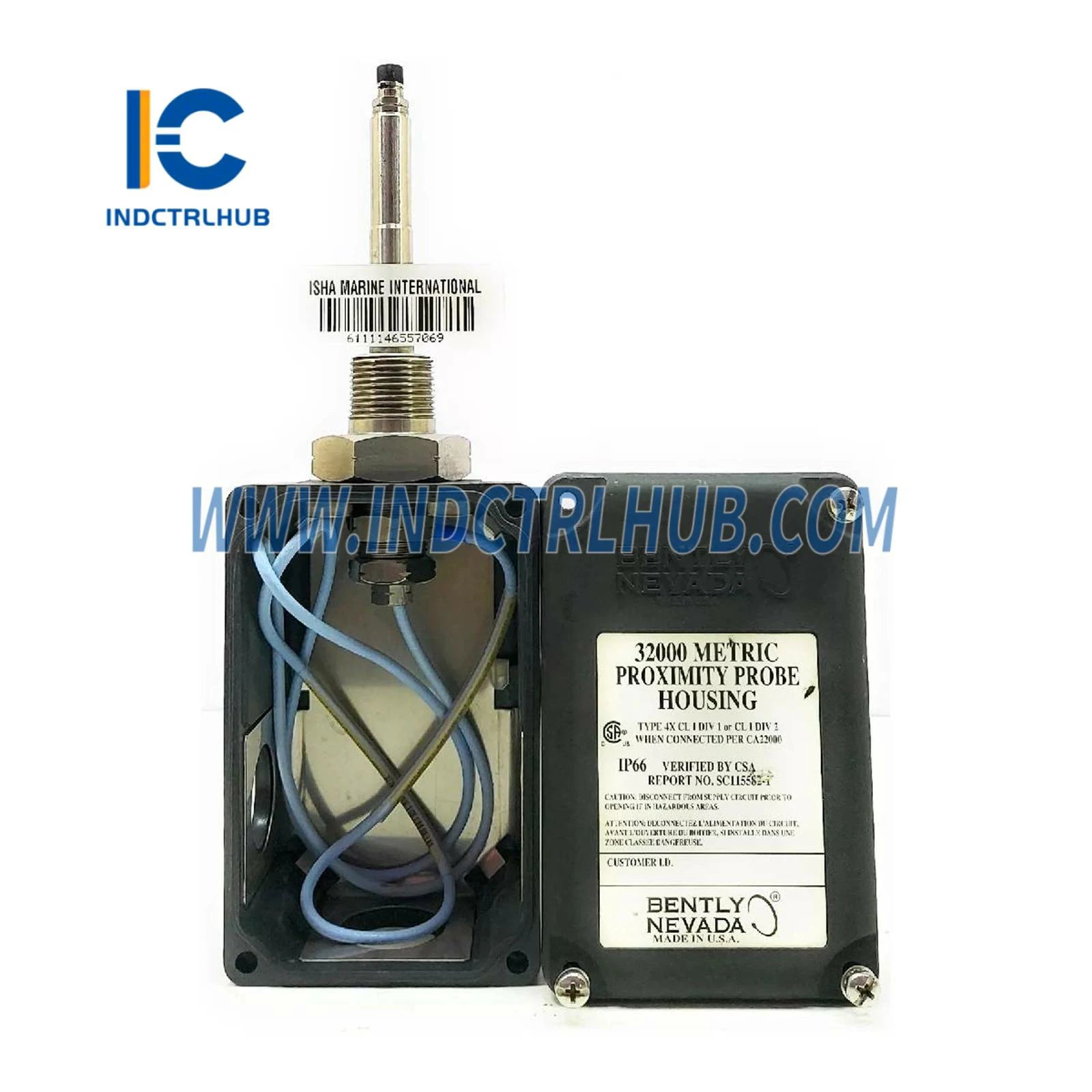

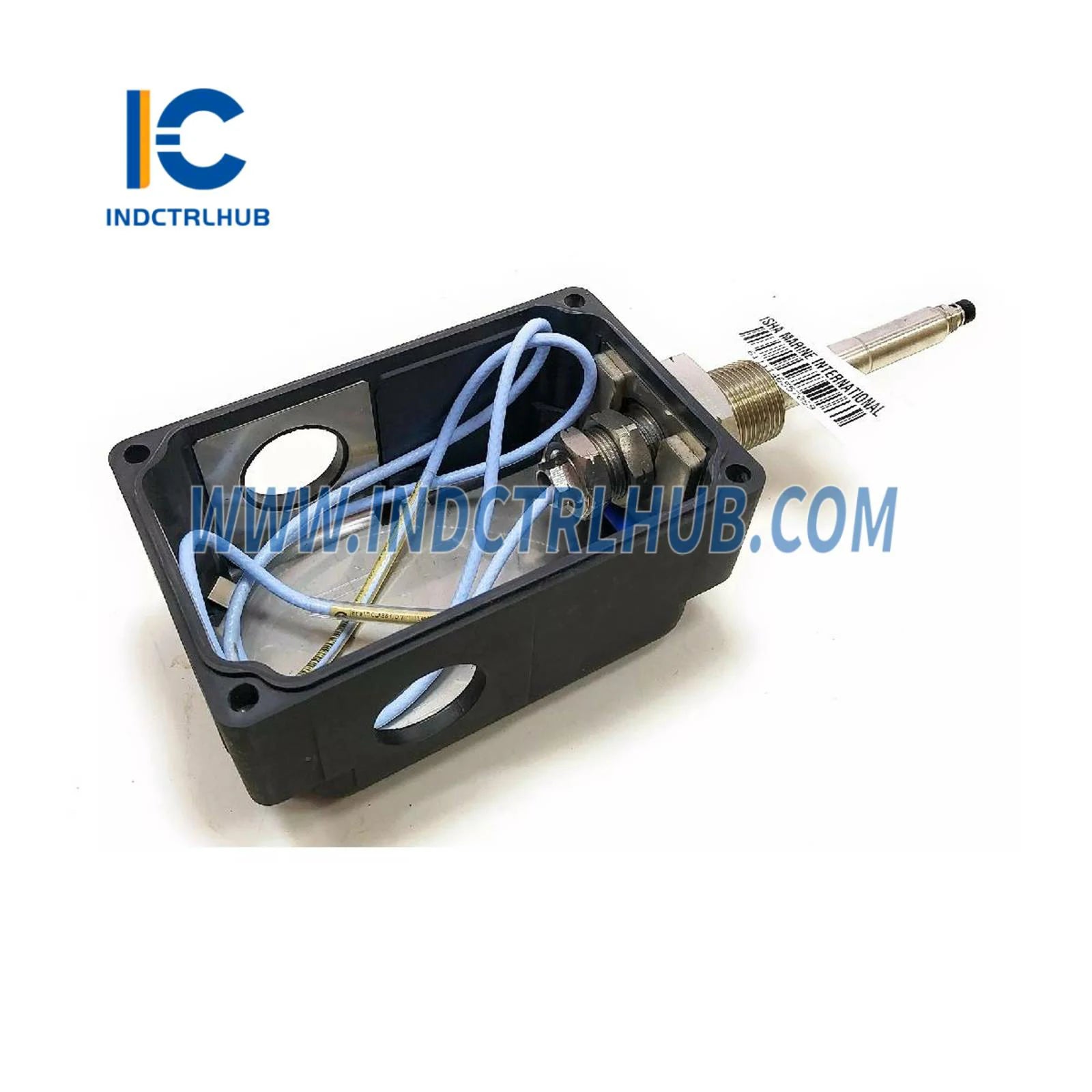

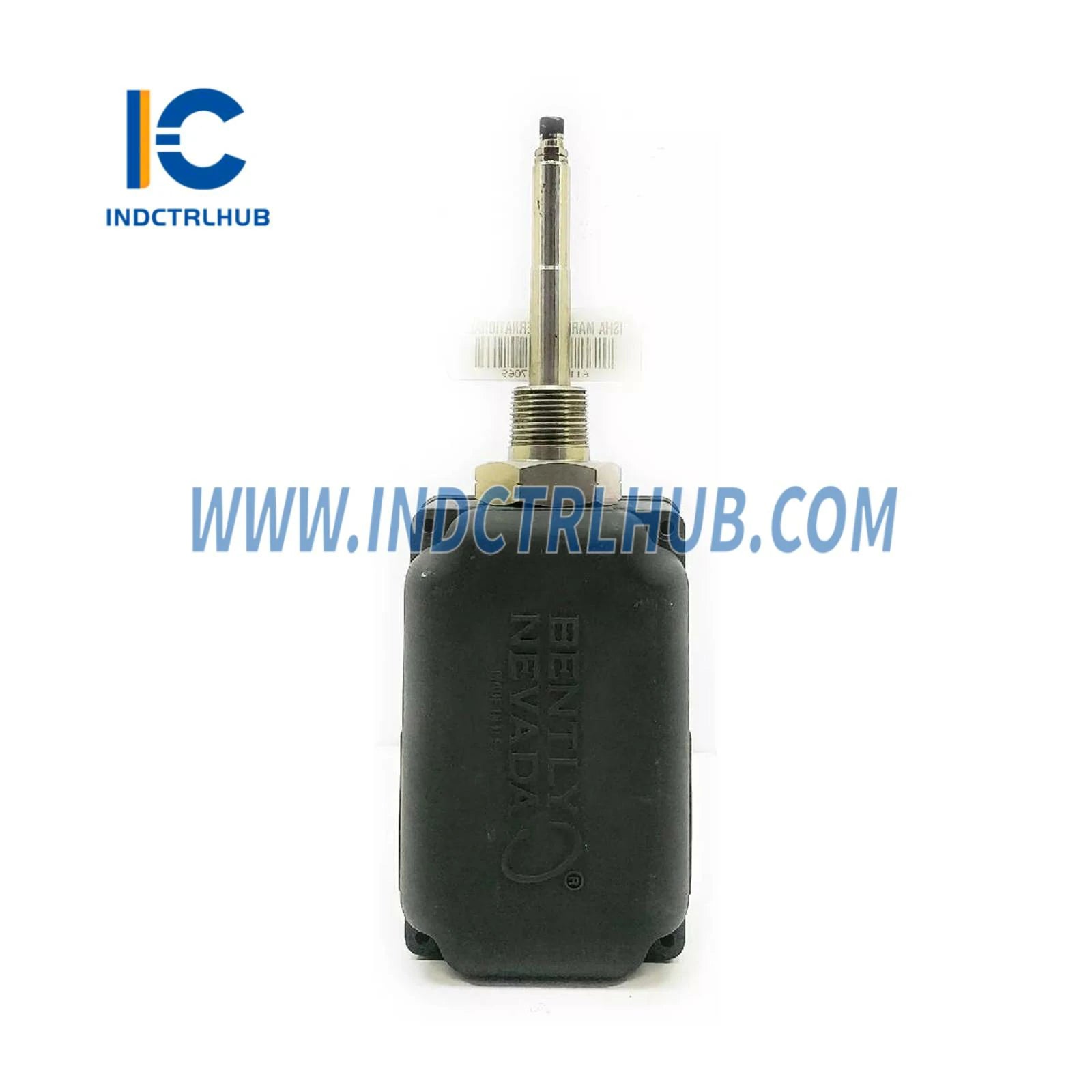

32000-28-05-15-080-03-02 |
|
Model Type |
Metric Proximity Probe Housing Assemblies |
Description
The 31000/32000 Proximity Probe Housing Assemblies are recommended for mounting proximity probes through the machine case. They are typically used for radially mounted transducers, including both vibration and Keyphasor measurements.
Specifications
Environmental Limits
|
Probe Type |
Operating Temperature |
Storage Temperature |
|---|---|---|
|
3300 XL 8 mm Probe |
-51°C to +177°C (-60°F to +351°F) |
-51°C to +177°C (-60°F to +351°F) |
|
3300 XL 11 mm Probe |
-51°C to +177°C (-60°F to +351°F) |
-51°C to +177°C (-60°F to +351°F) |
|
3300 NSV Probe |
-34°C to +177°C (-30°F to +351°F) |
-51°C to +177°C (-60°F to +351°F) |
Weight
• 1.2 kg (2.6 lb) typical
Ordering Information
Metric Proximity Probe Housing Assemblies: 32000-AA-BB-CC-DDD-EE-FF
A: Probe with Connector Option
|
Option |
Description |
|---|---|
|
00 |
Probe not required |
|
16 |
3300 XL 8 mm probe |
|
26 |
3300 XL NSv probe |
|
27 |
3300 XL NSv probe, multiple approvals |
|
28 |
3300 XL 8 mm probe, multiple approvals |
|
29 |
3300 XL 8 mm probe, with connector protector |
|
30 |
3300 XL 8 mm probe, with connector protector, multiple approvals |
|
31 |
3300 XL NSv probe with connector protector |
|
32 |
3300 XL NSv probe with connector protector, multiple approvals |
|
33 |
3300 XL 11 mm probe |
|
34 |
3300 XL 11 mm probe, multiple approvals |
|
35 |
3300 XL 11 mm probe with connector protector |
|
36 |
3300 XL 11 mm probe with connector protector, multiple approvals |
B: Probe Cable Length
|
Option |
Length |
|---|---|
|
00 |
Probe cable not required (Option A must also be 00) |
|
05 |
0.5 m (20 in) |
|
10 |
1.0 m (39 in) |
C: Standoff Adapter Length (Option C Dimension)
• Must be ordered if the Standoff Adapter Length option is not 00.
|
Option |
Length |
|---|---|
|
04 |
Minimum length 40 mm |
|
20 |
Maximum length 200 mm |
|
Recommendation |
Order in increments of 10 mm |
D: Probe Penetration Option (Option D Dimension)
|
Option |
Length |
|---|---|
|
025 |
Minimum length 25 mm |
|
760 |
Maximum length 760 mm |
• Recommendation: Order in increments of 1.0 mm
• Examples:
• No probe sleeve = 000
• 50 mm = 050
• 760 mm = 760
E: Fittings
|
Option |
Description |
|---|---|
|
00 |
Without fittings; two plugs and two washers. |
|
01 |
One M25 fitting, two plugs. |
|
02 |
Two M25 fittings, one plug. |
|
03 |
Two plugs, one M20 fitting; one cable seal grip with grommets for armored probe cable. |
|
05 |
One DIN PG11 fitting, two plugs. |
|
07 |
One PG21 x M20 fitting, two plugs. |
|
08 |
Two PG21 x M20 fittings, one plug. |
F: Mounting Thread Option
|
Option |
Description |
|---|---|
|
00 |
No outer sleeve, retainer, or retaining nut. |
|
01 |
M24 X 3 |
|
02 |
3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
