Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Model/Part Number |
200150-05 |
|
Model Type |
General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer |
Description

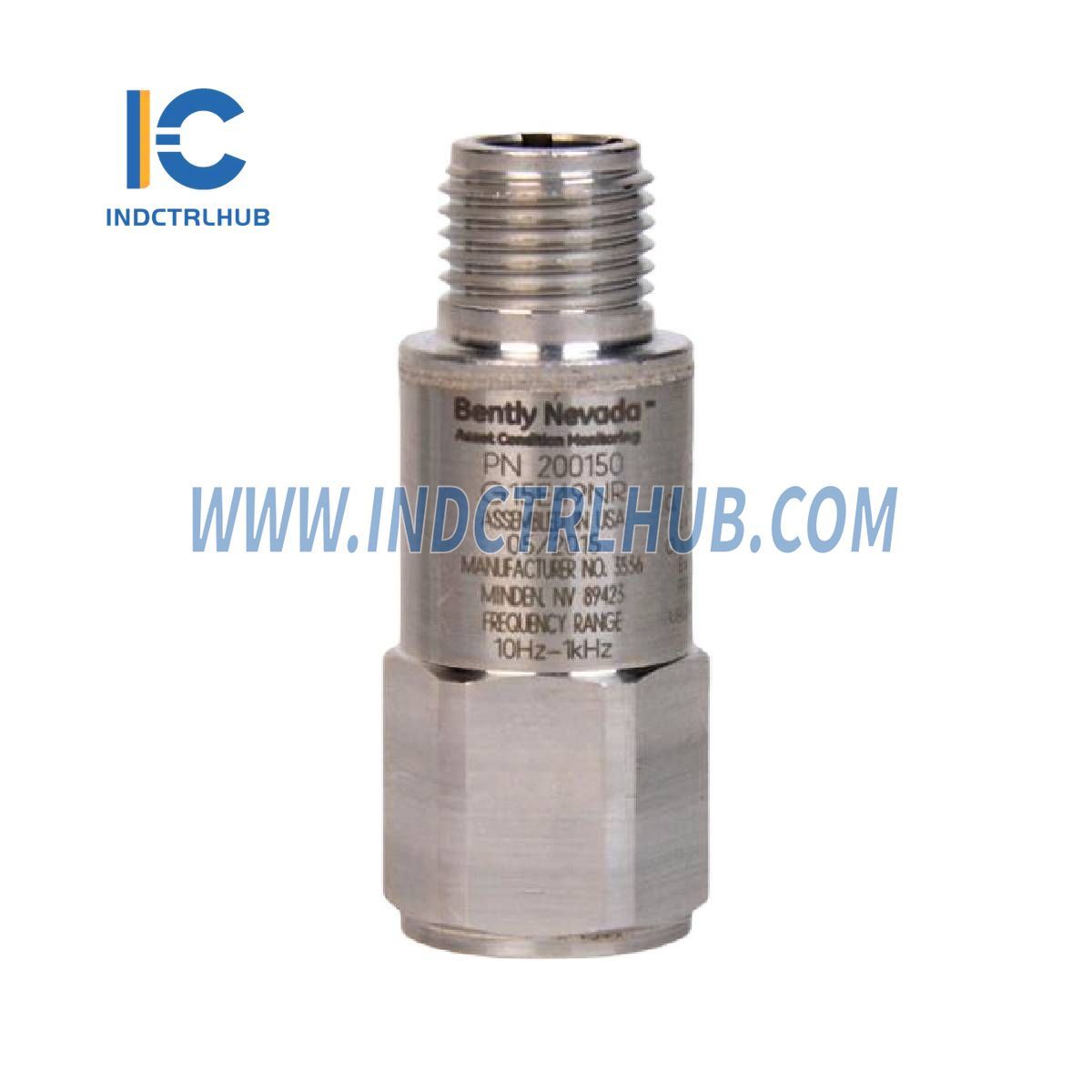

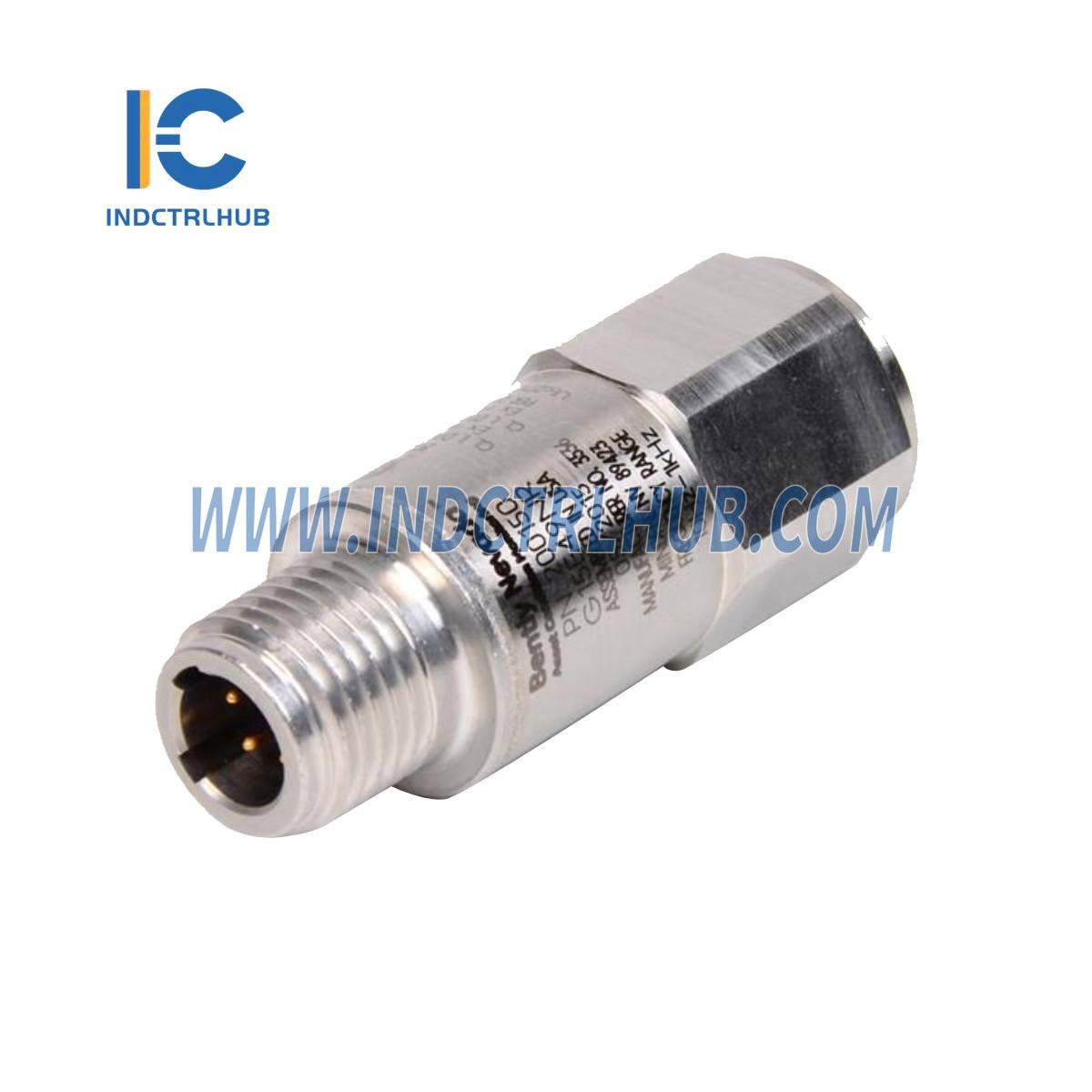

The 200150 Accelerometer operates with the Trendmaster 2000 system and interfaces with:
• 200100 Dual Acceleration to Velocity flexiTIM Module
• 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module)
• 1900/25 and 1900/27 monitors
Specifications
Measurement Range
|
Parameter |
Value |
|---|---|
|
Accelerometer Measurement Range |
±245 m/s² (±25 g) |
|
Accelerometer Frequency Range |
10 to 1000 Hz (600 to 60,000 cpm) |
Physical
|
Attribute |
Details |
|---|---|
|
Size (Hex x Height) |
17.5 mm x 45.7 mm (11/16 in x 1.8 in) |
|
Weight |
58 g (2.0 oz), typical |
|
Mounting Thread |
3/8-24 female |
|
Mounting Torque |
2.7 to 6.8 N•m (2 to 5 ft•lbf) |
|
Sensing Element |
Ceramic |
|
Sensing Geometry |
Shear |
|
Housing & Connector Material |
316L stainless steel (for models 200150, 200155, and 200157) |
Environmental Limits
|
Parameter |
Value |
|---|---|
|
Maximum Cable Length |
25 m (82 ft) |
|
Custom Cable Lengths |
Available for models 200150 & 200157 |
Ordering Information
|
Model |
Type |
|---|---|
|
200150-AA-BB |
General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer |
|
200155-AA-BB |
Low Frequency Trendmaster Pro Accelerometer |
|
200157-AA-BB |
Enveloping Trendmaster Pro Accelerometer |

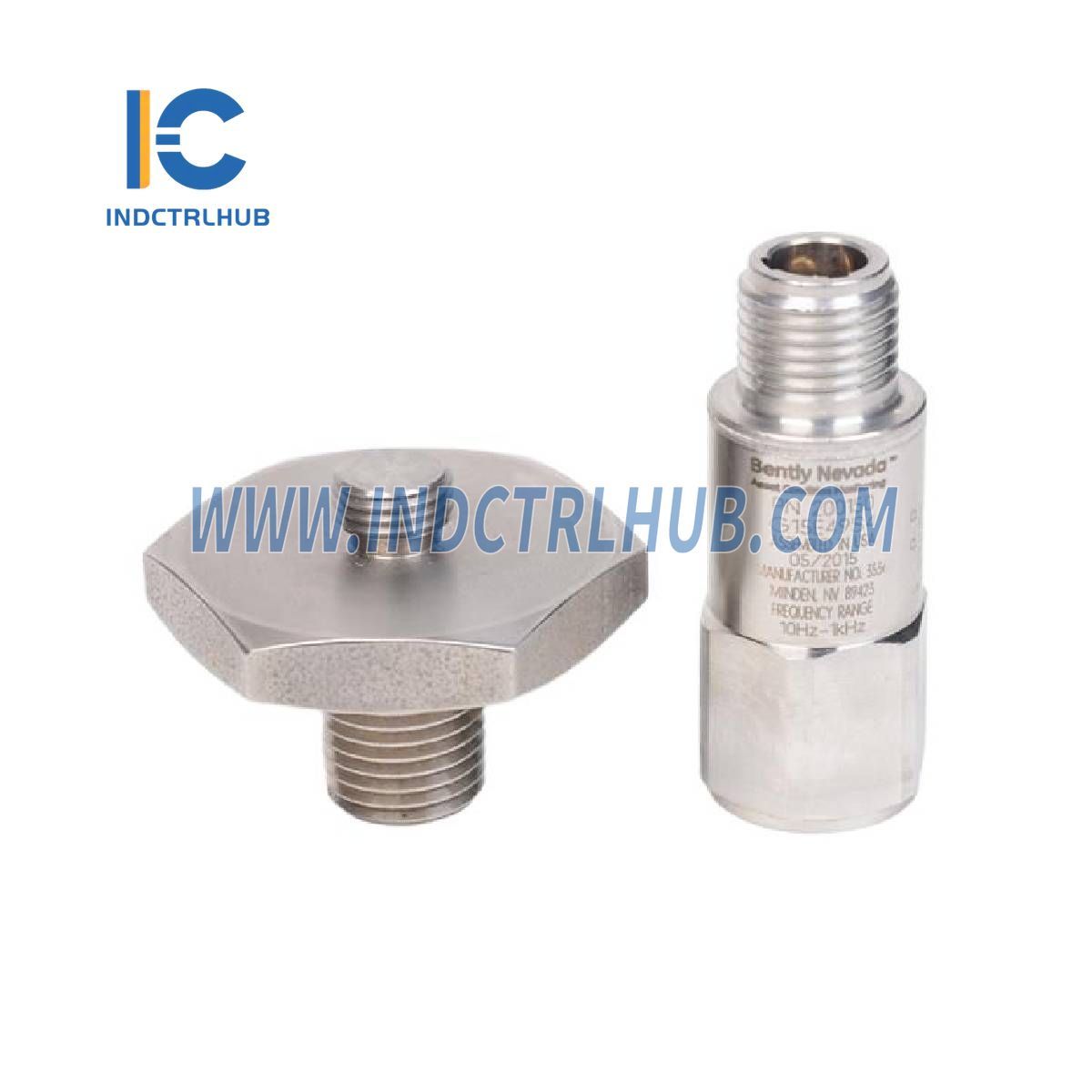

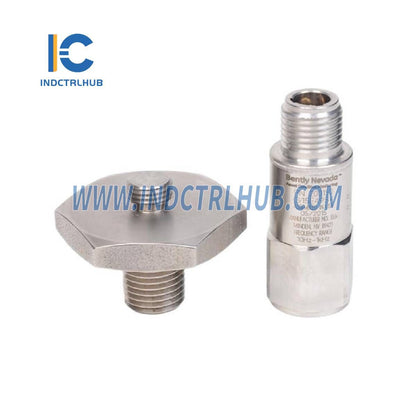

Mounting Stud Options (A)
|
Code |
Mounting Stud Type |
|---|---|
|
00 |
No mounting stud provided |
|
01 |
3/8-24 thread, 2 adhesive mount frames with adhesive |
|
02 |
3/8-24 to 3/8-24 UNF 1-3/8 inch hex plate stud |
|
03 |
3/8-24 to 1/2-20 UNF 1-3/8 inch hex plate stud |
|
04 |
3/8-24 to 1/4 NPT 1-3/8 inch hex plate stud |
|
05 |
3/8-24 to 1/4-28 UNF 1-3/8 inch hex plate stud |
|
06 |
3/8-24 to 1/4 NPT, 3/4 inch hex stud |
|
07 |
3/8-24 to 3/8 NPT, 3/4 inch hex stud |
|
08 |
3/8-24 to 1/2 NPT 1 inch hex stud |
|
09 |
3/8-24 to 3/4 NPT, 1-1/4 inch hex stud |
|
10 |
3/8-24 to 1 NPT, 1-3/8 inch hex stud |
|
11 |
3/8-24 to 1-1/4 NPT, 1-3/4 inch hex stud |
|
12 |
3/8-24 to 1/4-20 UNC, 3/4 inch hex stud |
|
13 |
3/8-24 to 5/16-18 UNC, 3/4 inch hex stud |
|
14 |
3/8-24 to 3/8-24 UNF, 3/4 inch hex stud |
|
15 |
3/8-24 to 3/8-16 UNC, 3/4 inch hex stud |
|
16 |
3/8-24 to 1/2-13 UNC, 3/4 inch hex stud |
|
17 |
3/8-24 to 3/8-16 UNC 1-3/8 inch hex plate stud |
|
18 |
3/8-24 to M8x1 1-3/8 inch hex plate stud |
|
19 |
Quick-Set XDCR adapter, 1-inch hex stud |
|
20 |
3/8-24 thread, 1 magnetic mount base |
|
21 |
3/8-24 outer diameter to M6x1 inner diameter 1-3/8 inch hex plate stud |
|
22 |
3/8-24 to M8x1.25 1-3/8 inch hex plate stud |
|
23 |
3/8-24 to M16x2.0 1-3/8 inch hex plate stud |
Approvals (B)
|
Code |
Approval Type |
|---|---|
|
05 |
Multiple Approvals (CSA, ATEX, and IECEx) |
