Product Description
Product Details:
Manufacturer: Bently Nevada
Model/Part Number: 190501-07-00-00

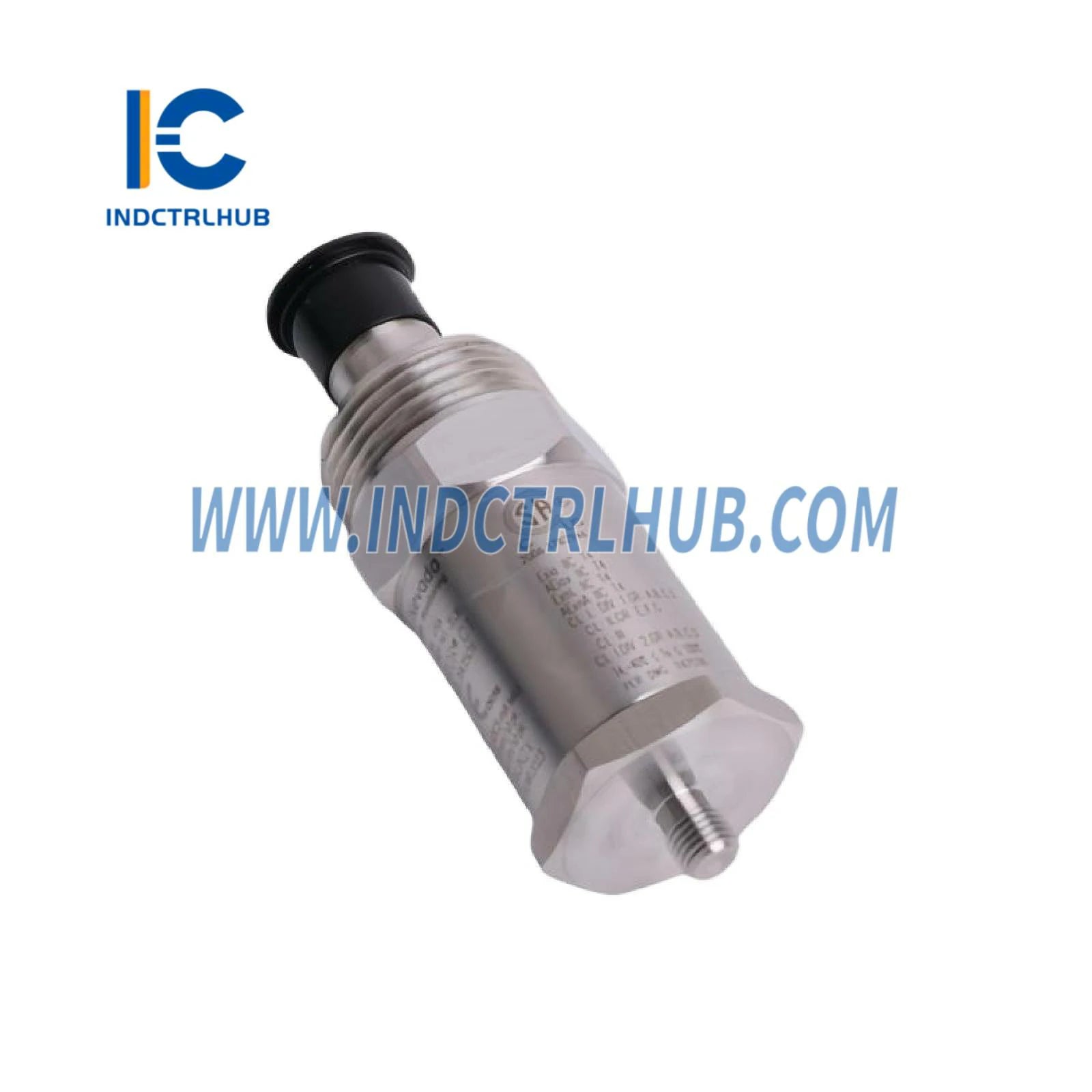

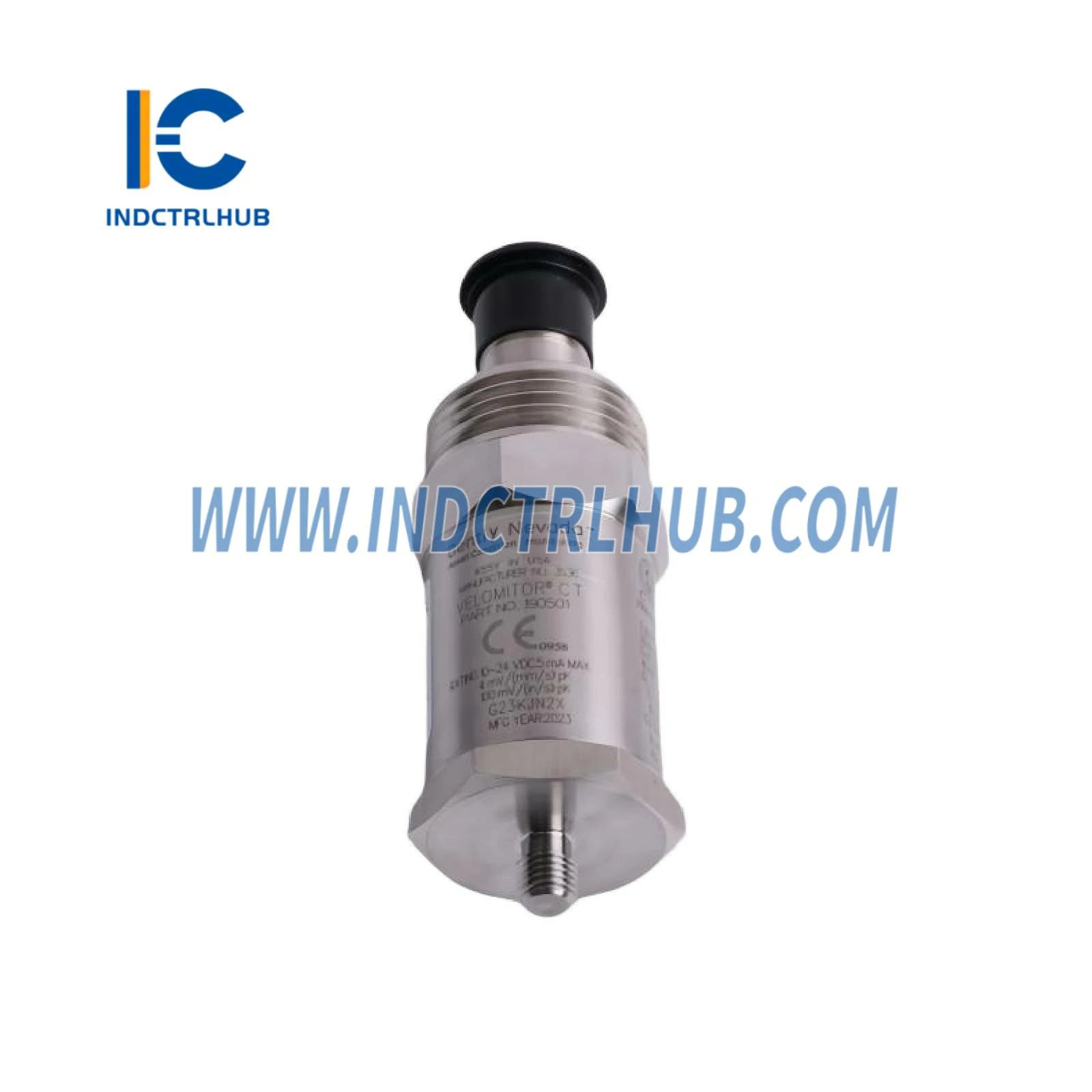

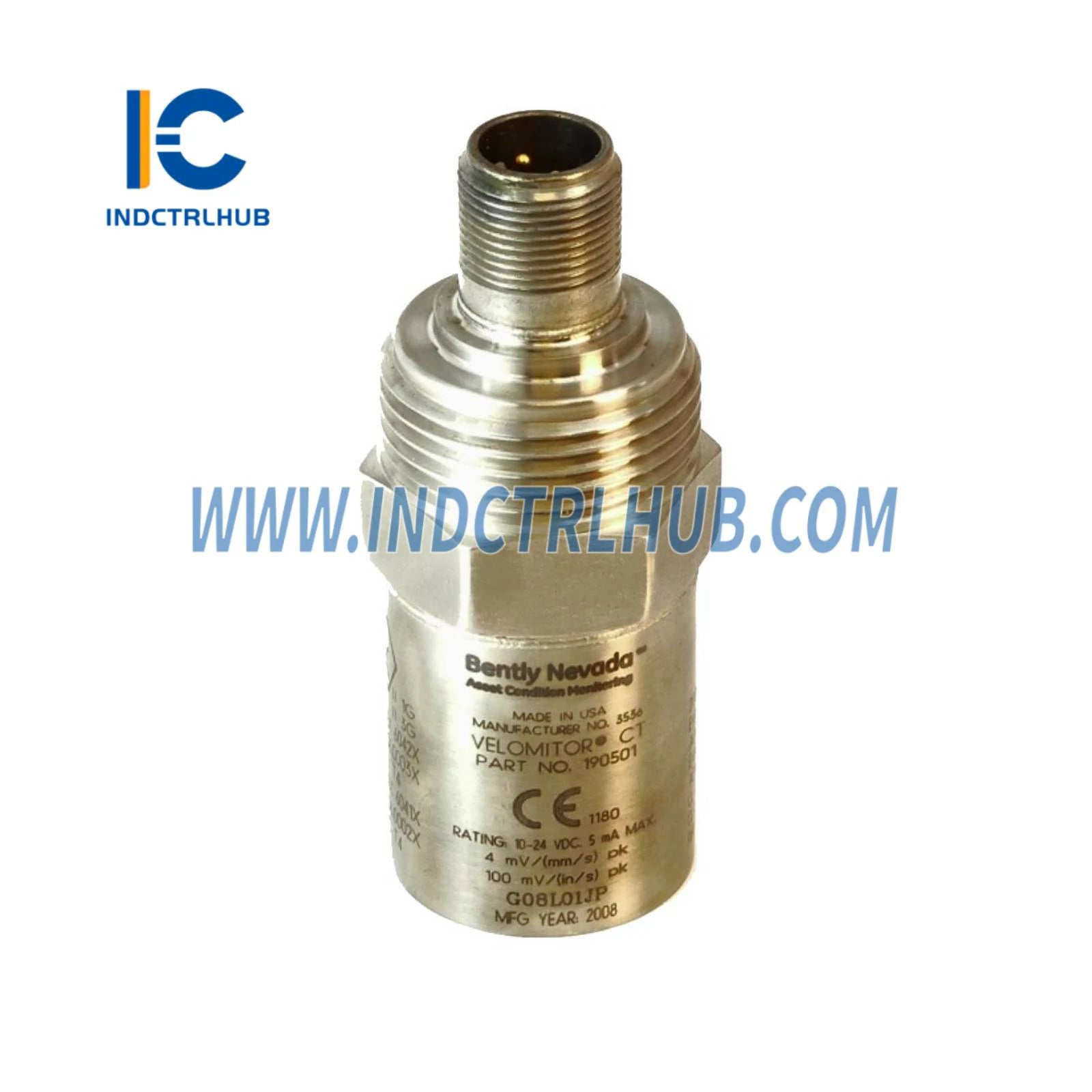

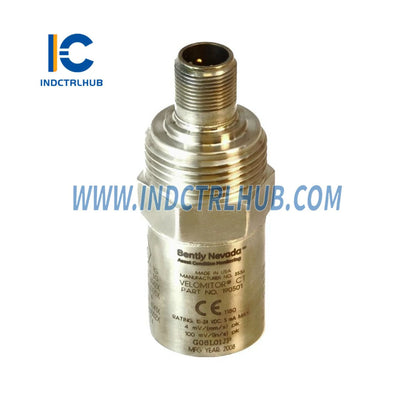

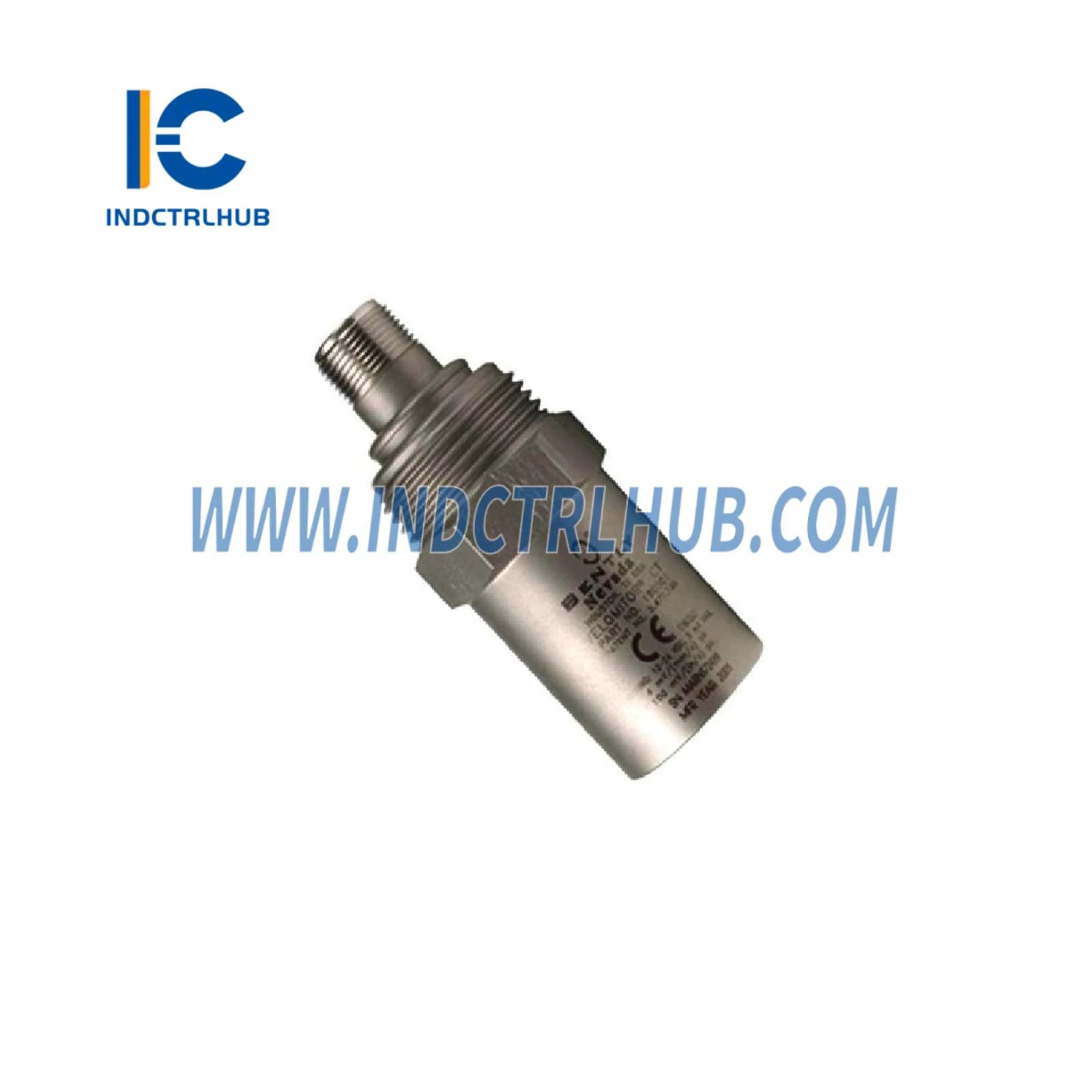

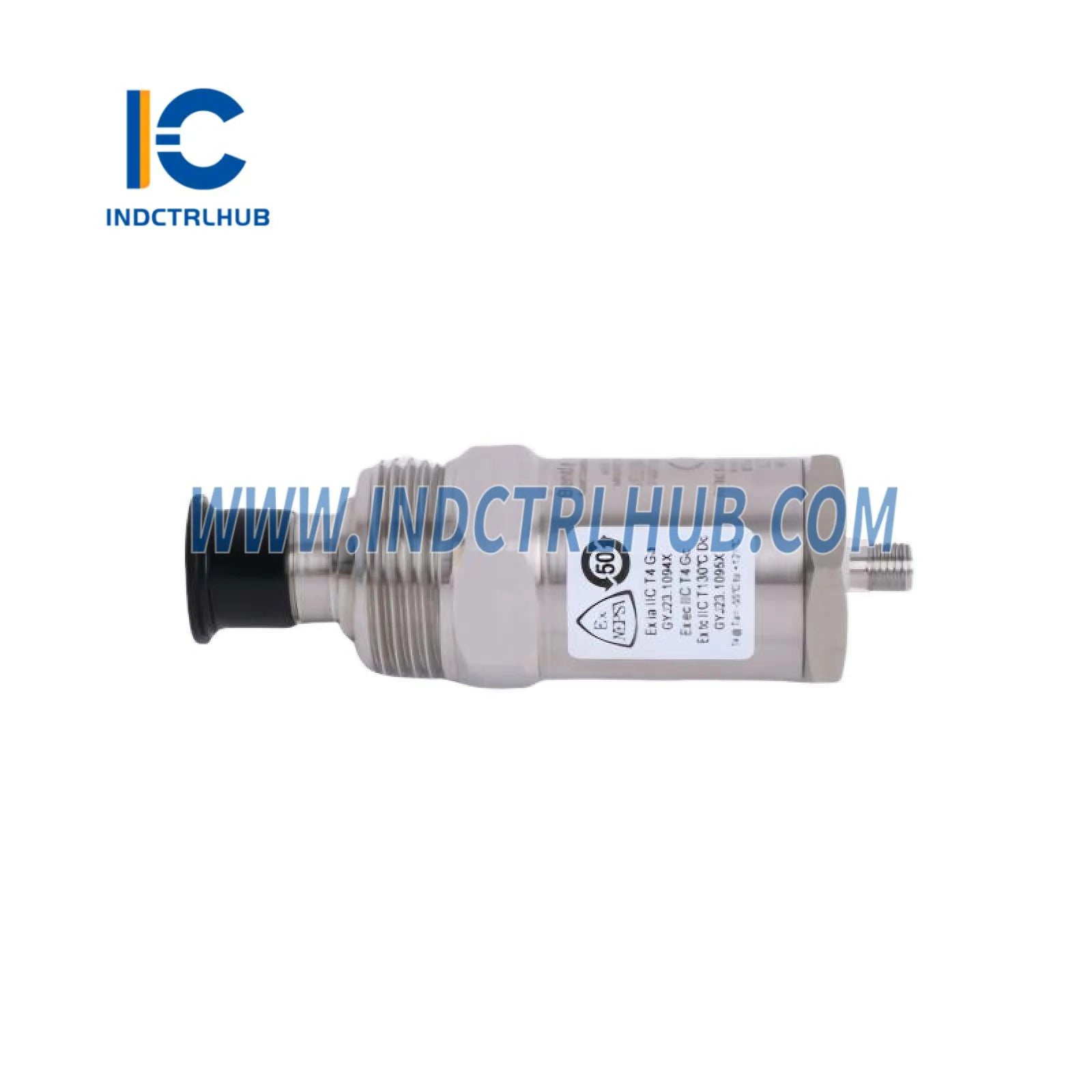

Description: Velomitor CT Velocity Transducer
Options:
Part Number: 190501-AA-BB-CC
| Option Category | Option Code | Description |
|---|---|---|
| A: Mounting Hardware Option | 00 | No stud |
| 01 | Stud 3/8-in 24 to 3/8-in 24 | |
| 02 | Stud 3/8-in 24 to 1/2-in 20 | |
| 03 | Adhesive Stud 3/8-in 24 | |
| 04 | Stud M6x1 with 3/8-in 24 adapter | |
| 05 | Adhesive Stud M6x1 with 3/8-24 adapter | |
| 06 | Stud 3/8-in 24 to 1/4-in 28 | |
| 07 | Plate Stud 3/8-in 24 to 3/8-in 24 | |
| 08 | Plate Stud 3/8-in 24 to 1/2-in 20 | |
| 09 | Plate Stud 3/8-in 24 to 1/4-in NPT | |
| 10 | Plate Stud M6x1 to M6x1 with 3/8-in 24 adapter | |
| 11 | Plate Stud 3/8-in 24 to 1/4-in 28 | |
| 12 | Plate Stud 3/8-in 24 to M8x1 | |
| 13 | Quick disconnect stud | |
| 14 | Adapter, 3/8-in 24 to 1/4-in 20 | |
| 15 | Adapter, 3/8-in 24 to 5/16-in 18 | |
| 16 | Adapter, 3/8-in 24 to 3/8-in 24 | |
| 17 | Adapter, 3/8-in 24 to 3/8-in 16 | |
| 18 | Adapter, 3/8-in 24 to 1/2-in 13 | |
| 19 | Adapter, 3/8-in 24 to 1/4-in 18 NPT | |
| 20 | Adapter, 3/8-in 24 to 3/8-in 18 NPT | |
| 21 | Adapter, 3/8-in 24 to 1/2-in 14 NPT | |
| 22 | Adapter, 3/8-in 24 to 3/4-in 14 NPT | |
| 23 | Adapter, 3/8-in 24 to 1.0-in 11.5 NPT | |
| 24 | Adapter, 3/8-in 24 to 1.25-in 11.5 NPT | |
| B: Connection Option | 00 | MIL-C-5015 connection interface |
| 99 | Unit with included 32-foot cable | |
| C: Agency Approval Option | 00 | No Approvals |
| 01 through 04 | CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |
Mechanical Specifications:
| Physical Parameter | Value |
|---|---|
| Weight | <297 g (10.5 oz.), typical |
| Mounting Surface | 33 mm diameter (1.3 in diameter) |
| Height | 82 mm (3.2 in) |
| Case Material | 316L stainless steel |
| Connector | 2-pin 316L stainless steel MIL-C-5015, top |
| Mounting Torque | 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf) |
| Polarity | Pin A goes positive with respect to Pin B when velocity is from base to top of the transducer |
| Mounting Angle | Any orientation |
