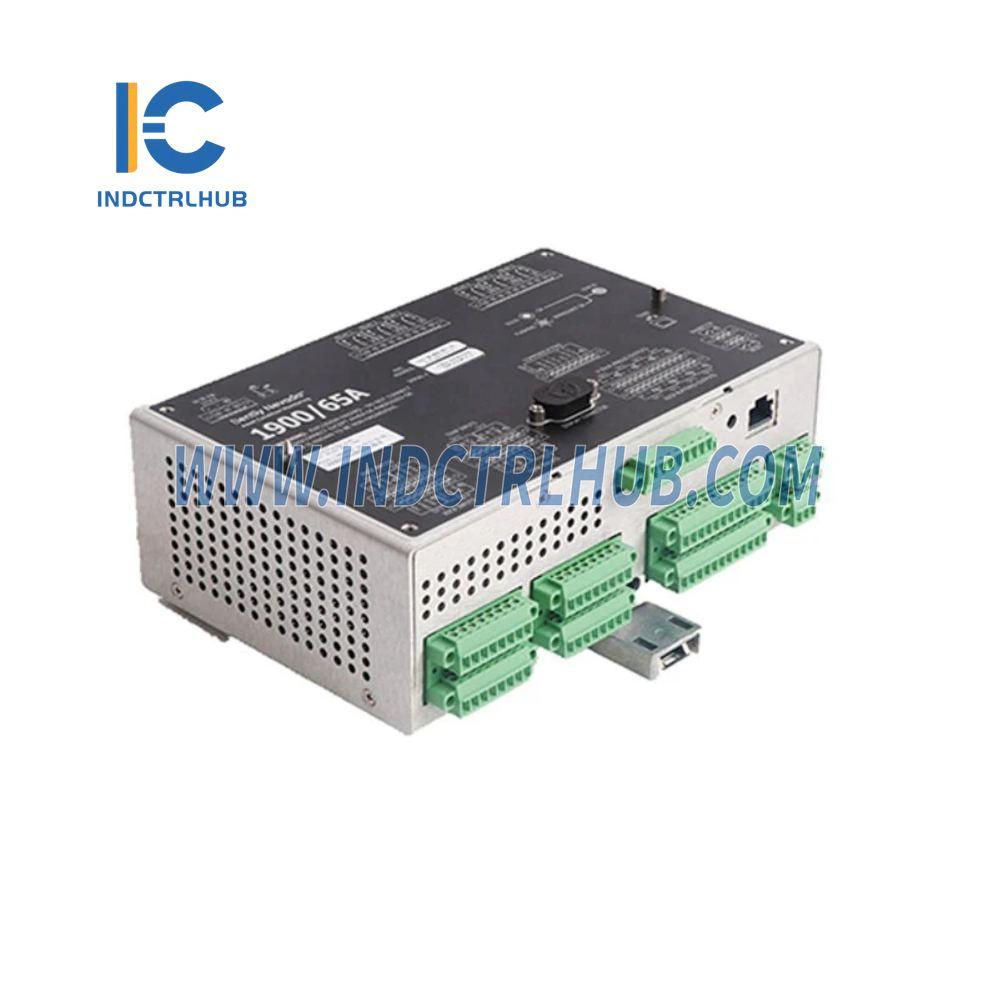

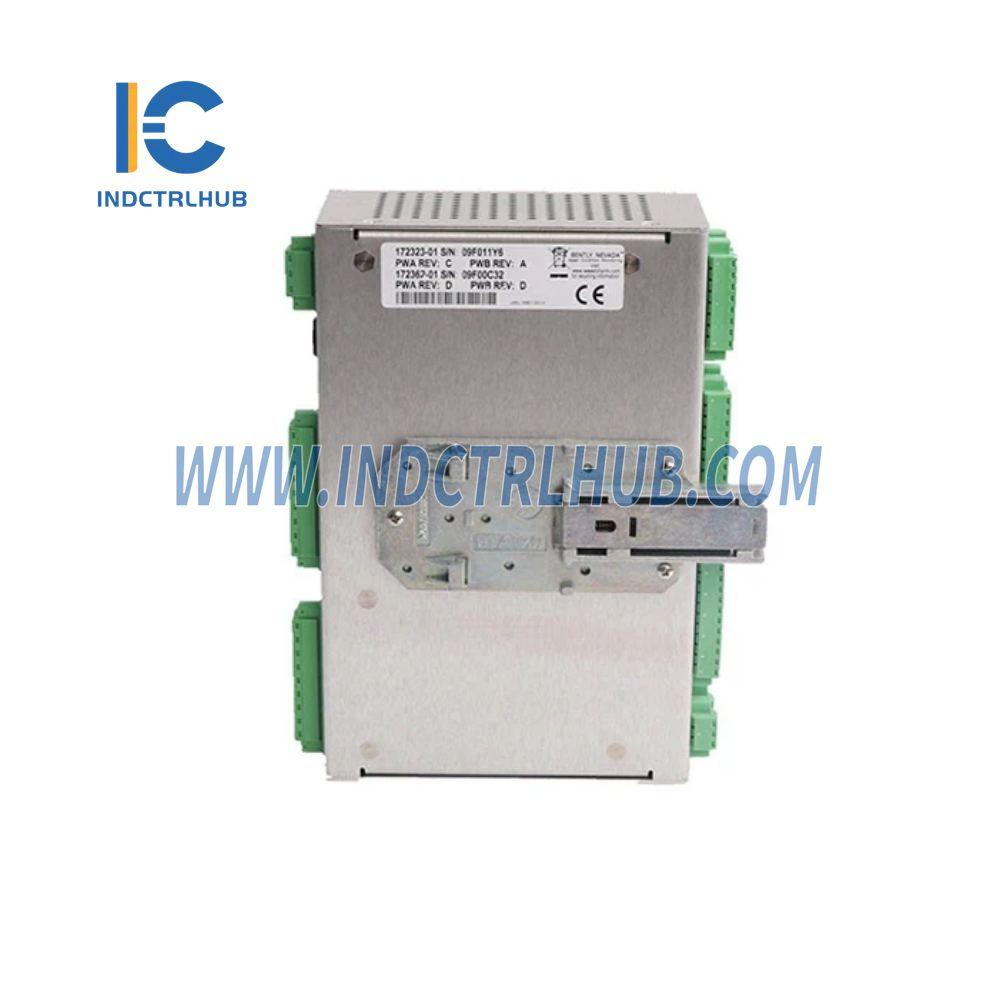

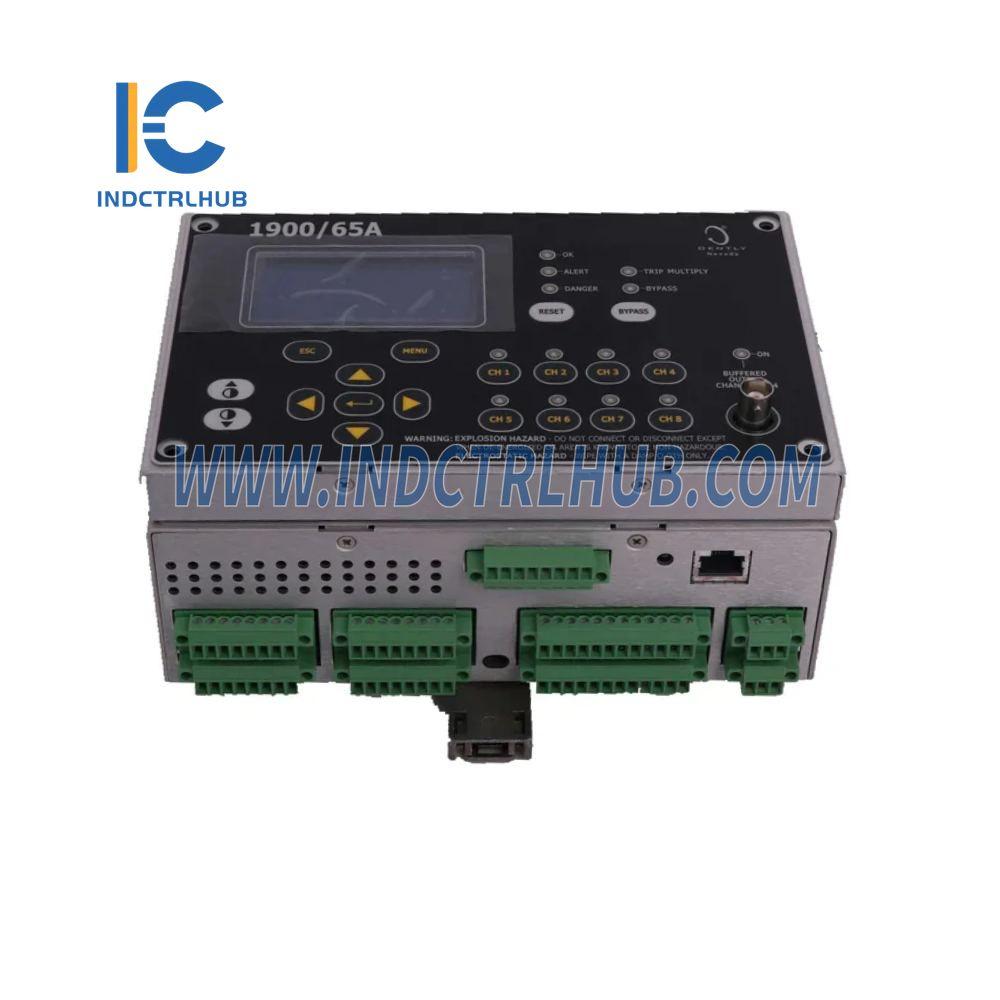

Bently Nevada 1900/65A 167699-02 Display Module

Bently Nevada 1900/65A 167699-02 Display Module

  • Manufacturer: Bently Nevada

  • Product No.: 167699-02

  • Condition:1000 in stock

  • Product Type: Display Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 770g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 1900/65A 167699-02
  • Description: General Purpose Equipment Monitor Display Module

Display Module Features

  • Buffered Output:
    • Provides access to input Channels 1 through 4.
    • The signal does not have gain and is not scaled.
    • Buffered to provide short circuit and EMI protection.
  • Output Impedance:
    • 550 Ω
  • Bandwidth:
    • 40 kHz minimum (Display Module attached directly to Monitor)
    • 8 kHz minimum (75 meters (250 feet) of cable)

Monitor Module Features

  • Buffered Output for Each Channel:
    • Each input (Channels 1 through 4) has a dedicated buffered output.
    • The signal is not scaled and does not have gain.
    • Buffered to provide short circuit and EMI protection.
  • Output Impedance:
    • 550 Ω
  • Bandwidth:
    • 40 kHz minimum

Indicators

Module Indicator Function
Monitor Module Status LED Indicates when the monitor is functioning properly.
Display Module OK LED Indicates when the monitor is functioning properly.
Alert LED Indicates an Alert condition.
Danger LED Indicates a Danger condition.
Bypass LED Indicates that the monitor is in Bypass mode.
Trip Multiply LED Indicates that the monitor is in Trip Multiply mode.
Channel LED Indicates if the channel is active.

Display Details

  • Display Type: Liquid Crystal Display (LCD) with backlight
  • Dimensions:
    • 68.6 mm (2.7 in) wide x 35.6 mm (1.4 in) high

Power Requirements

  • Input Voltage Range:
    • 18 to 36 Vdc
  • Operating Current:
    • 0.35 A typical, 1.0 A maximum
  • Operating Power:
    • 8.5 W typical, 14 W maximum

Physical Dimensions

Monitor Module

  • Dimensions (L x W x H):
    • 196.9 mm x 149.4 mm x 74.4 mm (7.75 in x 5.88 in x 2.93 in)
  • Weight:
    • 0.77 kg (1.70 lb)
