Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
177230 |
|
Model/Part Number |
177230-01-01-05 |
|
Model Type |
Seismic Transmitter |
Description

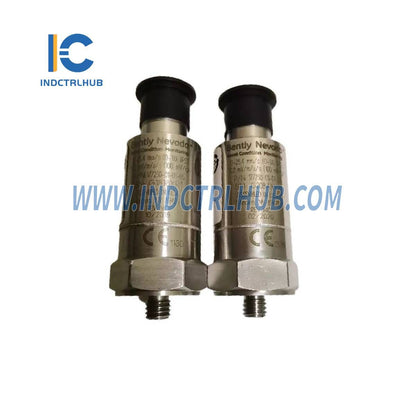

The 177230 Seismic Transmitter is a loop-powered device designed for seamless integration into programmable logic controllers (PLC), distributed control systems (DCS), and SCADA systems. Its straightforward design simplifies installation and minimizes operational costs. The device aids in managing downtime, enhancing maintenance scheduling, and preventing unexpected machinery failures, making it a valuable component for asset condition monitoring.
Specifications
Electrical
|
Parameter |
Details |
|---|---|
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Mounted Resonant Frequency |
Greater than 12 kHz |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Sensing Element Type |
Ceramic / Shear |
Environmental Limits
|
Parameter |
Details |
|---|---|
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Electrical Isolation |
Greater than 108 ohms |
|
Isolation Breakdown Voltage |
600 Vrms with less than 1 mA leakage current |
|
Shock Survivability |
9.810 m/s² (1.000 g peak) (maximum drop test) |
Physical
|
Parameter |
Details |
|---|---|
|
Weight |
131 g (4.62 oz) |
|
Diameter |
25.4 mm (1.00 in) |
|
Height |
66.0 mm (2.60 in) |
|
Case Material |
316L Stainless Steel |
|
Connector |
3-pin MIL-C-5015, 316L stainless steel |
|
Mounting Hole |
¼-28 UNF |
|
Mounting Threads |
M6 X 1 SI, M8 x 1.25 SI, ¼-28 UNF |
Ordering Information
Seismic Transmitter Configurations
|
Option |
Description |
|---|---|
|
A: Measurement Range |
00: 0 – 12.7 mm/s (0 – 0.5 in/s) |
|
01: 0 – 25.4 mm/s (0 – 1.0 in/s) |
|
|
02: 0 – 50.8 mm/s (0 – 2.0 in/s) |
|
|
B: Frequency |
01: 10 Hz to 1 kHz RMS (600 to 60 kcps) |
|
02: 3 Hz to 1 kHz peak (180 to 60 kcps) |
|
|
C: Approvals |
05: Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
Interconnect Cable without Armor
|
Part Number |
Description |
|---|---|
|
16925-AA |
Length in feet (order in increments of 1 foot) |
|
Length Options |
10 feet, 12 feet, 15 feet, 17 feet, 20 feet, 25 feet, 30 feet, 99 feet |
