Product Description
Product Overview

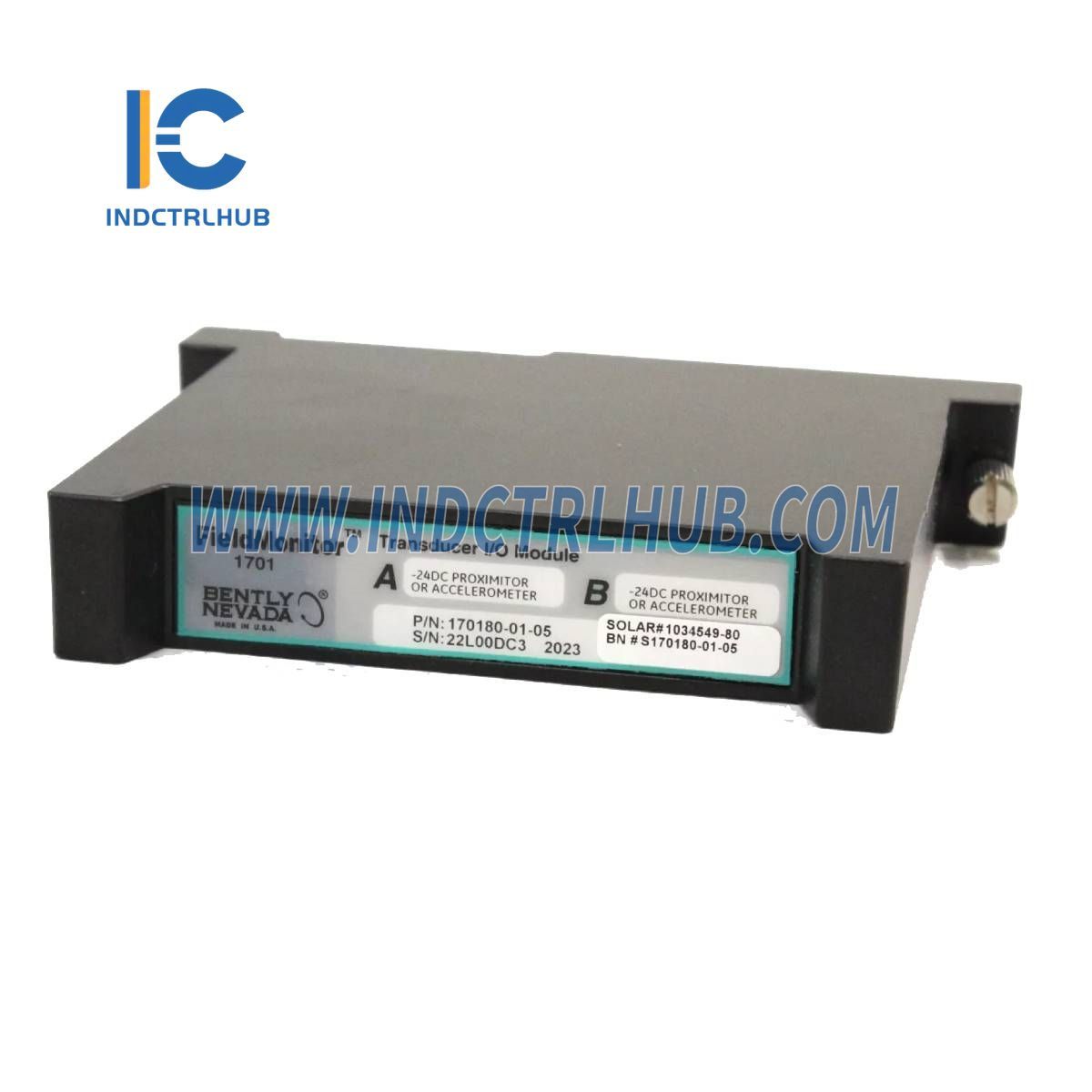

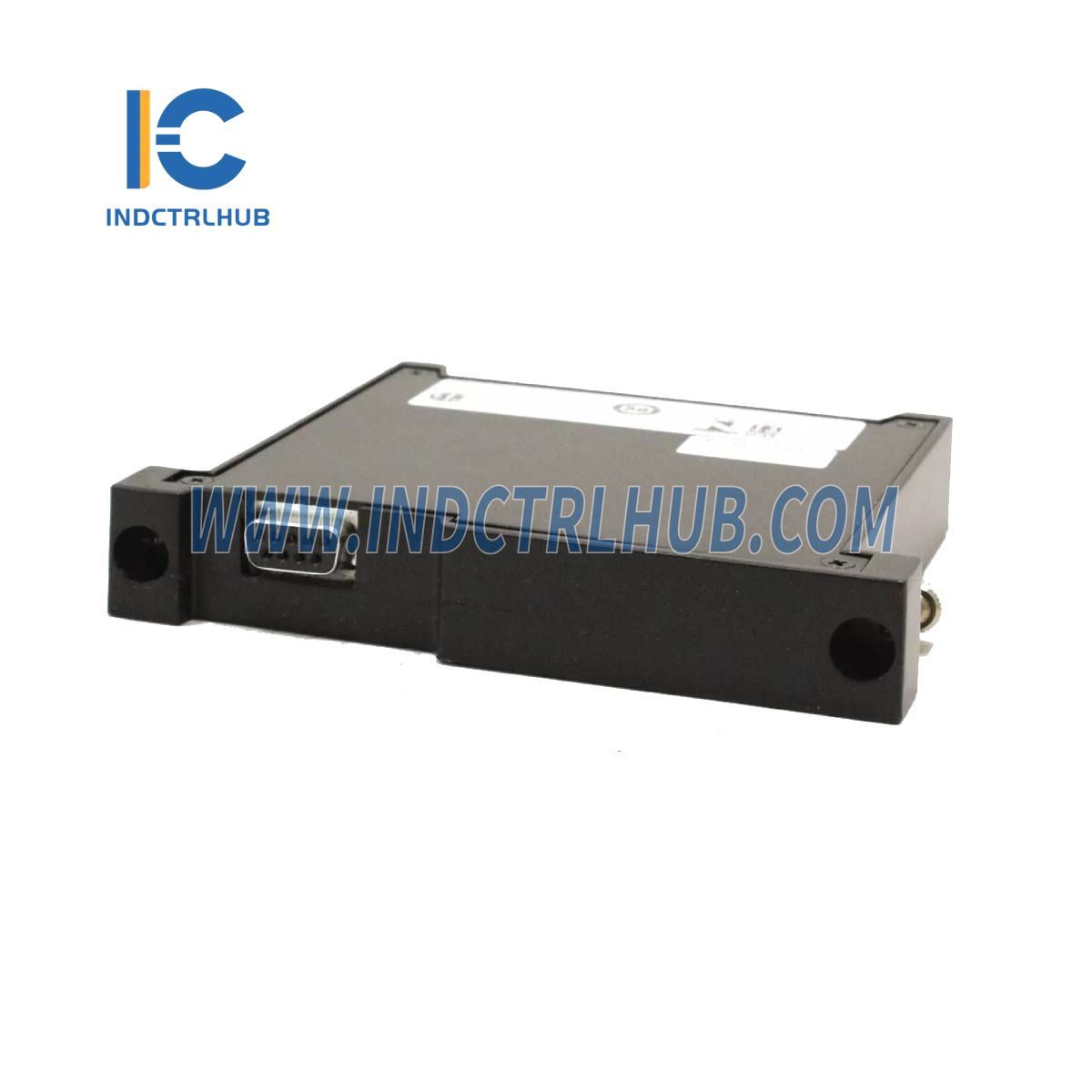

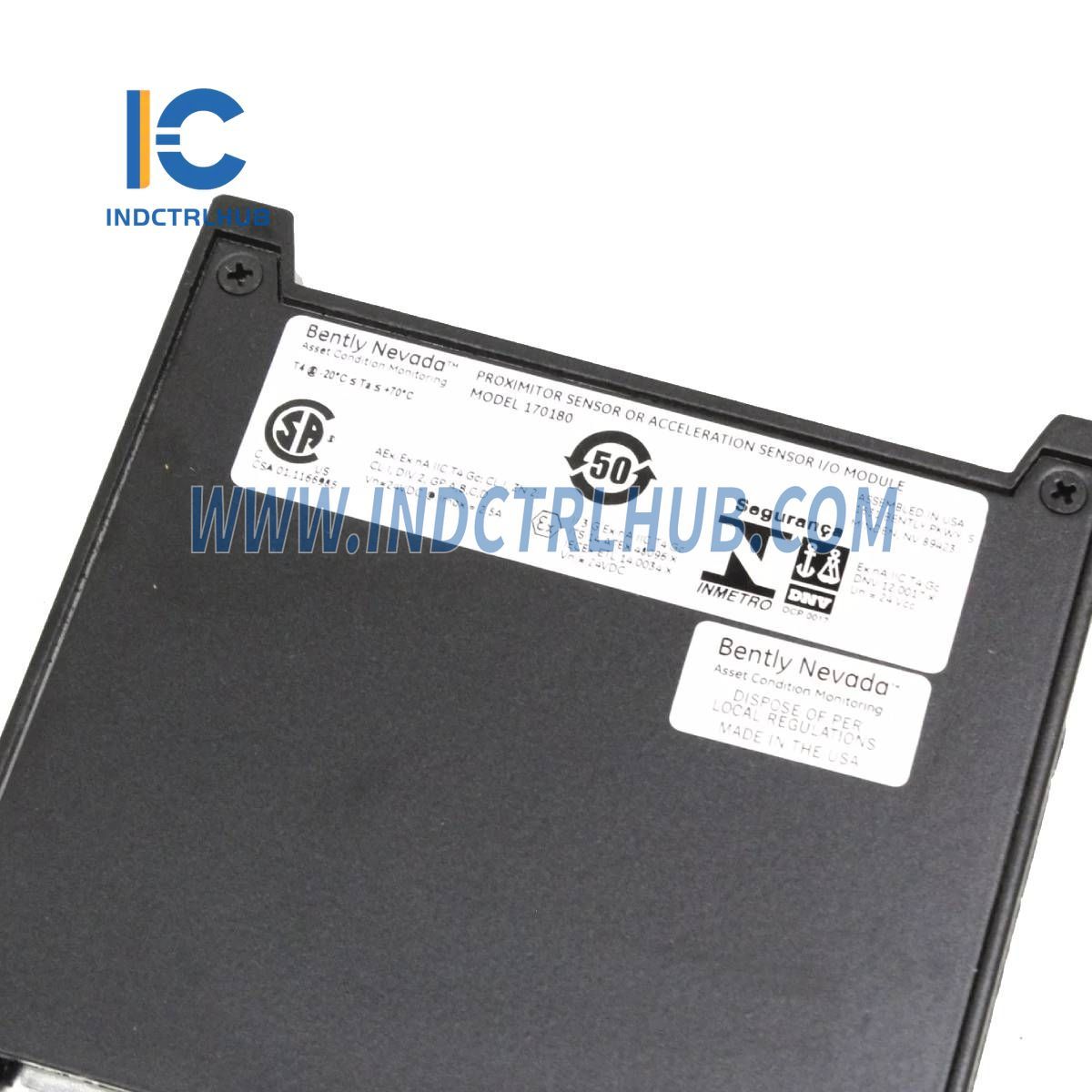

- The Bently Nevada 170180-01-05 is a Transducer I/O Module designed to connect external transducers to their respective 2-channel monitoring modules. This module supports various transducer types, including proximity probes using external Proximitor® sensors (with a note indicating specific compatibility considerations) and all supported acceleration and velocity transducers. It facilitates reliable signal input and interfacing for industrial monitoring applications.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Model/Part Number | 170180-01-05 |
| Model Type | Transducer I/O Module |
| Signal Inputs (170180-01-XX) | Channel A: - One Proximitor or Accelerometer with -24 Vdc Supply Channel B: - One Proximitor or Accelerometer with -24 Vdc Supply |
| Operating Temperature | -34°C to +85°C (-30°F to +185°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 100% condensing, non-submerged, from +7°C to +85°C (+45°F to +185°F) when the connector is protected |
| Weight | 277 g (0.61 lb) typical |
| Proximitor Sensor/Accelerometer Interface Module | Input Signal Voltage Range: 0 to -Vt Output Voltage Range: 0 to -Vt Frequency Response: -5% at >25 kHz Current Draw (without transducer): 2.0 mA maximum Current Limit Setpoint: 33.6 mA min, 37.6 mA max at 25°C (77°F) |
Ordering Information
- Model: 170180 Transducer I/O Module
- Ordering Format: 170180-XX-XX
- Option Descriptions:
- A: I/O Module Type
- 01: Dual Proximitor/Accelerometer I/O Module
- 02: Dual Velocity I/O Module
- 03: Dual Velomitor I/O Module
- 04: Velomitor A and Velocity B I/O Module
- 05: Dual -18V Proximitor I/O Module
- B: Hazardous Area Approval (Use the 05 option in the 1701/06 Isolator Terminal Base)
- 00: Division 2/Zone 2
- 05: Division 2/Zone 2 for Monitor, Division 1, Zone 0/1 for Transducers
- A: I/O Module Type
Specific Configuration
- Model/Part Number: 170180-01-05
- Configuration Details:
- A: 01 - Dual Proximitor/Accelerometer I/O Module
- B: 05 - Division 2/Zone 2 for Monitor, Division 1, Zone 0/1 for Transducers
Additional Notes
- The module connects proximity probes using external Proximitor® sensors; a note in the description suggests specific compatibility details not provided here.
- "-Vt" in voltage ranges refers to the transducer supply voltage, assumed to align with the -24 Vdc or -18 Vdc options based on context.
