Product Description
Product Details
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
170180-01-00 |
|
Model Type |

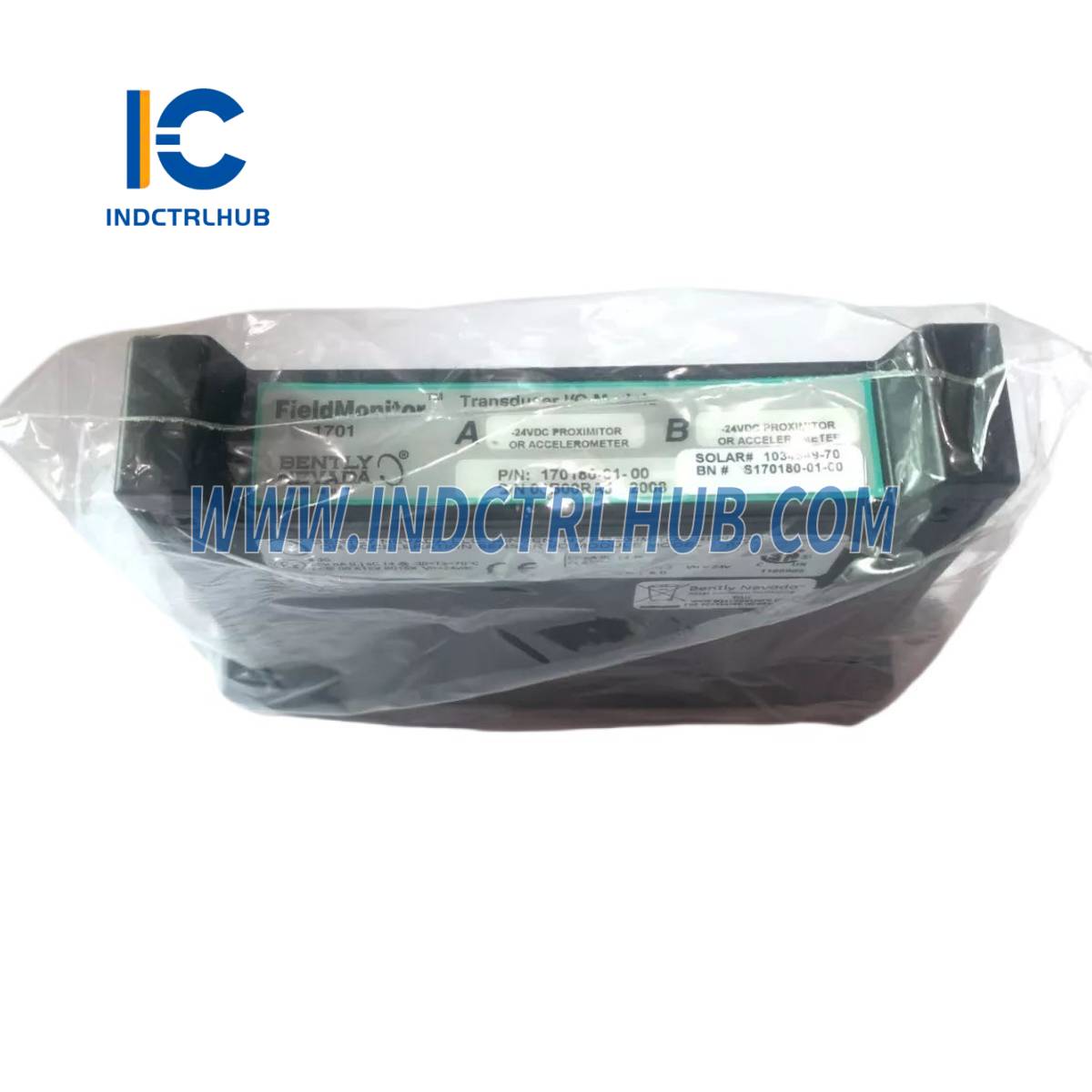

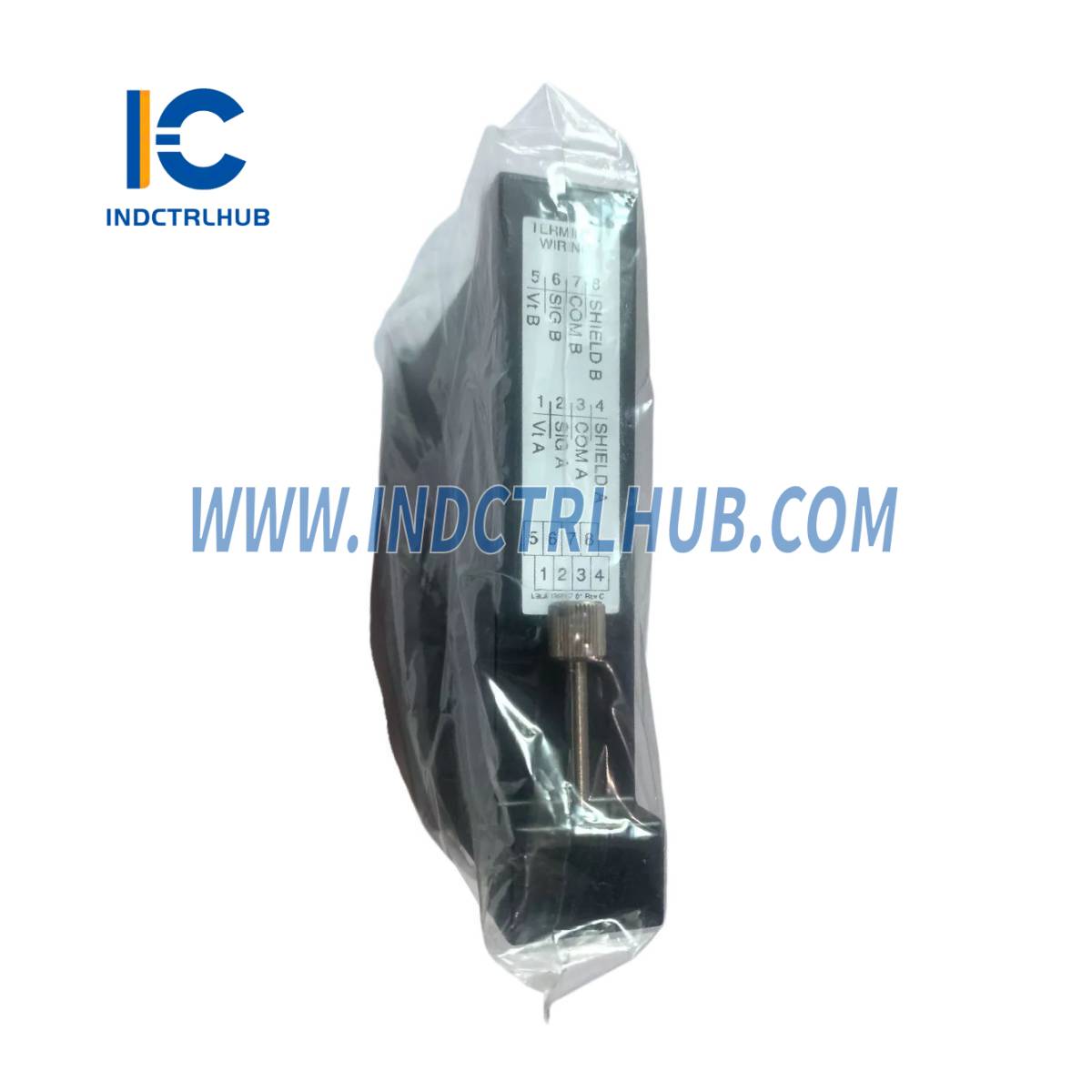

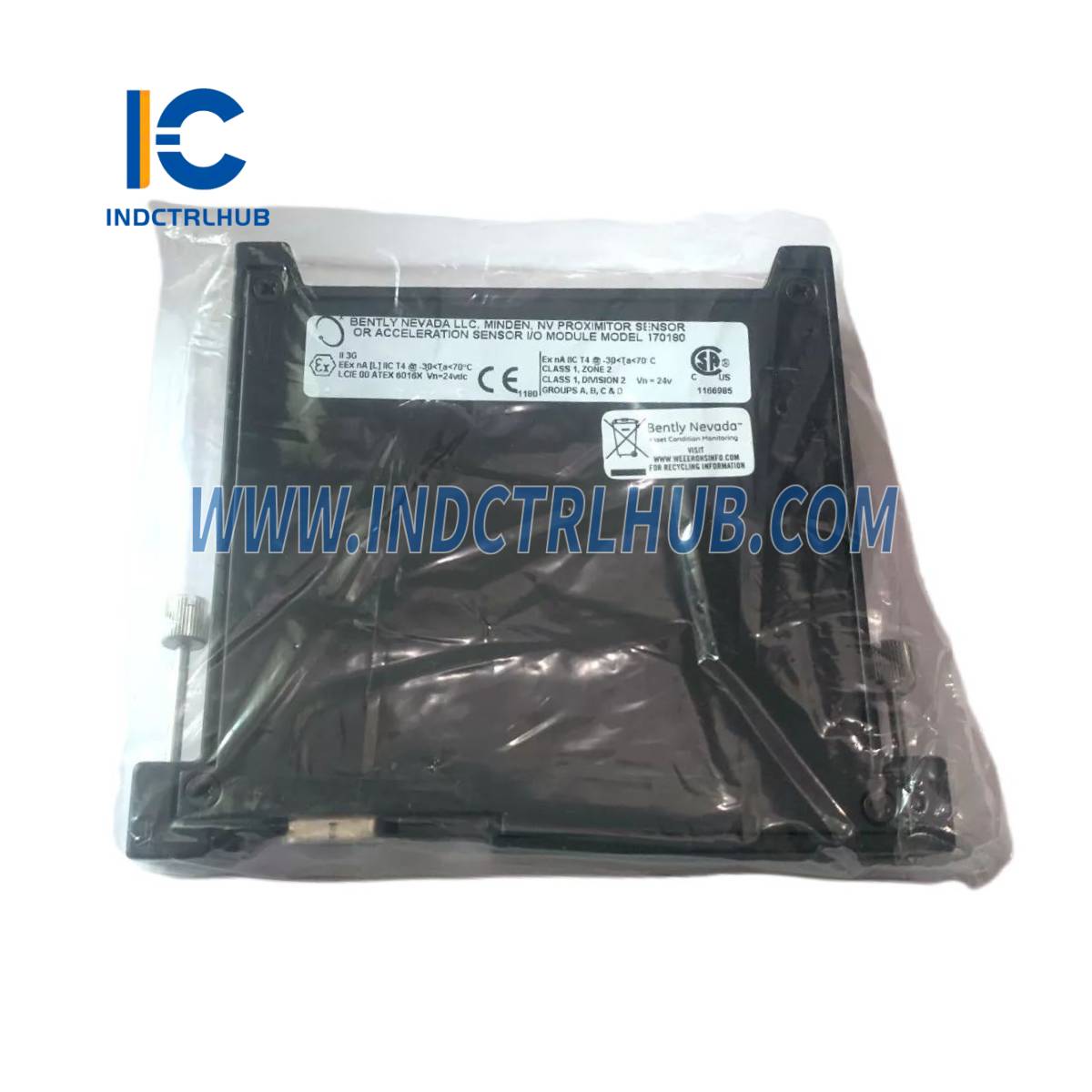

FieldMonitor External Transducer I/O Module |
Description
An external transducer I/O module used to connect the following transducer types to their respective 2-channel monitoring module:
• Proximity probes using external Proximitor® sensors
• All supported acceleration and velocity transducers
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
-34°C to +85°C (-30°F to +185°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Relative Humidity |
100% condensing (nonsubmerged) from +7°C to +85°C (+45°F to +185°F) when the connector is protected |
|
Weight |
277g (0.61 lb) typical |
Proximitor Sensor / Accelerometer Interface Module
|
Parameter |
Value |
|---|---|
|
Input Signal Voltage Range |
0 to -Vt |
|
Output Voltage Range |
0 to -Vt |
|
Frequency Response |
-5% at >25 kHz |
|
Current Draw (without transducer) |
2.0 mA maximum |
|
Current Limit Setpoint |
33.6 mA min, 37.6 mA max at 25°C (77°F) |
Signal Inputs
|
Model |
Channel A |
Channel B |
|---|---|---|
|
170180-01-XX |
One Proximitor or Accelerometer with -24 Vdc Supply |
One Proximitor or Accelerometer with -24 Vdc Supply |
Ordering Information
Transducer I/O Module: 170180-XX-XX
A: I/O Module Type
• 01: Dual Proximitor / Accelerometer I/O Module
• 02: Dual Velocity I/O Module
• 03: Dual Velomitor I/O Module
• 04: Velomitor A and Velocity B I/O Module
• 05: Dual -18V Proximitor I/O Module
B: Hazardous Area Approval (Use the 05 option in the 1701/06 Isolator Terminal Base)
• 00: Division 2/Zone 2
• 05: Division 2/Zone 2 for Monitor, Division 1, Zone 0/1 for Transducers
