Product Description
Product Overview

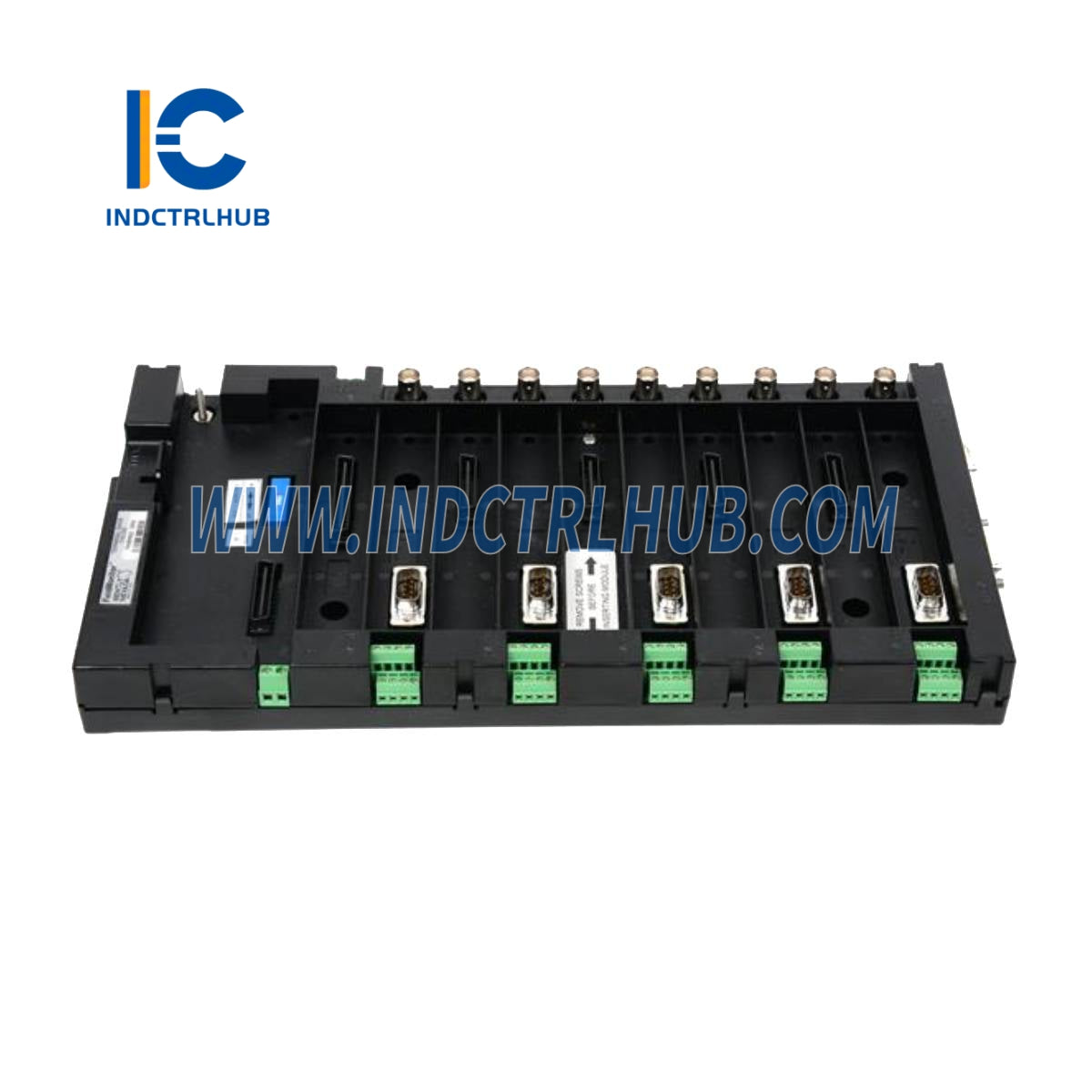

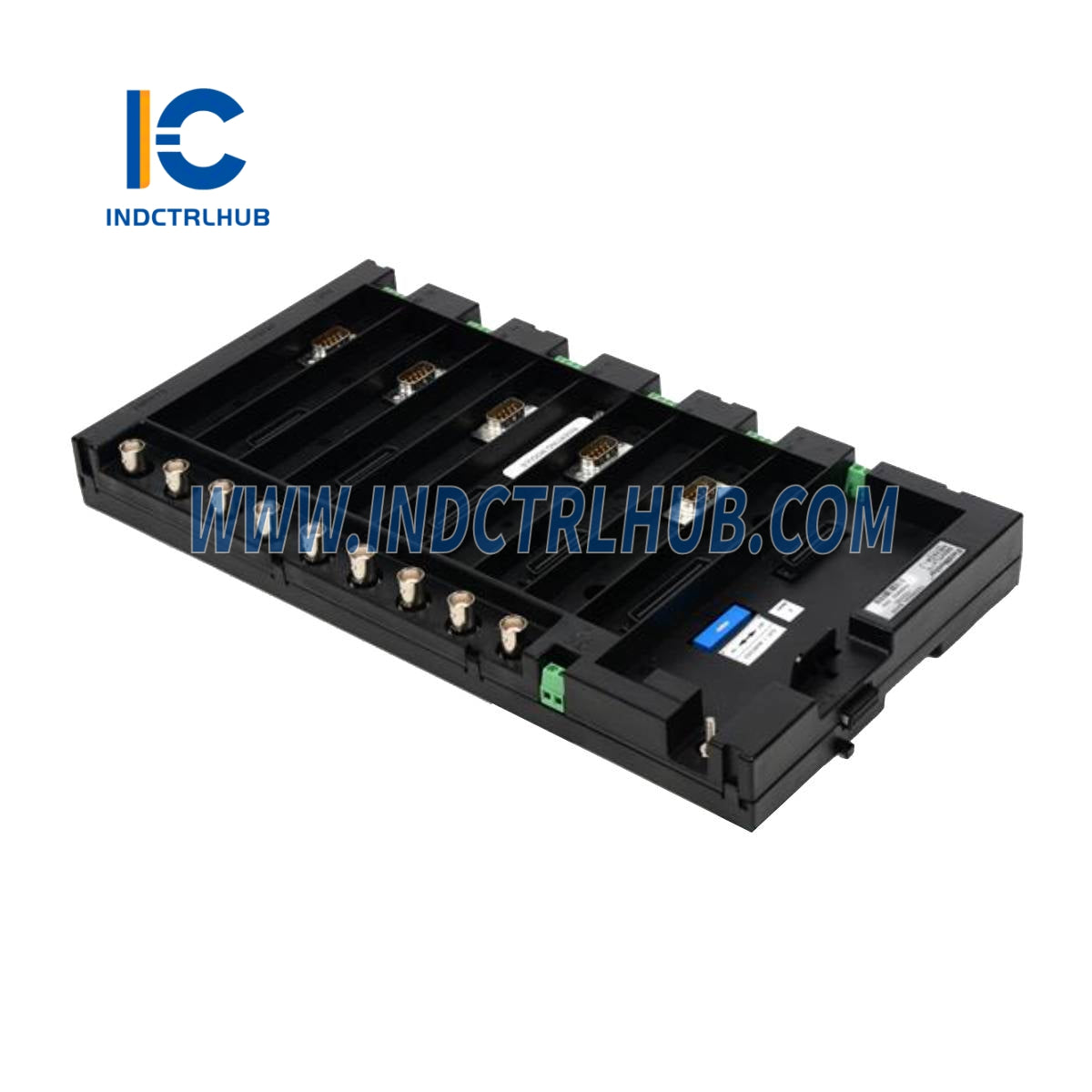

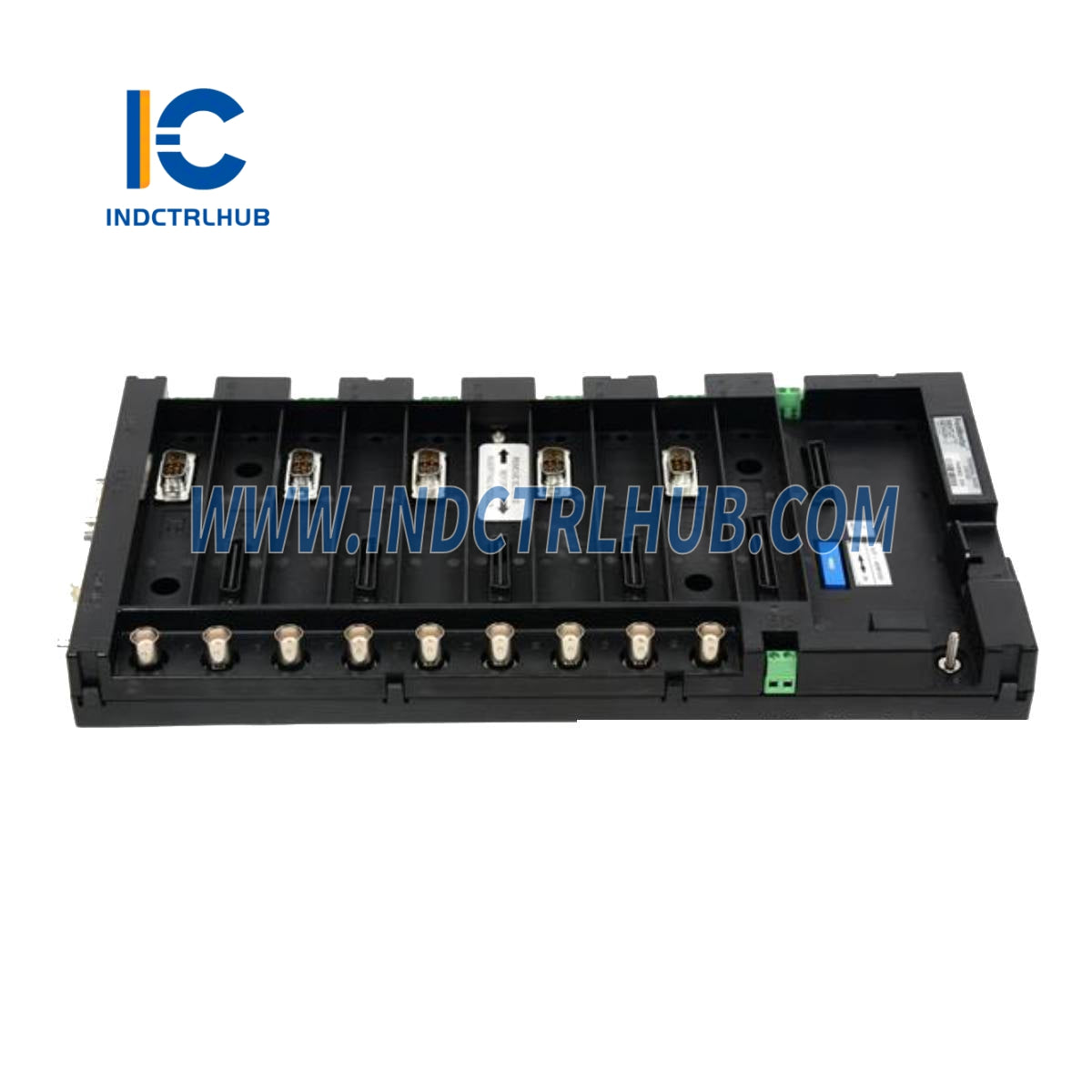

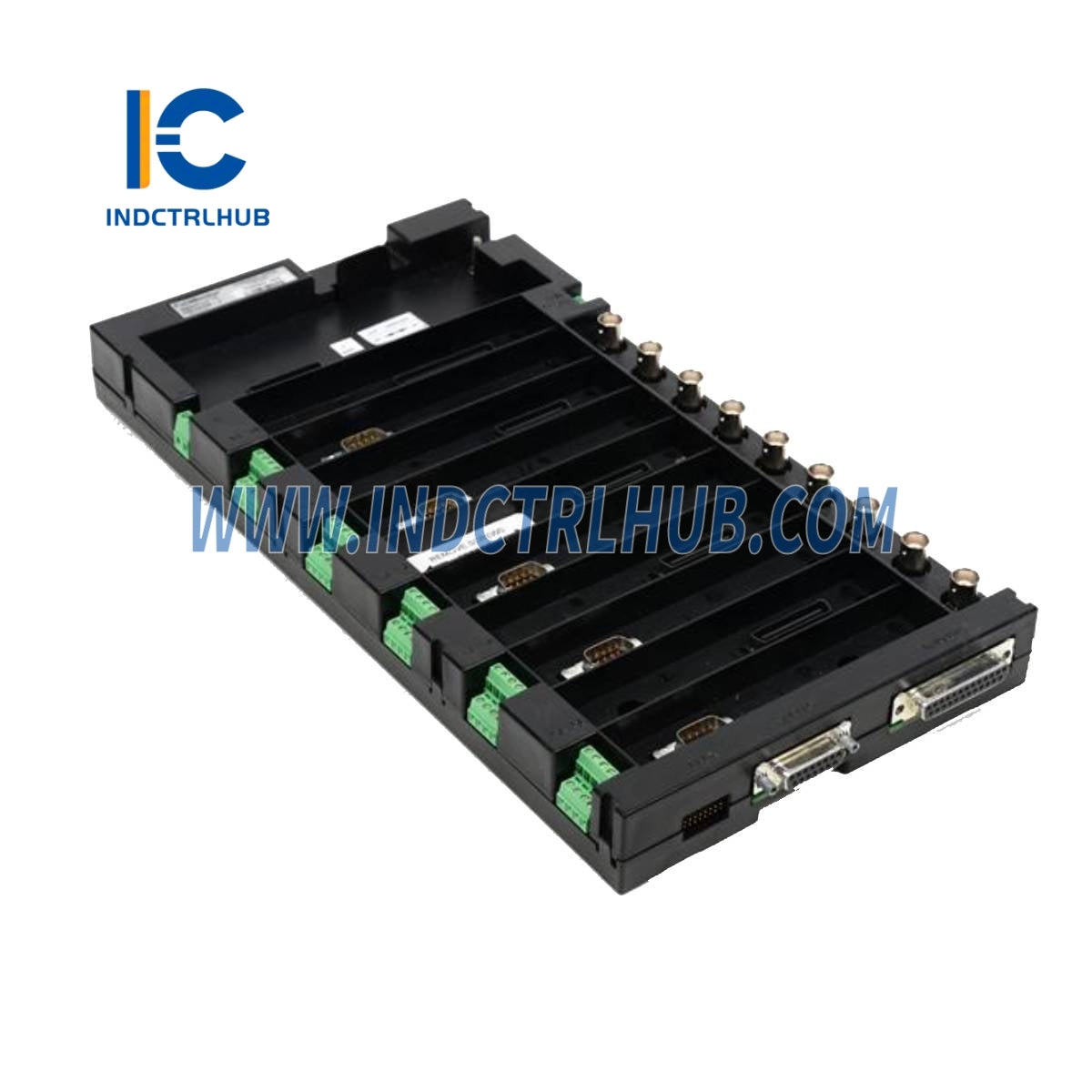

The Bently Nevada 1701/05-01 is a FieldMonitor Terminal Base designed for use within the Bently Nevada 1701 FieldMonitor Series, a distributed control system (DCS) solution for machinery protection and condition monitoring. Manufactured by Bently Nevada, a Baker Hughes company with a legacy in vibration monitoring since 1961, this terminal base provides a robust platform for mounting and powering FieldMonitor I/O modules, such as proximity, seismic, or temperature monitors. It is optimized for industrial applications like power generation, oil and gas, and machinery packaging, where its distributed architecture reduces installation costs and enhances integration with control systems (Web ID 0). Built on Allen-Bradley’s Flex I/O platform, the 1701/05-01 supports a modular, field-mounted design, offering flexibility and reliability for monitoring rotating equipment such as turbines, compressors, and pumps.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 1701 FieldMonitor Series |
| Model/Part Number | 1701/05-01 |
| Description | FieldMonitor Terminal Base |
| Function | Base for mounting and powering FieldMonitor I/O modules |
| Power Supply | 24 VDC |
| Module Capacity | Up to 8 I/O modules (Flex I/O standard) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Mounting Type | Field-mounted (DIN rail or panel) |
| Dimensions | Approximately 100 mm H x 200 mm W x 75 mm D (3.94 in x 7.87 in x 2.95 in) |
| Weight | 0.5 kg (1.1 lb) |
