Product Description
Product Overview

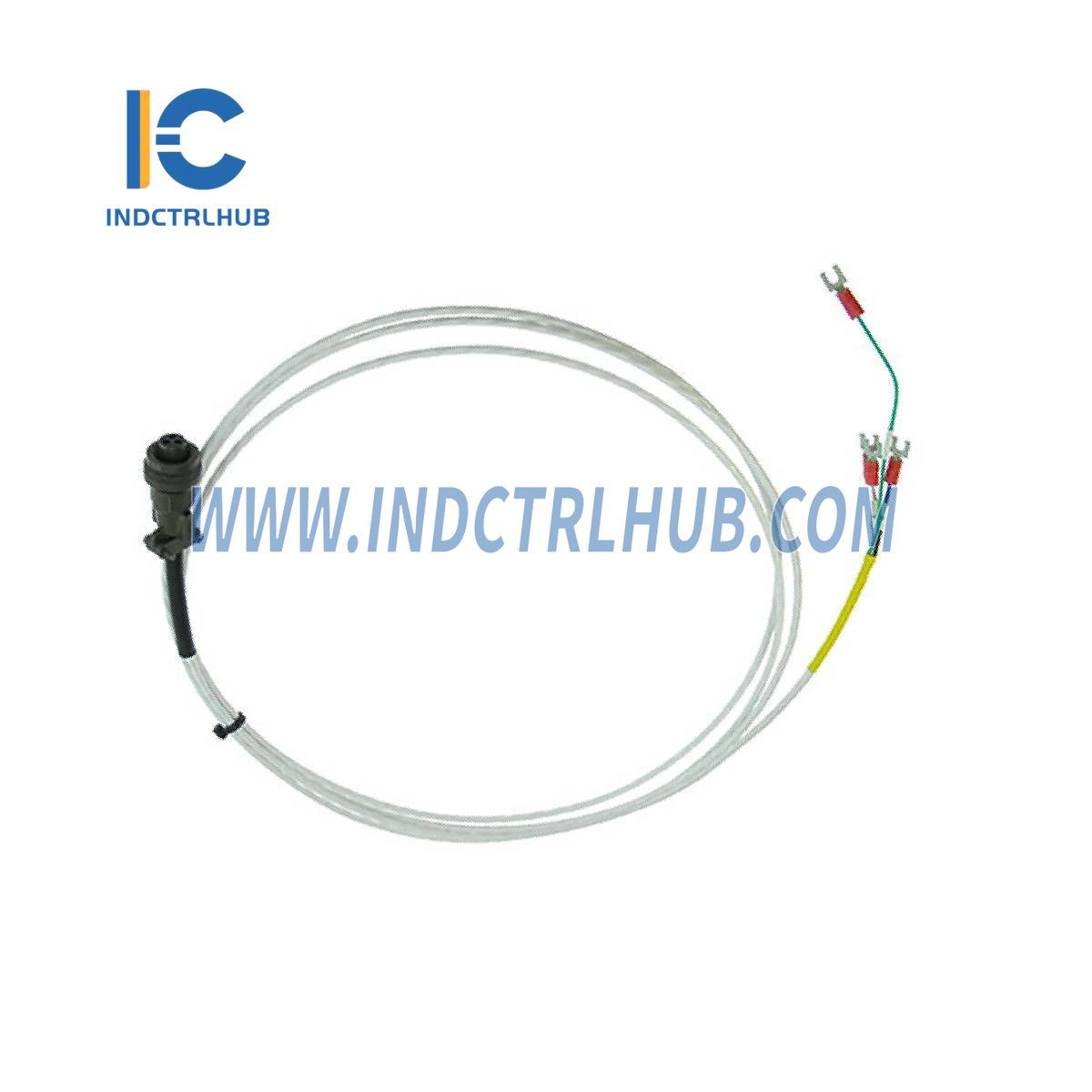

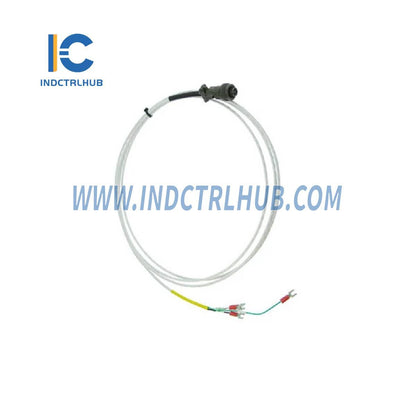

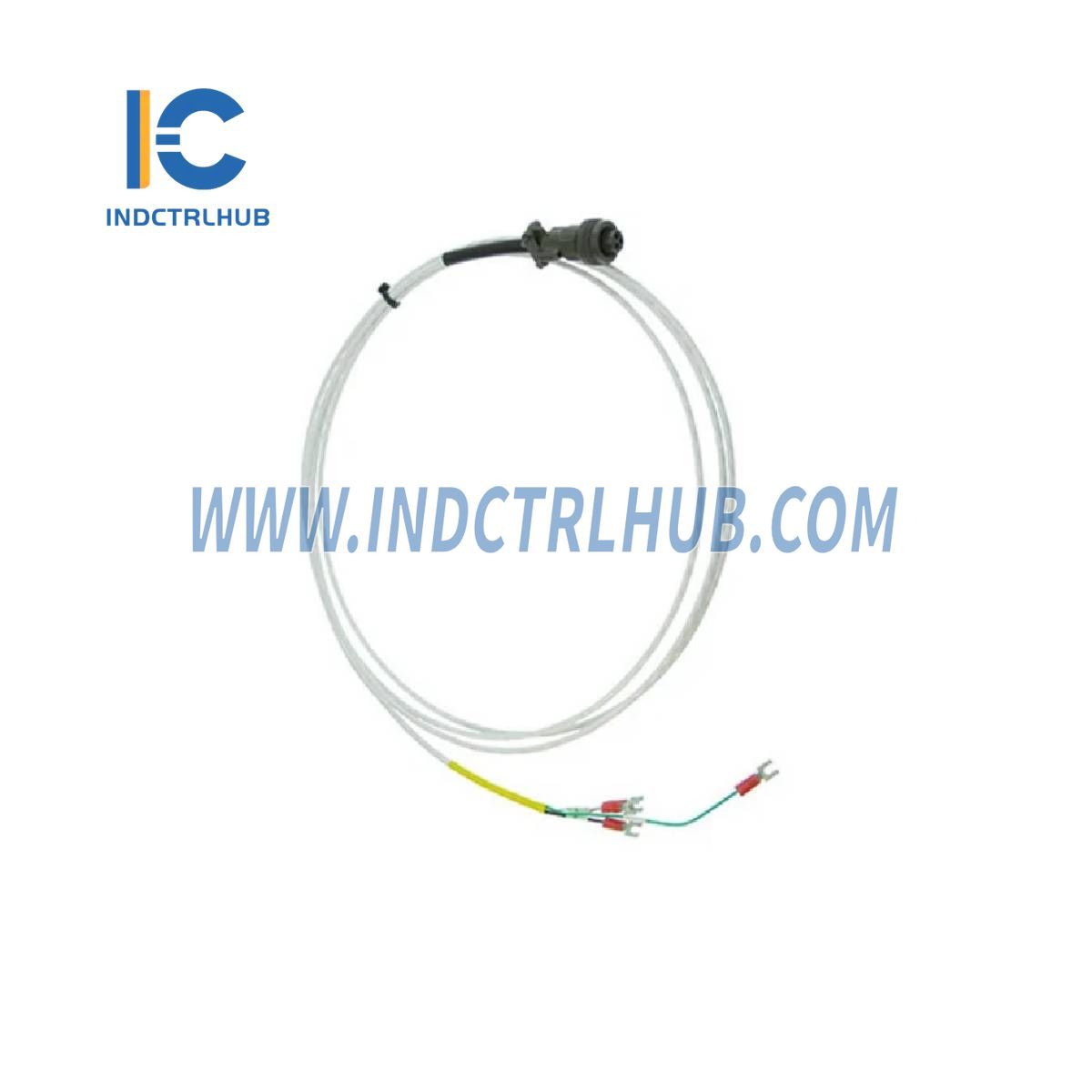

The Bently Nevada 16710-10 is an Interconnect Cable designed for robust connectivity in industrial monitoring systems. This cable, identified by its model/part number, features a 3-conductor shielded 22 AWG armored construction, ensuring durability and protection against interference. Equipped with a 3-socket plug on one end and terminal lugs on the other, it includes a unique relay configuration with 2 Normally Open (NO) circuits and 2 solid-state outputs. The "-10" suffix indicates a 10-foot (3.0 m) length, fitting within a customizable range, making it suitable for integrating components in Bently Nevada setups.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Model/Part Number | 16710-10 |
| Model Type | Interconnect Cable |
| Cable Type | 3-conductor, shielded, armored |
| Conductor Size | 22 AWG (0.5 mm²) |
| Connector Type | 3-socket plug on one end, terminal lugs on the other |
| Cable Length Options | Minimum: 3.0 ft (0.9 m) Maximum: 99 ft (30 m) Standard Option: 10 ft (3.0 m), as per "-10" suffix |
| Relay Configuration | 2 Normally Open (NO) circuits, volt-free |
| Additional Circuits | 2 solid-state outputs |
| Ordering Code Breakdown | 16710: Base Model -10: 10 ft (3.0 m) length with 2 NO relay circuits |
Ordering Information
- Model: 16710 – Interconnect Cable
- Ordering Guidance: Select the required cable length and relay configuration:
- Standard Option:
- 16710-10: 10 ft (3.0 m), includes 2 NO relay circuits and 2 solid-state outputs
- Custom Options: Lengths up to 99 ft (30 m) available upon request; contact Bently Nevada for details.
Specific Configuration
- Model/Part Number: 16710-10
- Configuration Details:
- Length: 10 ft (3.0 m), as indicated by "-10" in the part number
- Relay Configuration: 2 NO circuits with 2 additional solid-state outputs
