Product Description
Product Overview

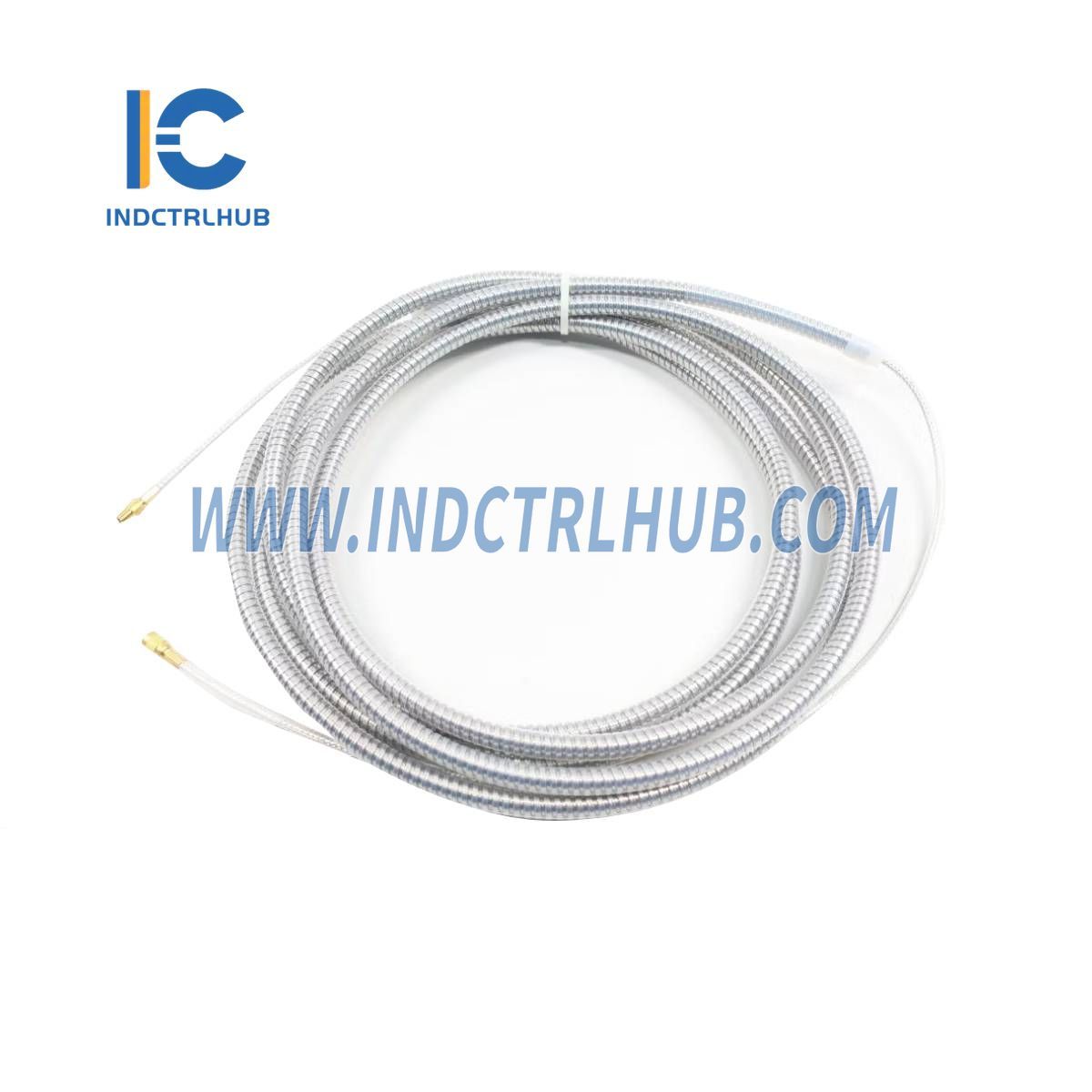

The Bently Nevada 127502-00 is a Radiation Resistant Extension Cable designed for reliable connectivity in harsh industrial environments. This cable, identified by its model/part number, is engineered to interface with XL Proximitor Sensors and monitors within the Bently Nevada ecosystem. It features a Tefzel-insulated coaxial design with optional stainless steel armor, offering durability and resistance to radiation, making it suitable for demanding applications.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Model/Part Number | 127502-00 |
| Model Type | Radiation Resistant Extension Cable |
| Extension Cable dc Resistance (Nominal) | Center Conductor (Rcore): 0.36 Ω/m (0.11 Ω/ft) Shield Conductor (Rjacket): 0.023 Ω/m (0.007 Ω/ft) |
| Extension Cable Capacitance (Nominal) | 63 pF/m (19.2 pF/ft) |
| Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG) Recommended: 3-conductor shielded triaxial cable Maximum Length: 305 meters (1,000 feet) between XL Proximitor Sensor and monitor Note: See frequency response graph for signal roll-off at high frequencies with longer lengths |
| Probe and Extension Cable Specifications | 85 Ω coaxial, Tefzel-insulated cable |

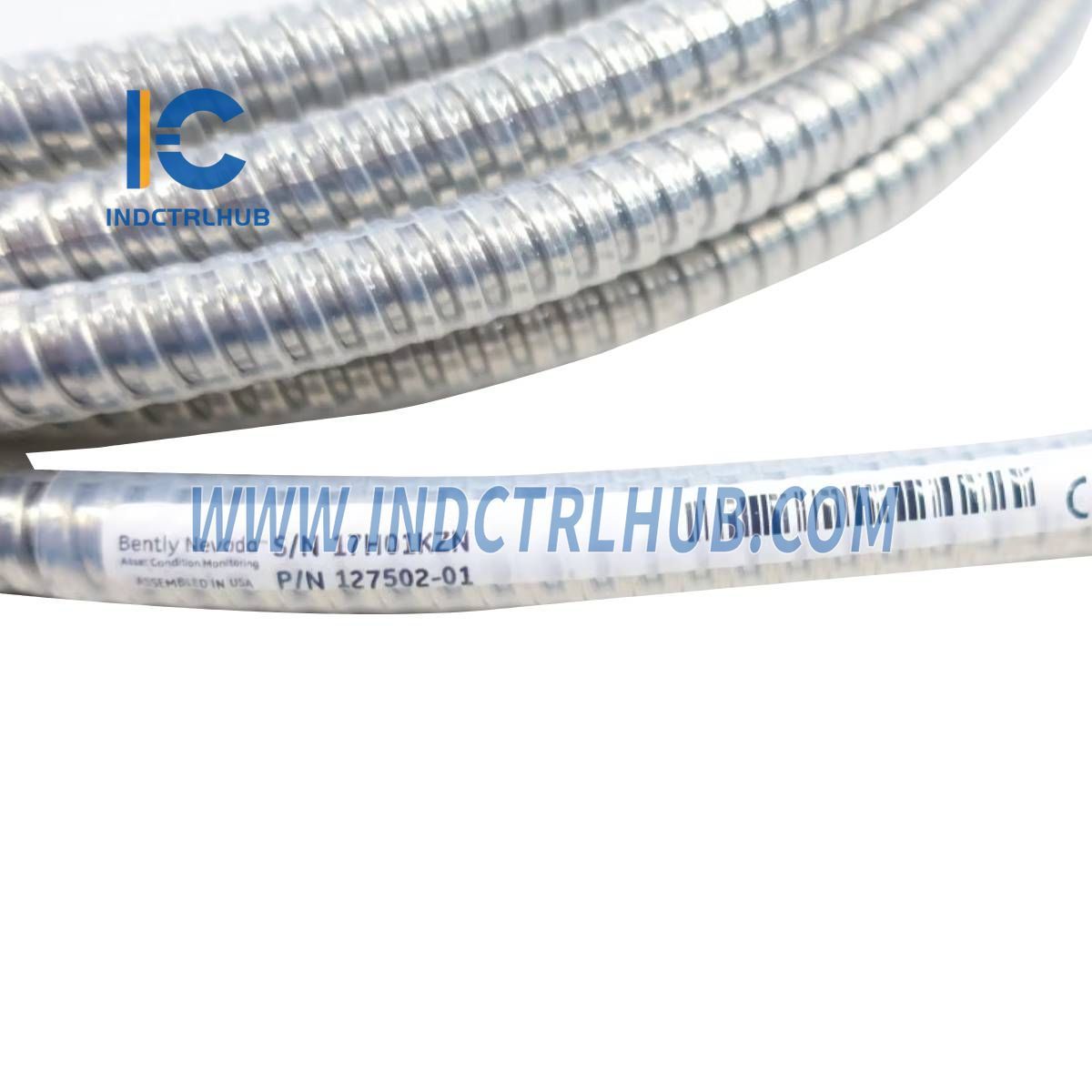

| Extension Cable Armor (Optional) | Flexible stainless steel with Tefzel outer jacket |
| Tensile Strength (Maximum Rated) | 133 N (30.0 pounds) from probe case to probe lead and probe lead to extension cable connectors |
| Environmental Limits - Extension Cable | -29°C to +150°C (-20°F to +302°F) |
Ordering Information
- Model: 0.420 inch Radiation Resistant Extension Cable
- Ordering Format: 127502-AA
- Option Descriptions:
- A: Armor Option
- 00: Without armor
- 01: With armor
- A: Armor Option
Specific Configuration
- Model/Part Number: 127502-00
- Configuration Details:
- A: 00 - Without armor
