Product Description
Product Details

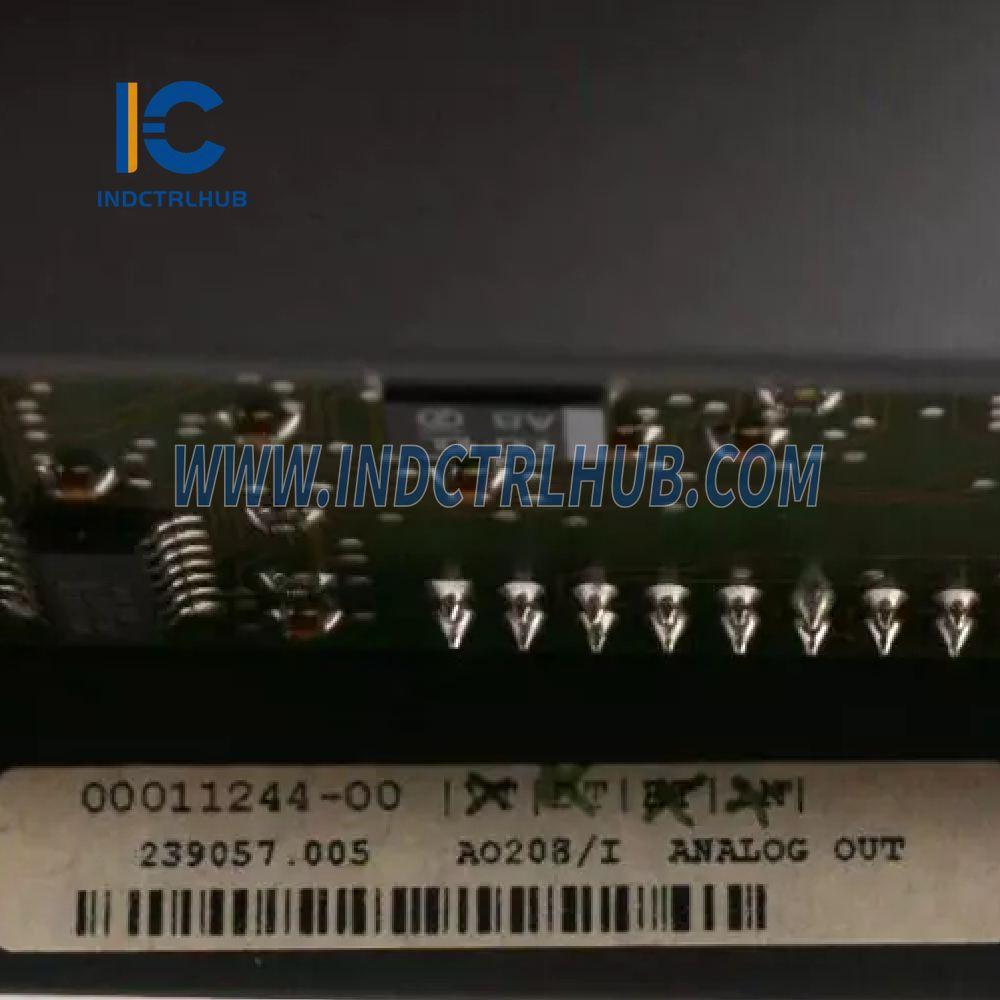

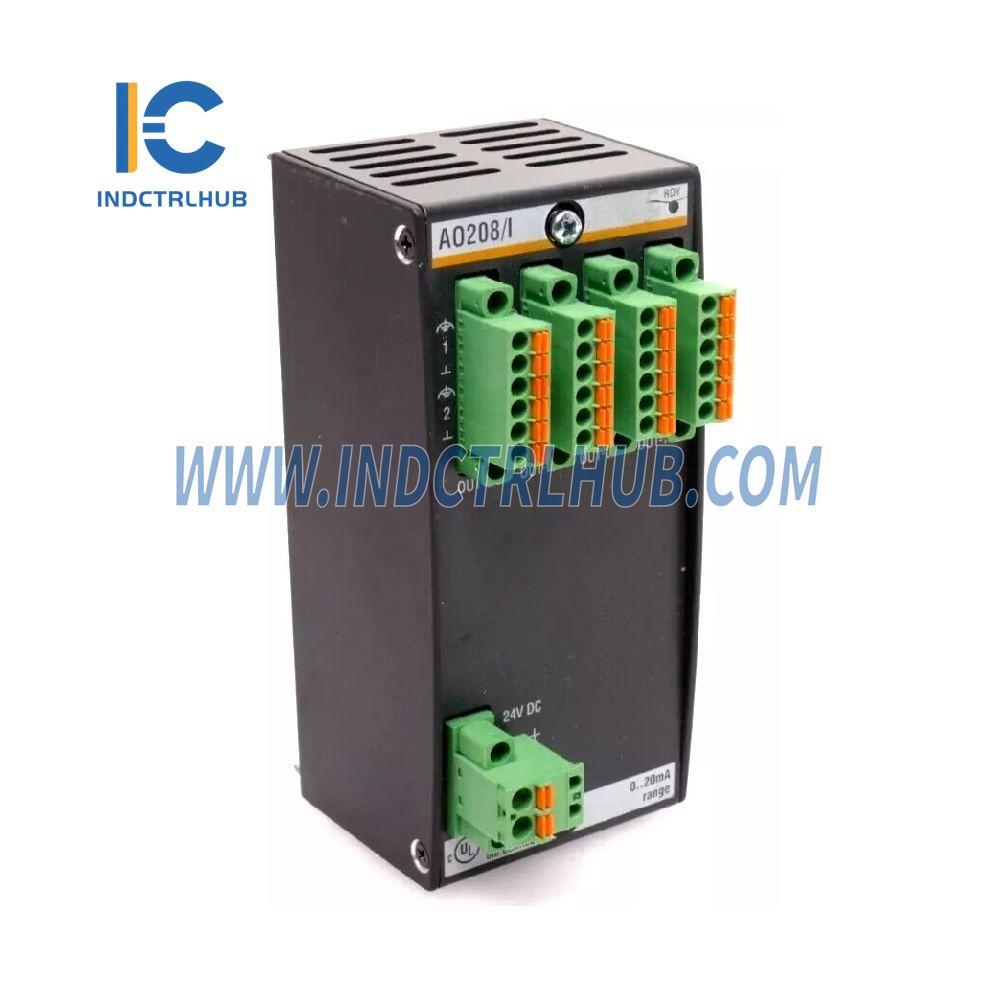

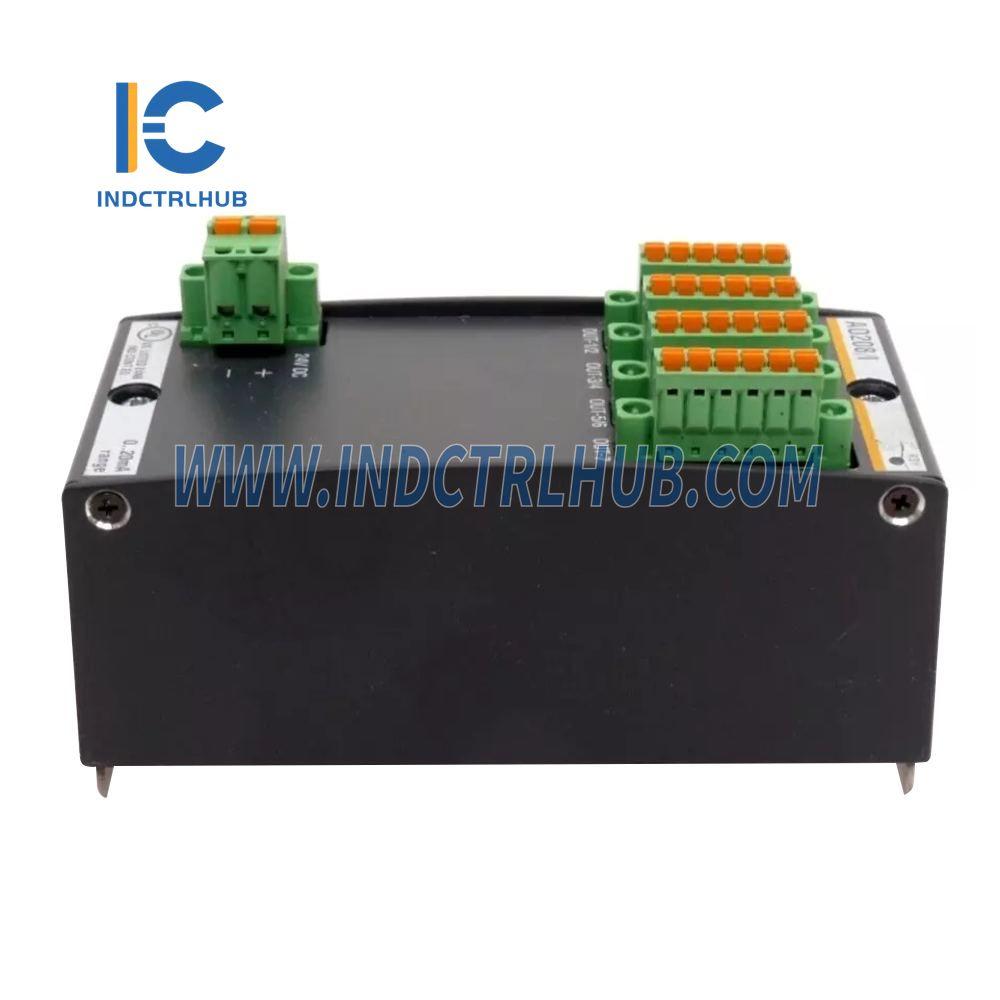

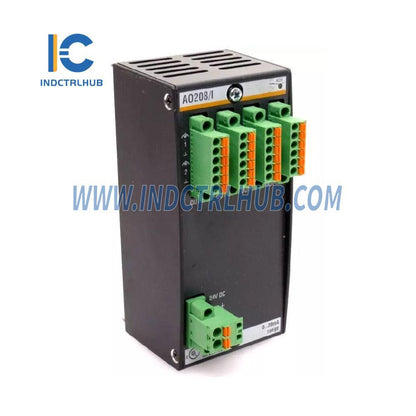

Manufacturer: BACHMANN
Model/Part Number: AO208/l
Description: Analog Output Module
Current Outputs:
| Specification | Value |
|---|---|
| Quantity | 8 |
| Output current | 0 .. 20 mA / 4 .. 20 mA |
| Digital resolution | 13 bit |
| Apparent ohmic resistance | ≤500 Ω |
| LSB value | 2.44 µA |
| Cross-talk attenuation | > 70 dB between channels |
Error Specifications:
- At 25 °C: ±100 µA (±0.5%)
- Over entire temperature range: ±160 µA (±0.8%)
Performance:
- Setting time of 1% of the output current range: Max. 500 µs
- Refresh cycle time: 500 µs
- Galvanic isolation between channels: No isolation
- Galvanic isolation from system: 500 V
Ambient Conditions:
| Condition | Value |
|---|---|
| Operating temperature | -30 .. +60 °C |
| Relative humidity (operation) | 5 .. 95 % without condensation / 5 .. 95 % with condensation |
| Storage temperature | -40 .. +85 °C |
| Relative humidity (storage) | 5 .. 95 % with condensation |
Execution Variants:
- AO208/I: Analog output module; 8x Out 20mA; 13bit; 0.5%; 500µs refresh cycle; isolated
- AO208/I❉: Like AO208/I; ColdClimate (❉)
