Product Description
Product Details

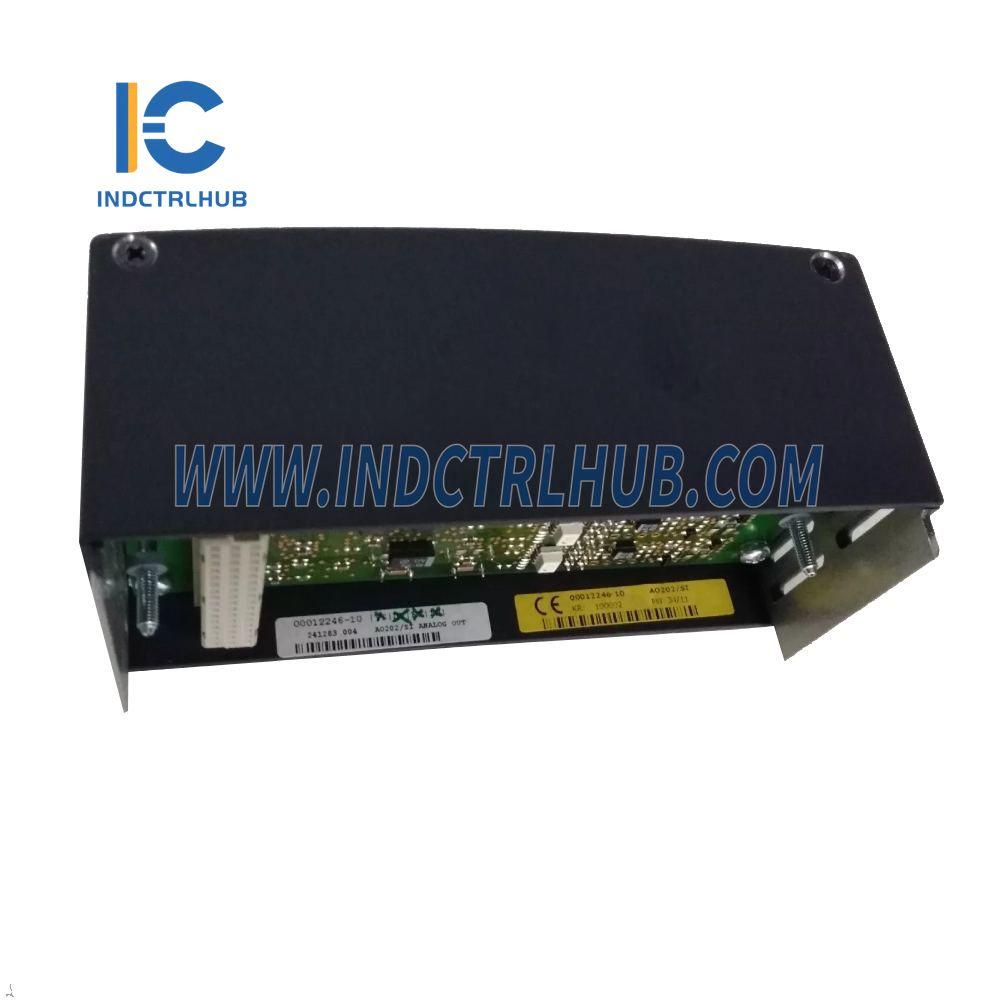

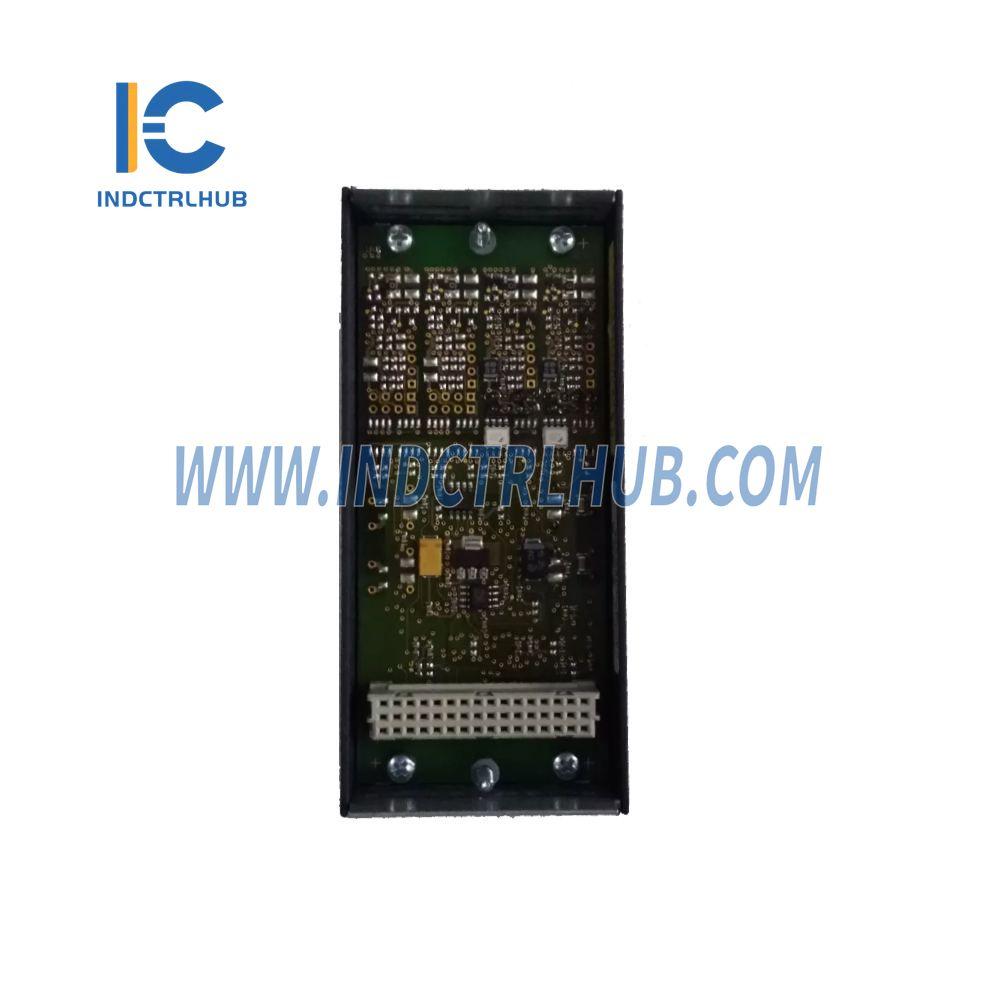

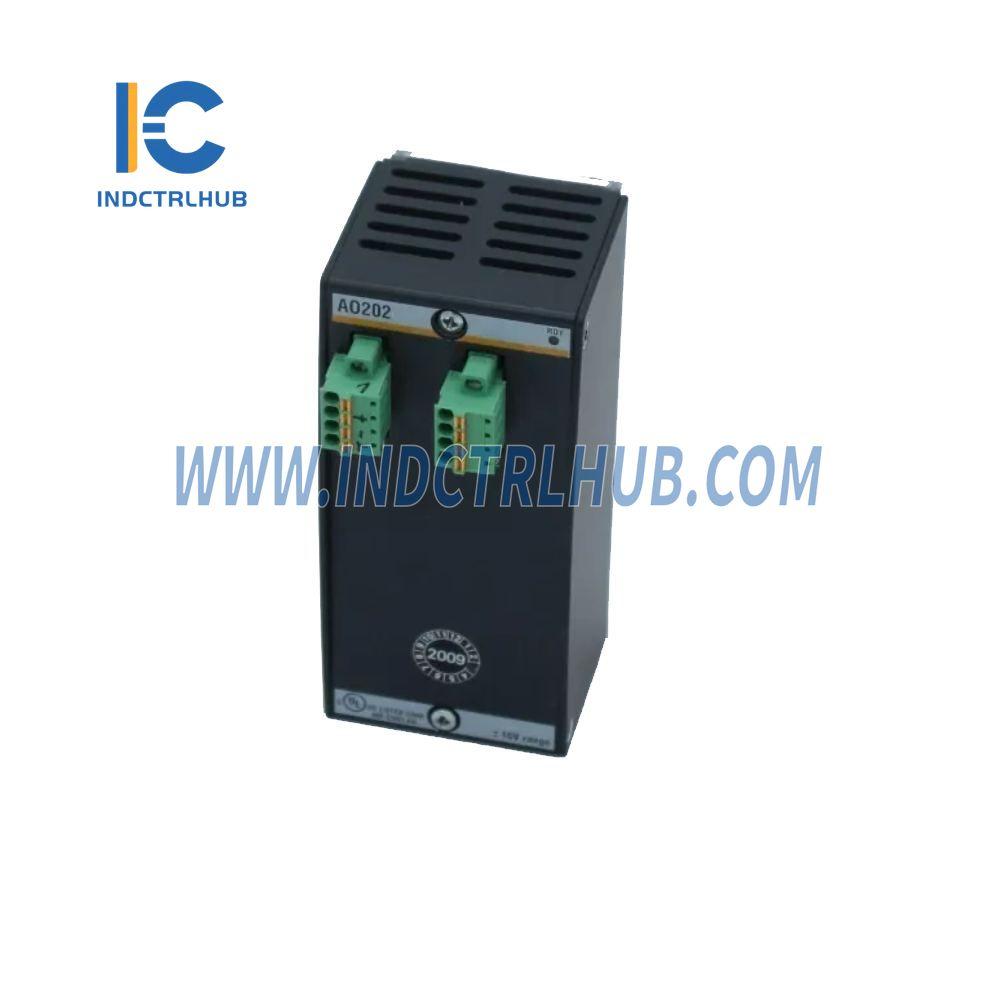

Manufacturer: BACHMANN
Model/Part Number: AO202
Description: Analog Output Module
Voltage Outputs:
- Quantity: 2
- Output voltage: ±10 V
- Output impedance: Corrected to ±2 mA
Digital Specifications:
- Digital resolution: 16 bit
- LSB value: 305 µV
- Cross-talk attenuation: > 120 dB between channels
Error Specifications:
- At 25 °C: ±2.5 mV (±0.0125%)
- Over entire temperature range: ±12 mV (±0.06%)
Performance:
- Refresh cycle time: 10 µs per channel
- Galvanic isolation between channels: 500 V
- Galvanic isolation from system: 500 V
Ambient Conditions:
- Operating temperature: -30 .. +60 °C
- Relative humidity (operation): 5 .. 95 % (without condensation)
- Storage temperature: -40 .. +85 °C
- Relative humidity (storage): 5 .. 95 % (with condensation)
Execution Variant:
- Analog output module; 2x Out ±10V; 16bit; high precision (0.0125%); 10 µs refresh cycle; single isolated
