Product Description
Product Details
- Manufacturer: Allen-Bradley

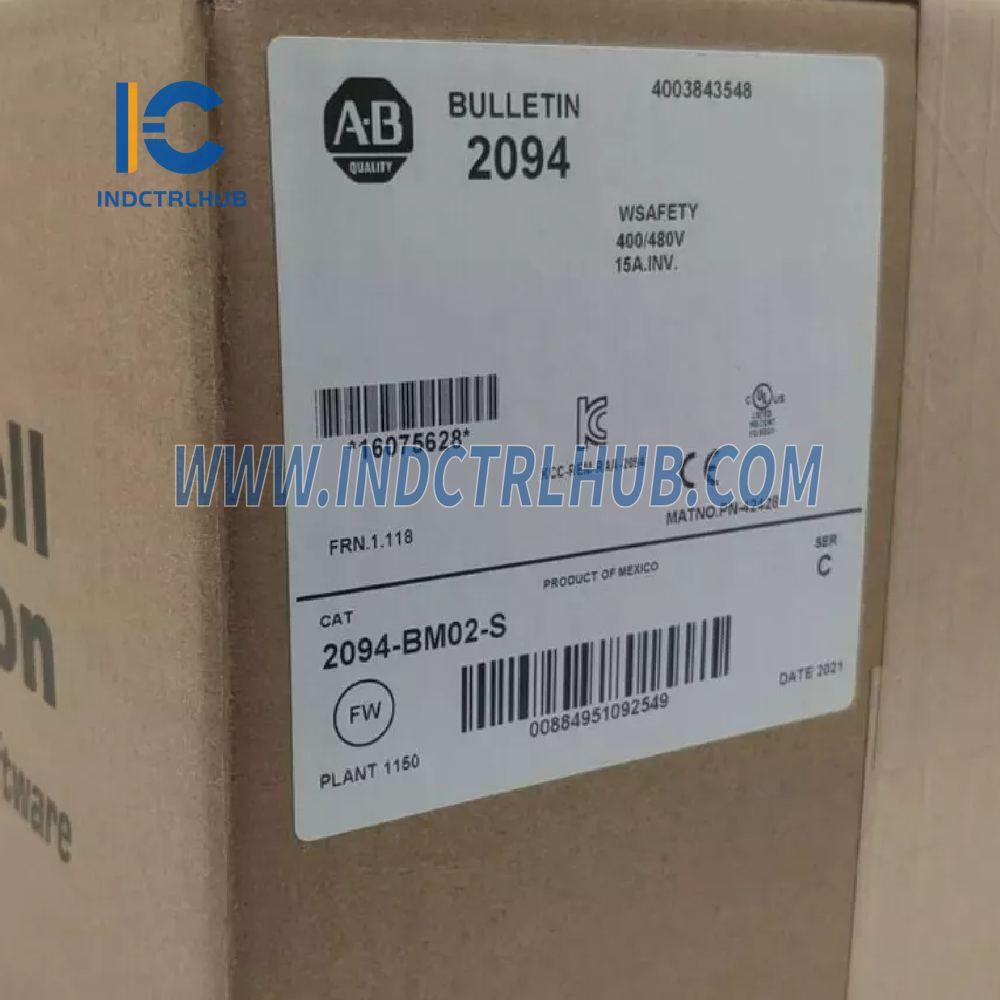

- Model/Part Number: 2094-BM02-S

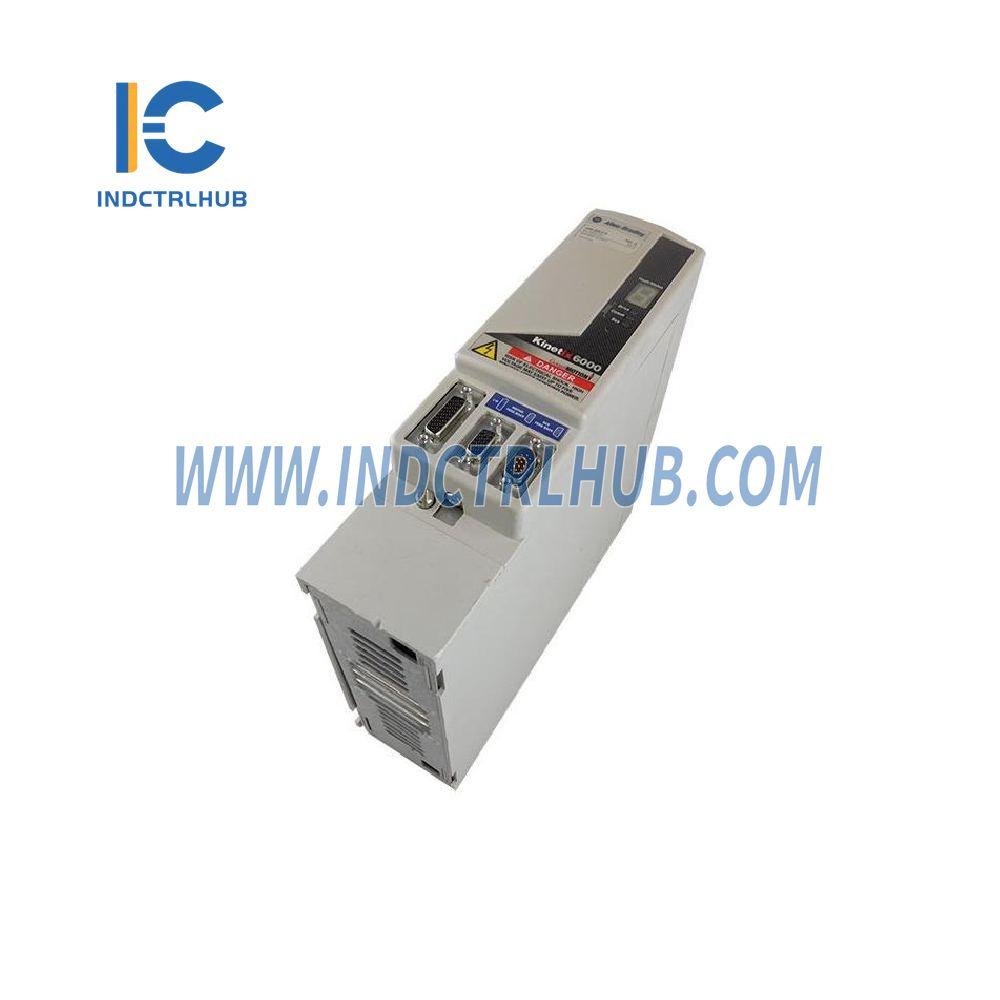

- Description: AM (Inverter) 460V Module Power, Kinetix 6000 Drive Module
Specifications
| Parameter | Value |
|---|---|
| Bandwidth | |
| Velocity loop | 500 Hz |
| Current loop | 1300 Hz |
| PWM Frequency | 4 kHz |
| Input Voltage (Nominal) | 650V DC |
| Continuous Current (RMS) | 10.3 A |
| Continuous Current (Sine, 0-pk) | 14.6 A |
| Peak Current (RMS) | 15.5 A |
| Peak Current (0-pk) | 21.8 A |
| Continuous Power Output (Nominal) | 6.6 kW |
| Internal Shunt | |
| Continuous Power | 50 W |
| Peak Power | 5600 W |
| Resistor | 115 Ω |
| Shunt On | 805V DC |
| Shunt Off | 755V DC |
| Efficiency | 97% |
| Capacitance | 270 μF |
| Capacitive Energy Absorption | 35 J |
Power Dissipation Specifications
- At 20% of rated power output: 98 W
- At 40% of rated power output: 126 W
- At 60% of rated power output: 154 W
- At 80% of rated power output: 182 W
- At 100% of rated power output: 210 W
