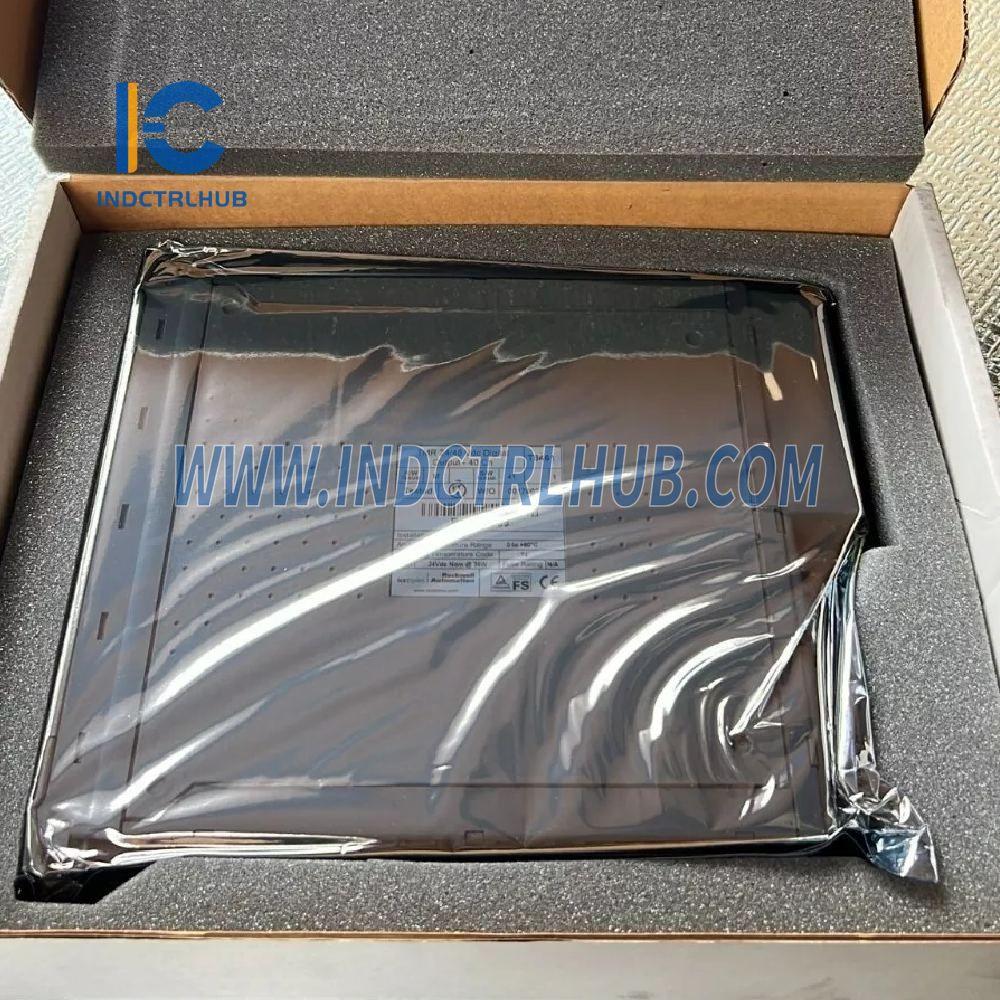

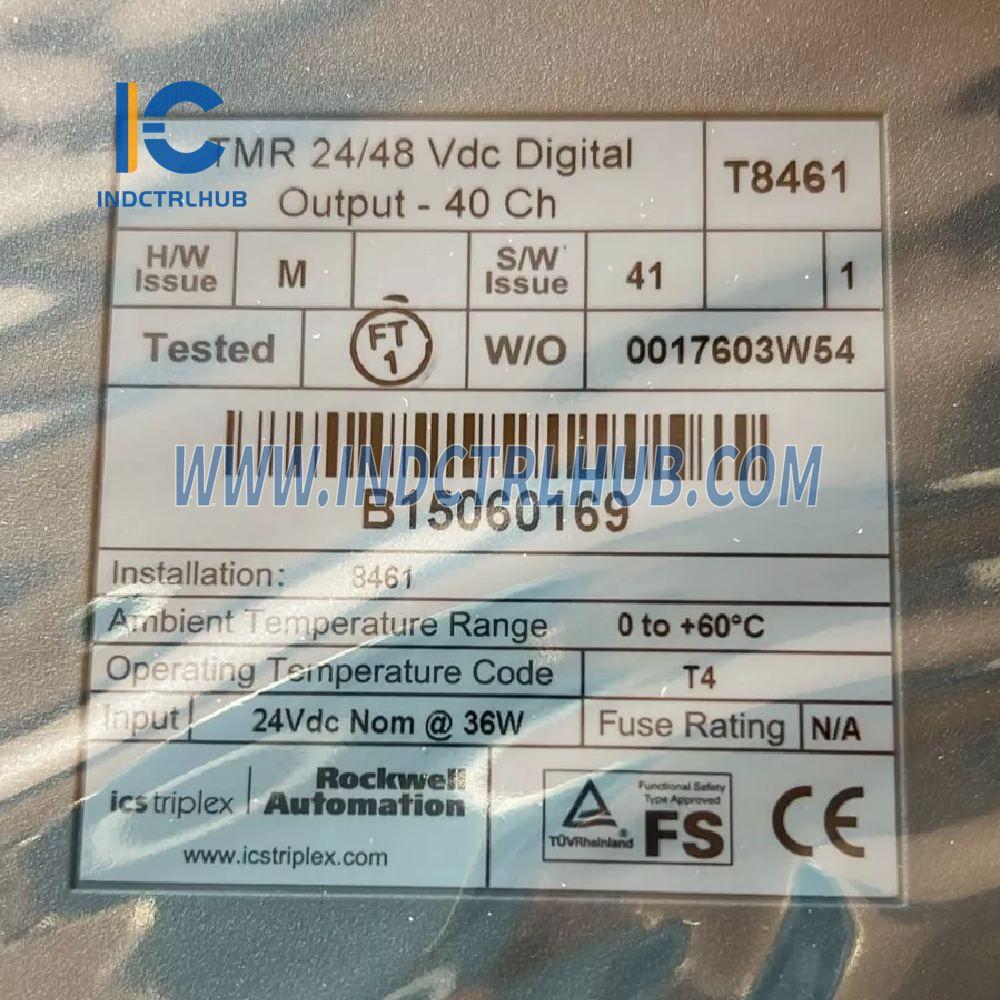

ICS TRIPLEX T8461 Output Module - 40 Channel

ICS TRIPLEX T8461 Output Module - 40 Channel

  • Manufacturer: ICS TRIPLEX

  • Product No.: T8461

  • Condition:1000 in stock

  • Product Type: Output Module - 40 Channel

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer:  ICS TRIPLEX
  • Model/Part Number: T8461
  • Description: Output Module - 40 Channel

Specifications

Item Description
Backplane (IMB) Supply
Voltage 20V DC to 32V DC
Power 26 W
Field Supply
Voltage 18V DC to 58V DC
Maximum Current 30 A
Power Dissipation
Field Supply at max power group current 36 W
System Supply 26 W
Module Location T8100, T8300 I/O Module Slot
Isolation
Power Group to Power Group 50V Reinforced (continuous)
Type tested at 1411V DC for 60 s
Field Common 50V Reinforced (continuous), 250V Basic (fault)
Type tested at 2436V DC for 60 s
Channel to Channel None
Fusing Not user serviceable
Outputs
Number of Outputs 40
Number of Power Groups 5 (Each Power Group comprises 8 channels)
Output On State Resistance 1.6 Ω
Maximum Current Rating (Continuous) 0.75 A per channel
Minimum On State Load Current 25 mA
Current Measurement Range 0 A to 1.35 A ±5% / ±5 mA
Voltage Measurement Range 0V DC to +58V DC ±2V DC
Maximum Withstanding -1V DC to +60V DC
Channel to Channel Crosstalk < 1%
Maximum Load Capacitance 500 μF
Output Short Circuit Protection Electronic latching
Sequence of Events
Event Resolution (LSB) 1 ms
Time Stamp Accuracy ±10 ms
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity 10% – 95%, noncondensing
Environmental Specifications See Trusted 8000 Series International Safety and Environmental Approvals, publication ICSTT-TD003

Dimensions

Item Description
Height 266 mm (10.5 in)
Width 31 mm (1.2 in)
Depth 303 mm (12.0 in)
Weight 1.3 kg (2.7 lb)
View full details

Product Description

Product Details

  • Manufacturer:  ICS TRIPLEX
  • Model/Part Number: T8461
  • Description: Output Module - 40 Channel

Specifications

Item Description
Backplane (IMB) Supply
Voltage 20V DC to 32V DC
Power 26 W
Field Supply
Voltage 18V DC to 58V DC
Maximum Current 30 A
Power Dissipation
Field Supply at max power group current 36 W
System Supply 26 W
Module Location T8100, T8300 I/O Module Slot
Isolation
Power Group to Power Group 50V Reinforced (continuous)
Type tested at 1411V DC for 60 s
Field Common 50V Reinforced (continuous), 250V Basic (fault)
Type tested at 2436V DC for 60 s
Channel to Channel None
Fusing Not user serviceable
Outputs
Number of Outputs 40
Number of Power Groups 5 (Each Power Group comprises 8 channels)
Output On State Resistance 1.6 Ω
Maximum Current Rating (Continuous) 0.75 A per channel
Minimum On State Load Current 25 mA
Current Measurement Range 0 A to 1.35 A ±5% / ±5 mA
Voltage Measurement Range 0V DC to +58V DC ±2V DC
Maximum Withstanding -1V DC to +60V DC
Channel to Channel Crosstalk < 1%
Maximum Load Capacitance 500 μF
Output Short Circuit Protection Electronic latching
Sequence of Events
Event Resolution (LSB) 1 ms
Time Stamp Accuracy ±10 ms
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity 10% – 95%, noncondensing
Environmental Specifications See Trusted 8000 Series International Safety and Environmental Approvals, publication ICSTT-TD003

Dimensions

Item Description
Height 266 mm (10.5 in)
Width 31 mm (1.2 in)
Depth 303 mm (12.0 in)
Weight 1.3 kg (2.7 lb)
