Product Description
Product Details
- Manufacturer: ICS TRIPLEX
- Model/Part Number: T8451

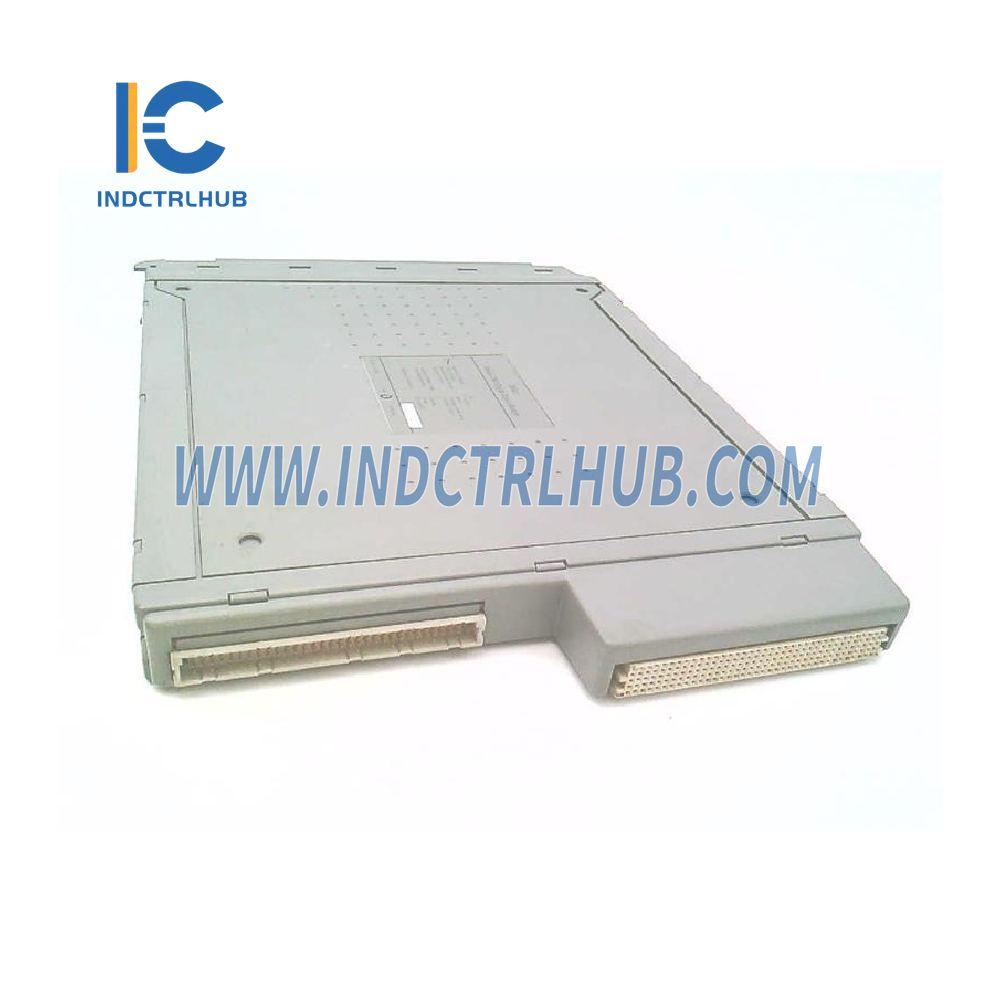

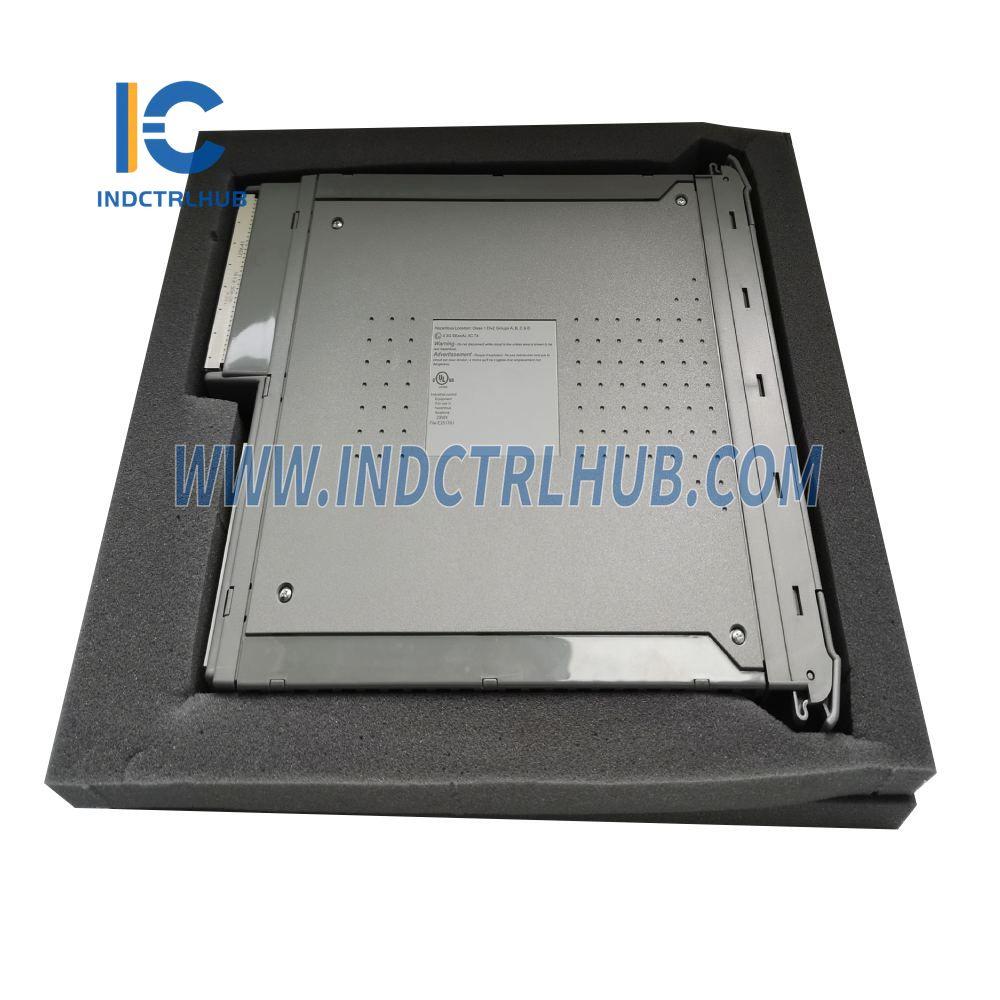

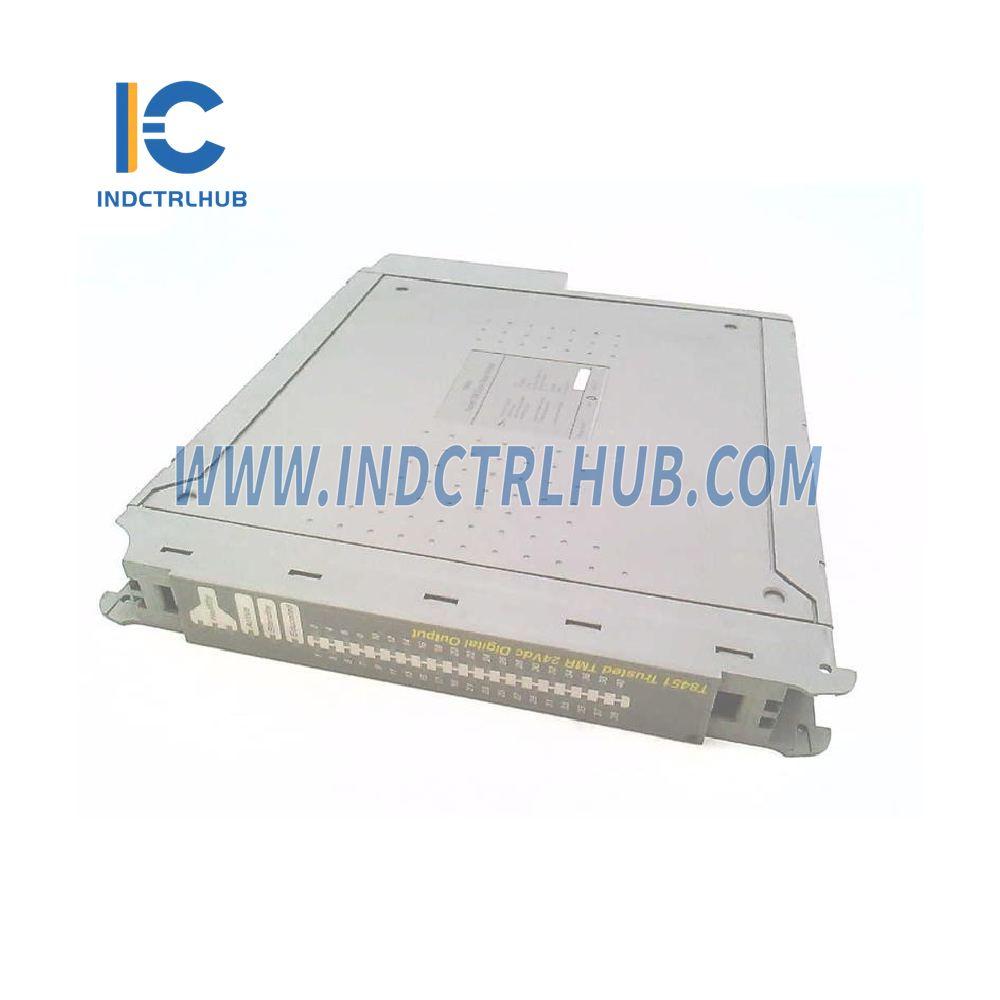

- Description: Trusted TMR 24 Vdc Digital Output Module – 40 Channel
Specifications
| Item | Description |
|---|---|
| Backplane (IMB) Supply | |
| Voltage | 20V DC to 32V DC |
| Power | 27 W |
| Field Supply | |
| Voltage | 18V DC to 32 V DC |
| Maximum Current | 40 A (limited to 8 A per power group at TA = 50 °C max) |
| 30 A (limited to 6 A per power group at TA = 60 °C max) | |
| Power Dissipation | |
| Field Supply at max power group current | 128 W (TA = 50 °C max) |
| 96 W (TA = 60 °C max) | |
| System Supply | 27 W |
| Module Location | T8100, T8300 I/O Module Slot |
| Isolation | |
| Power Group to Power Group | 50V Reinforced (continuous) |
| Type tested at | 1411V DC for 60 s |
| Field Common | 50V Reinforced (continuous), 250V Basic (fault) |
| Type tested at | 2436V DC for 60 s |
| Channel to Channel | None |
| Fusing | Not user serviceable |
| Outputs | |
| Output On State Resistance | 1.6 Ω |
| Maximum Current Rating (Continuous) | 2 A per channel |
| Minimum On State Load Current | 50 mA |
| Current Measurement Range | 0 A to 2.7 A ±5% / ±5 mA |
| Voltage Measurement Range | 0V DC to +30V DC ±2V DC |
| Maximum Withstanding | -1V DC to +40V DC |
| Channel to Channel Crosstalk | < 1% |
| Maximum Load Capacitance | 3000 μF |
| Output Short Circuit Protection | Electronic latching |
| Sequence of Events | |
| Event Resolution (LSB) | 1 ms |
| Time Stamp Accuracy | ±10 ms |
| Operating Temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
| Storage Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative Humidity | 10% – 95%, noncondensing |
| Environmental Specifications | Refer to Document ICSTT-TD003 |
Dimensions
| Item | Description |
|---|---|
| Height | 266 mm (10.5 in) |
| Width | 31 mm (1.2 in) |
| Depth | 303 mm (12.0 in) |
| Weight | 1.3 kg (2.7 lb) |
