Product Description
Product Details
- Manufacturer: Allen-Bradley

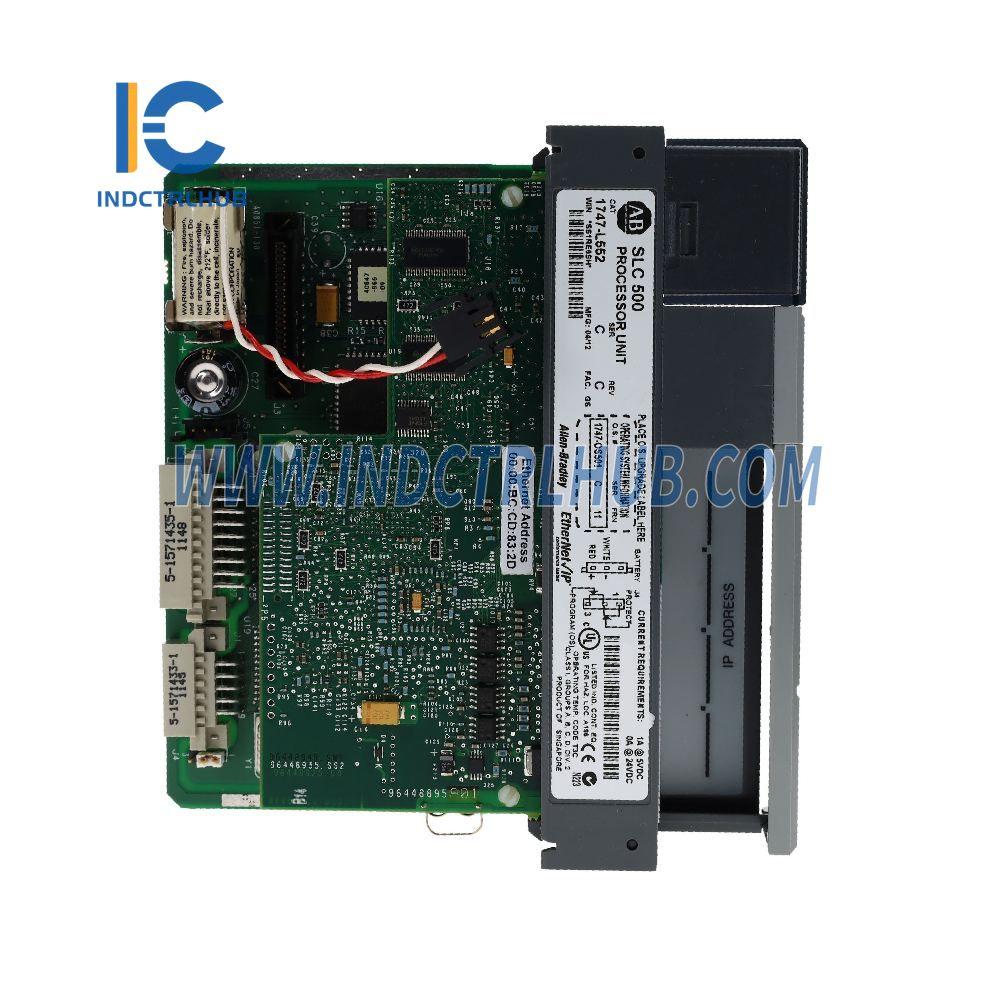

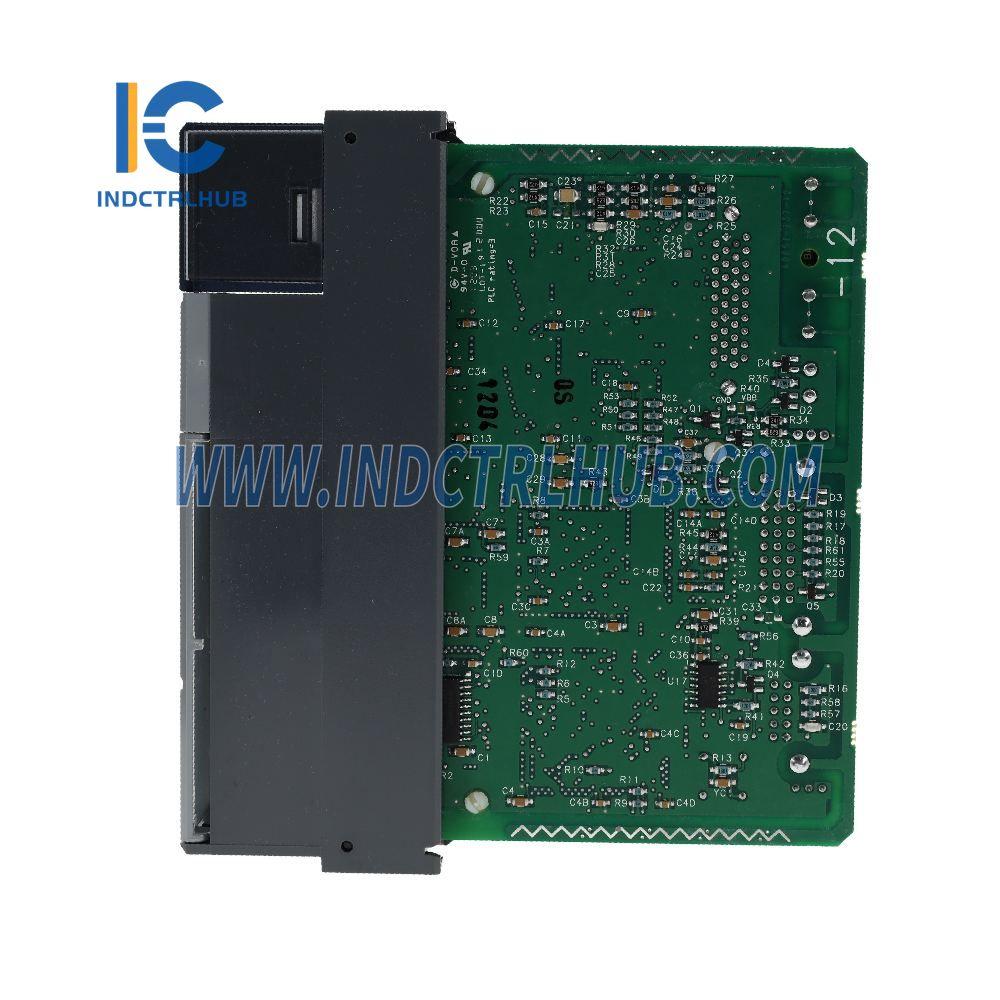

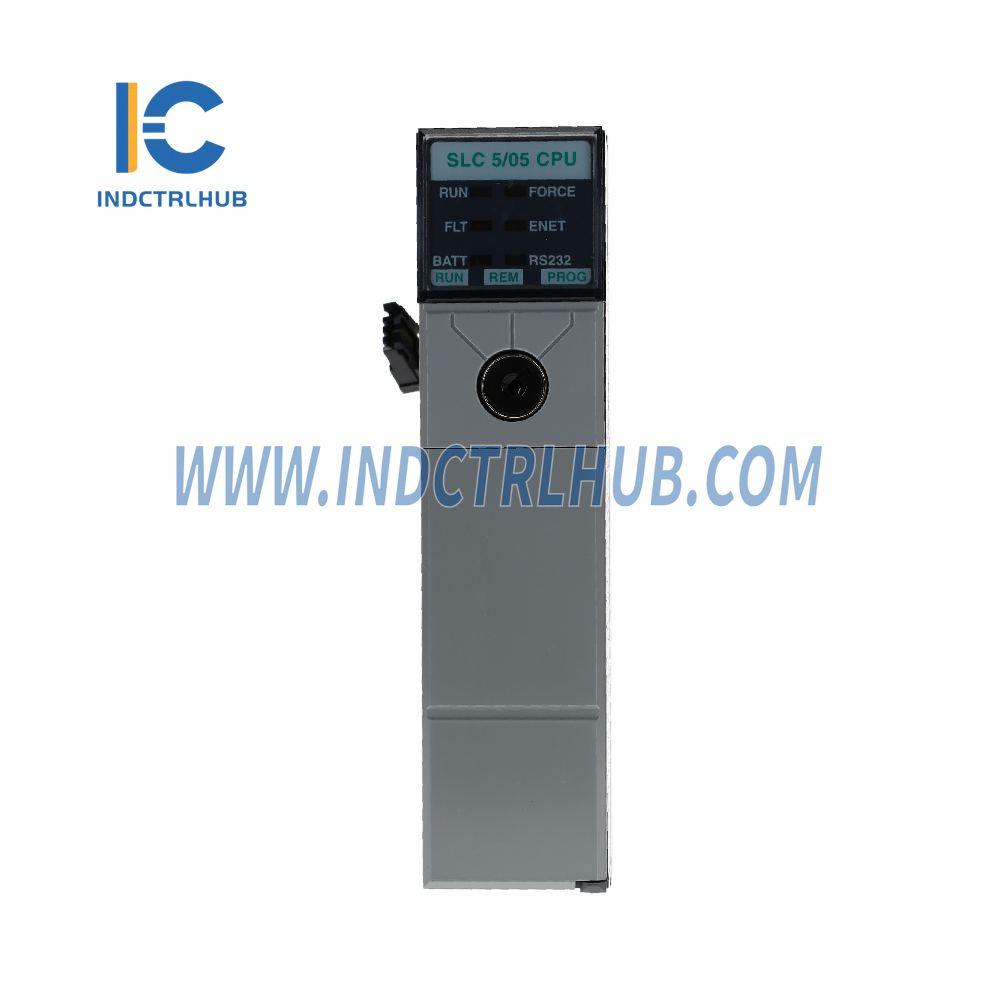

- Model/Part Number: SLC 500 1747-L552
- Description: SLC 5/05 32k Modular Processor
Specifications
| Attribute | Value |
|---|---|
| Memory | 32K words |
| I/O Capacity | 4096 discrete inputs / 4096 discrete outputs |
| Local System Max | 3 chassis / 30 slots |
| Programming Instructions | 107 |
| Typical Scan Time | 0.9 ms/K |
| Bit Execution (XIC) | 0.37 µs |
| Programming Software | SLC 5/03s and SLC 5/04s: RSLogix 500, SLC 5/05s: RSLogix 500 |
Power Supply Loading
| Voltage | Value |
|---|---|
| 5V DC | 500 mA (SLC 5/03) 1.0 A (SLC 5/04 and 5/05) |
| 24V DC | 175 mA (SLC 5/03) 0 mA (SLC 5/04 and 5/05) |
Program Scan Hold-Up Time
- 20 ms to 3 s (dependent on power supply loading)
Environmental Ratings
| Attribute | Value |
|---|---|
| Noise Immunity | NEMA Standard ICS 2-230 |
| Vibration | - Displacement: 0.015 in., peak-to-peak at 5-57 Hz - Acceleration: 2.5 g at 57-2000 Hz |
| Shock (Operating) | 30 g |
| Temperature Ratings | - Operating: 0 to 60 °C (32 to 140 °F) - Storage: -40 to 85 °C (-40 to 185 °F) |
| Humidity | 5 to 95% without condensation |
Certifications
- UL Listed (Industrial Control Equipment)
- C-UL Listed for use in Canada
- UL Listed for Class I, Division 2, Hazardous Locations (Groups A, B, C, D)
- CE Compliant
- C-Tick Marked
Communication Options
The SLC 5/03, 5/04, and 5/05 processors support the following communication options:
- DH485
-
RS-232 Protocols:
- DF1 Full-duplex
- DF1 Half-duplex master/slave
- DF1 Radio Modem
- DH-485
- ASCII
- Data Highway Plus: A ControlLogix Gateway is required for the SLC 5/03 and SLC 5/05 processors.
- Ethernet TCP/IP: A 1761-NET-ENI interface module is required for the SLC 5/03 and SLC 5/04 processors.
- ControlNet: Via a 1747-KFC15 module.
- DeviceNet: Via a 1761-NET-DNI interface module.
Memory Backup
The following table shows the memory backup options for the SLC 5/03, 5/04, and 5/05 processors. Flash EPROMs (Flash Erasable Programmable Read Only Memory) combine the versatility of EEPROMs (Electrically-Erasable Programmable Read Only Memory) with the security of UVPROMs (UV-Erasable PROM).
| Memory Backup Option | Processor Model | Flash EPROM Model |
|---|---|---|
| SLC 5/05 Processor | 1747-L551, 1747-552, 1747-553 | 1747-M13 (OS501 Series C or later) |
