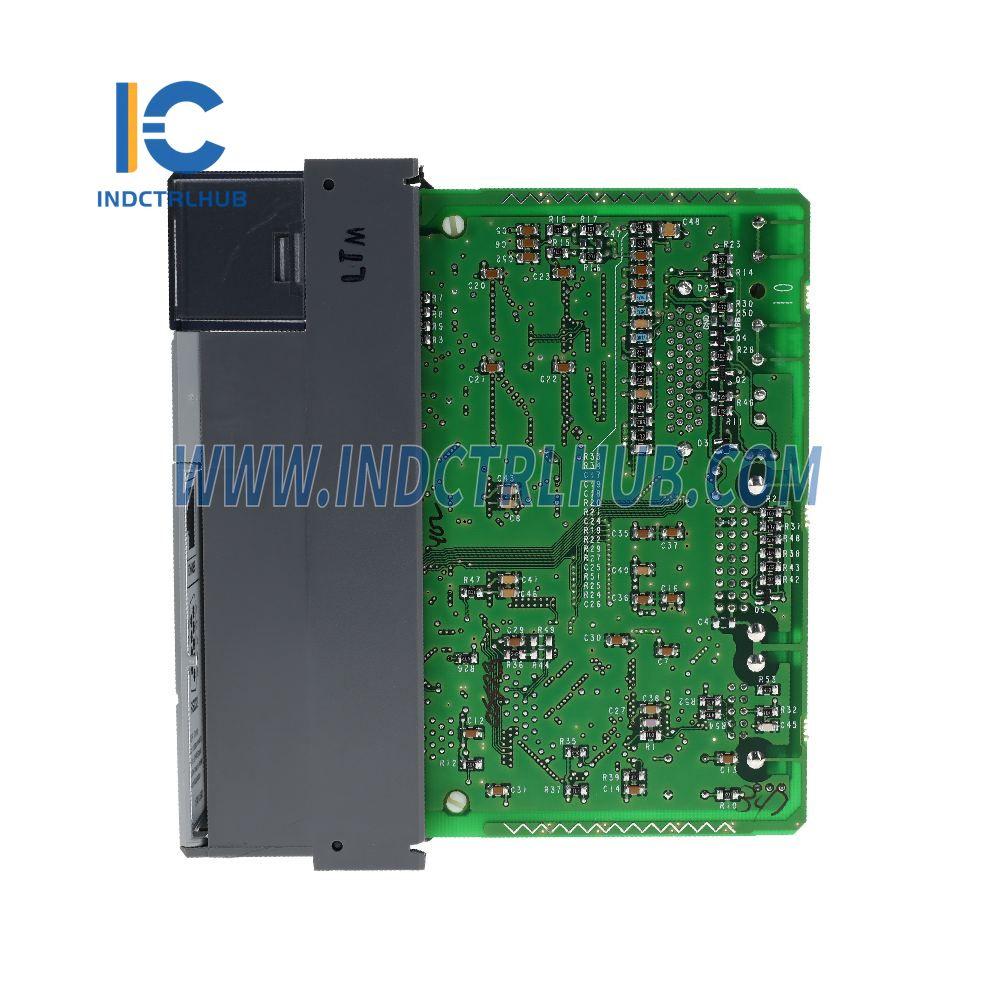

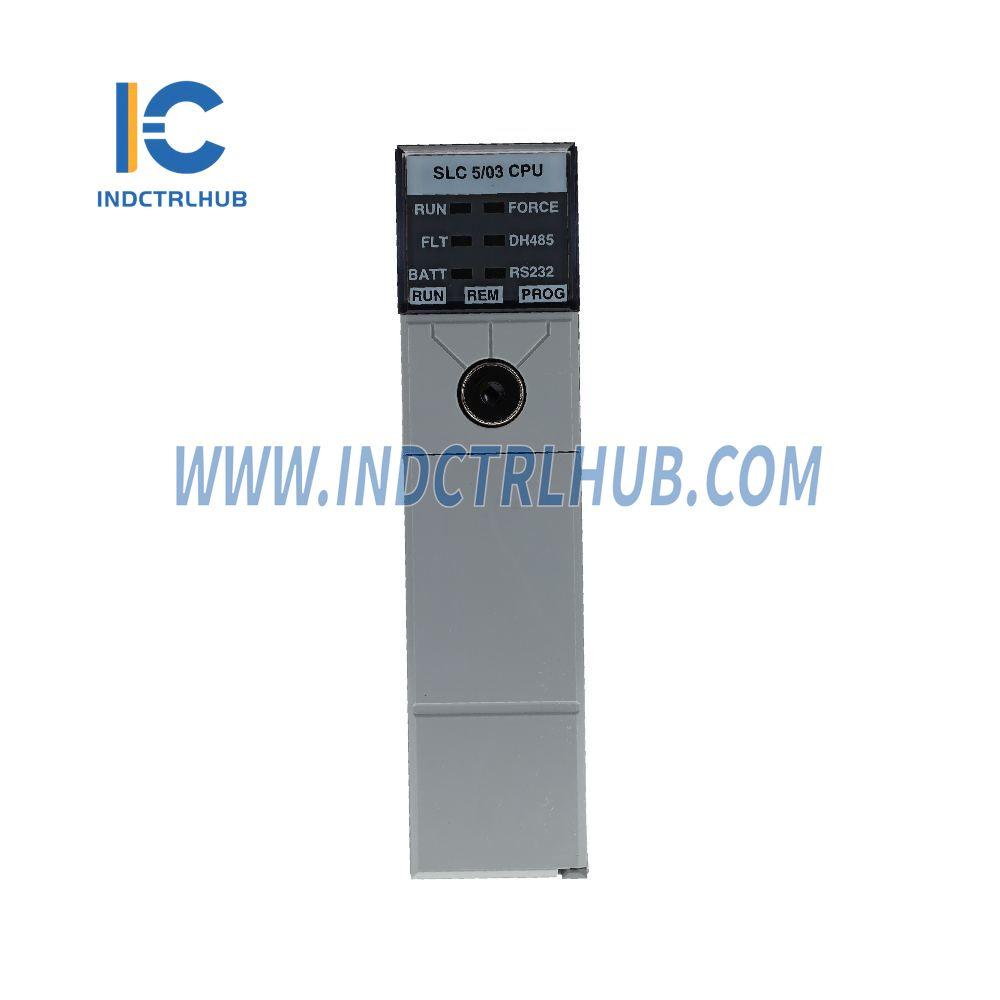

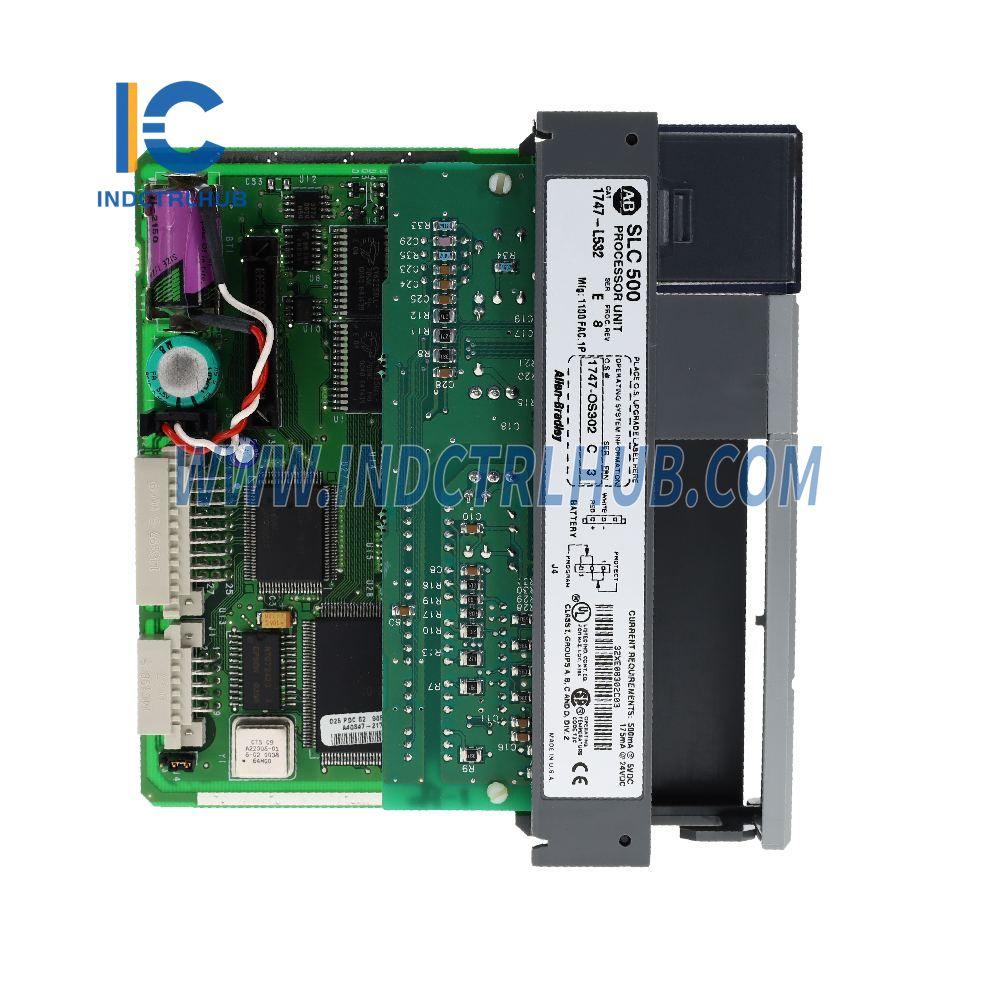

Allen-Bradley SLC 500 1747-L532 SLC 5/03 16K Modular Processor

Allen-Bradley SLC 500 1747-L532 SLC 5/03 16K Modular Processor

  • Manufacturer: Allen-Bradley

  • Product No.: 1747-L532

  • Condition:1000 in stock

  • Product Type: Modular Processor

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 30g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: SLC 500 1747-L532
  • Description: SLC 5/03 16k Modular Processor

Specifications

Attribute Value
Memory 16K words
I/O Capacity 4096 discrete inputs / 4096 discrete outputs
Local System Max 3 chassis / 30 slots
Programming Instructions 107
Typical Scan Time 1 ms/K
Bit Execution (XIC) 0.44 µs
Programming Software SLC 5/03s and SLC 5/04s: RSLogix 500, SLC 5/05s: RSLogix 500

Power Supply Loading

Voltage Value
5V DC 500 mA (SLC 5/03)
1.0 A (SLC 5/04 and 5/05)
24V DC 175 mA (SLC 5/03)
0 mA (SLC 5/04 and 5/05)

Program Scan Hold-Up Time

  • 20 ms to 3 s (dependent on power supply loading)

Environmental Ratings

Attribute Value
Noise Immunity NEMA Standard ICS 2-230
Vibration - Displacement: 0.015 in., peak-to-peak at 5-57 Hz
- Acceleration: 2.5 g at 57-2000 Hz
Shock (Operating) 30 g
Temperature Ratings - Operating: 0 to 60 °C (32 to 140 °F)
- Storage: -40 to 85 °C (-40 to 185 °F)
Humidity 5 to 95% without condensation

Certifications

  • UL Listed (Industrial Control Equipment)
  • C-UL Listed for use in Canada
  • UL Listed for Class I, Division 2, Hazardous Locations (Groups A, B, C, D)
  • CE Compliant
  • C-Tick Marked
View full details

Product Description

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: SLC 500 1747-L532
  • Description: SLC 5/03 16k Modular Processor

Specifications

Attribute Value
Memory 16K words
I/O Capacity 4096 discrete inputs / 4096 discrete outputs
Local System Max 3 chassis / 30 slots
Programming Instructions 107
Typical Scan Time 1 ms/K
Bit Execution (XIC) 0.44 µs
Programming Software SLC 5/03s and SLC 5/04s: RSLogix 500, SLC 5/05s: RSLogix 500

Power Supply Loading

Voltage Value
5V DC 500 mA (SLC 5/03)
1.0 A (SLC 5/04 and 5/05)
24V DC 175 mA (SLC 5/03)
0 mA (SLC 5/04 and 5/05)

Program Scan Hold-Up Time

  • 20 ms to 3 s (dependent on power supply loading)

Environmental Ratings

Attribute Value
Noise Immunity NEMA Standard ICS 2-230
Vibration - Displacement: 0.015 in., peak-to-peak at 5-57 Hz
- Acceleration: 2.5 g at 57-2000 Hz
Shock (Operating) 30 g
Temperature Ratings - Operating: 0 to 60 °C (32 to 140 °F)
- Storage: -40 to 85 °C (-40 to 185 °F)
Humidity 5 to 95% without condensation

Certifications

  • UL Listed (Industrial Control Equipment)
  • C-UL Listed for use in Canada
  • UL Listed for Class I, Division 2, Hazardous Locations (Groups A, B, C, D)
  • CE Compliant
  • C-Tick Marked
