Product Description
Product Details
Manufacturer: Allen-Bradley

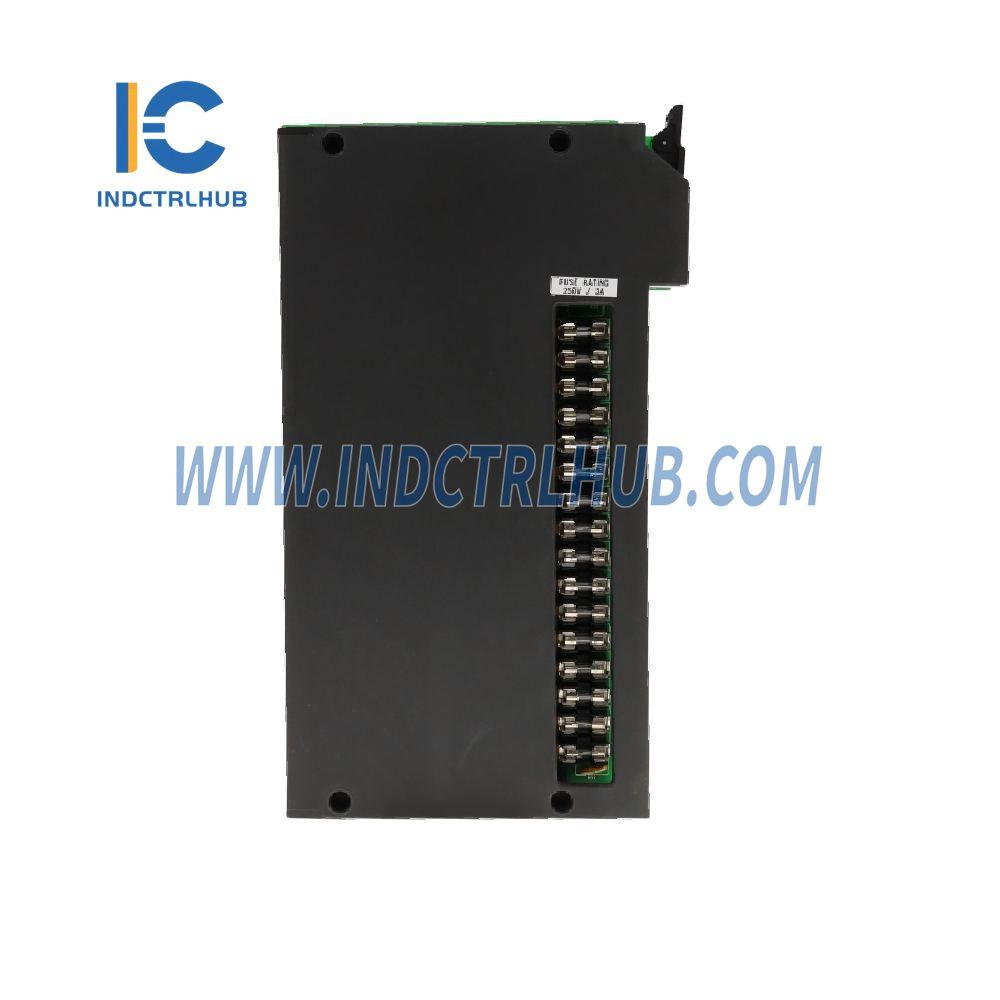

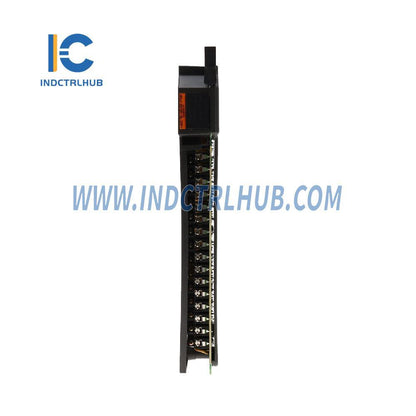

Model/Part Number: PLC5 1771-ODD
Description: Isolated AC Output Module
Specifications
| Attribute | Details |
|---|---|
| Outputs per Module | 16 (8 outputs per group, 2 groups) |
| Module Location | 1771-A1B thru -A4B or later I/O Chassis, 1771-AM1, -AM2 I/O Chassis |
| Voltage Rating | 85 to 138V AC, 47-63Hz |
| Current Rating (per channel) | 10mA to 2A continuous (max); 20A surge for 100ms, repeatable every 2 seconds |
| On-state Voltage Drop (each output) | 6.5V RMS (max) @ load current < 65mA; 1.5V RMS (max) @ load current > 65mA |
| On-state Load Current | 10mA minimum |
| Off-state Leakage Current | 3.0mA @ 138V AC; 1.5mA @ 120V AC |
| Signal Delay | Off to On: 8.8ms @ 60Hz (max), 10.6ms @ 50Hz (max) On to Off: 8.8ms @ 60Hz (max), 10.6ms @ 50Hz (max, zero cross switching) |
| Power Dissipation | 14.2 Watts (Max); 0.1 Watts (Min.) |
| Thermal Dissipation | 48.5 BTU/hr (Max); 0.4 BTU/hr (Min.) |
| Backplane Current | 420mA @ 5V DC ±5% |
| Isolation Voltage | Meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142 |
| Maximum Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (without condensation) |
| Wire Size | 14 gauge (2mm) stranded maximum |
| Insulation | 3/64 inch (1.2mm) maximum |
| Category | 1 |
| Fuses | 3A 2AG Slo-Blo fuses (1 per output), Littelfuse P/N 229003 Optional Fuse Kit |
| Field Wiring Arm | Catalog Number 1771-WN |
| Wiring Arm Screw Torque | 7–9 inch-pounds |
| Certifications | CSA Certified CSA Class I, Division 2 (Groups A, B, C, D) Certified UL Listed CE Marked (complies with applicable directives) |
| Installation Instructions | Refer to manual 1771-5.20 |
