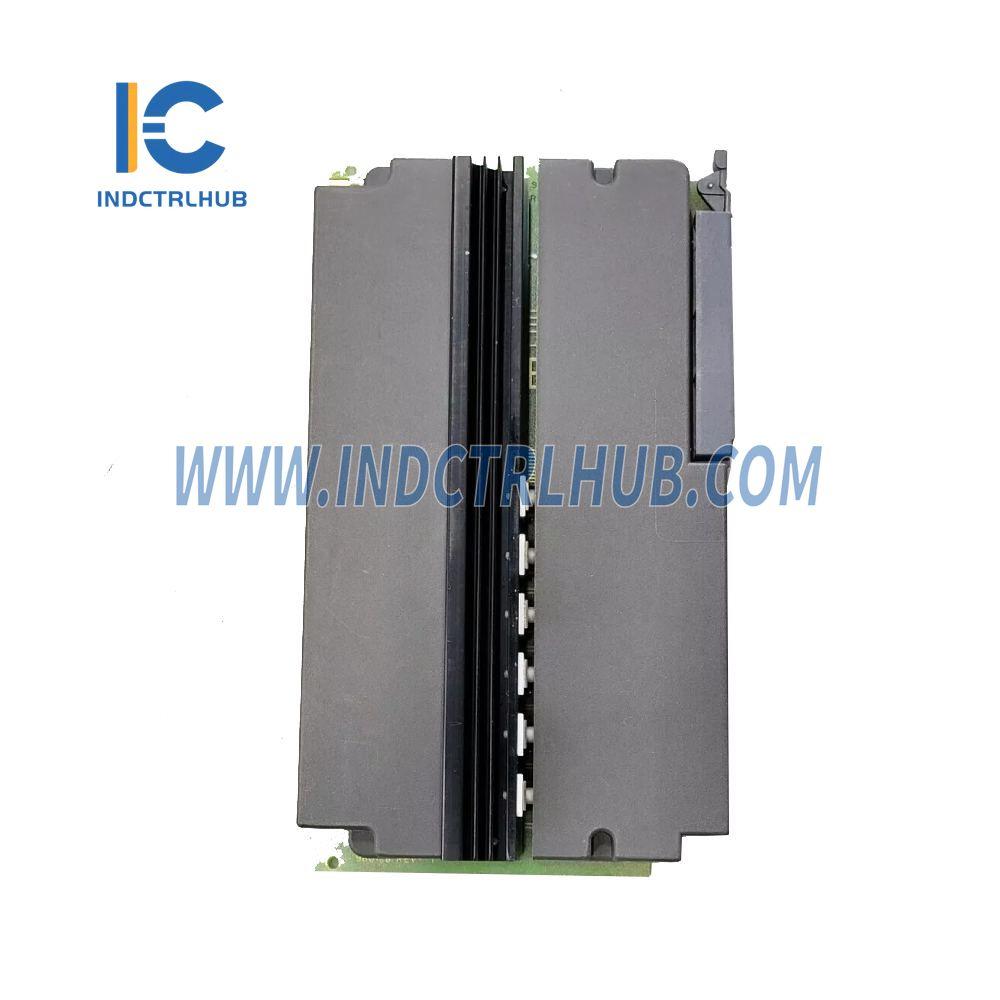

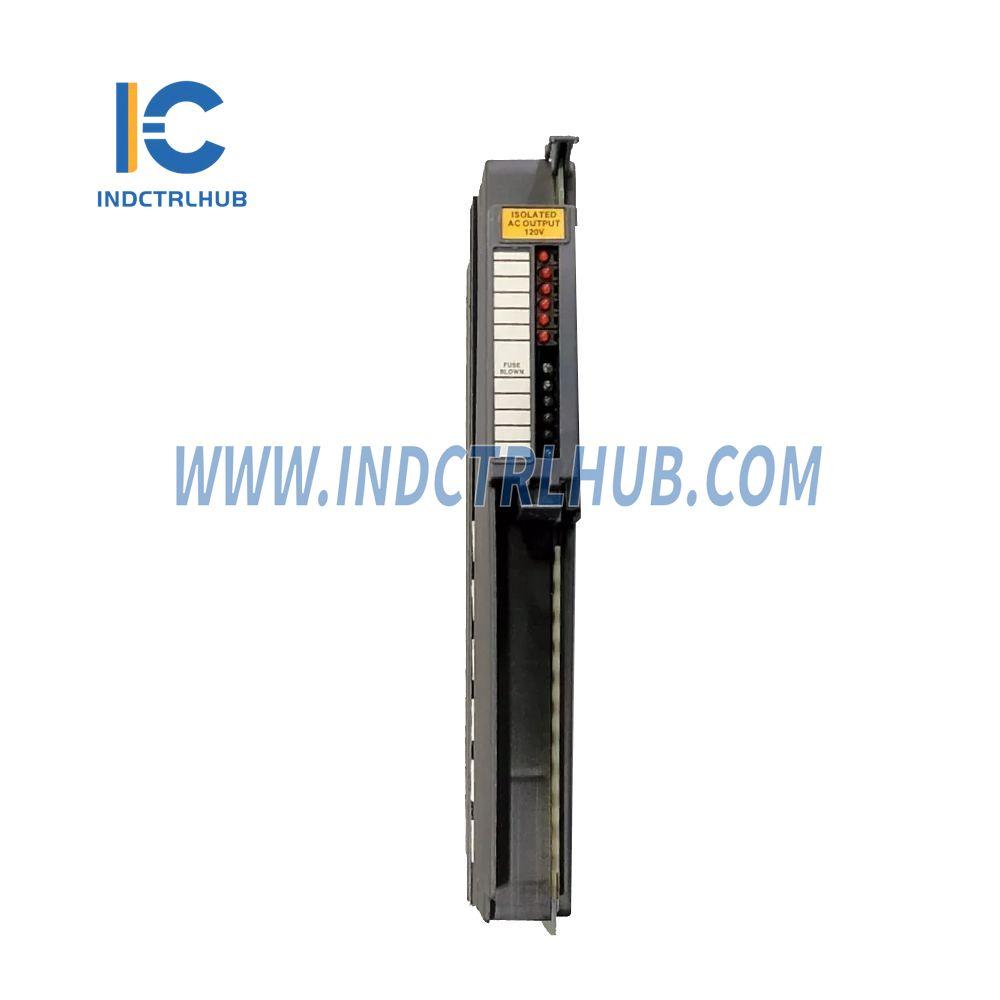

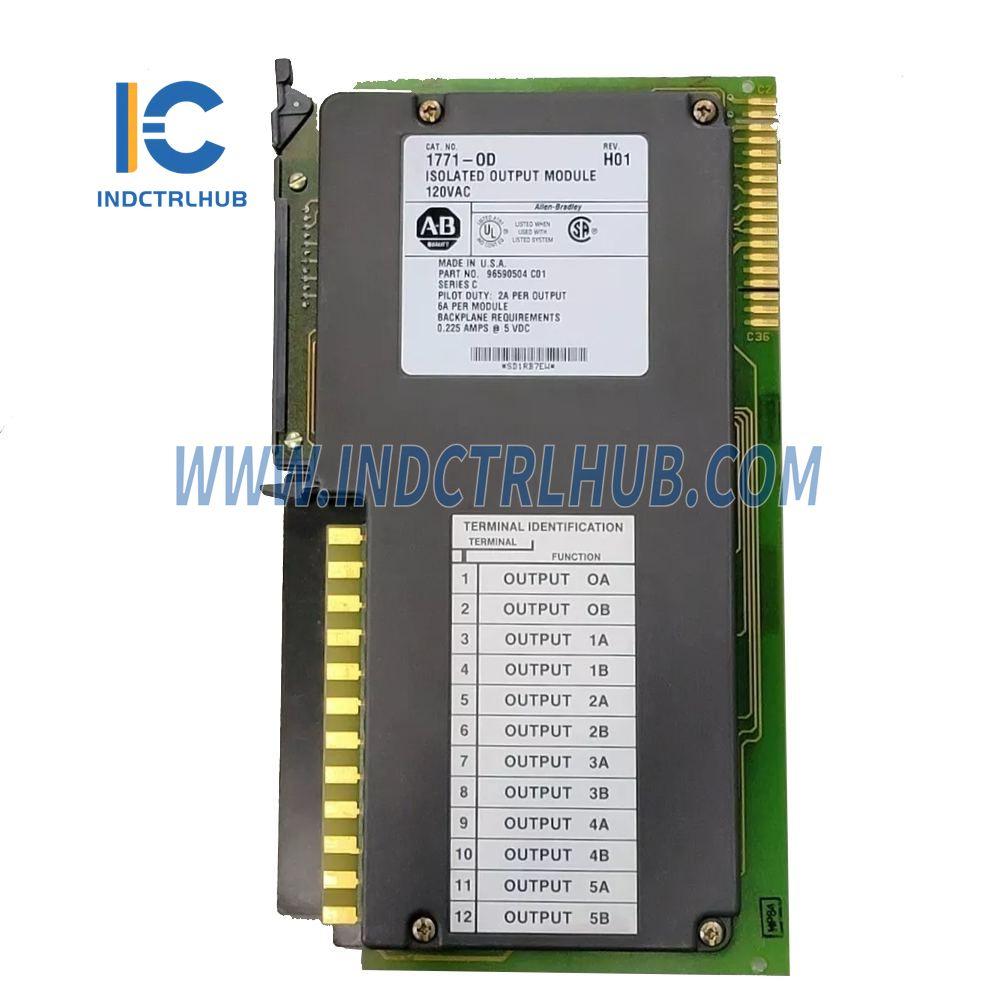

Allen-Bradley PLC5 1771-OD Series C Isolated Ac Output Module

Allen-Bradley PLC5 1771-OD Series C Isolated Ac Output Module

  • Manufacturer: Allen-Bradley

  • Product No.: 1771-OD

  • Condition:1000 in stock

  • Product Type: Isolated Ac Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer: Allen-Bradley
Model/Part Number: PLC5 1771-OD Series C
Description: Isolated AC Output Module

Specifications

Attribute Details
Outputs per Module 2A per output (not to exceed 6A per module)
Module Location 1771 I/O Chassis
Voltage Rating 92 to 138V AC @ 47-63Hz
Output Current Rating (per channel) 2A per output (not to exceed 6A per module)
Surge Current (Maximum) 20A maximum for 100ms, Repeatable every 5 seconds
Load Current (Minimum) 60mA per output
On-state Voltage Drop 2V AC (max) at 100mA
Off-state Leakage Current 5mA (max) per output at 138V AC
Signal Delay Off to On: 1.0ms
On to Off: 8.3ms @ 60Hz
Power Dissipation 13.2 Watts (Max.), 1.2 Watts (Min.)
Thermal Dissipation 45.2 BTU/hr (Max.), 4.1 BTU/hr (Min.)
Backplane Current 225mA
Isolation Voltage Meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142
Maximum Cable Length 1000 ft (304.8 m)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Wire Size 14-gauge (2mm²) stranded (Max)
Insulation 3/64 inch (1.2mm) maximum
Category 1
Keying Between 4 and 6
Fuse 5A, 250V 3AG normal blow fuses (1 per output)
Buss AGC-5, Littelfuse 312005
Field Wiring Arm Catalog Number 1771-WD
Wiring Arm Screw Torque 7–9 inch-pounds
Certifications CSA Certified
CSA Class I, Division 2 (Groups A, B, C, D) Certified
UL Listed
CE Marked (complies with applicable directives)
Installation Instructions Refer to manual 1771-2.12
View full details

Product Description

Product Details

Manufacturer: Allen-Bradley
Model/Part Number: PLC5 1771-OD Series C
Description: Isolated AC Output Module

Specifications

Attribute Details
Outputs per Module 2A per output (not to exceed 6A per module)
Module Location 1771 I/O Chassis
Voltage Rating 92 to 138V AC @ 47-63Hz
Output Current Rating (per channel) 2A per output (not to exceed 6A per module)
Surge Current (Maximum) 20A maximum for 100ms, Repeatable every 5 seconds
Load Current (Minimum) 60mA per output
On-state Voltage Drop 2V AC (max) at 100mA
Off-state Leakage Current 5mA (max) per output at 138V AC
Signal Delay Off to On: 1.0ms
On to Off: 8.3ms @ 60Hz
Power Dissipation 13.2 Watts (Max.), 1.2 Watts (Min.)
Thermal Dissipation 45.2 BTU/hr (Max.), 4.1 BTU/hr (Min.)
Backplane Current 225mA
Isolation Voltage Meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142
Maximum Cable Length 1000 ft (304.8 m)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Wire Size 14-gauge (2mm²) stranded (Max)
Insulation 3/64 inch (1.2mm) maximum
Category 1
Keying Between 4 and 6
Fuse 5A, 250V 3AG normal blow fuses (1 per output)
Buss AGC-5, Littelfuse 312005
Field Wiring Arm Catalog Number 1771-WD
Wiring Arm Screw Torque 7–9 inch-pounds
Certifications CSA Certified
CSA Class I, Division 2 (Groups A, B, C, D) Certified
UL Listed
CE Marked (complies with applicable directives)
Installation Instructions Refer to manual 1771-2.12
