Product Description
Product Details

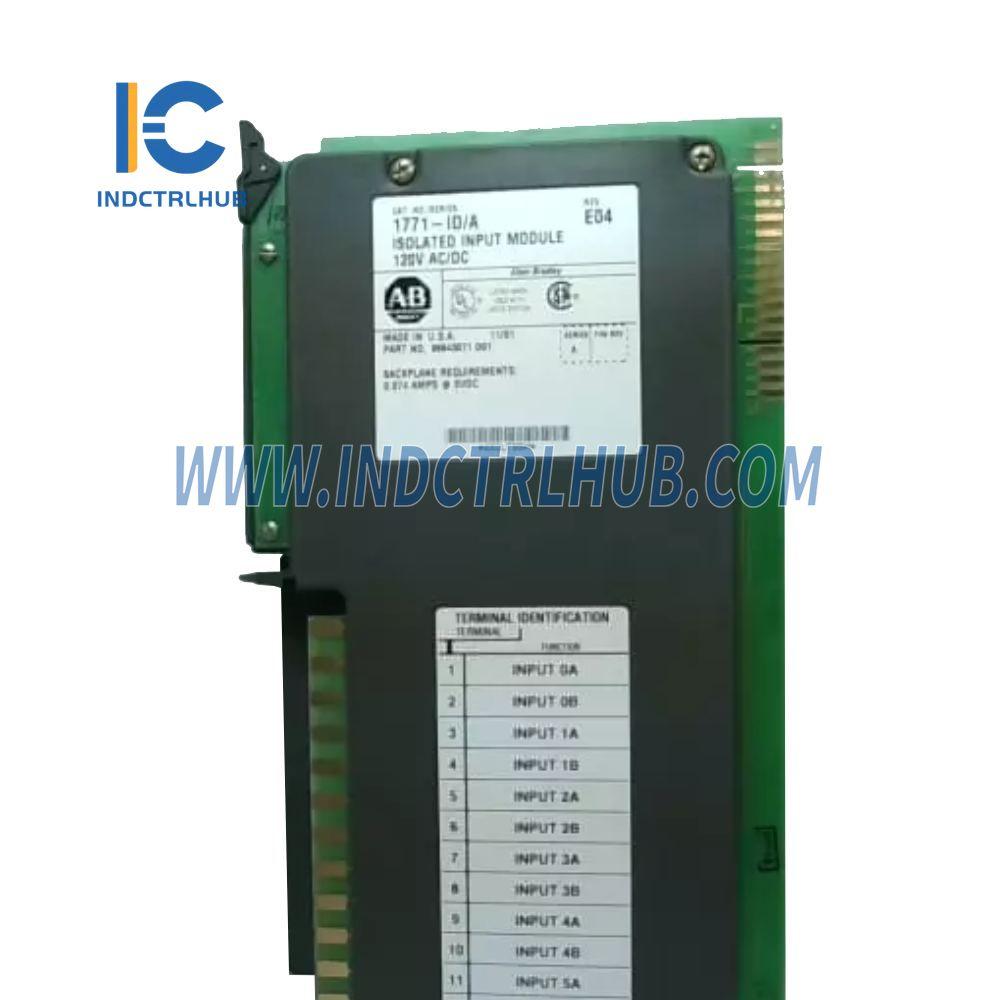

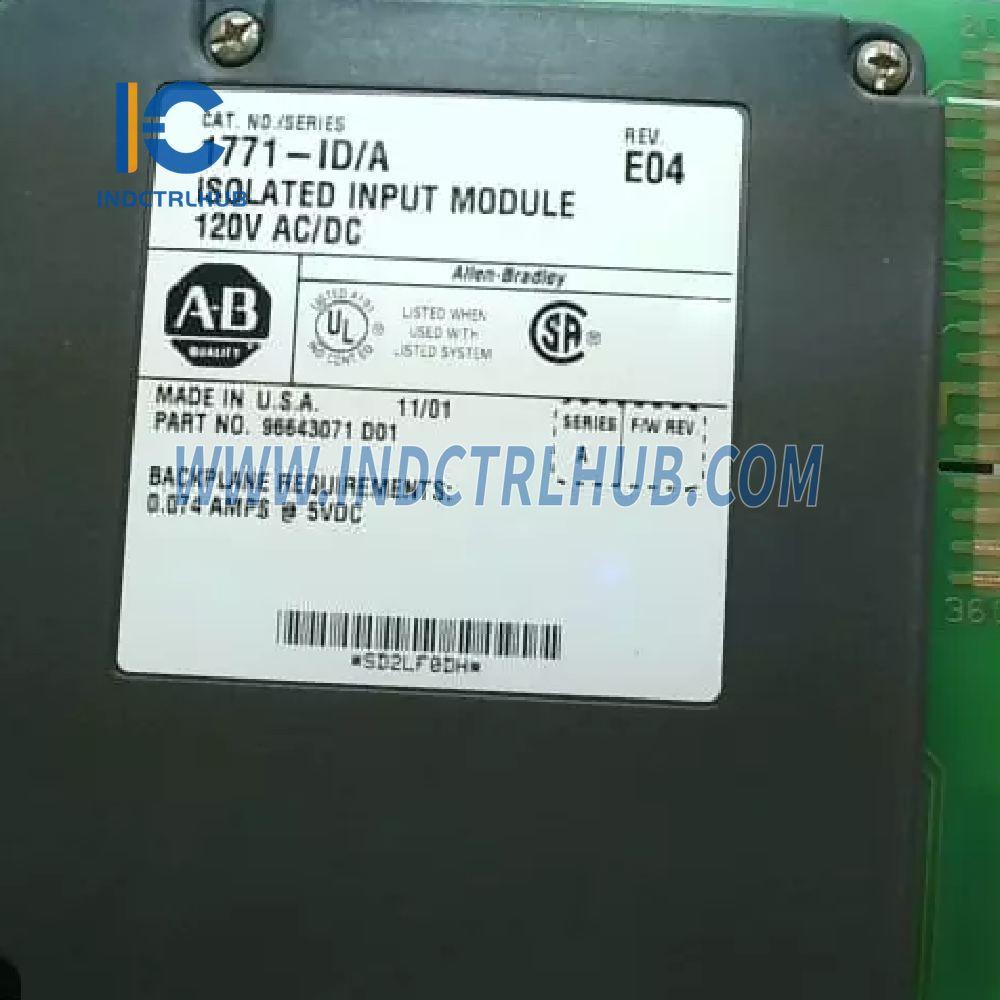

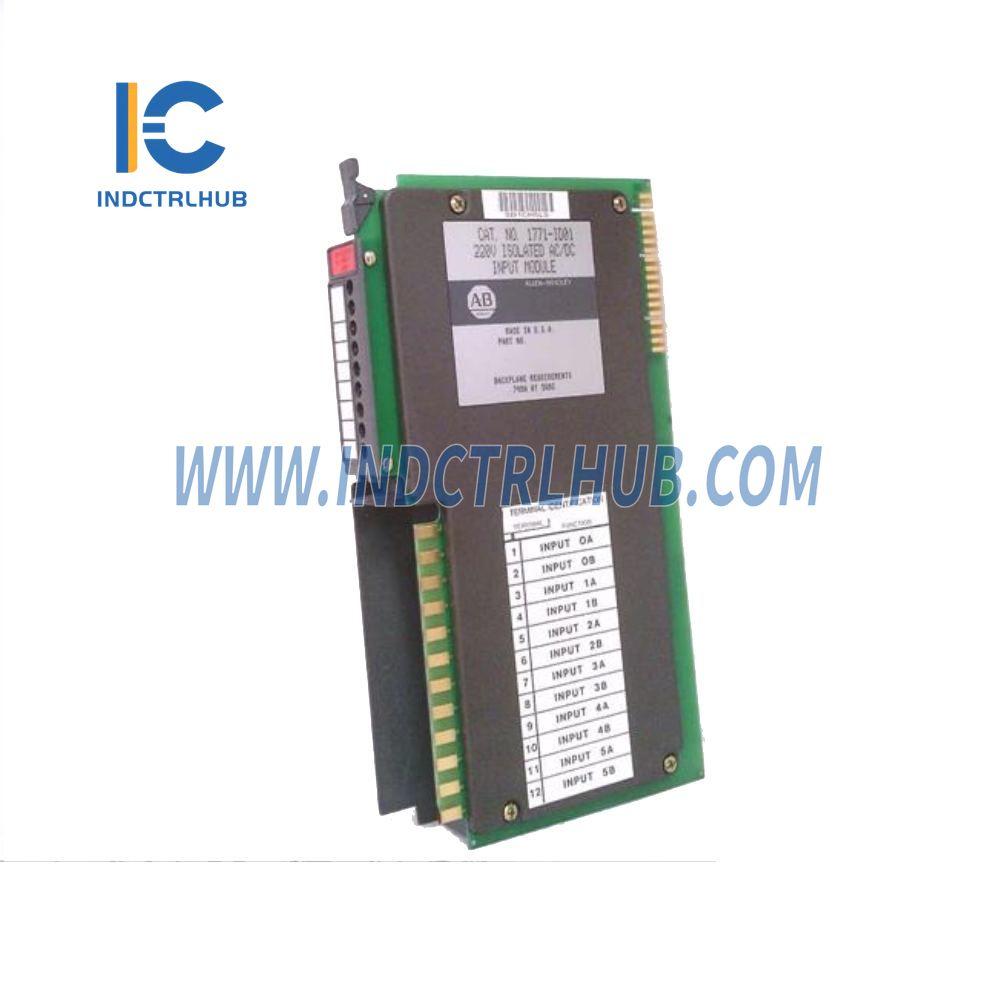

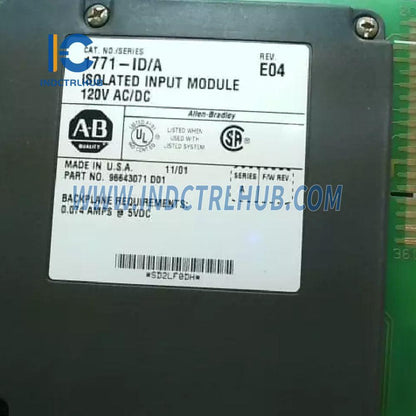

Manufacturer: Allen-Bradley
Model/Part Number: PLC5 1771-ID01
Description: Isolated AC/Dc input Module
Specifications
| Field | Information |
|---|---|
| Inputs per Module | 6 |
| Module Location | 1771 I/O chassis |
| Nominal Input Voltage | 220/240V AC @ 47-63Hz, 240V DC |
| Nominal Input Current | 3.0mA @ 220V AC 50Hz, 3.5mA @ 220V AC 60Hz, 3.0mA @ 220V DC |
| Input Voltage Range | 184V AC to 276V AC, 184V DC to 276V DC |
| Input Signal Delay | 20+10ms for AC, 10+4ms for DC |
| Off to On Delay | 20+10ms for AC, 20+9ms for DC |
| On-state Current (Minimum) | 1.8mA |
| On-state Voltage (Minimum) | 184V AC |
| Off-state Current (Maximum) | AC: 0.7mA, DC: 1.0mA |
| Off-state Voltage (Maximum) | 102.09V AC, 144.4V DC |
| Input Impedance | Refer to simplified schematic |
| Power Dissipation | 2.4 Watts (max.), 0.4 Watts (min.) |
| Thermal Dissipation | 8.2 BTU/hr (max.), 1.4 BTU/hr (min.) |
| Backplane Current | 74mA |
| Isolation Voltage | Meets or exceeds UL Standard 508 and CSA Standard C22.2 No. 142 |
| Operational Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% without condensation |
| Wire Size | 14 gauge (2mm) stranded (max), 3/64 inch (1.2mm) insulation (max) |
| Category | Keying, Field Wiring Arm |
| Wiring Arm Screw Torque | 7-9 inch-pounds |
| Agency Certification | CSA certified, CSA Class I, Division 2, Groups A, B, C, D certified |
| UL Listing | UL listed |
| CE Mark | CE marked for all applicable directives |
| Installation Instructions | 1771-2.102 |
