Product Description
Product Details
Manufacturer: Allen-Bradley

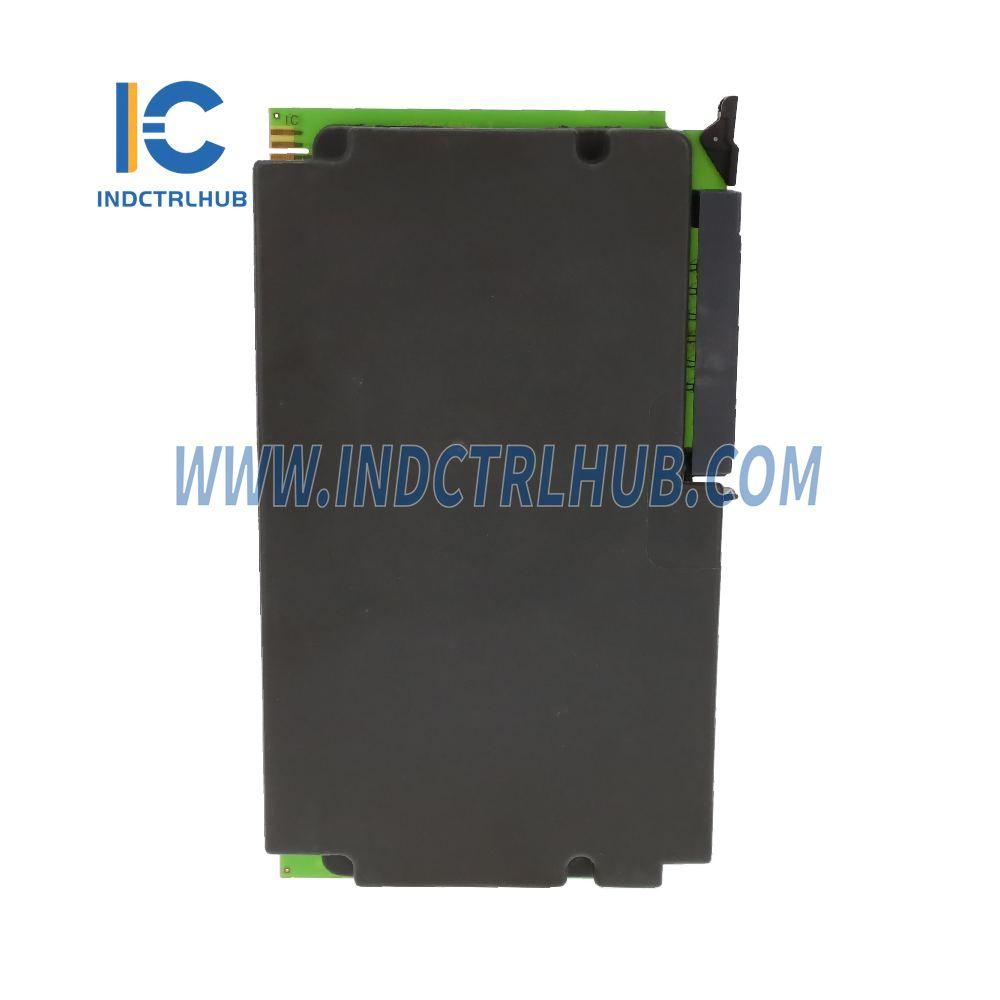

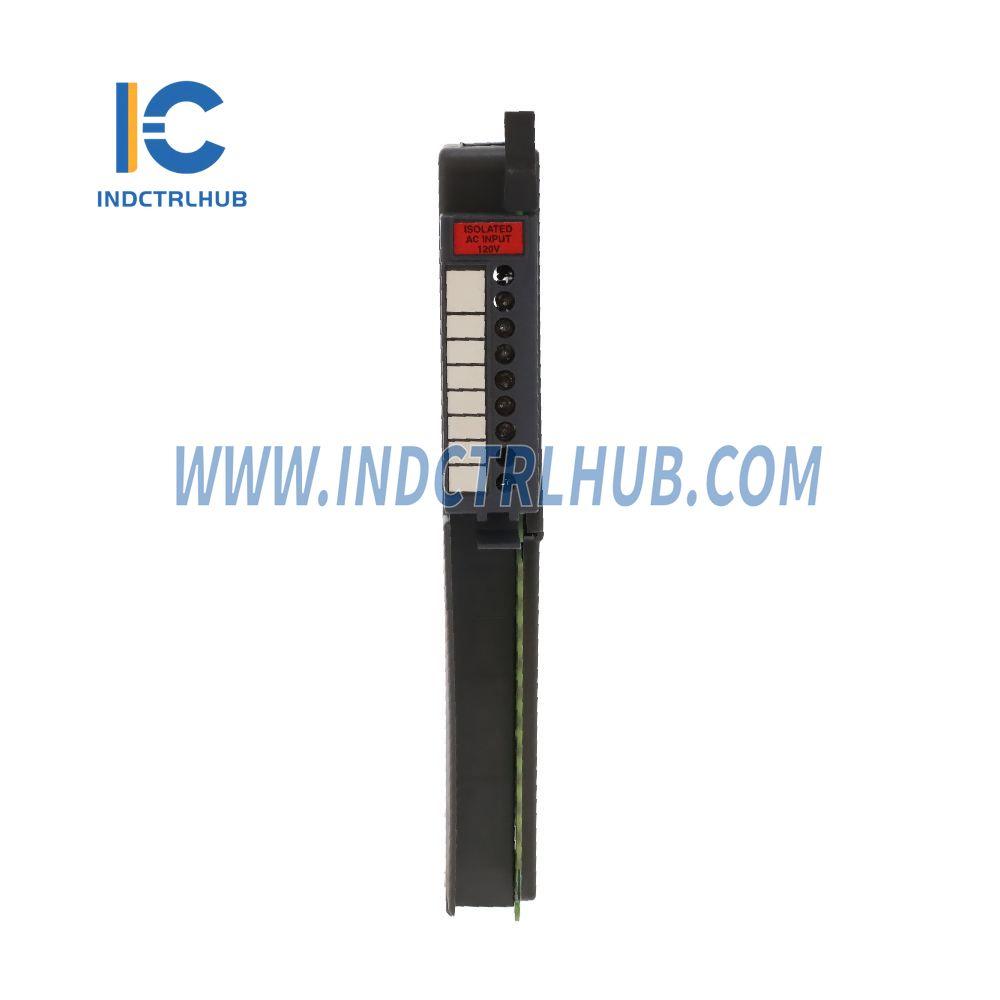

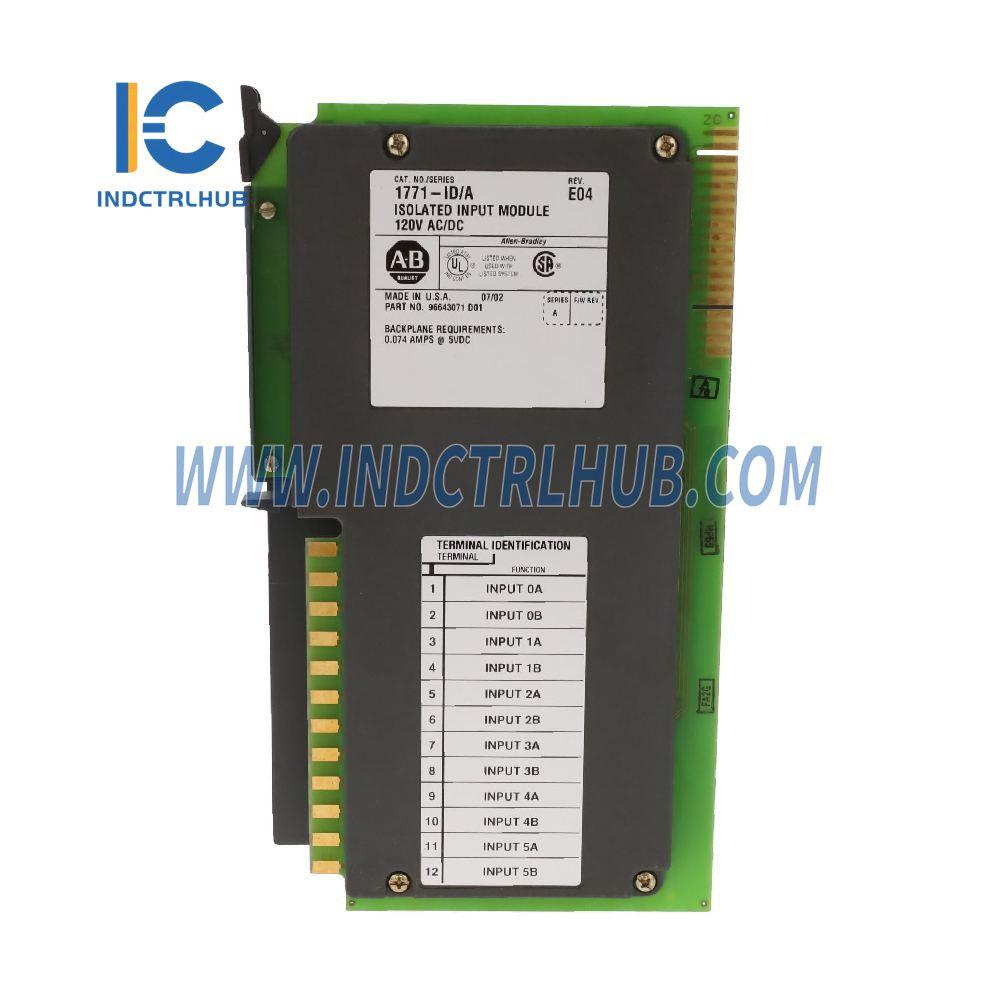

Model/Part Number: PLC5 1771-ID
Description: Isolated AC/Dc input Module
Specifications
| Field | Information |
|---|---|
| Inputs per Module | 1771 I/O chassis |
| Module Location | 92-138V AC/DC, 47-63Hz |
| On-state Voltage Range | 92-138V AC/DC, 47-63Hz |
| Nominal Input Current | 6.91mA @ 120V AC, 50Hz, 8.0mA @ 120V AC, 60Hz, 8.0mA @ 120V DC |
| Input Signal Delay | 24+10ms for AC, 10+4ms for DC |
| Off to On Delay | 24+10ms for AC, 20+9ms for DC |
| On-state Current (Minimum) | 5.0mA |
| Off-state Current (Maximum) | 1.7mA |
| Off-state Voltage (Maximum) | 45V AC |
| Input Impedance | Refer to simplified schematic |
| Power Dissipation | 4.4 Watts (max.), 0.4 Watts (min.) |
| Thermal Dissipation | 15.0 BTU/hr (max.), 1.3 BTU/hr (min.) |
| Backplane Current | 74mA |
| Isolation Voltage | Isolation meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142 |
| Operational Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% without condensation |
| Wire Size | 14 gauge (2mm) stranded (max), 3/64 inch (1.2mm) insulation (max) |
| Category | Keying, Field Wiring Arm |
| Wiring Arm Screw Torque | 7-9 inch-pounds |
| Agency Certification | CSA certified, CSA Class I, Division 2, Groups A, B, C, D certified |
| UL Listing | UL listed |
| CE Mark | CE marked for all applicable directives |
| Installation Instructions | 1771-2.19 |
