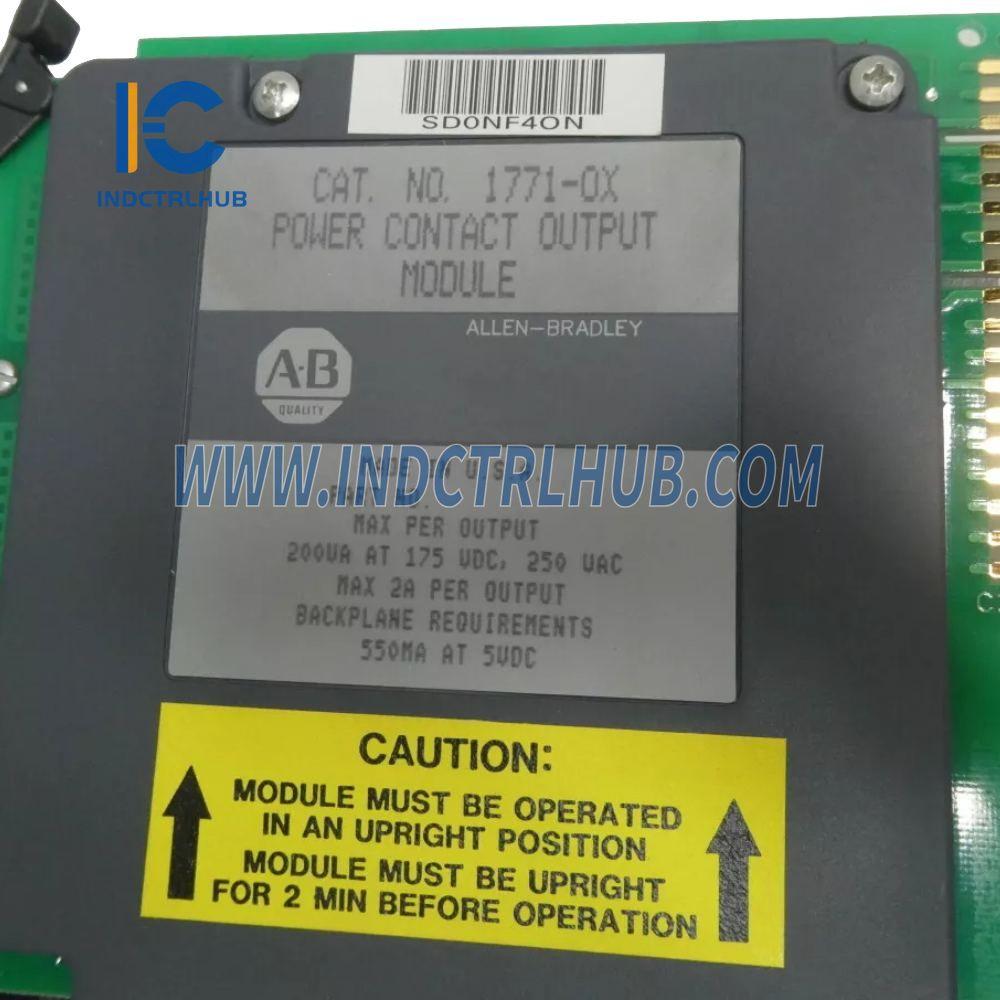

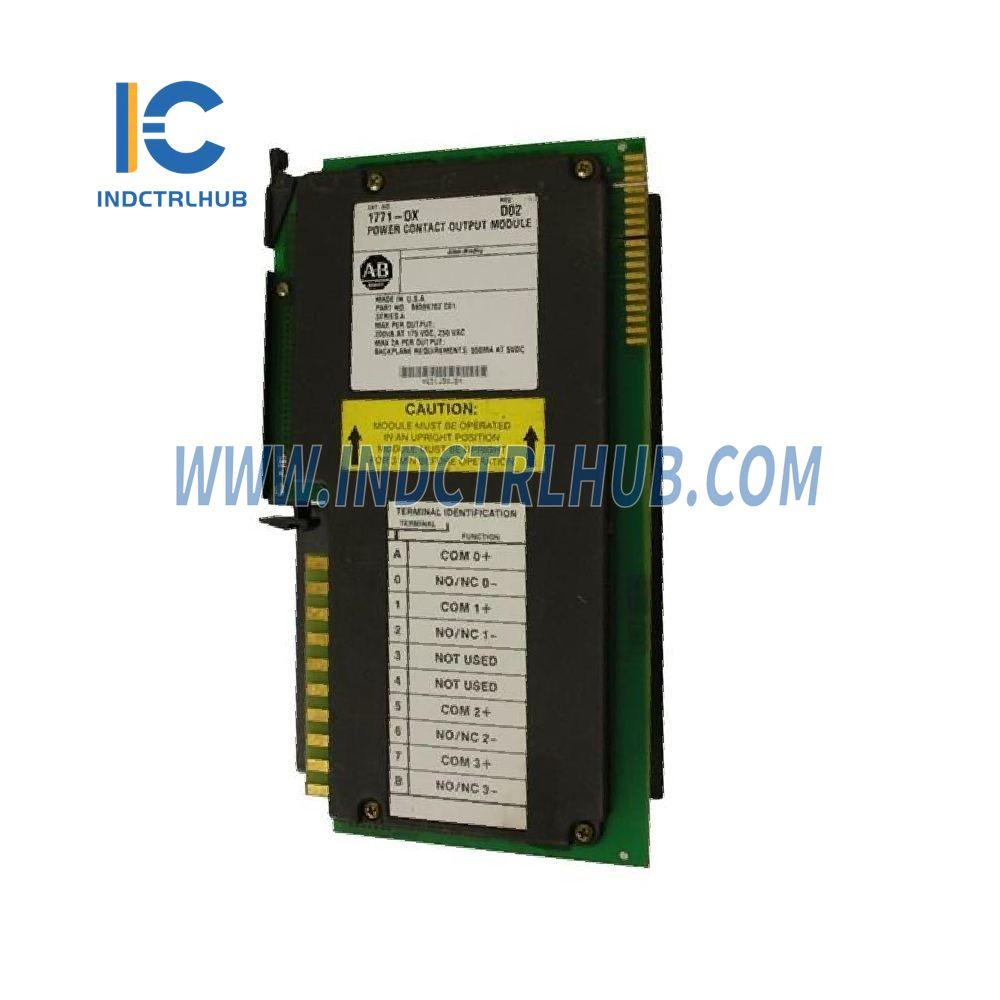

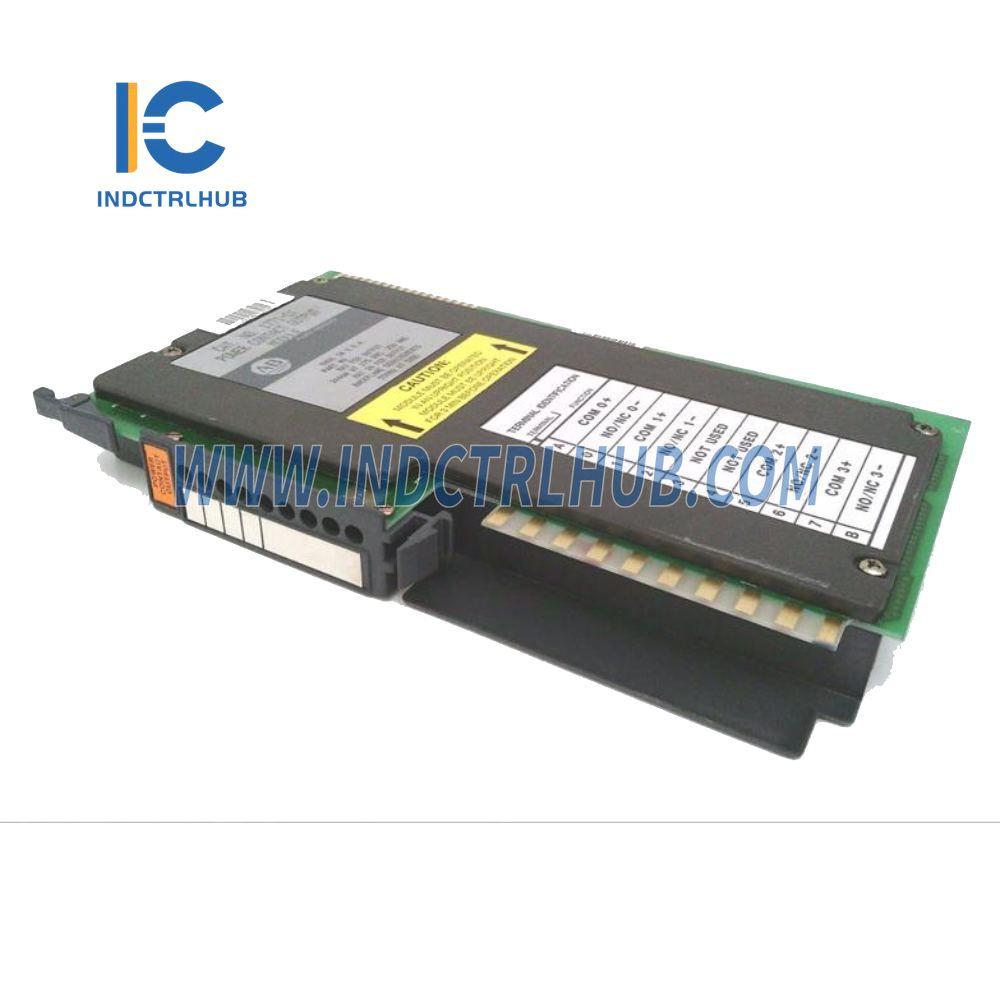

| Outputs per Module |
4 N.O./N.C. |
| Module Location |
1771 I/O chassis |
| Voltage Rating |
0-250V AC (rms); 0-175V DC |
| Current Rating |
2A (maximum) |
| Surge Current |
5.5A AC peak for 5 seconds; 6A DC for 5 seconds; 15A DC for 500ms |
| Power Rating |
200VA |
| On-State Contact Resistance |
0.25 ohms (maximum) |
| Operate/Release Time |
10ms (maximum) |
| Power Dissipation |
2.9 Watts (maximum); 2.6 Watts (minimum) |
| Thermal Dissipation |
9.9 BTU/hr (maximum); 8.9 BTU/hr (minimum) |
| Backplane Current |
550mA (maximum) |
| Isolation Voltage |
2500V AC (rms) |
| Conductors / Wire Size |
14 gauge (2mm²) stranded (maximum); 3/64 inch (1.2mm) insulation (maximum) |
| Environmental Conditions |
Operating Temperature: 0°C to 60°C (32°F to 140°F) |
|
Storage Temperature: -40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: 5% to 95% (without condensation) |
| Keying |
Between 6 and 8 |
| Fuse |
7A, 250V Type 3AG Slo Blow (1 per circuit) (Bussman MSL7.0; Littelfuse 313007) |
| Field Wiring Arm |
Catalog Number 1771-WC |
| Wiring Arm Screw Torque |
7-9 inch-pounds |
| Agency Certification |
CSA certified, CSA Class I, Division 2, Groups A, B, C, D certified, UL listed, CE marked for all applicable directives |
| Installation Data Number |
1771-2.43 |
