Manufacturer: Allen-Bradley
Model/Part Number: 1788-CNC

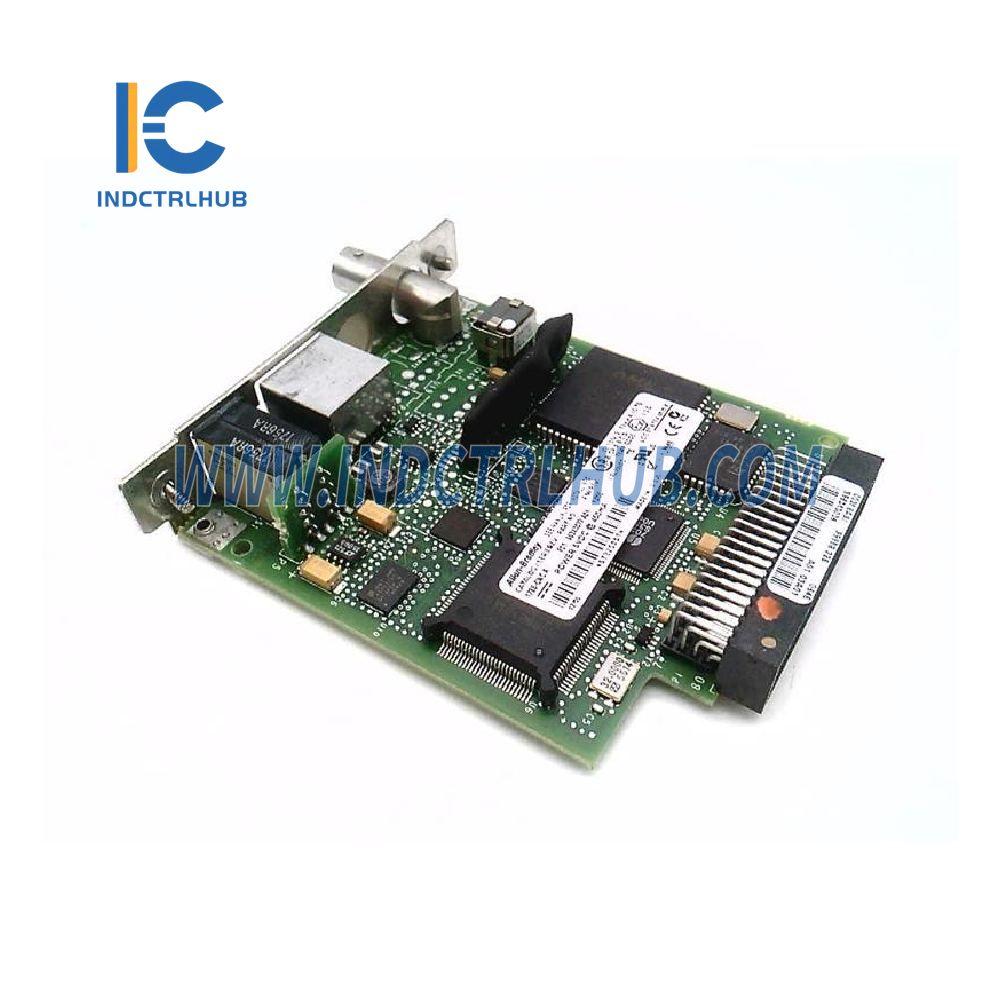

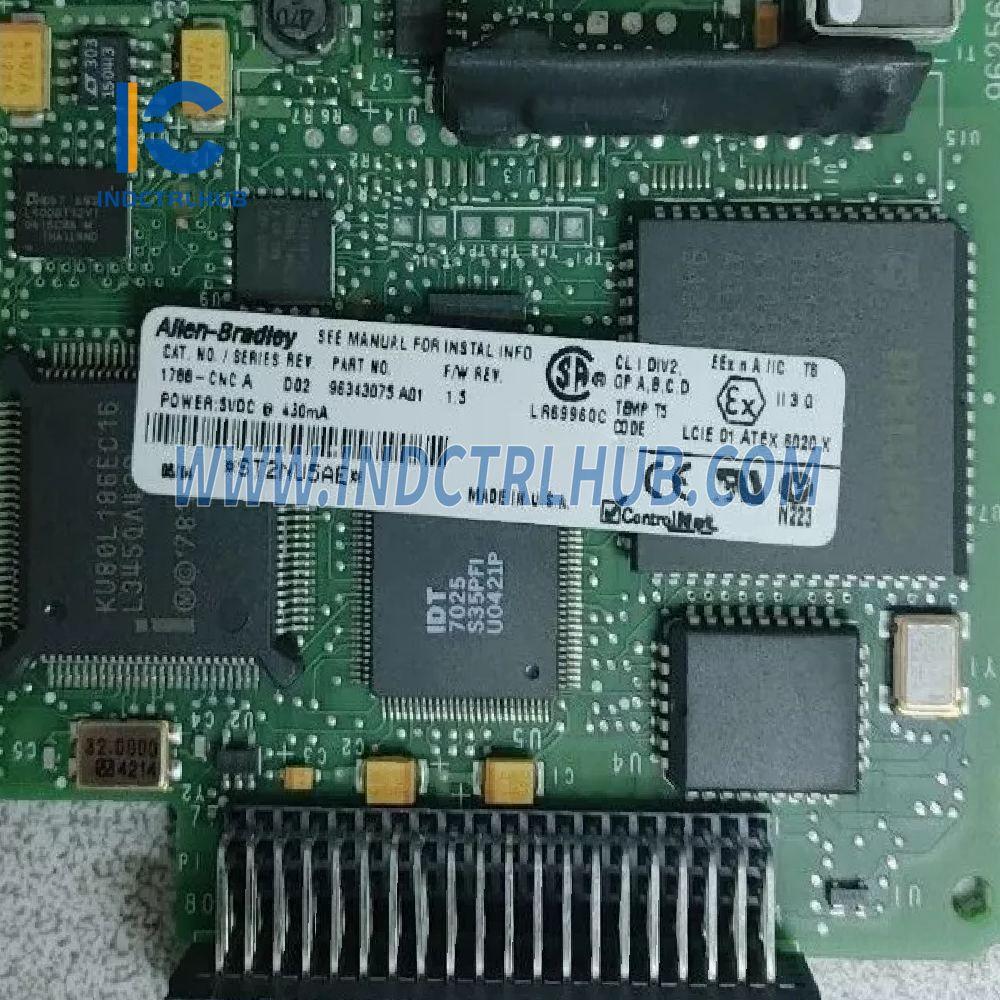

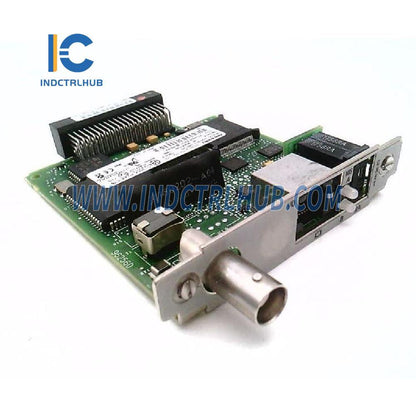

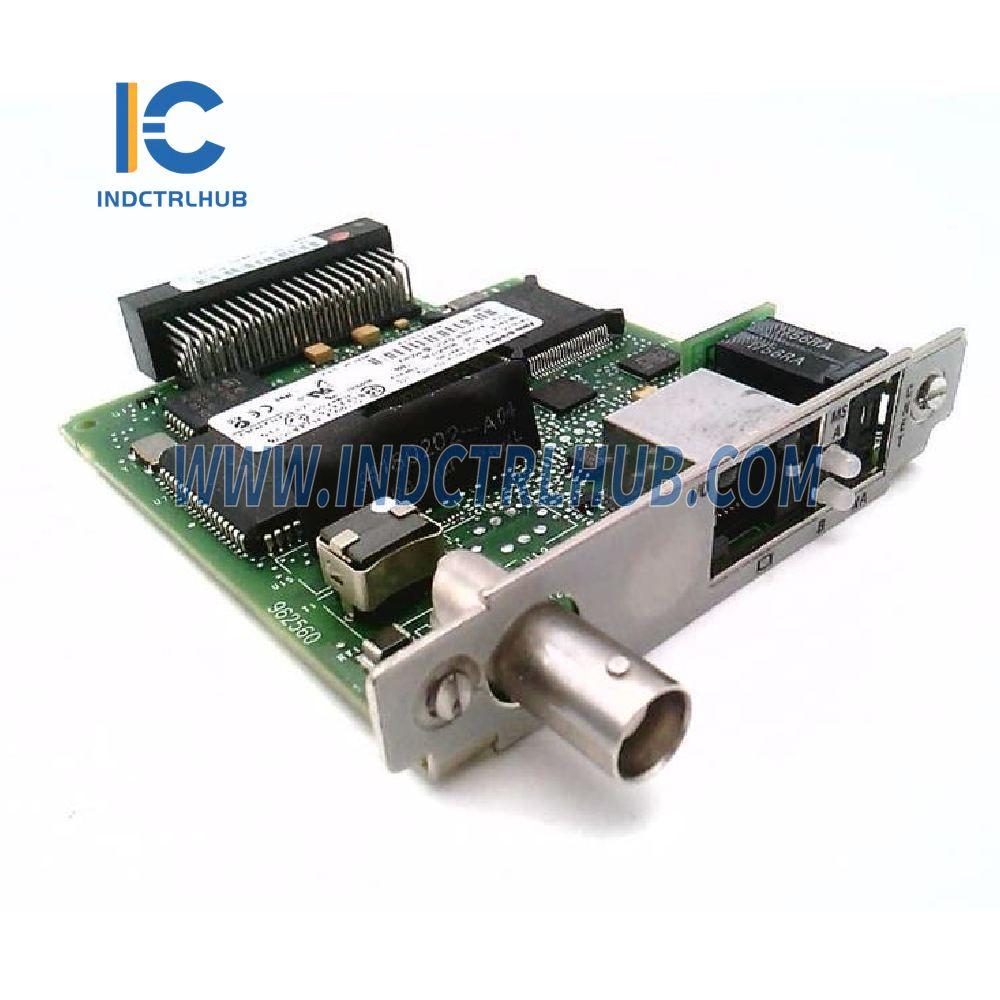

Description: FlexLogix ControlNet Daughtercard
Specifications
| Characteristic | Value |
|---|---|
| Operational Temperature |
IEC 60068-2-1 (Test Ad, Operating Cold), |
| Storage Temperature | IEC 60068-2-1 (Test Ab, Un-packaged Non-operating Cold), IEC 60068-2-2 (Test Bb, Un-packaged Non-operating Dry Heat), IEC 60068-2-14 (Test Na, Un-packaged Non-operating Thermal Shock): –40 to 85°C (–40 to 185°F). |
| Relative Humidity | IEC 60068-2-30 (Test Db, Un-packaged Non-operating Damp Heat): 5 to 95% non-condensing |
| Vibration | IEC 60068-2-6 (Test Fc, Operating): 5g @ 10-500Hz |
| Operating Shock | IEC 60068-2-27 (Test Ea, Unpackaged Shock): 30g |
| Non-Operating Shock | IEC 60068-2-27 (Test Ea, Unpackaged Shock): 50g |
| Emissions | CISPR 11: Group 1, Class A |
| ESD Immunity | IEC 61000-4-2: 6kV contact discharges 8kV air discharges |
| Radiated RF Immunity | IEC 61000-4-3: 10V/m with 1kHz sine-wave 80% AM from 30MHz to 1000MHz 10V/m with 200Hz 50% Pulse 100% AM at 900MHz |
| EFT/B Immunity | IEC 61000-4-4: ±4kV at 2.5kHz on communications ports |
| Surge Transient Immunity | IEC 61000-4-5: ±2kV line-earth (CM) on shielded ports |
| Conducted RF Immunity | IEC 61000-4-6: 10Vrms with 1kHz sine-wave 80% AM from 150kHz to 80MHz |
| Enclosure Type Rating | None (open-style) |
| Power Requirements | 1788-CNC: 5V DC @ 450 mA (maximum) |
| Power Consumption | 1788-CNC: 2.25 watts |
| Power Dissipation | 1788-CNC: 2.25 watts or 7.68 BTU/hour |
| Wiring Category | Category 2 - on communications ports |
| Weight | 0.1 kg (0.2 lb) |
Certifications
- c-UR-us: UL Recognized Component for Industrial Control Equipment, certified for US and Canada.
- c-UR-us: UL Recognized Component for Industrial Control Equipment for Class I, Division 2, Group A, B, C, D Hazardous Locations, certified for US and Canada.
- CSA: CSA Certified Process Control Equipment.
- CSA: CSA Certified Process Control Equipment for Class I, Division 2, Group A, B, C, D Hazardous Locations.
-
CE: Compliant with European Union 89/336/EEC EMC Directive, with conformance to:
- EN 50082-2 (Industrial Immunity)
- EN 61326 (Meas./Control/Lab., Industrial Requirements)
- EN 61000-6-2 (Industrial Immunity)
- EN 61000-6-4 (Industrial Emissions)
- C-Tick: Compliant with the Australian Radiocommunications Act, AS/NZS CISPR 11 (Industrial Emissions).
- EEx: Compliant with European Union 94/9/EC ATEX Directive, EN 50021 (Protection "n" for Zone 2 Explosive Atmospheres).
- CI: ControlNet International conformance tested to ControlNet specifications.
