Product Description
Product Overview

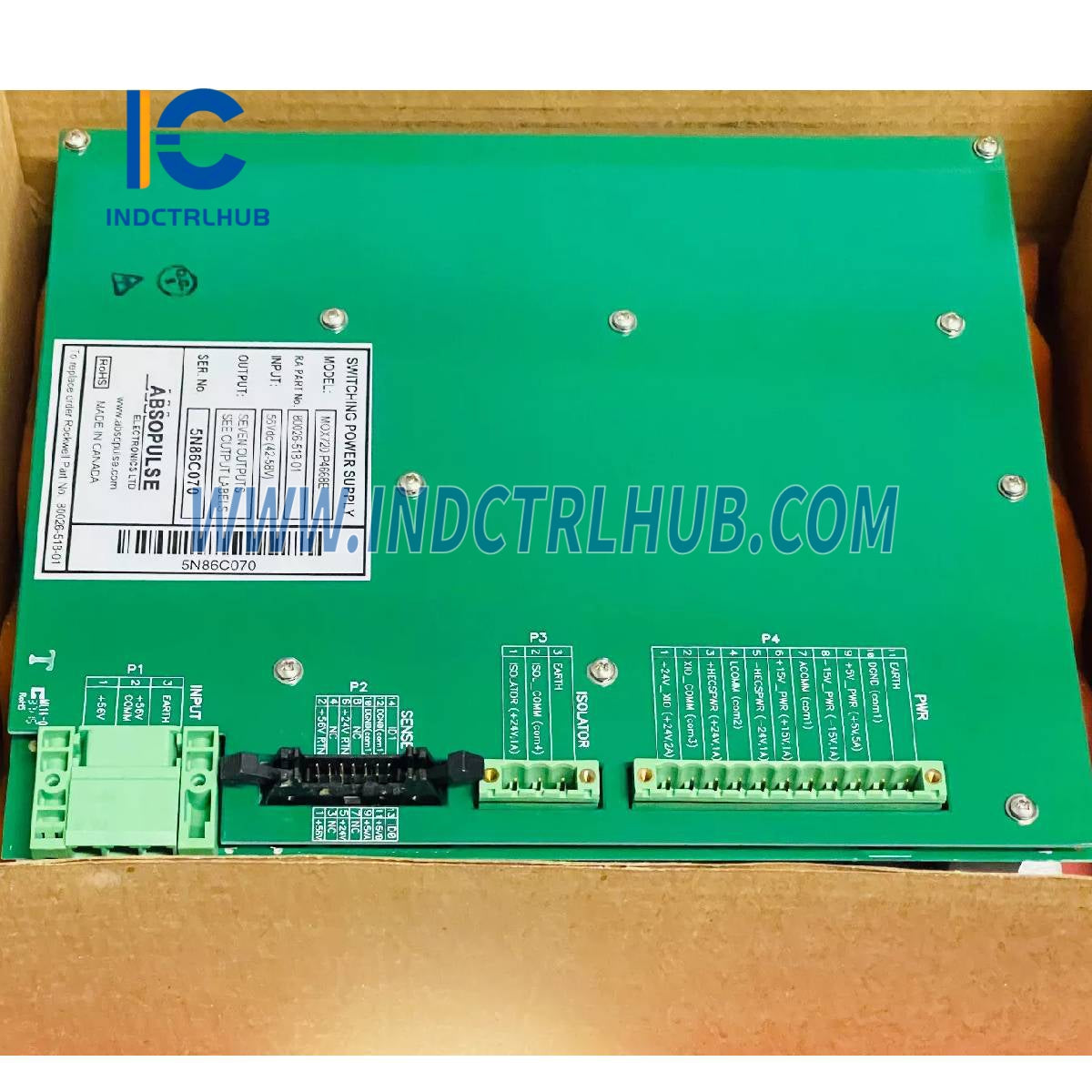

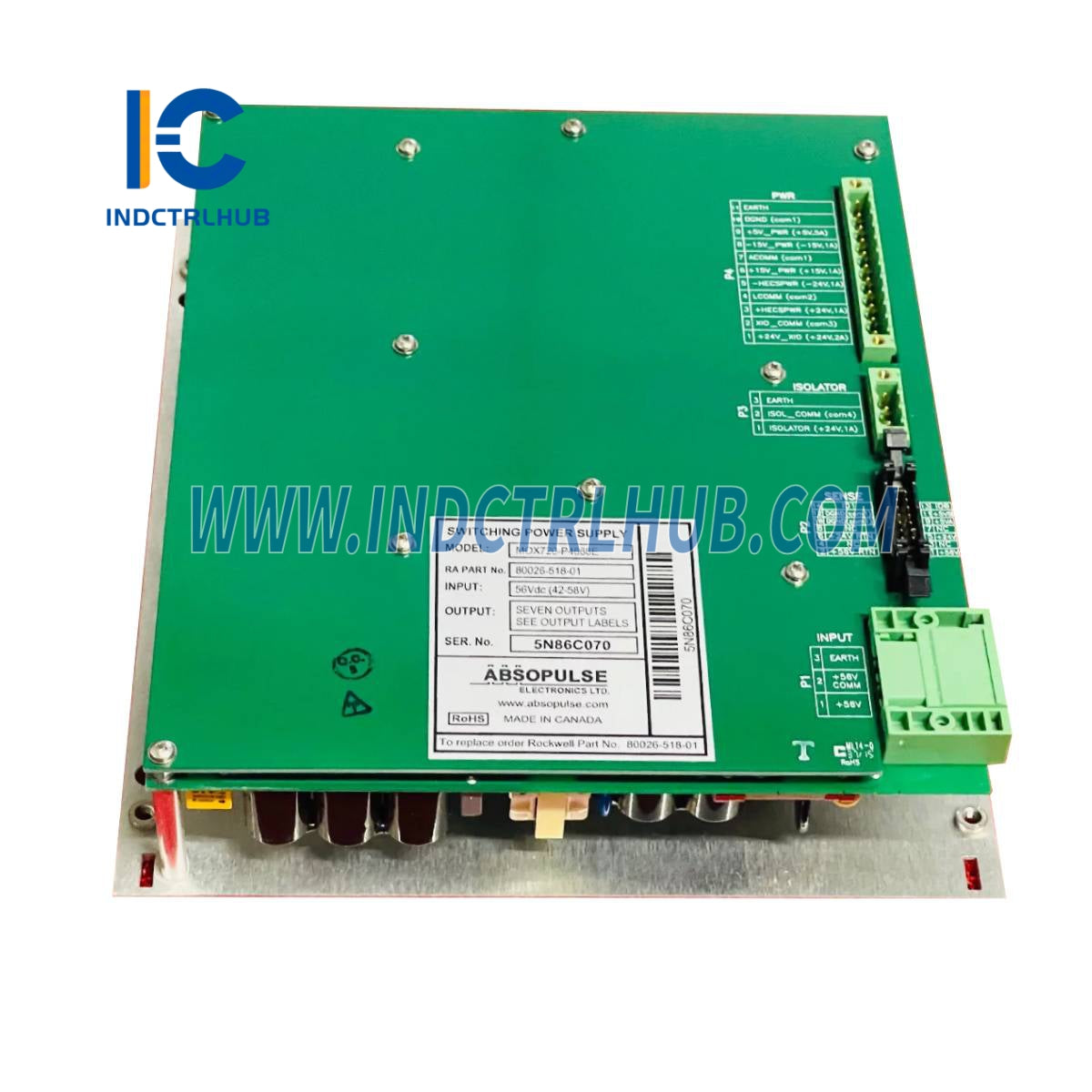

The Allen-Bradley 80026-518-01 is a DC Switching Power Supply designed for industrial automation applications, typically used with Rockwell Automation systems such as the PowerFlex 7000 medium voltage drives. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module converts a 56 V DC input into multiple regulated DC output voltages, providing reliable power for control system components. It is engineered for durability and efficiency in demanding industrial environments like manufacturing, process control, and machinery automation. The “80026-518-01” is the base model number, often seen with suffixes like “-R” (e.g., 80026-518-01-R) indicating specific revisions or features such as conformal coating.
Technical Specifications
The 80026-518-01 has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley power supplies:
| Item | Specification |
|---|---|
| Model/Part Number | 80026-518-01 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | DC Switching Power Supply |
| Series | PowerFlex 7000 Compatible |
| Input Voltage | 56 V DC |
| Output Voltage | 5 V DC, 15 V DC, 24 V DC (multi-output) |
| Output Current | 5 A (5 V), 2 A (15 V), 1 A (24 V) |
| Output Power | Approximately 65-75 W (calculated) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.9 kg (2 lbs) |
Additional Details
The 80026-518-01 includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Converts 56 V DC input to multiple regulated DC outputs for control systems |
| Mounting | DIN rail or panel mountable |
| Connectivity | Terminal blocks for input/output wiring |
| Features | High efficiency, multi-output design, overvoltage/overcurrent protection |
| Certifications | Designed for industrial standards (e.g., UL, CE |
