Product Description
Product Overview

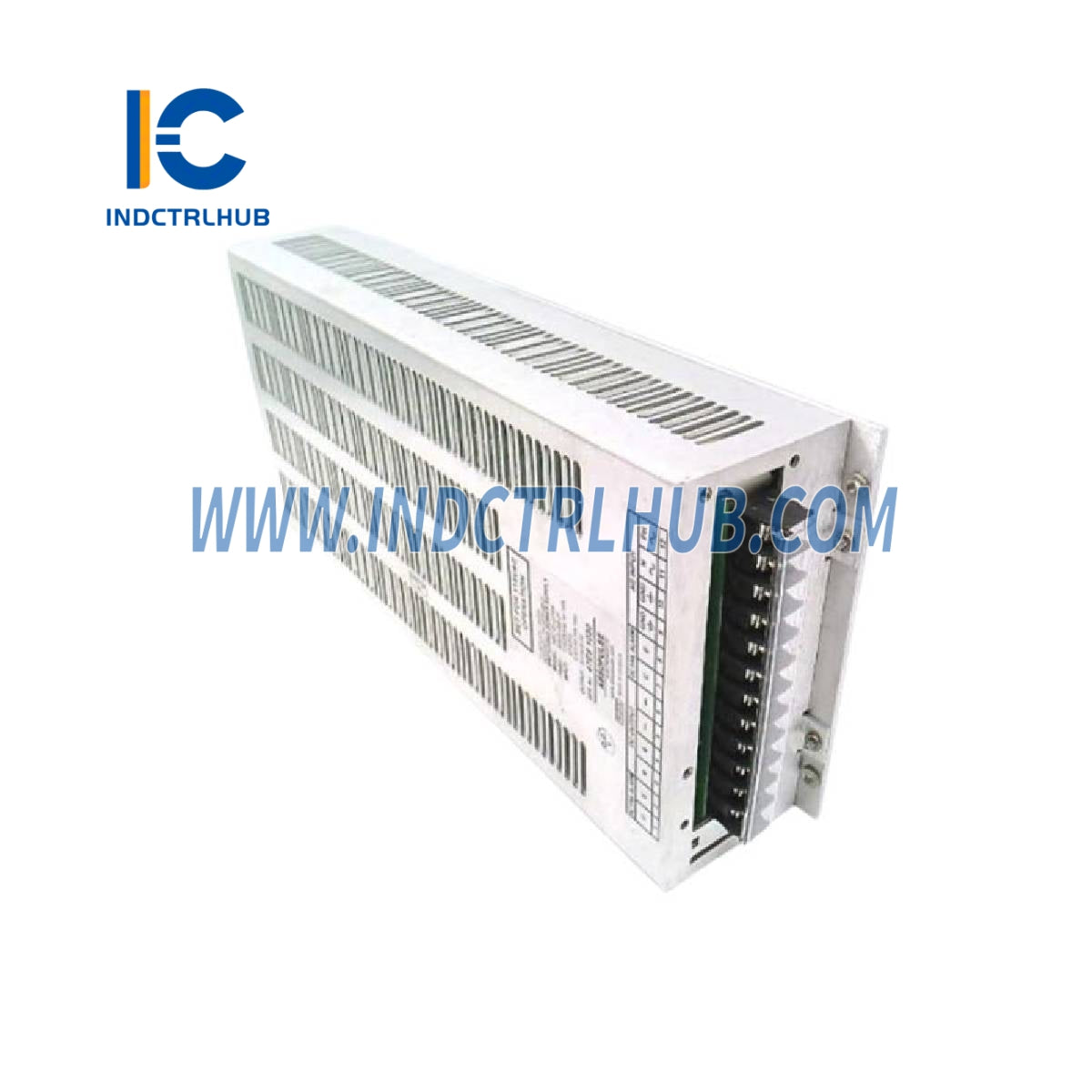

The Allen-Bradley 80026-088-01 is an AC/DC Switching Power Supply designed for industrial automation applications, particularly for use with the PowerFlex 7000 medium voltage drives. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module converts single-phase AC input to a stable 56V DC output, delivering 300W of power. It is engineered for reliability and efficiency in demanding environments such as manufacturing, process control, and industrial machinery. Known for its compact design and robust performance, it serves as a critical component in powering control systems and drive-related equipment.
Technical Specifications
The 80026-088-01 has the following specifications based on supplier data and industry standards:
| Item | Specification |
|---|---|
| Model/Part Number | 80026-088-01 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Single-phase input, 56V DC output, AC/DC 300W Power Supply |
| Series | PowerFlex 7000 Compatible |
| Input Voltage | 200-240 V AC, 50/60 Hz, Single Phase |
| Output Voltage | 56 V DC |
| Output Current | 3.4 A |
| Output Power | 300 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F, |
| Weight | Approximately 1.0 kg (2.2 lbs) |
Additional Details
The 80026-088-01 includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Converts AC input to regulated 56V DC output for industrial equipment |
| Mounting | DIN rail or panel mountable |
| Connectivity | Terminal blocks for input/output wiring |
| Features | High efficiency, compact design, overvoltage/overcurrent protection |
| Certifications | Designed for industrial standards (e.g., UL, CSA |
