Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley (Rockwell Automation) |
|
Model/Part Number |
80026-088-01-R |
|
Description |

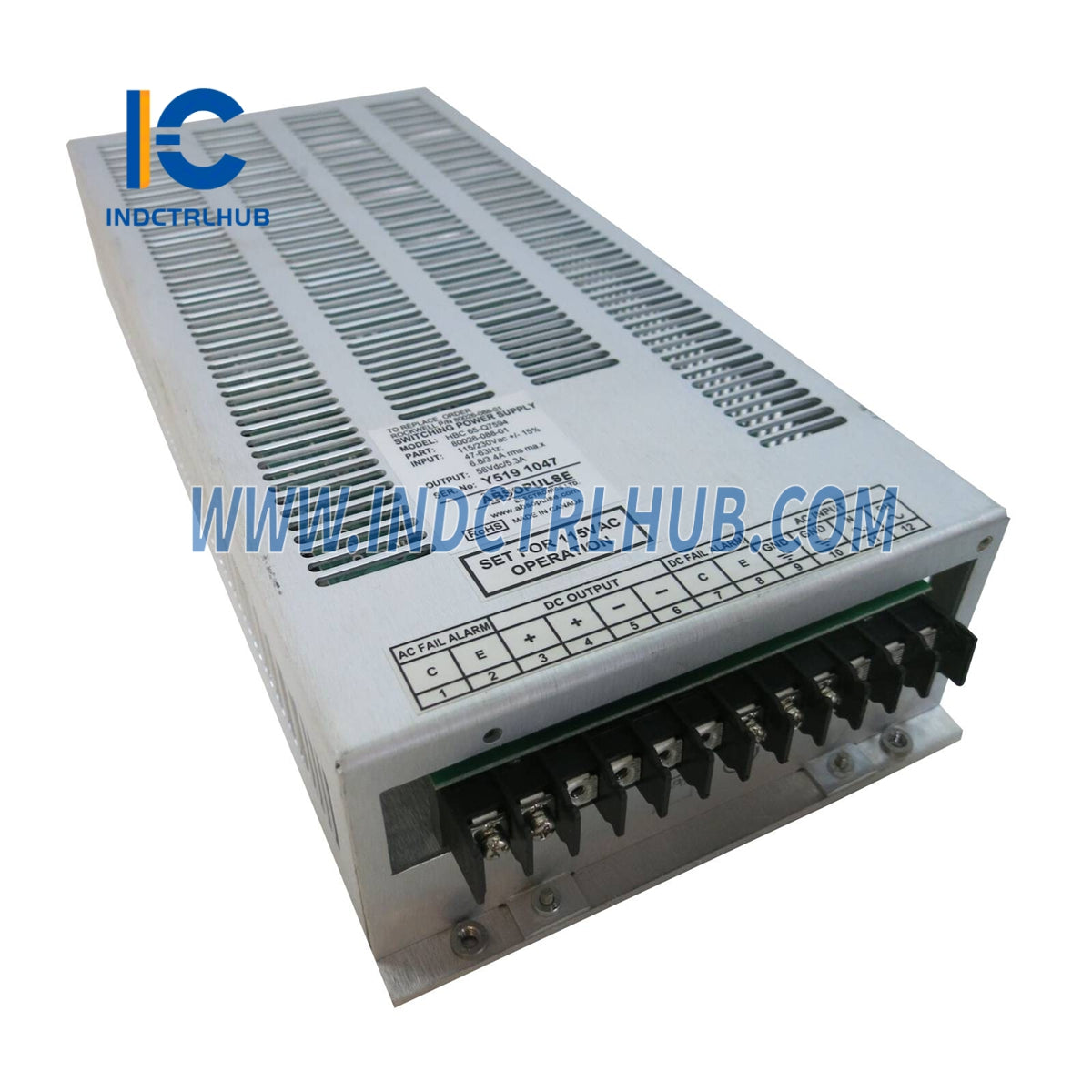

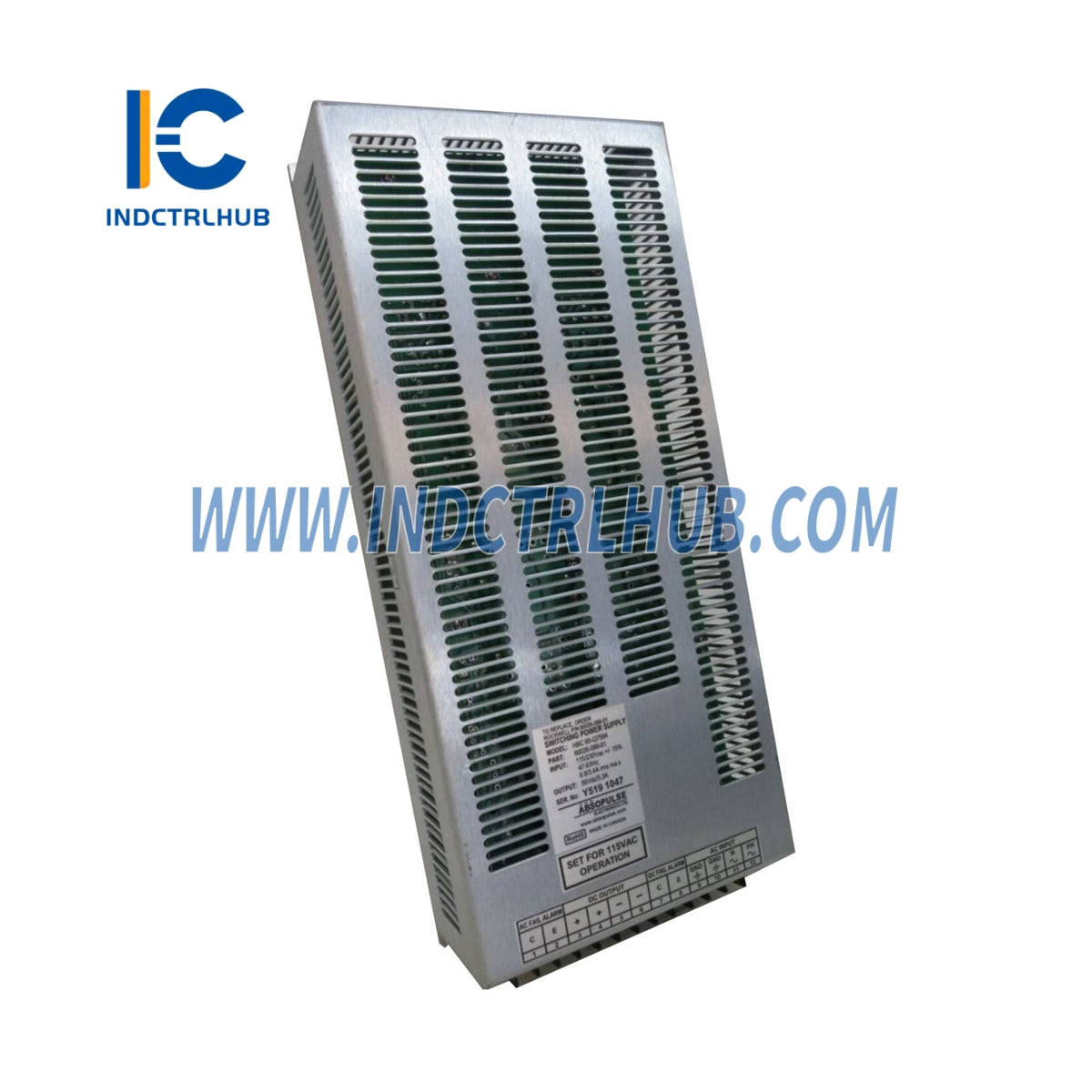

Switching Power Supply designed for PowerFlex 7000 Medium Voltage Drives |
|
Key Features |
300 W output, 56 VDC output, 3.4 A current, wide input frequency, compact & durable industrial design |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
80026-088-01-R |
|
Product Type |
Switching Power Supply |
|
Series |
PowerFlex 7000 |
|
Input Voltage |
85–265 VAC (universal input) |
|
Input Frequency |
47–63 Hz |
|
Output Voltage |
56 VDC |
|
Output Current |
3.4 A |
|
Output Power |
300 W |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Weight |
Approx. 1.0–1.5 kg (2.2–3.3 lbs) |
External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |

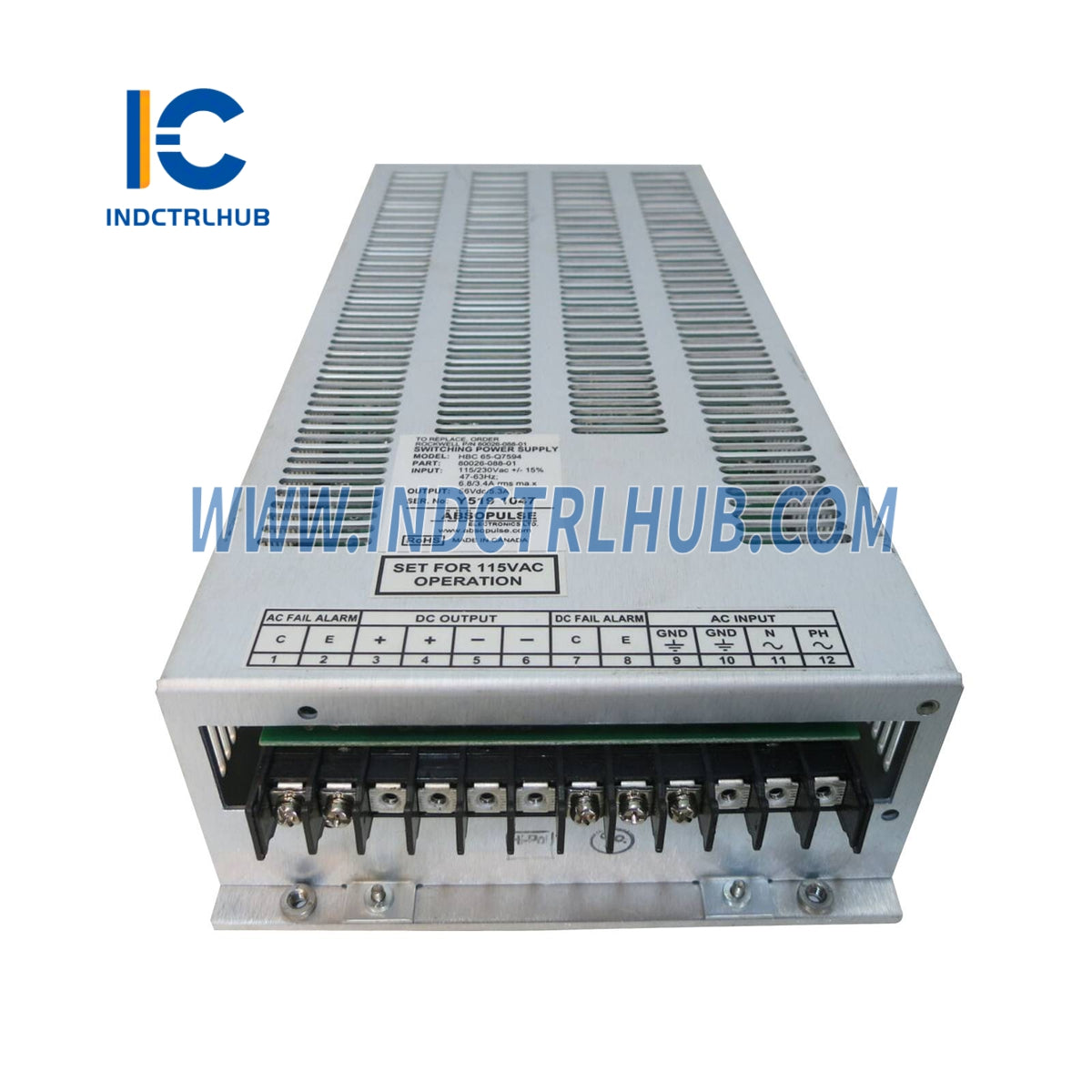

Terminal blocks for AC input and DC output; integrates with PowerFlex 7000 control systems |
Functional Features
|
Feature |
Details |
|---|---|
|
Power Conversion |
Converts AC input to stable 56 VDC for drive control components |
|
Efficiency |
High-efficiency switching minimizes energy loss |
|
Compatibility |
Designed for PowerFlex 7000 MV drives used in distributed control systems |
|
Durability |
Engineered for industrial environments; long-term reliability |
Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
80026-088-01-R |
|
Configuration |
Revision R, tailored to PowerFlex 7000 series |
