Product Description
Product Details

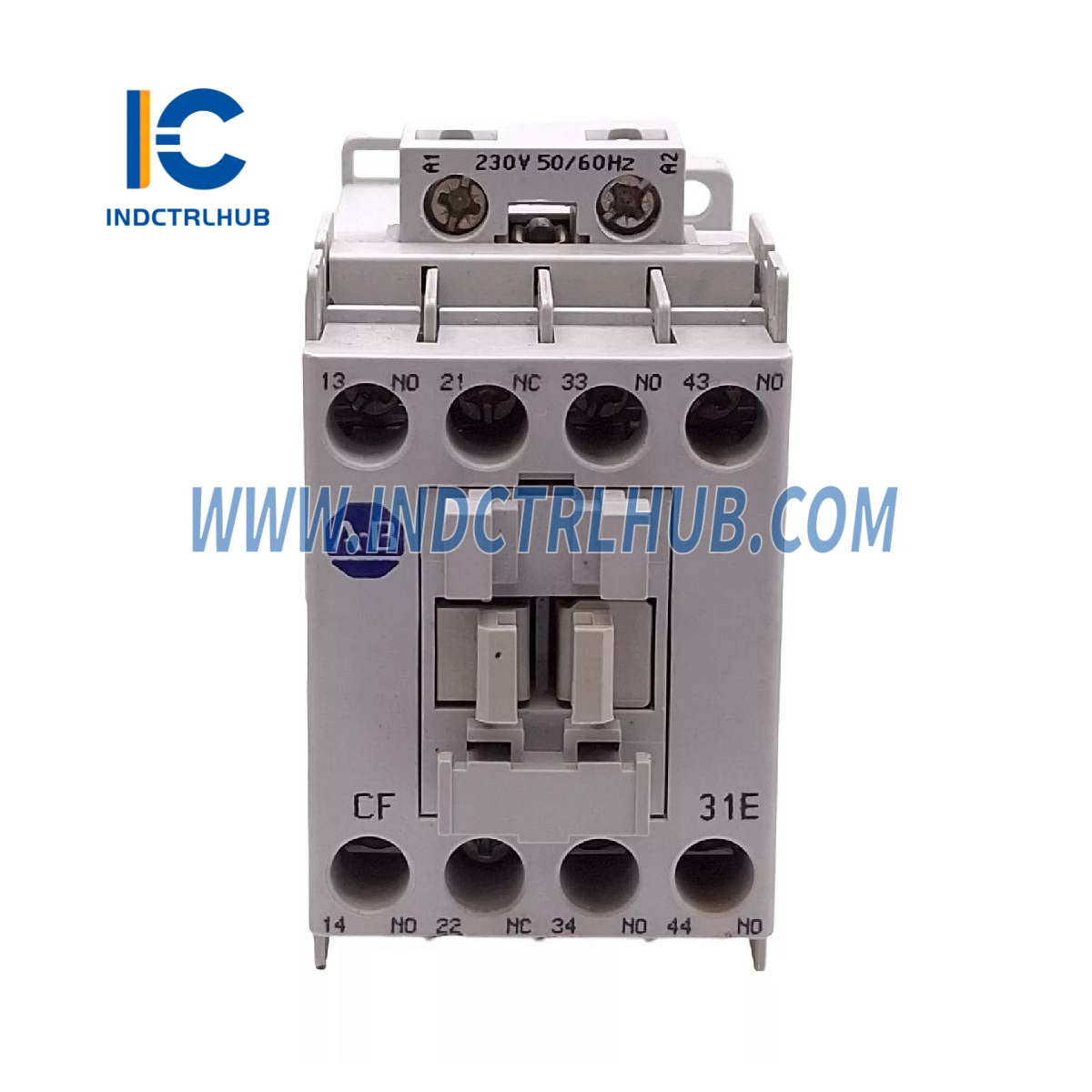

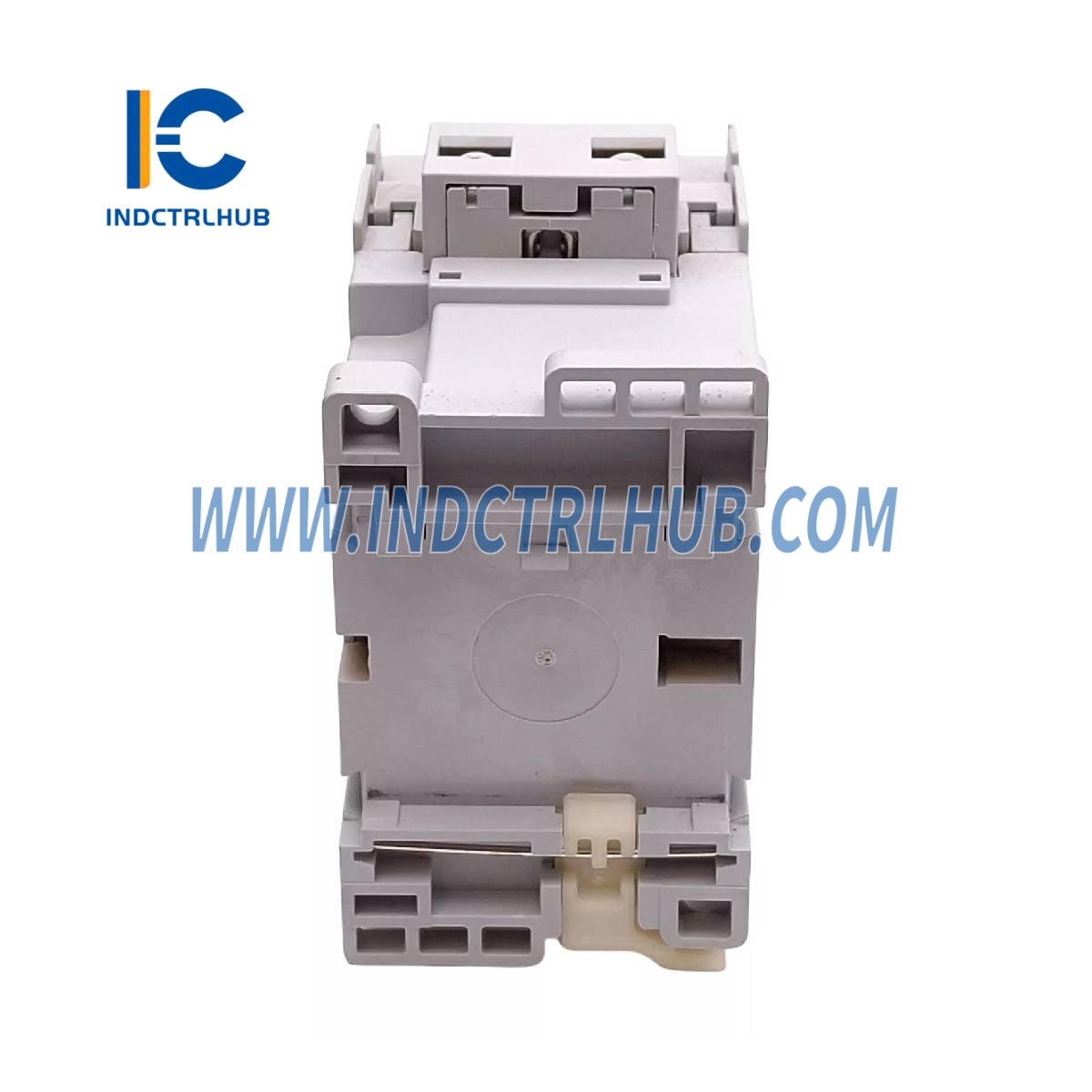

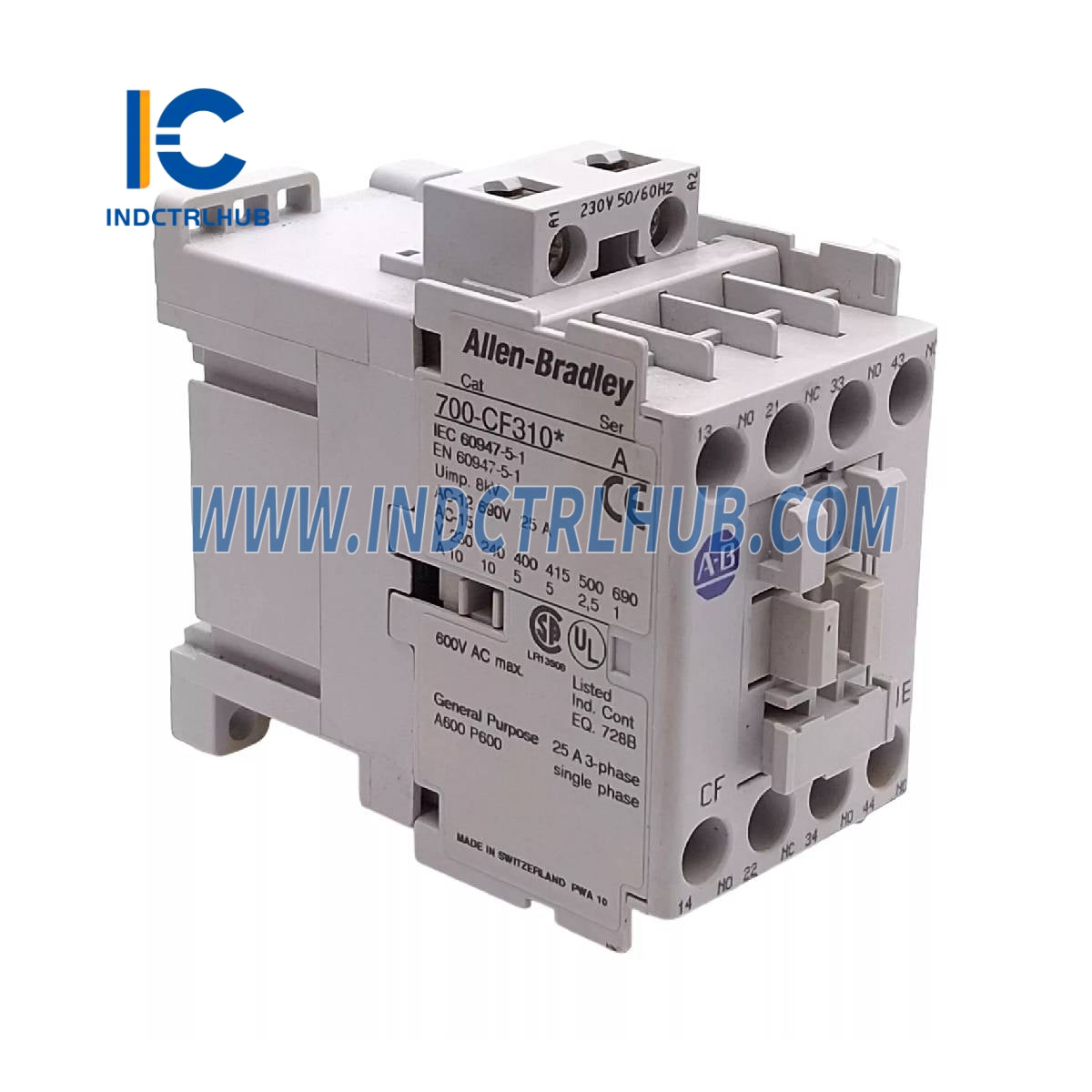

• Manufacturer: Allen-Bradley
• Model/Part Number: 700-CF310
• Description: Industrial Relay
General Specifications
|
Attribute |
Value |
|---|---|
|
Cat. No. |
700-CF |
|
Rated Insulation Voltage (Ui) |
IEC: 690V, UL/CSA: 600V |
|
Rated Impulse Strength (Uimp) |
6 kV |
|
High Test Voltage (1 minute) |
2500V (per IEC 60947-4) |
|
Rated Voltage (Ue) |
AC: 115, 230, 400, 500, 690V DC: 24, 48, 110, 220, 440V |
|
Short-Circuit Protection |
gG Fuse 20 A |
|
Rated Frequency |
50/60 Hz, DC |
|
Ambient Temperature (Storage) |
–55…+80 °C (–67…+176 °F) |
|
Ambient Temperature (Operation) |
–25…+60 °C (–13…+140 °F) |
|
Current Reduction (AC-12 at > 60 °C) |
–25…+70 °C (–13…+158 °F) |
|
Corrosion Resistance |
Humid-alternating climate, cyclic, per IEC 60068-2-30 and DIN 50 016, 56 cycles |
|
Altitude |
2000 m above sea level (per IEC 60947-4) |
|
Type of Protection |
IP2X (IEC 60529 and DIN 40050) in connected state |
|
Shock Resistance |
IEC 60068-2: Half sinusoidal shock 11 ms, 30 G (in 3 directions) |
|
Vibration Resistance |
IEC 60068-2: Static >2 G, in normal position no malfunction <5 G |
|
Standards Compliance |
UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, -5-1, Meets the material restrictions for European Directive 2002/95/EC (EU-RoHS) |
|
Certifications |
cULus Listed (File No. E14840, Guide NKCR/NKCR7), CE Marked, CCC Certified |
