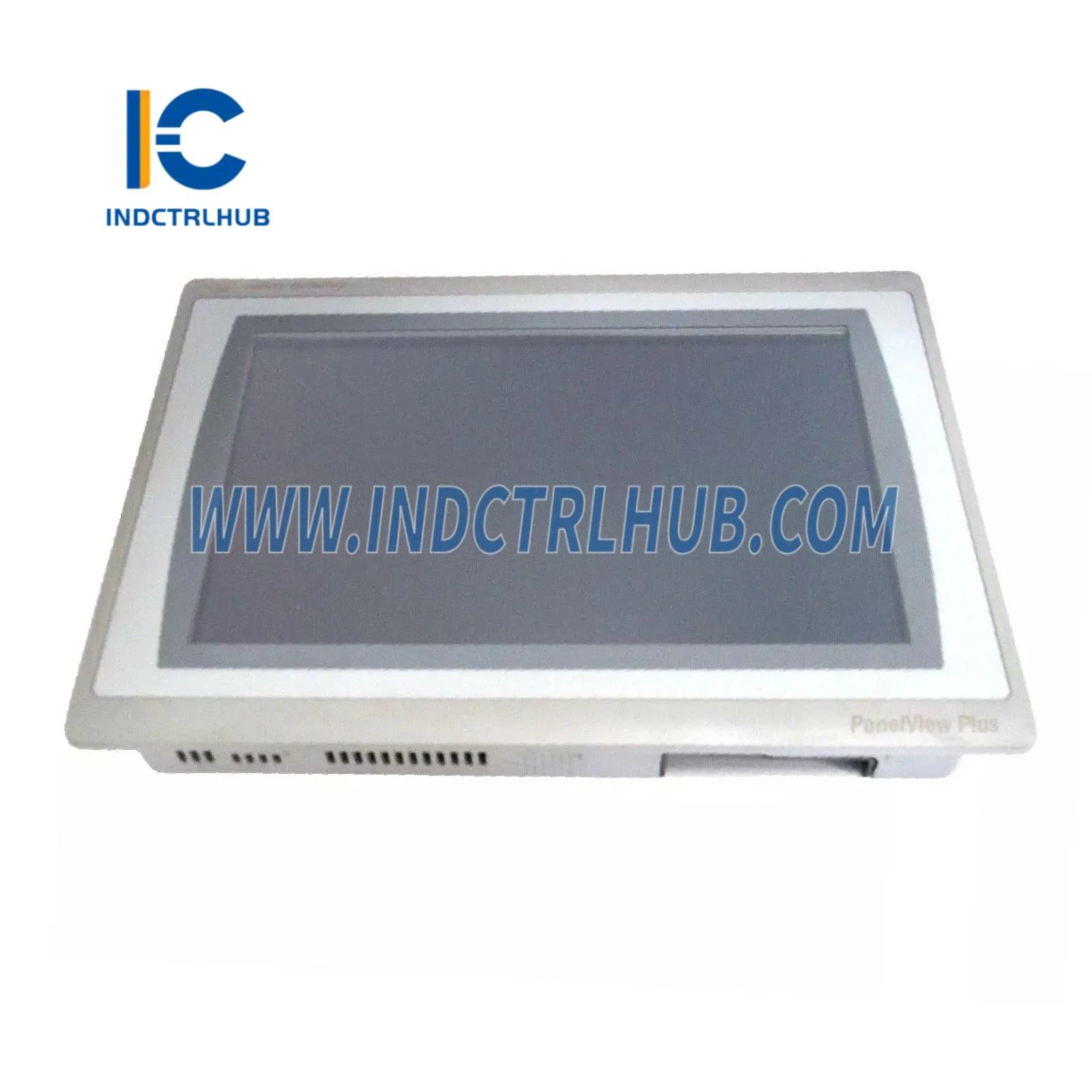

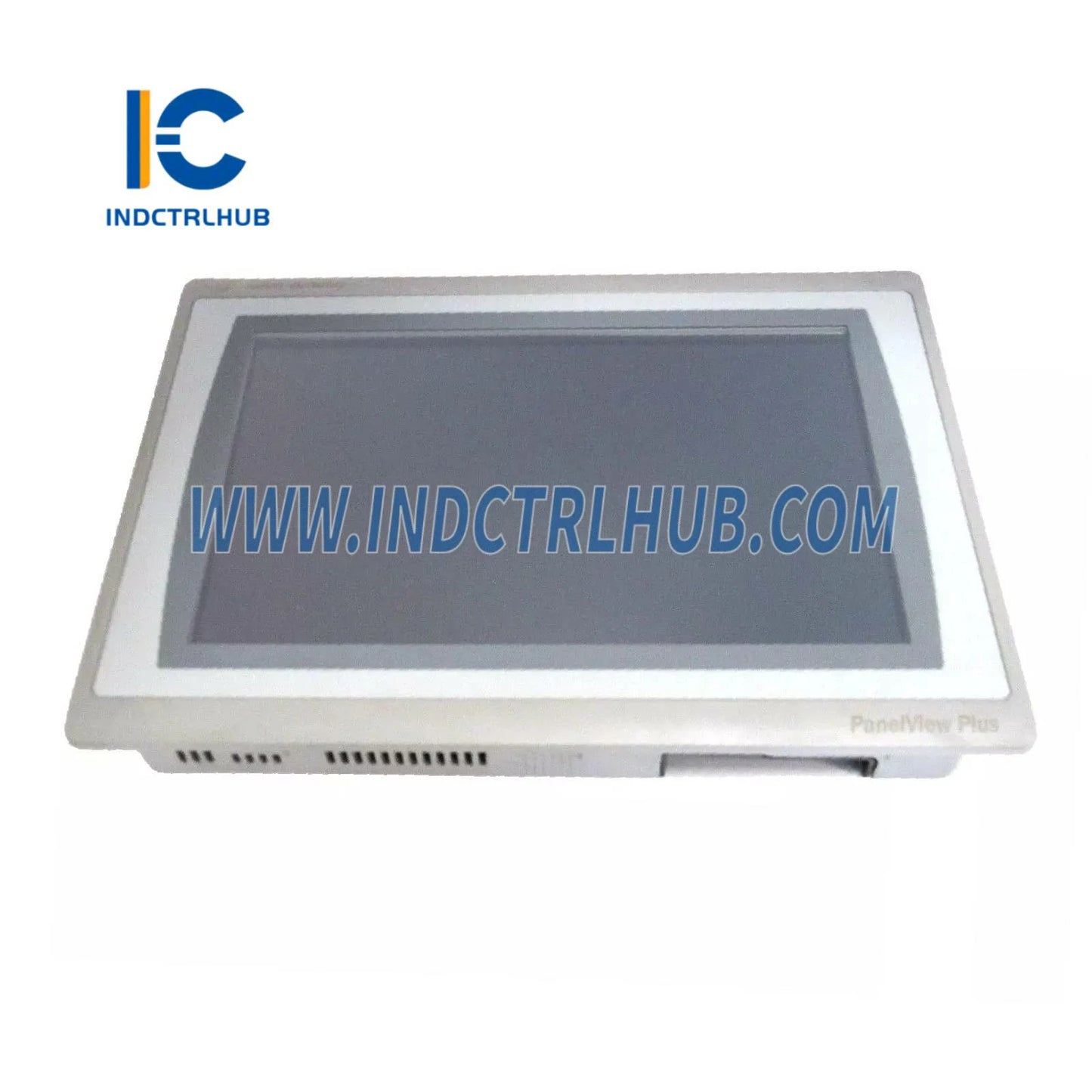

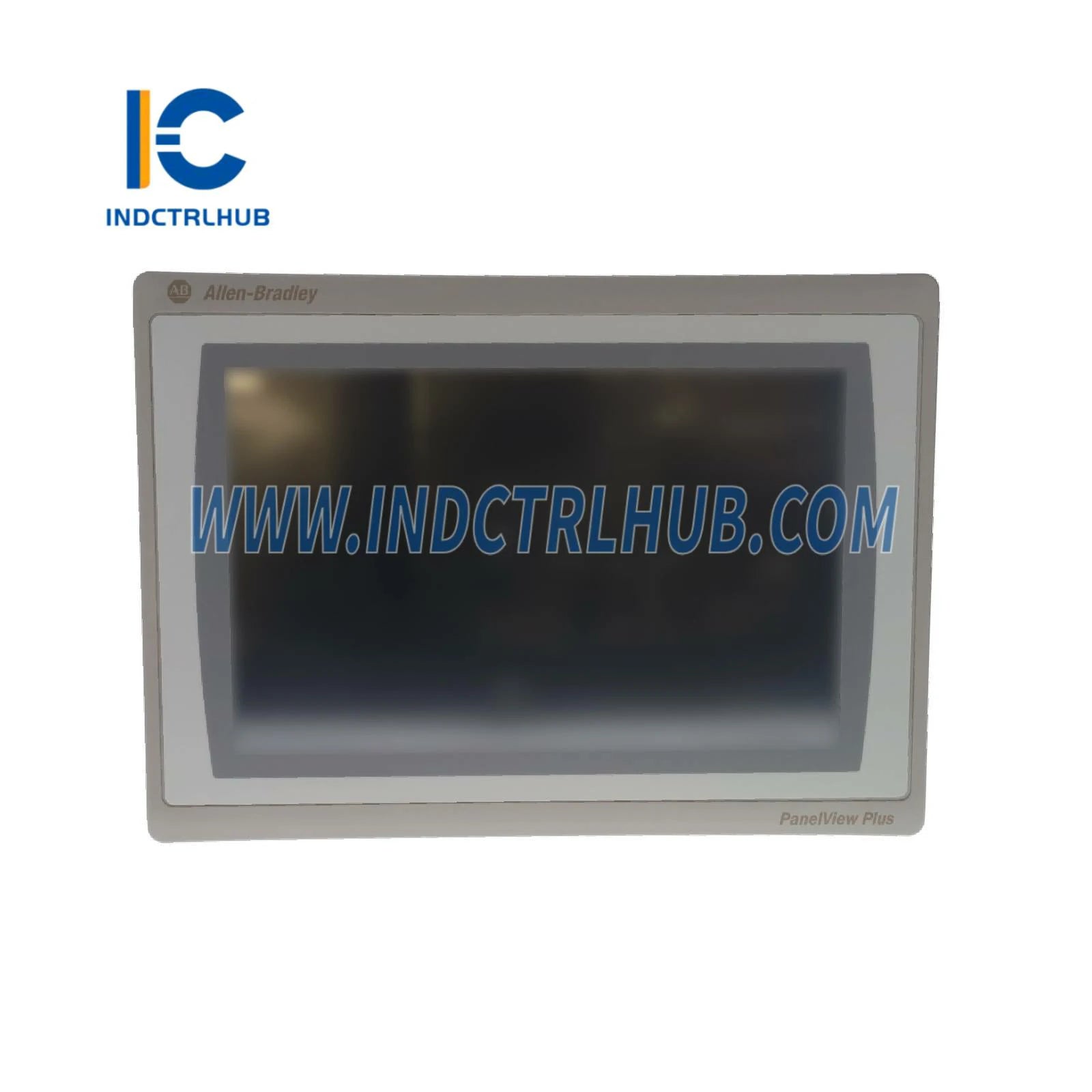

Product Description
✅
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model Number |
2711P-T12W21D8S |
|
Series |
PanelView Plus 7 Performance |
|
Display Size |
12.1-inch widescreen |
|
Input Type |
Touchscreen only |
|
Display Type |
TFT Color LCD |
🖥️
Display Specifications
|
Attribute |
Value |
|---|---|
|
Screen Type |
TFT Color LCD |
|
Display Size |
12.1 in. Widescreen |
|
Resolution |
1280 x 800 WXGA, 18-bit color graphics |
|
Viewing Area (WxH) |
261 x 163 mm (10.28 x 6.42 in.) |
|
Aspect Ratio |
16:10 |
|
Brightness |
300 cd/m² (nits) or more |
|
Backlight Life |
50,000 hr minimum at 40°C to half-brightness |
|
Touchscreen Type |
Analog resistive, 1 million presses rated |
|
Operating Force |
100 grams |
🔋
Memory & Storage
|
Attribute |
Series A |
Series B |
|---|---|---|
|
System Memory |
512 MB RAM / 512 MB storage |
4 GB RAM / 19.87 GB storage |
|
Application Storage |
80 MB (approx.) |
2 GB (approx.) |
|
SD Card Support |
1 slot, supports 1784-SD/SDHC cards |
🔌
Connectivity
|
Port Type |
Details |
|---|---|
|
USB Host Ports |
Series A: 2x USB 2.0 (Type A) Series B: 1x USB 3.0 + 1x USB 2.0 |
|
USB Device Port |
1x USB 2.0 (Type B) — functionality in future release |
|
Ethernet Ports |
2x 10/100Base-T, Auto MDI/MDI-X, supports DLR, star, linear topologies |
⚙️
Operating System & Software
|
Attribute |
Series A |
Series B |
|---|---|---|
|
Operating System |
Windows CE 6.0 with Extended Features |
Windows 10 IoT Core |
|
Compatible Software |
FactoryTalk View Studio ME v8.0+ FactoryTalk ViewPoint v2.6+ |
🔋
Power Requirements
|
Attribute |
Series A |
Series B |
|---|---|---|
|
DC Input Voltage |
24V DC nom (18…30V DC) |
Same |
|
Power Consumption |
50 W max (2.1 A at 24V DC) |
30 W max |
|
Supported Power Supplies |
SELV/PELV 24V DC supplies (e.g., 1606-XLP95E, 2711P-RSACDIN) |
📏
Physical Characteristics
|
Attribute |
Value |
|---|---|
|
Weight (approx.) |
1.82 kg (4.0 lb) |
|
Dimensions (HxWxD) |
252 x 297 x 69.6 mm (9.92 x 11.69 x 2.74 in.) |
|
Panel Cutout (HxW) |
224 x 269 mm (8.82 x 10.59 in.) |
