Product Description

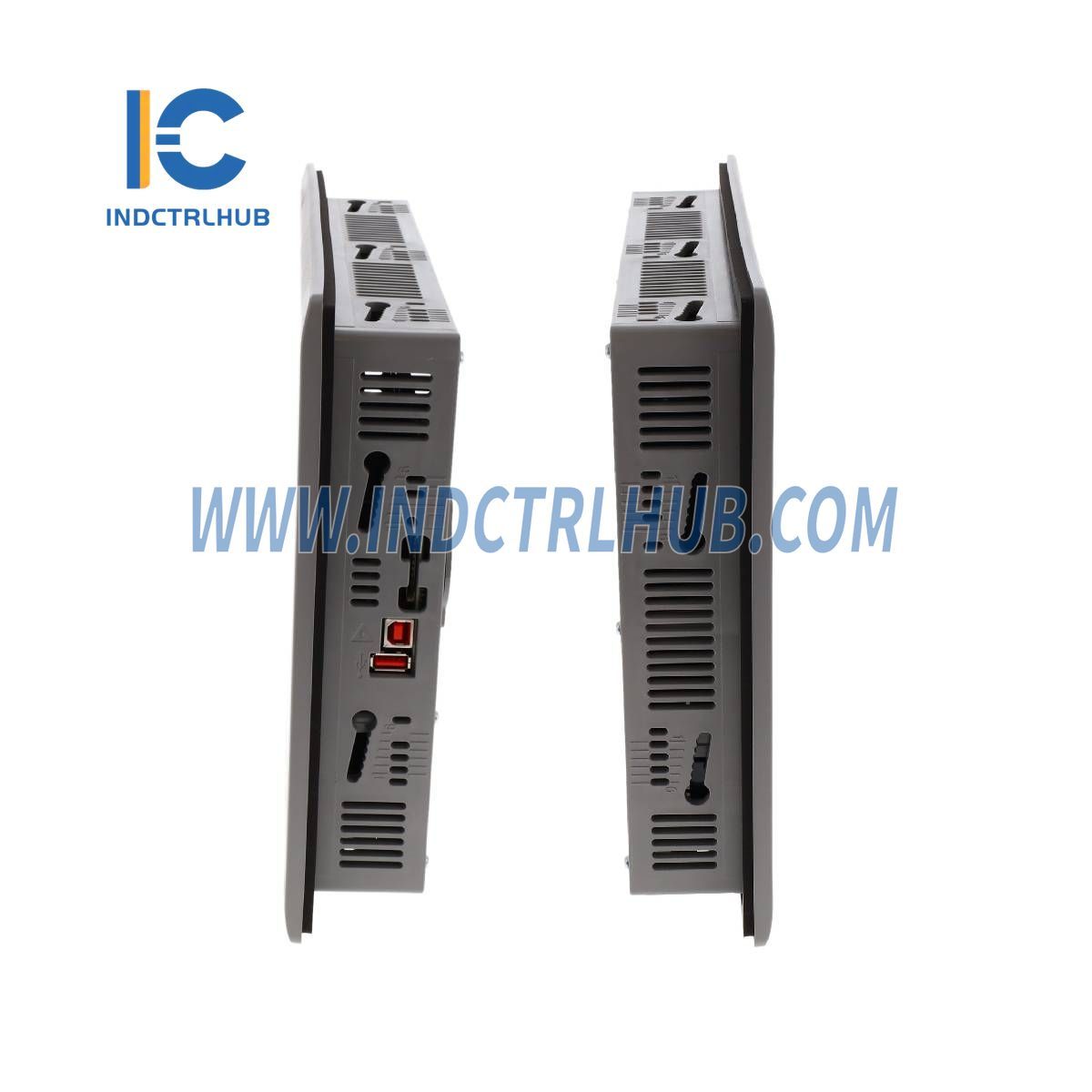

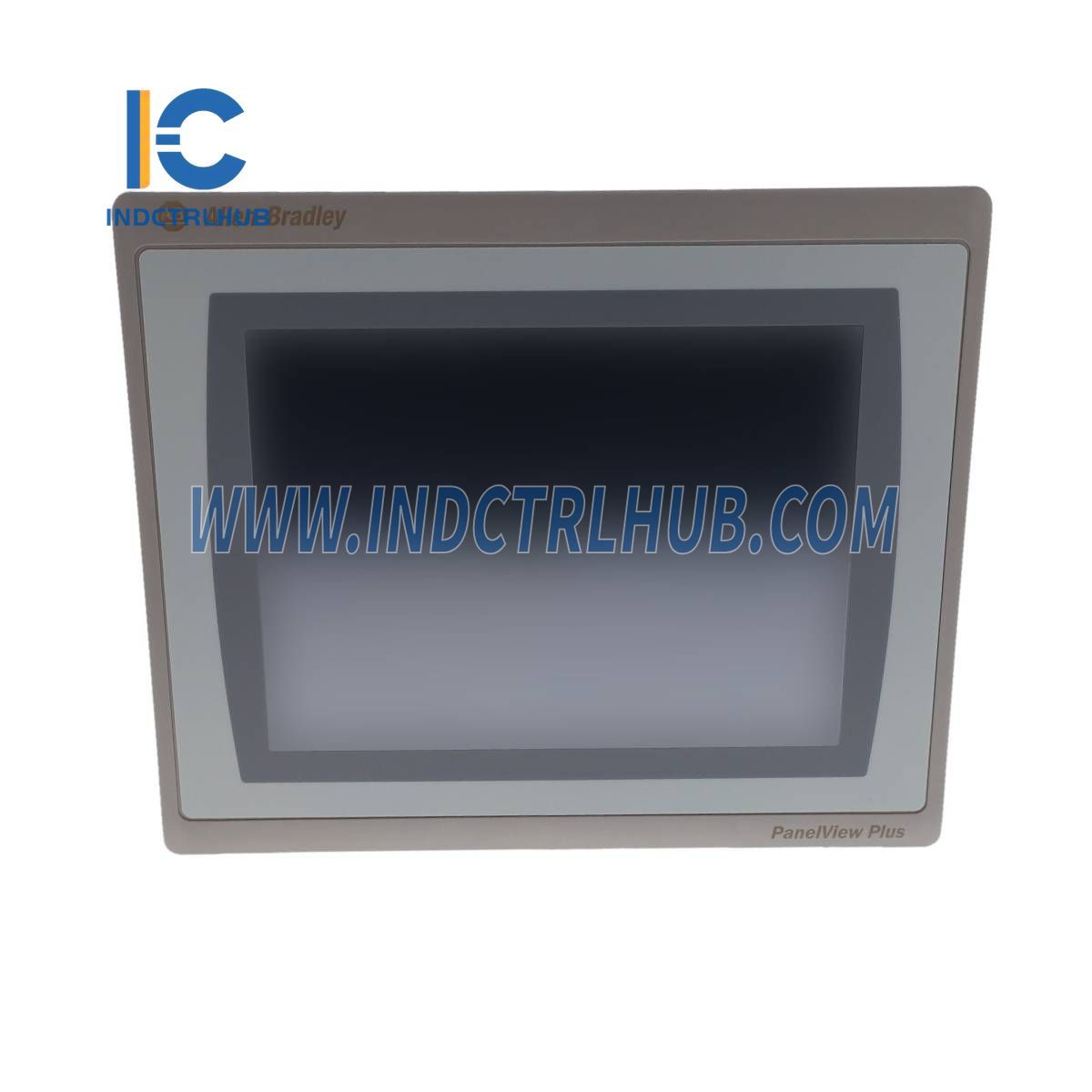

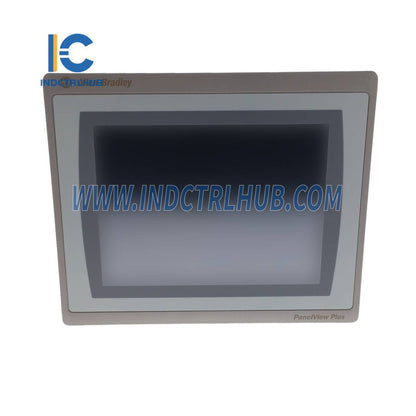

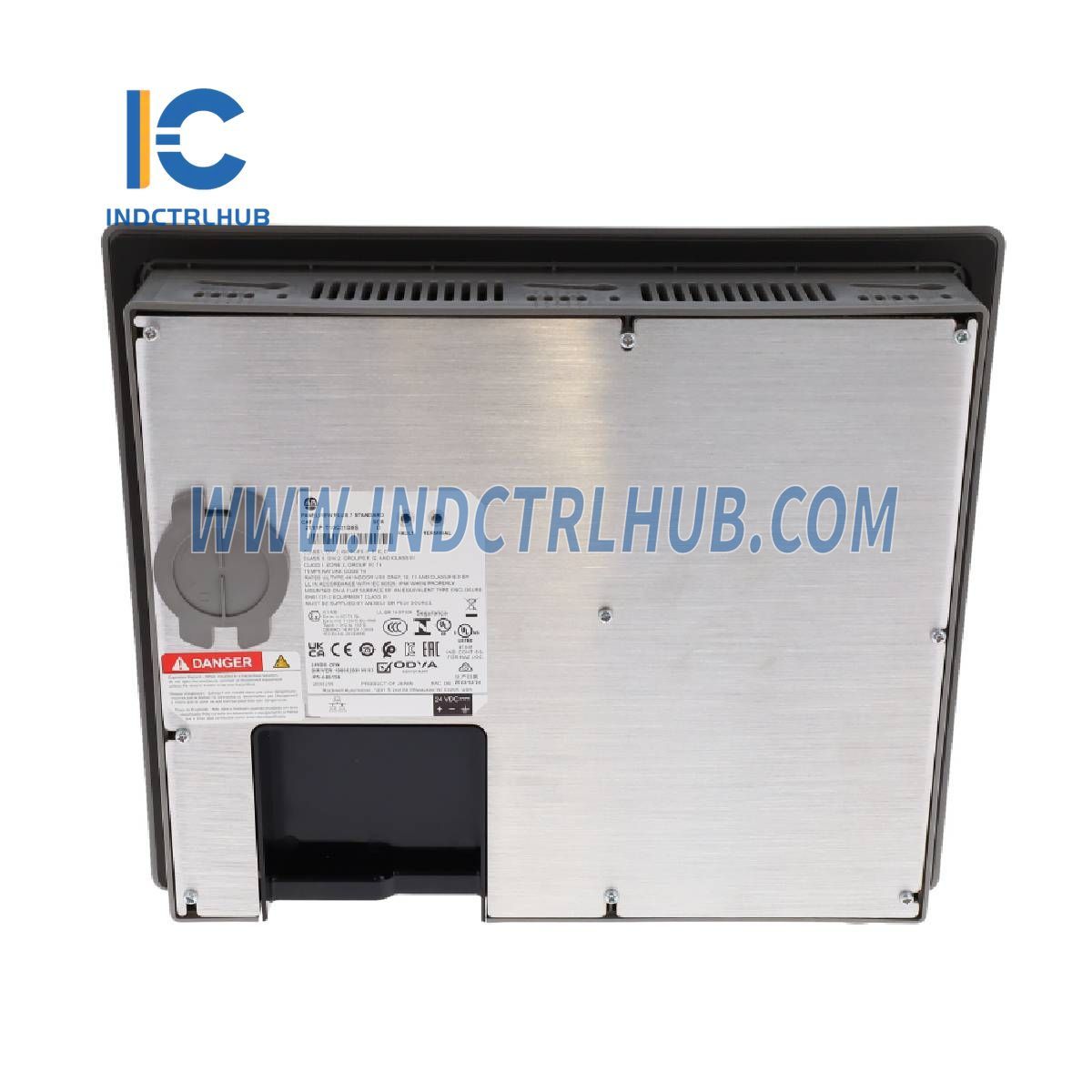

Allen-Bradley 2711P-T10C21D8S/B PanelView Plus 7 Standard
The Allen-Bradley 2711P-T10C21D8S/B is a PanelView Plus 7 Standard human-machine interface (HMI) designed for industrial automation applications. This model features a 10.4-inch color touchscreen and provides an intuitive interface for operators to monitor and control processes efficiently.
Display and Touchscreen Features
| Feature |
Specification |
| Display Type |
Color TFT LCD |
| Display Size |
10.4 inches diagonal |
| Viewing Area |
211 x 158 mm |
| Resolution |
800 x 600 SVGA, 18-bit color graphics |
| Aspect Ratio |
4:3 |
| Brightness |
300 nits (typical) |
| Backlight Life |
50,000 hours minimum at 40°C (104°F) |
| Touchscreen Type |
Analog resistive, supporting 1 million presses |
| Operating Force |
100 grams for activation |
Memory and Storage
-
System Memory: 512 MB RAM and 512 MB storage
-
User Storage: 80 MB nonvolatile memory for application files
-
SD Card Slot: Supports external storage with compatible Allen-Bradley SD cards:
| SD Card Model |
Capacity |
| 1784-SD1 |
1 GB |
| 1784-SD2 |
2 GB |
| 1784-SDHC8 |
8 GB |
| 1784-SDHC32 |
32 GB |
Connectivity and Communication
| Port Type |
Details |
| USB Ports |
One USB 2.0 Host Port (Type A) – Supports removable flash drives |
|
One USB 1.0 Device Port (Type B) – Allows connection to a host computer |
| Ethernet Ports |
Single Port (Cat. No. 21 models) – 10/100Base-T, Auto MDI/MDI-X with IEEE1588 support |
|
Dual Ports (Cat. No. 22 models) – Supports star, linear, or DLR (Device Level Ring) network topologies |
Operating System and Software Compatibility
-
Operating System: Windows CE, including:
- FTP server
- VNC client/server
- ActiveX controls
- PDF reader
- Third-party device support
-
Firmware Compatibility: Version 13.x and later (Series D models only)
-
Programming Software:
- FactoryTalk View Studio for Machine Edition (Version 8.0 or later)
- FactoryTalk ViewPoint (Version 2.6 or later)
Power and Electrical Specifications
| Specification |
Value |
| Input Voltage |
24V DC nominal (18–30V DC), non-isolated |
| Maximum Power Consumption |
50W (2.1A at 24V DC) |
| Recommended Power Supply |
Allen-Bradley 2711P-RSACDIN |
| Power Supply Type |
AC-to-DC conversion, 85–265V AC, 47–63 Hz |
Mechanical and Environmental Specifications
| Feature |
Specification |
| Weight |
1.82 kg (4.0 lb) |
| Dimensions (H x W x D) |
252 x 297 x 56.5 mm (9.92 x 11.69 x 2.22 in.) |
| Cutout Dimensions (H x W) |
224 x 269 mm (8.82 x 10.59 in.) |
Battery and Real-Time Clock
| Feature |
Specification |
| Backup Battery |
CR2032 lithium coin cell |
| Accuracy |
±2 minutes per month |
| Battery Life |
Minimum 4 years at 25°C (77°F) |
| Replacement Part Number |
Allen-Bradley 2711P-RY2032 |
