Product Description
Product Overview:
- Manufacturer: Allen-Bradley

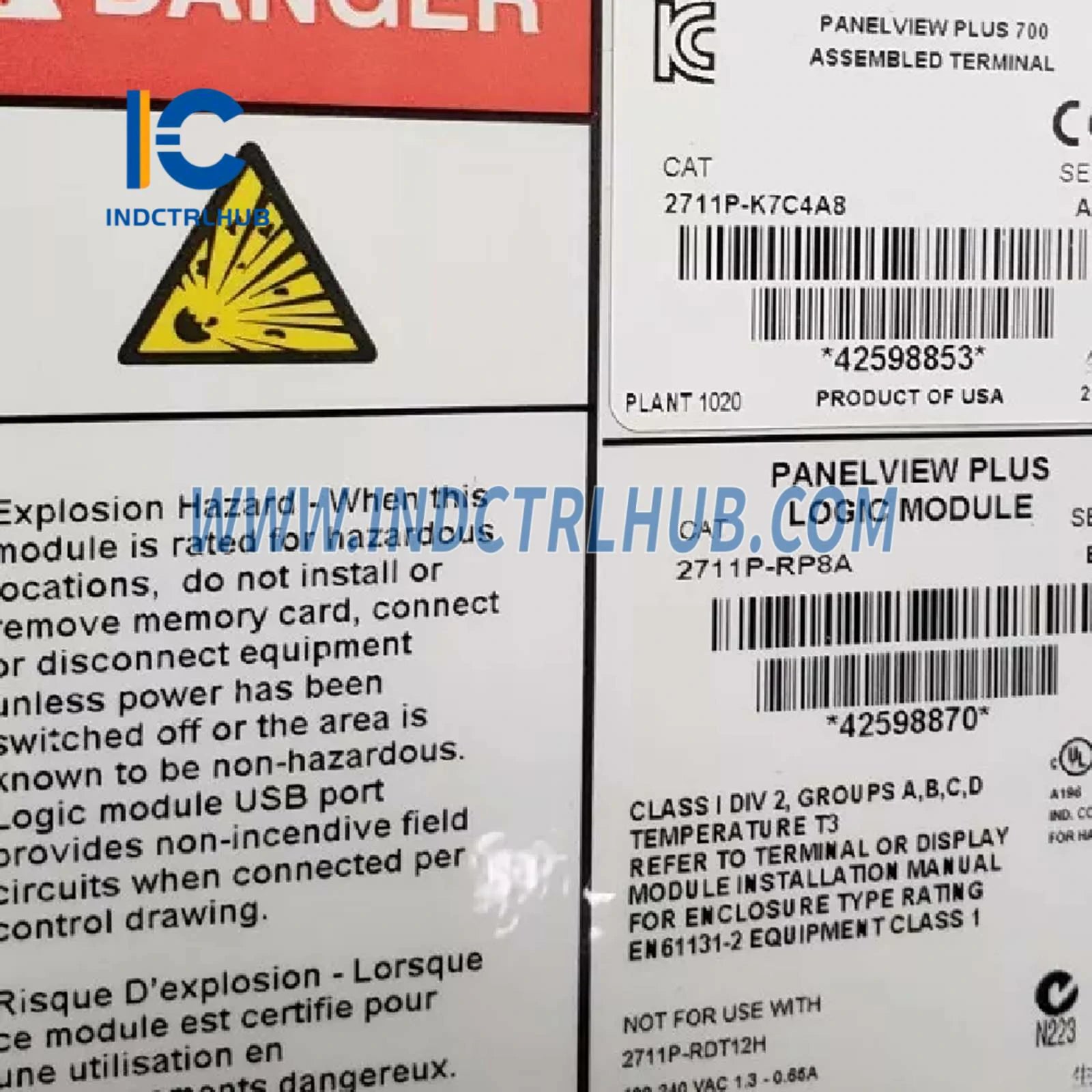

- Model/Part Number: 2711P-K7C4A8
- Description: PanelView Plus 6 Terminal
- Series: PanelView Plus 6 (700 Color Display Terminal)
- Display Size: 6.5 inches
- Display Type: Color active-matrix TFT
- Input Type: Keypad
- Operating System: Windows CE 6.0 (without extended features and file viewers)
Electrical Specifications:
| Attribute | Specification |
|---|---|
| Supply Voltage Type | AC (100 V, 50/60 Hz) |
| Power Consumption | Max 160 VA, Typical 65 VA |
| Communication Ports | 1 x Ethernet (10/100 Mbps, Auto-MDI/MDI-X) 1 x RS-232 2 x USB Host Ports |
| Supported Protocols | TCP/IP, EtherNet/IP |
| Real-Time Clock Battery | Battery-backed clock, ±2 minutes per month accuracy, 4-year battery life at 25°C |
| External Storage | Supports Secure Digital (SD) card, USB flash drives |
Key Features:
| Attribute | Specification |
|---|---|
| Number of Function Keys | 22 Programmable function keys (F1...F10, K1...K12) |
| Supported Languages | 20 Online languages |
| Supports Recipes | Yes |
| Process Value Representation | Yes |
| Message System | Yes (with buffer and confirmation) |
| Display Resolution | 640 x 480 pixels (horizontal x vertical) |
| Luminance | 300 cd/m² (Nits) |
| Touch Technology | None (Keypad only) |
| Keypad Description | Stainless-steel membrane, numeric, navigation, and function keys |
| Memory | 512 MB RAM, 512 MB non-volatile memory (approx. 79 MB free user memory) |
Environmental Specifications:
| Attribute | Specification |
|---|---|
| Enclosure Rating (NEMA) | NEMA: 12, 13, 4X IP54, IP65 (front side) |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -25°C |
| Humidity | 5% to 95%, non-condensing |
| Vibration | 10 to 57 Hz (0.012 peak-to-peak displacement) 57 to 500 Hz (2 G peak acceleration) |
| Shock | Operating: 15 G at 11 ms |
| Altitude (Operating) | 2000 meters |
Mechanical Specifications:
| Attribute | Specification |
|---|---|
| Dimensions (HxWxD) | Height: 193 mm (7.6 in) Width: 290 mm (11.4 in) Depth: 55 mm (2.17 in) |
| Cutout Dimensions | 167 x 264 mm |
| Weight | Approx. 1.8 kg (4 lbs) |
| Wall Mounting/Direct Mounting | Yes (Rail mounting not supported) |
Software Compatibility:
| Attribute | Specification |
|---|---|
| Supported Software | FactoryTalk View Machine Edition (version 6.0 or later) FactoryTalk ViewPoint (version 1.2 or later) |
